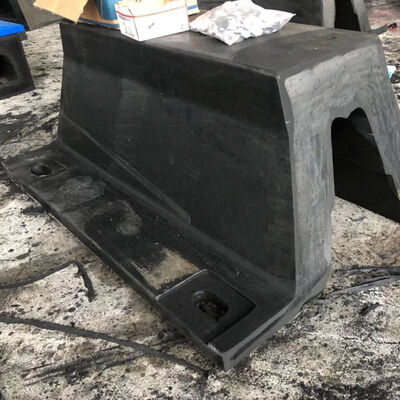

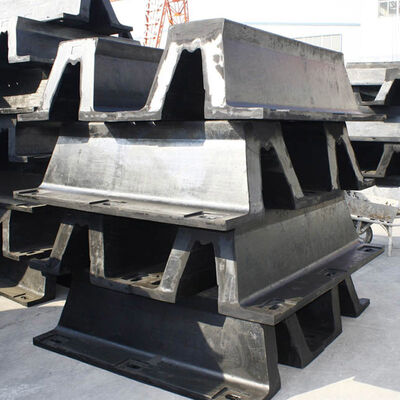

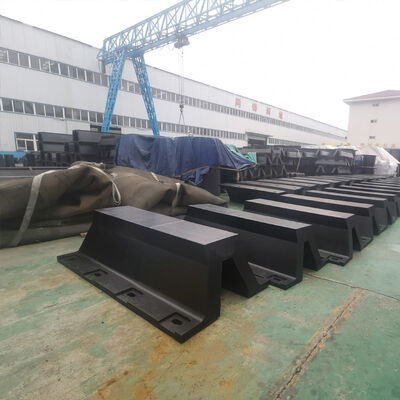

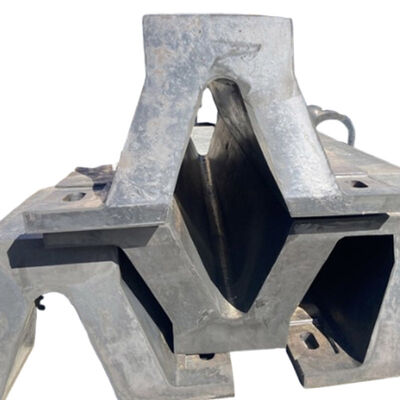

Arch Rubber Fender with Shock Absorption System for High Load Energy Absorption and Low Maintenance Cost

Arch Rubber Fender is a marine structural protection system engineered for high load energy absorption and controlled impact mitigation between vessel hulls and offshore or coastal infrastructure. The product is manufactured using marine grade elastomer compounds through controlled vulcanization and molding processes, ensuring stable molecular integrity, long term elasticity retention, and resistance to fatigue under repeated compressive loading cycles.

The structural configuration is based on an arch geometry optimized for offshore engineering conditions where vessel movement is influenced by wave action, wind load, and dynamic positioning forces. The system functions through progressive deformation under impact load, converting kinetic energy into elastic strain energy and reducing stress concentration on both vessel structures and fixed marine installations.

The product is designed for offshore terminals, coastal loading stations, and exposed marine environments where operational conditions include continuous wave impact, saltwater corrosion exposure, and irregular vessel berthing angles.

A liquefied gas offshore transfer terminal located in Ras Laffan, Qatar implemented Arch Rubber Fender systems to improve berthing safety for shuttle tankers operating under high exposure offshore conditions. The facility operates in an environment characterized by strong wind influence, tidal variation, and wave induced vessel movement which previously resulted in unstable docking behavior and accelerated wear of existing fender systems.

The operational challenge involved reducing impact stress during vessel approach under dynamic positioning conditions while maintaining structural protection for offshore loading arms and platform interfaces. Existing protection systems exhibited limited performance under angular vessel contact and fluctuating load conditions.

Arch Rubber Fender units were installed at primary contact points on the offshore jetty structure with reinforcement of mounting interfaces to accommodate multi directional load transmission. After implementation, monitoring data indicated improved stability during vessel berthing and reduced impact fluctuation under wave influenced motion. The system contributed to improved operational continuity and reduced maintenance intervention frequency in offshore conditions.

• Offshore Structural Load Adaptation Design: The arch configuration is engineered to accommodate multi directional impact forces generated under offshore vessel motion conditions. The structure distributes energy across the elastomer body reducing localized stress concentration and improving load stability under irregular contact angles.
• High Resistance Marine Elastomer System: The material system is formulated for extreme marine exposure conditions including high salinity, ultraviolet radiation, and continuous moisture saturation. The elastomer maintains mechanical stability and elasticity performance under long term cyclic compression in offshore environments.
• Dynamic Energy Dissipation Mechanism: The fender operates through controlled staged deformation under variable loading conditions. Energy absorption begins with initial elastic compression followed by progressive dissipation across the arch geometry ensuring stable response under fluctuating impact forces.
• Reinforced Offshore Mounting Integration: The installation system is designed for offshore structural integration with reinforced anchoring capability to withstand multi directional loads, wave induced movement, and continuous dynamic stress conditions without loss of alignment stability.

• Offshore Energy Transfer Terminals: Applied in LNG, oil and chemical transfer facilities where vessel berthing occurs under dynamic positioning and wave influenced conditions requiring stable impact absorption and structural protection.
• Coastal Industrial Loading Platforms: Used in exposed coastal infrastructure where vessel interaction occurs under irregular environmental forces requiring controlled energy management and structural durability.
• Deep Water Port and Jetty Systems: Installed in deep water marine terminals where vessel size and motion amplitude generate high impact loads requiring robust structural buffering systems.

• Offshore Engineering Manufacturing Capability: Hongruntong Marine provides engineered marine protection systems designed for offshore and high exposure environments with integrated material processing and structural design capability.
• Advanced Elastomer Technology for Extreme Conditions: The company utilizes controlled rubber compounding and vulcanization processes to ensure stable performance under high salinity, UV exposure, and continuous mechanical cycling.
• Project Specific Offshore Engineering Design: Customization is available for offshore platform geometry, vessel dynamic behavior, and energy absorption requirements ensuring system compatibility with complex marine environments.
• Global Marine Infrastructure Experience: The organization supports international offshore and coastal engineering projects with structured quality control systems ensuring consistent performance under demanding operational conditions.
