800H Arch Rubber Fender Thick Black Rubber Material For Boat Dock Buffer Protect
Description

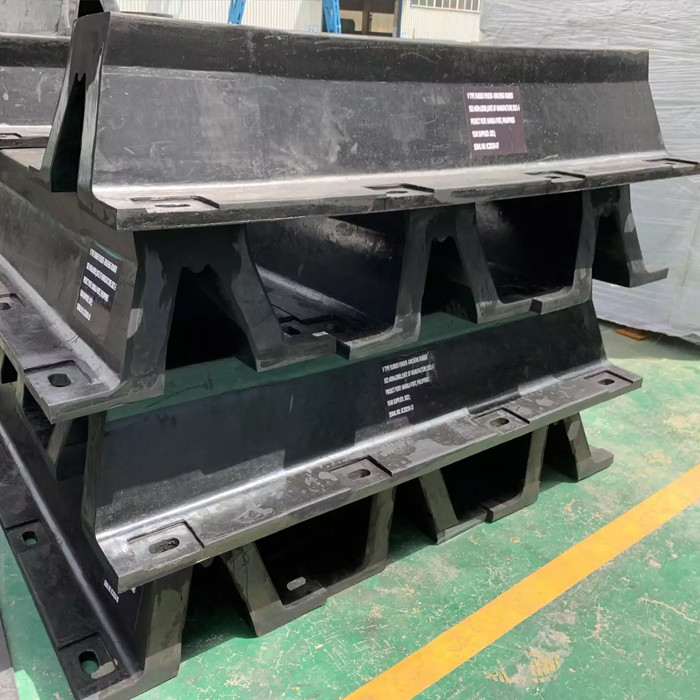

Arch Rubber Fender is a V-shaped rubber fender. By optimization, it can absorb more energy than the traditional rubber fender. As one of the most popular marine fender systems in the world, arch fenders are simple and rugged. It can be used in limited space or restricted height conditions, and provides reliable service for a wide variety of berths even under the most severe conditions. Arch fenders could be used as a single element, and also can mount the UHMW-PE pad as a system, which has a bigger compression ratio, higher energy absorption, and lower reaction force.
Arch rubber fenders are molded from a single piece of rubber, and the simple design makes them easy to install and reduces the amount of maintenance required. The arch design can significantly reduce the torsion at the bottom of the fender. The base on both sides of the fender is attached to the dock surface, and the arches can compress and move at will without deterioration under pressure, which gives them better stability and stronger adhesion to the supporting structure. Together with the use of UHMW-PE pad, it will also reduce the friction coefficient between the ship and the fender, avoiding damage to the ship and improving the service life of the fender.
Specifications
| Place of Origin | China |
| Brand Name | DockFender |
| Model Number | DF-V800H |
| Processing Service | Moulding |
| Material | Natural Rubber |
| Product Name | 800H Arch Rubber Fender Thick Black Rubber Material For Boat Dock Buffer Protect |
| Application | Industrial, Marine, Dock, Port |
| Color | Black |
| Size | Customer's Requirements |
| MOQ | 1 |
| Advantage | Long Working Life |
| Package | Plastic Bag Packing + Pallet |
| Payment Term | T/T, L/C |
| Model | W | B | F | C | H |
| [mm] | [mm] | [mm] | [mm] | [mm] | |
| DF-V200H | 400 | 320 | 145 | 128 | 200 |
| DF-V250H | 500 | 410 | 175 | 160 | 250 |
| DF-V300H | 600 | 490 | 225 | 196 | 300 |
| DF-V400H | 800 | 670 | 300 | 260 | 400 |
| DF-V500H | 1000 | 840 | 375 | 325 | 500 |
| DF-V600H | 1200 | 1010 | 450 | 390 | 600 |
| DF-V800H | 1600 | 1340 | 600 | 520 | 800 |
| DF-V1000H | 2000 | 1680 | 750 | 650 | 1000 |
Features
1. High energy absorption and low reaction force
2. High stress concentration
3. Easy replacement firm for installation
4. Easy to install and change
5. Tough and reliable design
6. Wide ranges of sizes and energy capacities
7. Bolted-on UHMW PE reduce the friction factor and shear force
Applications
● RoRo berths
● General cargo
● Workboat harbours
● Barge and tug berths
● Cruise terminals
● Container berths
Material of main accessories
1. Bolt: Q235 hot-dip galvanised /1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316
2. Washer: Q235 hot-dip galvanised.
3. Pre-built-in nut: 1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316
4. Foot rod and board: Q235
Inspection and certificate
We use modern technology to design and manufacture, and through rigorous field testing.
The following tests are to be conducted:
- Rubber performance test including tensile, ozone and abrasion test
- Energy absorption and reaction test
Our QC department will inspect each product and offer FACTORY INSPECTION REPORT before delivery. We can also invite the third party inspection agencies including CCS, ABS, BV, LR, DNV-GL to inspect and offer certificates according to customer requirements.
Inspect items as below:
1. Rubber tensile, ozone and abrasion test.
2. Rubber fender energy absorption and reaction test.
Packing and delivery
Advantage: professional, efficient, economical and environmental.
Due to our products are large size and heaviness, normal we do not use packaging during shipping in order to reduce costs. So the professional packing skills are crucial, not only it need to protect our products, but also need to protect the containers, vehicles and personnel. Our core strength comes from years of work experience and a responsible attitude.
