Heat Resistant Arch Rubber Fender Eco Friendly Natural Rubber 300H For Boat Dock
Description

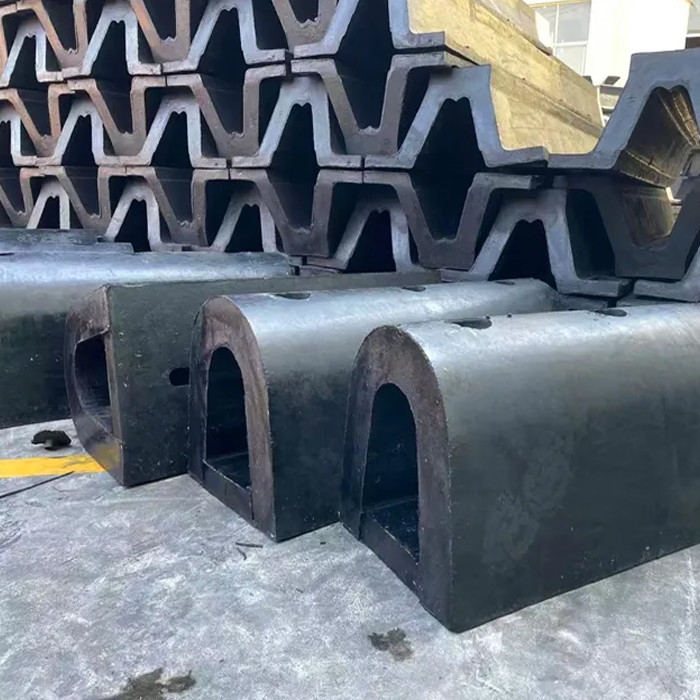

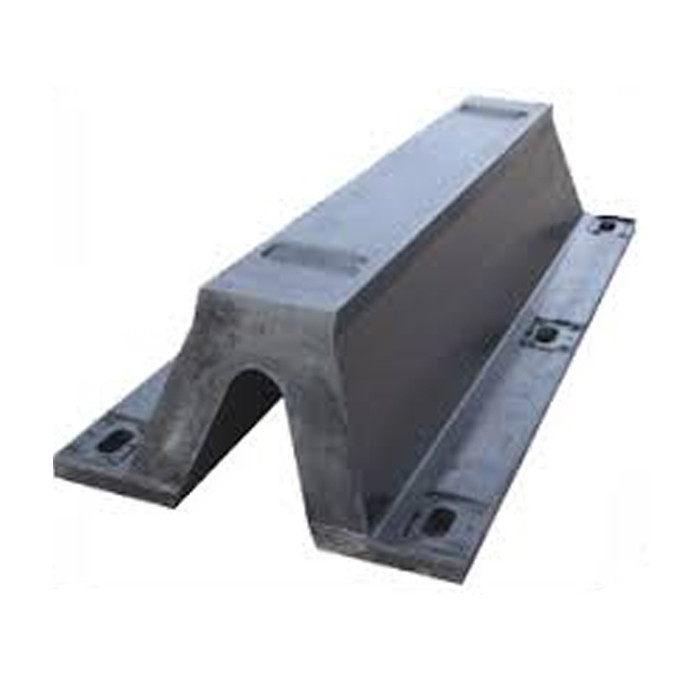

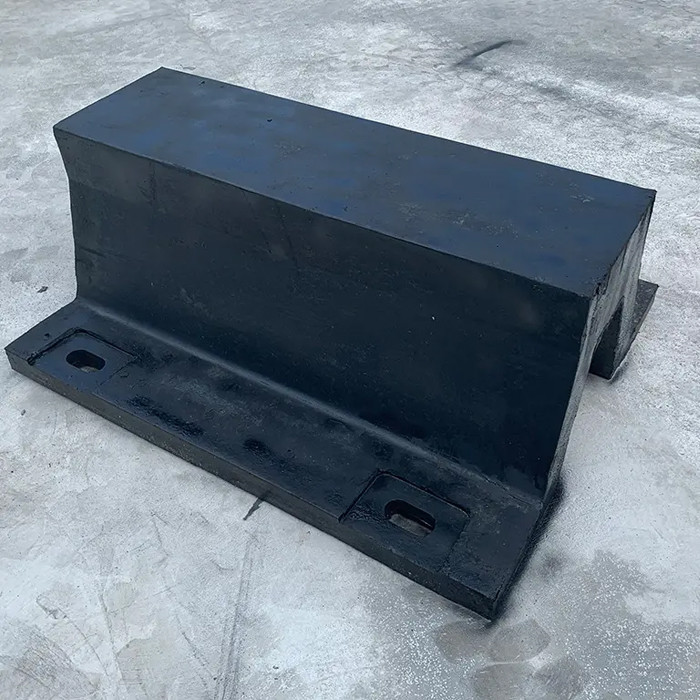

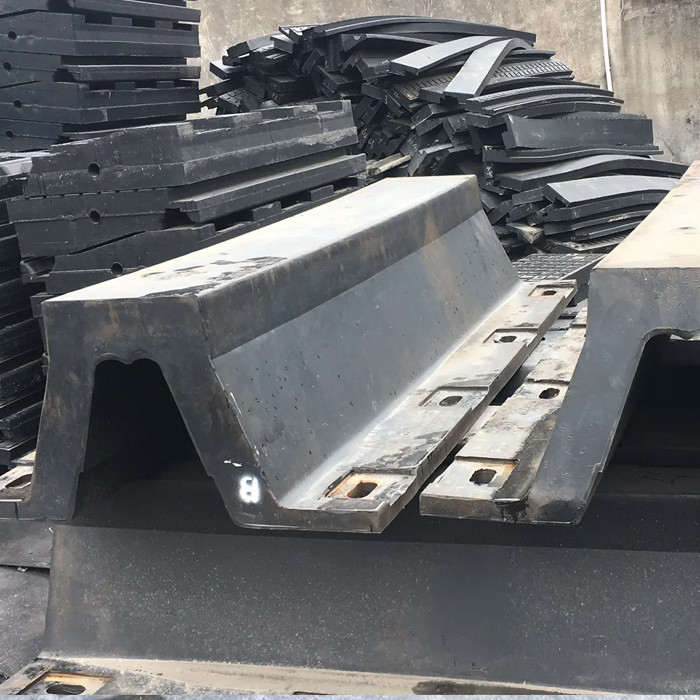

Arch rubber fenders have been consistently popular for many years. Their rugged construction, simplicity and versatility suits them to a wide variety of berths and wharves where they will give many years of trouble free service under even the most adverse of conditions. Arch rubber fenders are single piece construction with encapsulated steel mounting plate vulcanized into the based flange so they are more robust.
The latest generation of arch rubber fenders offer improved efficiency and angular performance, whilst the new anchor layout pattern give better stability and a stronger attachment to the supporting structure even under very heavy impacts.
Arch rubber fender has a rubber contact face ideal for all general purpose applications. They also can have UHMWPE plastic pad faced for those applications where friction factor must be low.
Specifications
| Item |
Heat Resistant Arch Rubber Fender Eco Friendly Natural Rubber 300H For Boat Dock |
| Material |
High quality SBR rubber sheets |
| Type |
Arch V Type |
| Elongation |
≥400 |
| Density |
95±5 |
| Tensile Strength |
≥16 |
| Hardness |
65 +/- 10 Shore A or according to your requirement |
| Color |
As per your request |
| Lead Time |
2-3 weeks |
| Production Capacity |
1800 Pcs per month |
| Package |
PP bag or wooden pallet or as required |
| Payment term |
T/T |
| Use |
Dock Port Boat |
| Feature |
Waterproof, Shockproof, Good Elastic, Soft |
| Advantage |
We can composite the fabric with different kinds of fabric to make the material suitable for different types of products |
| Model |
W |
B |
F |
C |
H |
| [mm] |
[mm] |
[mm] |
[mm] |
[mm] |
| DF-V200H |
400 |
320 |
145 |
128 |
200 |
| DF-V250H |
500 |
410 |
175 |
160 |
250 |
| DF-V300H |
600 |
490 |
225 |
196 |
300 |
| DF-V400H |
800 |
670 |
300 |
260 |
400 |
| DF-V500H |
1000 |
840 |
375 |
325 |
500 |
| DF-V600H |
1200 |
1010 |
450 |
390 |
600 |
| DF-V800H |
1600 |
1340 |
600 |
520 |
800 |
| DF-V1000H |
2000 |
1680 |
750 |
650 |
1000 |
Features
1. Rugged single piece molding for long service life
2. Excellent shear resistance
3. High Energy absorption and low reaction force
4. Reasonable Structure and long usage life
5. Convenient and deep-set installation
Applications
● RoRo berths
● General cargo
● Workboat harbours
● Barge and tug berths
● Cruise terminals
● Container berths
Material of main accessories
1. Bolt: Q235 hot-dip galvanised /1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316
2. Washer: Q235 hot-dip galvanised.
3. Pre-built-in nut: 1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316
4. Foot rod and board: Q235
Inspection and certificate
We use modern technology to design and manufacture, and through rigorous field testing.
The following tests are to be conducted:
- Rubber performance test including tensile, ozone and abrasion test
- Energy absorption and reaction test
Our QC department will inspect each product and offer FACTORY INSPECTION REPORT before delivery. We can also invite the third party inspection agencies including CCS, ABS, BV, LR, DNV-GL to inspect and offer certificates according to customer requirements.
Inspect items as below:
1. Rubber tensile, ozone and abrasion test.
2. Rubber fender energy absorption and reaction test.
Packing and delivery
Advantage: professional, efficient, economical and environmental.
Due to our products are large size and heaviness, normal we do not use packaging during shipping in order to reduce costs. So the professional packing skills are crucial, not only it need to protect our products, but also need to protect the containers, vehicles and personnel. Our core strength comes from years of work experience and a responsible attitude.
