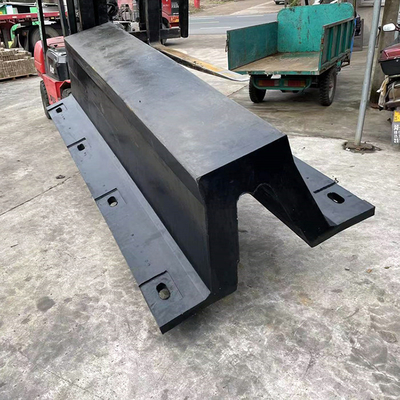

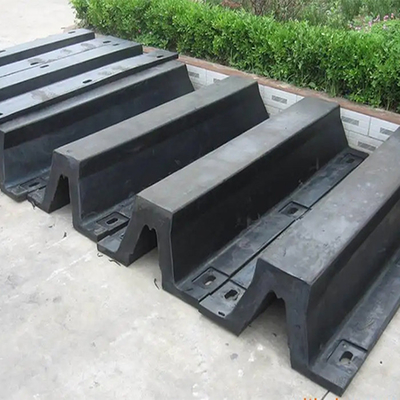

Dock Buffer 300 Arch V Type Fender Natural Rubber PIANC2002 Standard

Dock Buffer 300 Arch Rubber Fender Wear Resistant Customization Natural Rubber

Description

For many decades around the world, arch rubber fenders and component fenders have been used successfully. These fenders are with relatively simple and durable structure and offer high wear-resistant rubber performance which provides a high level of wall and quay corner safety.

Bolts can be used to mount Arch Rubber Fenders both horizontally and vertically. The ends can be provided with a beveled corner or perpendicular. For the safety of quay corners, we manufacture Arch Rubber Fenders corner parts customized to the customer's order. Element fenders are available in different sizes as usual and are made in a mould, just like V fenders. A steel plate, which is vulcanized, is provided to both ends.

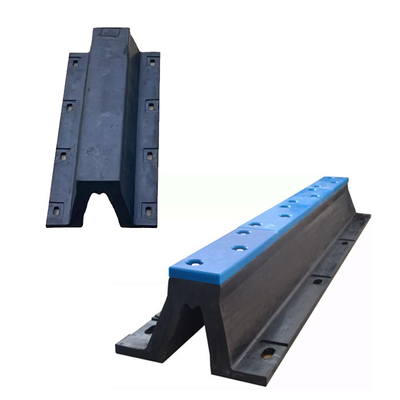

This steel plate has mounting holes for attachment to the wall and the panel to be used. The front panel can consist of a sheet of UHMW-PE or a panel of metal.

Specifications

Features

1. Single piece moulding for long service life.

2. Strong bolting arrangement is easy and quick to install.

3. Choice of Type A and Type B designs.

4. Excellent shear resistance means shear chains rarely needed.

5. Good weight support panels generally eliminate weight chains.

Applications

● RoRo berths

● General Cargo

● Workboat harbours

● Barge and tug berths

Material of main accessories

1. Bolt: Q235 hot-dip galvanised /1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316

2. Washer: Q235 hot-dip galvanised.

3. Pre-built-in nut: 1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316

4. Foot rod and board: Q235

Inspection and certificate

We use modern technology to design and manufacture, and through rigorous field testing.

The following tests are to be conducted:

- Rubber performance test including tensile, ozone and abrasion test

- Energy absorption and reaction test

Our QC department will inspect each product and offer FACTORY INSPECTION REPORT before delivery. We can also invite the third party inspection agencies including CCS, ABS, BV, LR, DNV-GL to inspect and offer certificates according to customer requirements.

Inspect items as below:

1. Rubber tensile, ozone and abrasion test.

2. Rubber fender energy absorption and reaction test.

Packing and delivery

Advantage: professional, efficient, economical and environmental.

Due to our products are large size and heaviness, normal we do not use packaging during shipping in order to reduce costs. So the professional packing skills are crucial, not only it need to protect our products, but also need to protect the containers, vehicles and personnel. Our core strength comes from years of work experience and a responsible attitude.
