Arch Rubber Fender Marine Arch Rubber Fender V Fenders Tug Boat Fender
Description

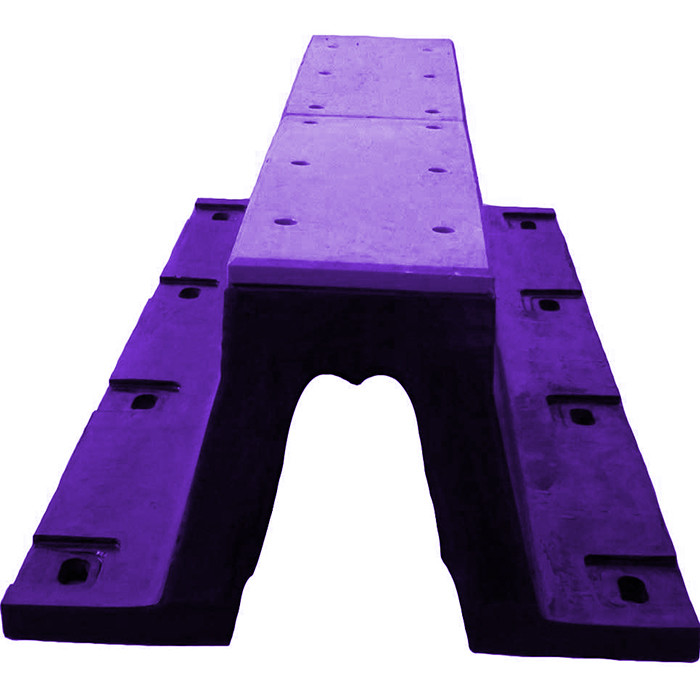

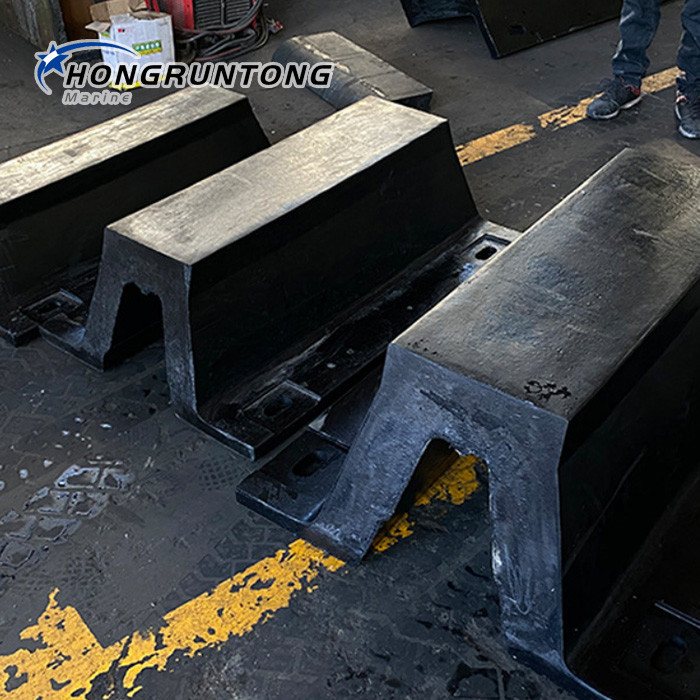

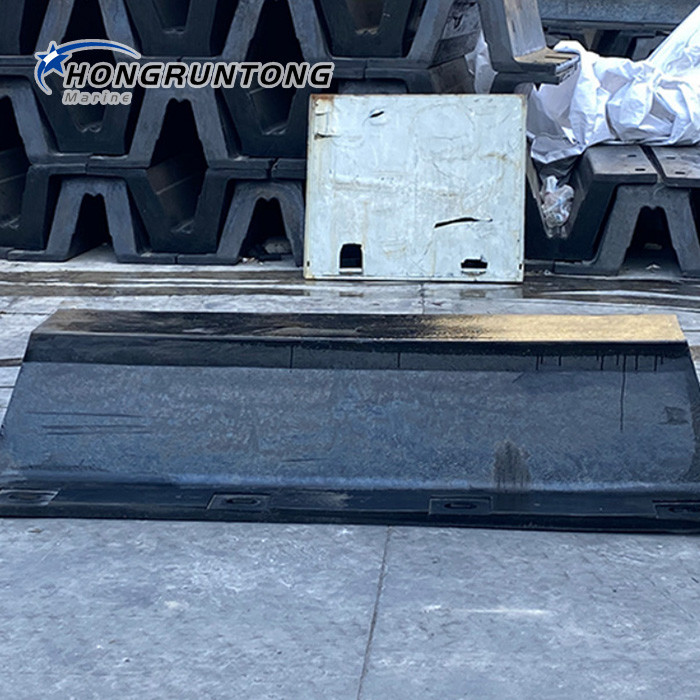

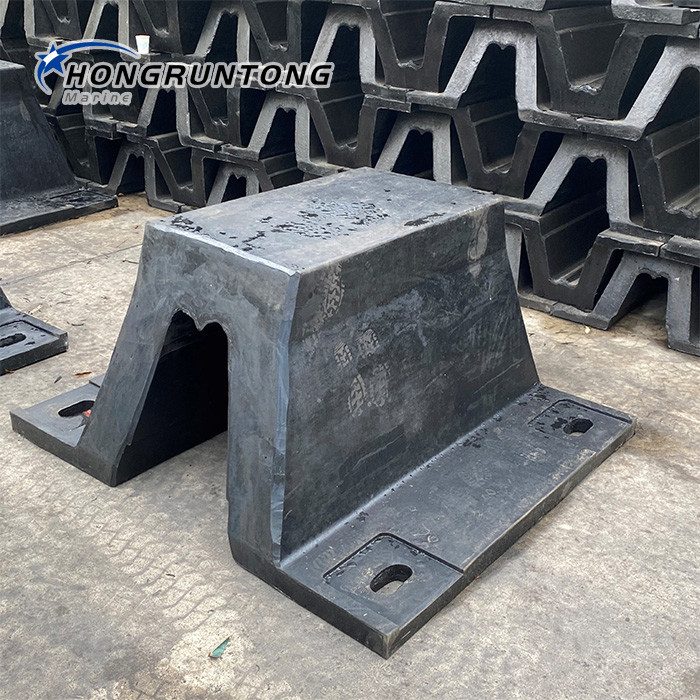

The Arch Rubber Fender is a type of rubber fender that is designed to provide protection to docks, ships, and other marine structures from impacts during berthing operations. It is characterized by its unique arch shape, which helps to distribute impact forces evenly and reduce the stress on the structure it is protecting.
The Arch Rubber Fender is made from high quality rubber materials that are resistant to wear, tear, and abrasion. It is also designed to withstand harsh environmental conditions, such as extreme weather and marine environments, making it a durable and long-lasting solution for marine applications.
The Arch Rubber Fender is commonly used in ports, harbors, and other marine facilities where there is a need for reliable and effective protection against impacts. Its versatility, durability, and effectiveness make it a popular choice for many marine applications.
Specifications
Brand Name | Hongruntong Marine |
Model Number |
HM-V200H |
Processing Service | Moulding, Cutting |
Keywords | Arch Rubber Fender Type V |
Color | Black, Grey, White, or as request |
Material | Grade A Natural Rubber |
Tensile Strength | ≥8 Mpa |
Elongation | ≥300% |
Hardness | 70±5 Shore A |
Height | 100mm-2000mm |
Length | 1000mm-3500mm |
Accessory | Front Panel, Face Panel, Bolt, Nut, etc |
Package | Polybag, Pallet, Wooden Case |
Usage | Dock Boat Protection |
Model | Specifications (mm) | ||||||||||||||
H | L | L1 | C | Q | n | B | B1 | B2 | B3 | h | a | b | e | f | |
DF-V150 x 1000L | 150 | 1000 | 1075 | 110 | 855 | 2 | 98 | 240 | 300 | 96 | 25 | 50 | 95 | 25 | 55 |
DF-V150 x 2000L | 150 | 2000 | 2075 | 107.5 | 620 | 4 | 98 | 240 | 300 | 96 | 25 | 50 | 95 | 25 | 55 |
DF-V150 x 3000L | 150 | 3000 | 3075 | 107.5 | 715 | 5 | 98 | 240 | 300 | 96 | 25 | 50 | 95 | 25 | 55 |
DF-V200 x 1000L | 200 | 1000 | 1100 | 120 | 860 | 1 | 135 | 320 | 400 | 128 | 30 | 58 | 105 | 29 | 75 |
DF-V200 x 2000L | 200 | 2000 | 2100 | 120 | 620 | 3 | 135 | 320 | 400 | 128 | 30 | 58 | 105 | 29 | 75 |
DF-V200 x 3000L | 200 | 3000 | 3100 | 120 | 715 | 4 | 135 | 320 | 400 | 128 | 30 | 58 | 105 | 29 | 75 |
DF-V250 x 1000L | 250 | 1000 | 1125 | 130 | 865 | 1 | 164 | 410 | 500 | 160 | 33 | 64 | 125 | 32 | 90 |
DF-V250 x 2000L | 250 | 2000 | 2125 | 132.5 | 620 | 3 | 164 | 410 | 500 | 160 | 33 | 64 | 125 | 32 | 90 |
DF-V250 x 3000L | 250 | 3000 | 3125 | 132.5 | 715 | 4 | 164 | 410 | 500 | 160 | 33 | 64 | 125 | 32 | 90 |
DF-V300 x 1000L | 300 | 1000 | 1150 | 140 | 870 | 1 | 225 | 490 | 600 | 195 | 33 | 70 | 140 | 35 | 105 |
DF-V300 x 2000L | 300 | 2000 | 2150 | 137.5 | 625 | 3 | 225 | 490 | 600 | 195 | 33 | 70 | 140 | 35 | 105 |
DF-V300 x 3000L | 300 | 3000 | 3150 | 145 | 715 | 4 | 225 | 490 | 600 | 195 | 33 | 70 | 140 | 35 | 105 |
DF-V400 x 1000L | 400 | 1000 | 1200 | 150 | 900 | 1 | 300 | 670 | 800 | 260 | 40 | 82 | 165 | 41 | 120 |
DF-V400 x 2000L | 400 | 2000 | 2200 | 147.5 | 635 | 3 | 300 | 670 | 800 | 260 | 40 | 82 | 165 | 41 | 120 |
DF-V400 x 3000L | 400 | 3000 | 3200 | 150 | 725 | 4 | 300 | 670 | 800 | 260 | 40 | 82 | 165 | 41 | 120 |
DF-V500 x 1000L | 500 | 1000 | 1250 | 160 | 930 | 1 | 375 | 840 | 1000 | 325 | 45 | 94 | 180 | 47 | 140 |
DF-V500 x 2000L | 500 | 2000 | 2250 | 157.5 | 645 | 3 | 375 | 840 | 1000 | 325 | 45 | 94 | 180 | 47 | 140 |
DF-V500 x 3000L | 500 | 3000 | 3250 | 156 | 730 | 4 | 375 | 840 | 1000 | 325 | 45 | 94 | 180 | 47 | 140 |
DF-V600 x 1000L | 600 | 1000 | 1300 | 170 | 960 | 1 | 450 | 1010 | 1200 | 390 | 54 | 100 | 195 | 50 | 160 |
DF-V600 x 2000L | 600 | 2000 | 2300 | 167.5 | 655 | 3 | 450 | 1010 | 1200 | 390 | 54 | 100 | 195 | 50 | 160 |
DF-V600 x 3000L | 600 | 3000 | 3300 | 170 | 740 | 4 | 450 | 1010 | 1200 | 390 | 54 | 100 | 195 | 50 | 160 |
DF-V800 x 1000L | 800 | 1000 | 1400 | 180 | 1040 | 1 | 600 | 1340 | 1600 | 520 | 72 | 136 | 270 | 68 | 260 |
DF-V800 x 2000L | 800 | 2000 | 2400 | 180 | 680 | 3 | 600 | 1340 | 1600 | 520 | 72 | 136 | 270 | 68 | 260 |
DF-V800 x 3000L | 800 | 3000 | 3400 | 180 | 760 | 4 | 600 | 1340 | 1600 | 520 | 72 | 136 | 270 | 68 | 260 |
DF-V1000 x 1500L | 1000 | 1500 | 2000 | 200 | 800 | 2 | 750 | 1680 | 2000 | 650 | 90 | 136 | 290 | 68 | 300 |
Features
Superior Impact Absorption
The Arch Rubber Fender is designed with a unique arch shape that evenly distributes impact forces, effectively absorbing and dissipating energy to minimize damage to docks and ships.
High Quality Materials
Constructed from premium rubber materials, the Arch Rubber Fender offers excellent resistance to wear, tear, and abrasion, ensuring long-lasting durability and reliability in harsh marine environments.
Versatility in Application
The Arch Rubber Fender is a versatile solution suitable for a wide range of marine applications, including ports, harbors, and offshore platforms, providing effective protection against impacts during berthing operations.
Professional Design and Engineering
The Arch Rubber Fender is expertly designed and engineered to meet industry standards and specifications, offering superior performance and peace of mind for marine operators and facility managers. Its specialized construction and reliability make it a trusted choice for professionals seeking high quality marine protection solutions.
Applications
● Jetties
● Marinas
● Shipyards
● Offshore platforms
● Terminal facilities
● Berthing facilities
Advantages
Extensive Manufacturing Experience
With over 30 years of experience in producing Arch Rubber Fenders, we have developed the expertise and knowledge to consistently deliver high-quality and reliable products.
Advanced Technology and Innovation
Our factory is equipped with state-of-the-art technology and machinery, allowing us to constantly innovate and improve our manufacturing processes to meet the evolving needs of the marine industry.
Customization Capabilities
We offer customizable solutions to tailor Arch Rubber Fenders to specific requirements and applications, providing clients with a personalized and optimized solution for their marine protection needs.
Strict Quality Control Measures
We adhere to stringent quality control measures throughout the manufacturing process to ensure that every Arch Rubber Fender meets the highest standards of durability, performance, and safety for our customers.
