Heavy Duty V/D Fender Rubber Boat Fender Rubber Arch Rubber Fender V
Description

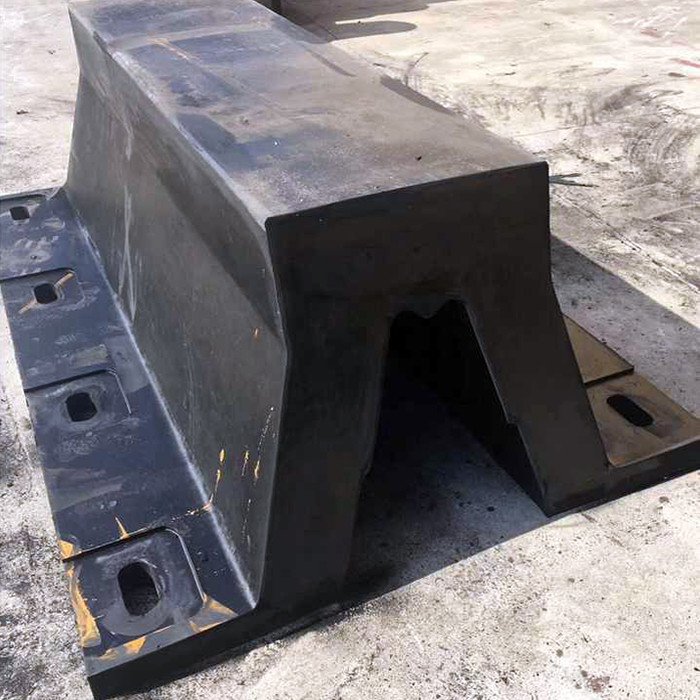

The arch v rubber fender is a specialized equipment designed to provide impact protection and increase safety in marine applications. Made from high-quality rubber materials, these fenders are well-known for their durability and ability to withstand heavy impacts.
The unique arch-shaped design allows for effective energy absorption by distributing the force evenly throughout the fender. This feature not only reduces the impact on vessels during berthing but also minimizes the structural stress on the docking infrastructure.
Arch v rubber fenders are available in various sizes and configurations to cater to different vessel types and docking conditions. They can be easily installed and offer low maintenance requirements, making them a cost-effective choice for ports, harbors, and various maritime facilities.
With their superior performance, arch v rubber fenders provide reliable protection against collisions, preventing damage to both vessels and structures. Their proven effectiveness, customization options, and long-lasting quality make them an ideal choice for ensuring the safety and efficiency of marine operations.
Specifications
Brand Name | Hongruntong Marine |
Model Number | HM-V1000H |
Processing Service | Moulding, Cutting |
Keywords | Arch Rubber Fender Type V |

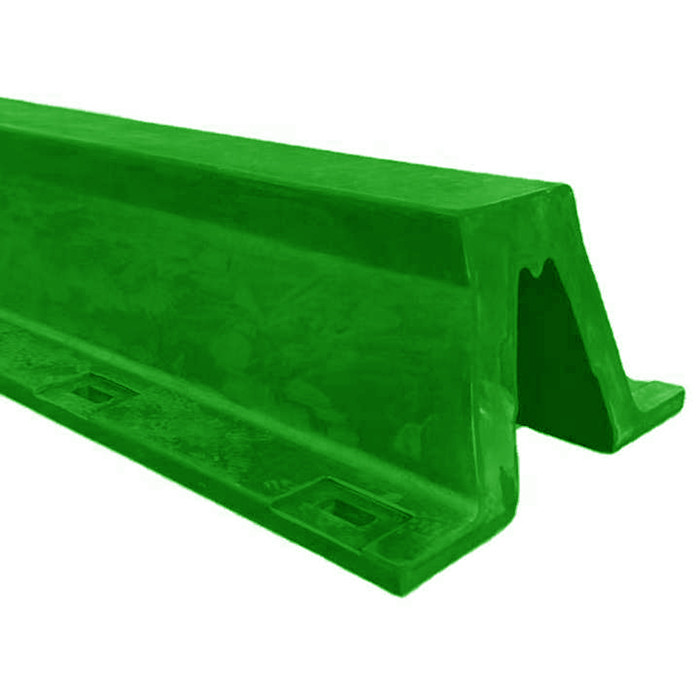

Color | Black, Grey, White, or as request |
Material | Grade A Natural Rubber |
Tensile Strength | ≥8 Mpa |
Elongation | ≥300% |
Hardness | 70±5 Shore A |
Height | 200mm-1000mm |
Length | 1000mm-3500mm |
Accessory | Front Panel, Face Panel, Bolt, Nut, etc |
Package | Polybag, Pallet, Wooden Case |
Usage | Dock Boat Protection |
Model | Specifications (mm) | ||||||||||||||
H | L | L1 | C | Q | n | B | B1 | B2 | B3 | h | a | b | e | f | |
DF-V150 x 1000L | 150 | 1000 | 1075 | 110 | 855 | 2 | 98 | 240 | 300 | 96 | 25 | 50 | 95 | 25 | 55 |
DF-V150 x 2000L | 150 | 2000 | 2075 | 107.5 | 620 | 4 | 98 | 240 | 300 | 96 | 25 | 50 | 95 | 25 | 55 |
DF-V150 x 3000L | 150 | 3000 | 3075 | 107.5 | 715 | 5 | 98 | 240 | 300 | 96 | 25 | 50 | 95 | 25 | 55 |
DF-V200 x 1000L | 200 | 1000 | 1100 | 120 | 860 | 1 | 135 | 320 | 400 | 128 | 30 | 58 | 105 | 29 | 75 |
DF-V200 x 2000L | 200 | 2000 | 2100 | 120 | 620 | 3 | 135 | 320 | 400 | 128 | 30 | 58 | 105 | 29 | 75 |
DF-V200 x 3000L | 200 | 3000 | 3100 | 120 | 715 | 4 | 135 | 320 | 400 | 128 | 30 | 58 | 105 | 29 | 75 |
DF-V250 x 1000L | 250 | 1000 | 1125 | 130 | 865 | 1 | 164 | 410 | 500 | 160 | 33 | 64 | 125 | 32 | 90 |
DF-V250 x 2000L | 250 | 2000 | 2125 | 132.5 | 620 | 3 | 164 | 410 | 500 | 160 | 33 | 64 | 125 | 32 | 90 |
DF-V250 x 3000L | 250 | 3000 | 3125 | 132.5 | 715 | 4 | 164 | 410 | 500 | 160 | 33 | 64 | 125 | 32 | 90 |
DF-V300 x 1000L | 300 | 1000 | 1150 | 140 | 870 | 1 | 225 | 490 | 600 | 195 | 33 | 70 | 140 | 35 | 105 |
DF-V300 x 2000L | 300 | 2000 | 2150 | 137.5 | 625 | 3 | 225 | 490 | 600 | 195 | 33 | 70 | 140 | 35 | 105 |
DF-V300 x 3000L | 300 | 3000 | 3150 | 145 | 715 | 4 | 225 | 490 | 600 | 195 | 33 | 70 | 140 | 35 | 105 |
DF-V400 x 1000L | 400 | 1000 | 1200 | 150 | 900 | 1 | 300 | 670 | 800 | 260 | 40 | 82 | 165 | 41 | 120 |
DF-V400 x 2000L | 400 | 2000 | 2200 | 147.5 | 635 | 3 | 300 | 670 | 800 | 260 | 40 | 82 | 165 | 41 | 120 |
DF-V400 x 3000L | 400 | 3000 | 3200 | 150 | 725 | 4 | 300 | 670 | 800 | 260 | 40 | 82 | 165 | 41 | 120 |
DF-V500 x 1000L | 500 | 1000 | 1250 | 160 | 930 | 1 | 375 | 840 | 1000 | 325 | 45 | 94 | 180 | 47 | 140 |
DF-V500 x 2000L | 500 | 2000 | 2250 | 157.5 | 645 | 3 | 375 | 840 | 1000 | 325 | 45 | 94 | 180 | 47 | 140 |
DF-V500 x 3000L | 500 | 3000 | 3250 | 156 | 730 | 4 | 375 | 840 | 1000 | 325 | 45 | 94 | 180 | 47 | 140 |
DF-V600 x 1000L | 600 | 1000 | 1300 | 170 | 960 | 1 | 450 | 1010 | 1200 | 390 | 54 | 100 | 195 | 50 | 160 |
DF-V600 x 2000L | 600 | 2000 | 2300 | 167.5 | 655 | 3 | 450 | 1010 | 1200 | 390 | 54 | 100 | 195 | 50 | 160 |
DF-V600 x 3000L | 600 | 3000 | 3300 | 170 | 740 | 4 | 450 | 1010 | 1200 | 390 | 54 | 100 | 195 | 50 | 160 |
DF-V800 x 1000L | 800 | 1000 | 1400 | 180 | 1040 | 1 | 600 | 1340 | 1600 | 520 | 72 | 136 | 270 | 68 | 260 |
DF-V800 x 2000L | 800 | 2000 | 2400 | 180 | 680 | 3 | 600 | 1340 | 1600 | 520 | 72 | 136 | 270 | 68 | 260 |
DF-V800 x 3000L | 800 | 3000 | 3400 | 180 | 760 | 4 | 600 | 1340 | 1600 | 520 | 72 | 136 | 270 | 68 | 260 |
DF-V1000 x 1500L | 1000 | 1500 | 2000 | 200 | 800 | 2 | 750 | 1680 | 2000 | 650 | 90 | 136 | 290 | 68 | 300 |
Features
Impact Protection
Arch v rubber fenders are specifically designed to provide excellent impact protection. The arch-shaped design allows for effective energy absorption, reducing the impact force on vessels during berthing and minimizing structural stress on the docking infrastructure.
Durability
These fenders are made from high-quality rubber materials that are known for their durability. They can withstand heavy impacts, harsh weather conditions, and constant exposure to marine environments, ensuring a long service life.
Easy Installation and Maintenance
Arch v rubber fenders are easy to install and require minimal maintenance. This makes them a practical choice for ports, harbors, and marine facilities where time and resources for installation and upkeep are essential considerations.
Customization Options
These fenders come in various sizes and configurations, allowing them to be customized according to specific vessel types and docking conditions. This flexibility ensures that the fenders can meet the unique requirements of different marine applications, providing optimal protection and safety.
Applications
● Ferry terminals
● Container terminals
● Naval bases
● Breakwaters
● Fishing ports
● Bulk cargo terminals
● Ro-Ro (roll-on/roll-off) facilities
Advantages
Expertise
Our factory specializes in the production of arch v rubber fenders, allowing us to have extensive knowledge and experience in this specific product. This expertise enables us to consistently deliver high-quality fenders.
Customization
We offer a wide range of customization options for arch v rubber fenders. Our skilled team can tailor the fenders to meet the specific requirements of our clients, including dimensions, materials, and color choices.
Quality Control
We prioritize quality control throughout the production process. From sourcing the finest raw materials to conducting rigorous testing, we ensure that every arch v rubber fender leaving our factory meets the highest standards of durability, strength, and performance.
Timely Delivery
We understand the importance of on-time delivery to our customers. With efficient production processes and strategic logistics planning, we strive to fulfill orders promptly, ensuring that our clients receive their arch v rubber fenders in a timely manner.
These core advantages demonstrate our commitment to providing superior products and services to our valued customers.
