Fixed Rubber Anchor Marine Fenders BV ABS SGS Certification

1 Piece
MOQ
USD270 to USD3270 Per Piece
Price
Fixed Rubber Anchor Marine Fenders BV ABS SGS Certification
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Natural Rubber Fixed Fender Arch Rubber Fender 600H V Type For Boat Protection
Material: Natural Rubber, NBR, Silicone
Processing Service: Moulding, Cutting
Size: Customized
Category: Fixed Rubber Fender
Part: Dock Bumper
Age Range: 15-20 Years
Certification: BV, ABS, SGS
Highlight:

Anchor Marine Fenders SGS

,

Anchor Marine Fenders BV

,

Fixed Rubber anchor boat fenders

Basic Infomation
Place of Origin: CHINA
Brand Name: DockFender
Certification: PIANC2002, ABS, DNV
Model Number: DF-ARF600H
Payment & Shipping Terms
Packaging Details: Wooden pallet, Steel pallet, Wooden case
Delivery Time: 5-6 Work Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2700 Pieces Per Month
Product Description

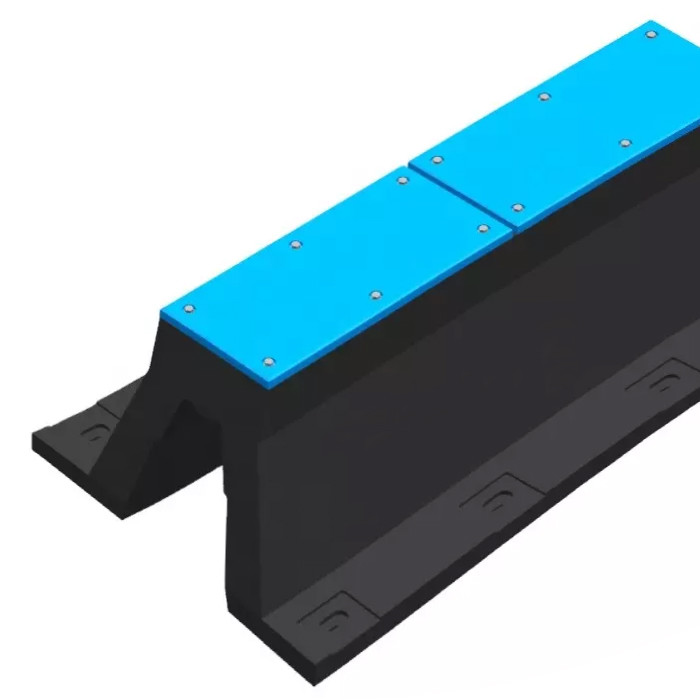

Natural Rubber Fixed Fender Arch Rubber Fender 600H V Type For Boat Protection



Description



Arch rubber fender is one of the most widely used fender varieties. It produces unit weight energy absorption in the compression type fender after super drum fender, 3.5 times higher than the cylinder type fender and 2.3 times higher than the type D fender and save material. It has the better stability and stronger attachment to the supporting structure than the traditional arch rubber fenders.

Arch Marine Rubber Fender, which is commonly used for the quay and dock for the protection of the boats and ships, is tough and reliable, simple and long lasting, providing trouble-free service for a wide variety of berthing even under the most severe conditions. Super Arch rubber fender has the better stability and stronger attachment to the supporting structure than the traditional arch rubber fenders.



Specifications



Place of Origin China
Brand Name DockFender
Model Number DF-ARF600H
Product Name Natural Rubber Fixed Fender Arch Rubber Fender 600H V Type For Boat Protection
Color Black/grey/blue, etc
Material Rubber
Age Range 15-20 Years
Size Customized
Usage Dock Port Wharf Boat Ship
Surface Matte/Smooth
Packing Pallet or Wooden Case
Keywords Arch Rubber Fender / V Rubber Fender



Fixed Rubber Anchor Marine Fenders BV ABS SGS Certification 0



Model W B F C H
[mm] [mm] [mm] [mm] [mm]
DF-V200H 400 320 145 128 200
DF-V250H 500 410 175 160 250
DF-V300H 600 490 225 196 300
DF-V400H 800 670 300 260 400
DF-V500H 1000 840 375 325 500
DF-V600H 1200 1010 450 390 600
DF-V800H 1600 1340 600 520 800
DF-V1000H 2000 1680 750 650 1000



Features



1. High energy absorption, low rection force

2. Reasonable structure and pro-longed life

3. Setting front panel to reduce surface pressure

4. Easy replacement

5. Large range of sizes, lengths and Energy Indices

6. Non-standard lengths, Energy Index and end profile available



Applications



● General cargo

● Container berths

● RoRo

● Cruise terminals



Material of main accessories



1. Bolt: Q235 hot-dip galvanised /1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316

2. Washer: Q235 hot-dip galvanised.

3. Pre-built-in nut: 1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316

4. Foot rod and board: Q235

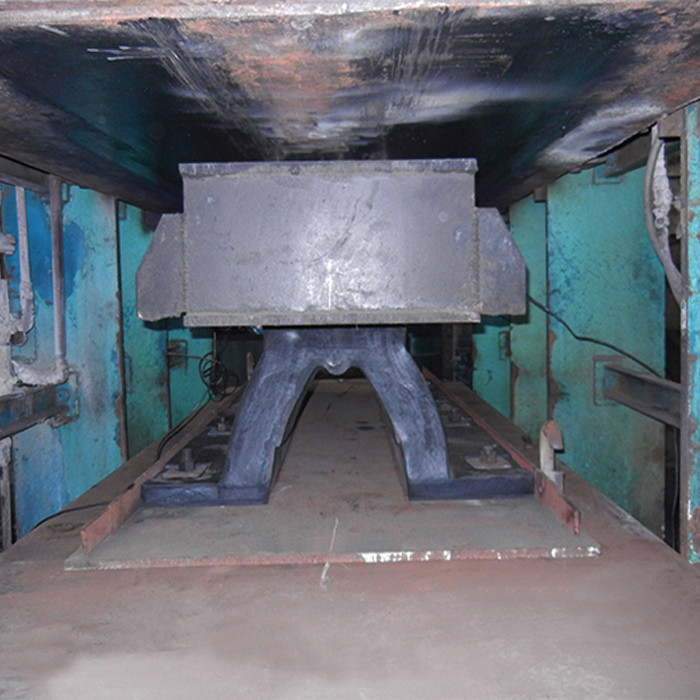

Inspection and certificate



We use modern technology to design and manufacture, and through rigorous field testing.



The following tests are to be conducted:

- Rubber performance test including tensile, ozone and abrasion test

- Energy absorption and reaction test



Our QC department will inspect each product and offer FACTORY INSPECTION REPORT before delivery. We can also invite the third party inspection agencies including CCS, ABS, BV, LR, DNV-GL to inspect and offer certificates according to customer requirements.



Inspect items as below:

1. Rubber tensile, ozone and abrasion test.

2. Rubber fender energy absorption and reaction test.

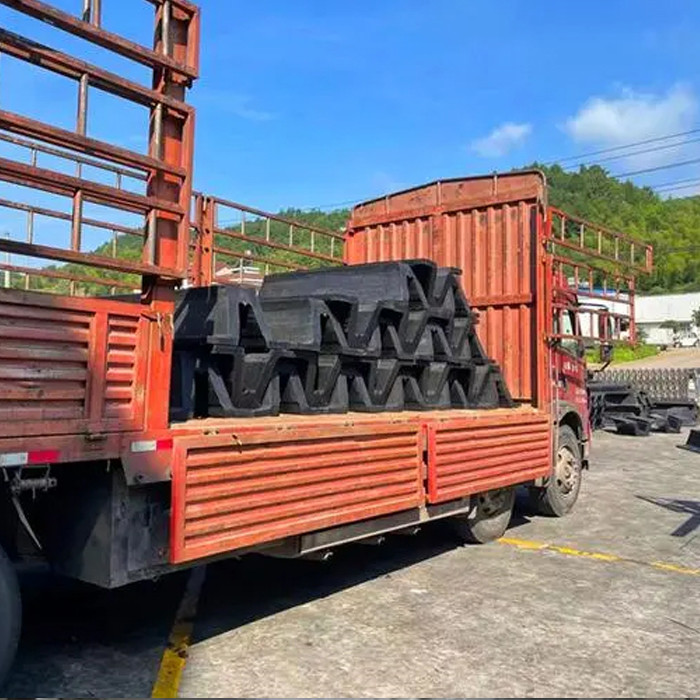

Packing and delivery



Advantage: professional, efficient, economical and environmental.

Due to our products are large size and heaviness, normal we do not use packaging during shipping in order to reduce costs. So the professional packing skills are crucial, not only it need to protect our products, but also need to protect the containers, vehicles and personnel. Our core strength comes from years of work experience and a responsible attitude.



Fixed Rubber Anchor Marine Fenders BV ABS SGS Certification 1

Fixed Rubber Anchor Marine Fenders BV ABS SGS Certification 2Fixed Rubber Anchor Marine Fenders BV ABS SGS Certification 3Fixed Rubber Anchor Marine Fenders BV ABS SGS Certification 4
