Heavy Duty 700H Arch Rubber Fender Natural Rubber Dock Boat Protection Safety
Description

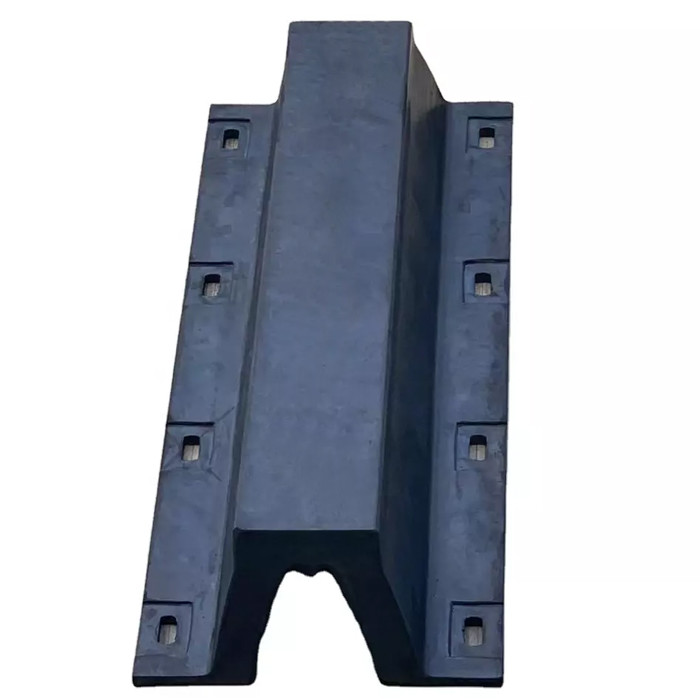

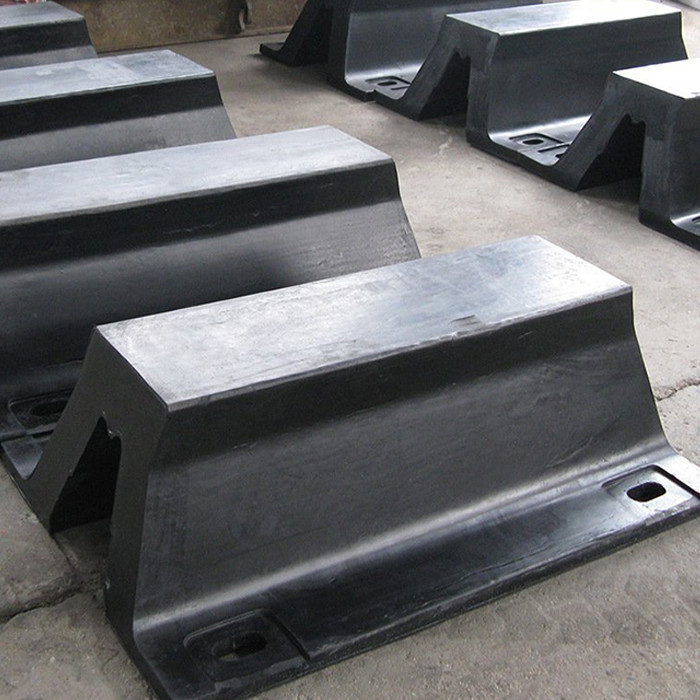

Arch rubber fender, also known as V fender, is a high-performance rubber fender. Its simple design and high energy absorption capacity are welcomed by many terminals.

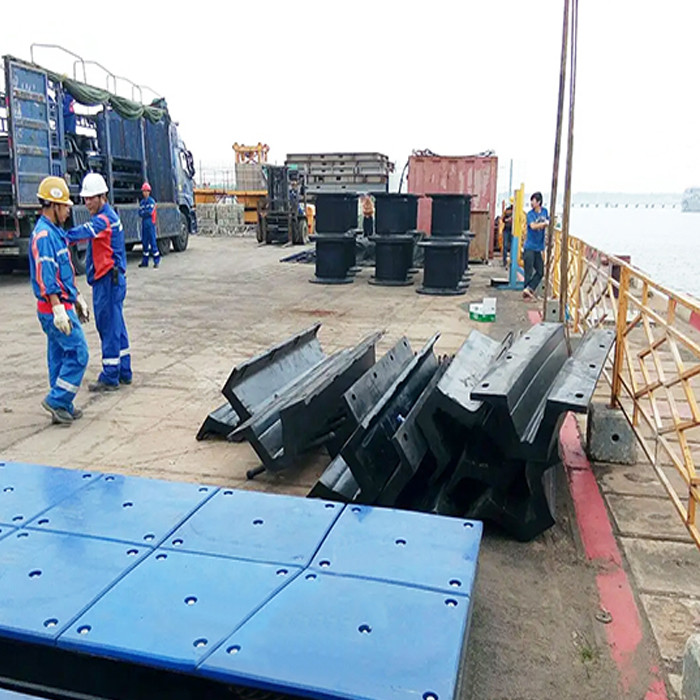

Arch rubber fenders also can be bolted with UHMW-PE face pads, combining resilience with low-friction.. This design can reduce the torsion the bottom of the fender dramatically, then prolong the life-span of rubber fender body. The UHMW-PE face pads have various colors, and can be replaced easily.
Specifications
| Product Name |
Heavy Duty 700H Arch Rubber Fender Natural Rubber Dock Boat Protection Safety |
| Brand Name |
DockFender |
| Model Number |
DF-ARF700H |
| Material |
Natural Rubber, SBR, NBR |
| Standard |
ISO17357, ISO9001 |
| Hardness |
≤82 Shore A |
| Processing Service |
Moulding |
| Performance |
Ageing resistance, ozone resistance, oil resistance |
| Color |
Any color is OK |
| Drawing Format |
Available according to design in production |
| Package |
Inner-Plastic Bag; Outer -Standard Pallets, wooden case or as your demand |
| Usage |

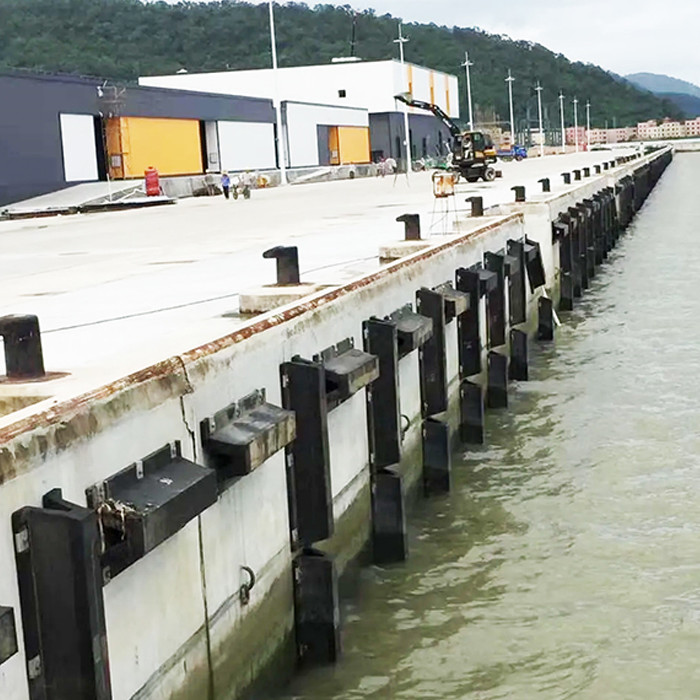

Multi-Purpose-Terminals, RoRo ramps, Passenger Vessel Terminals, Barge |
| Service |
Warm and quick response service provided by the professional Export Sales Team with many years' experience in handling exports to the US, Europe, Australia and other countries. |
| Model |
W |
B |
F |
C |
H |
| [mm] |
[mm] |
[mm] |
[mm] |
[mm] |
| DF-V200H |
400 |
320 |
145 |
128 |
200 |
| DF-V250H |
500 |
410 |
175 |
160 |
250 |
| DF-V300H |
600 |
490 |
225 |
196 |
300 |
| DF-V400H |
800 |
670 |
300 |
260 |
400 |
| DF-V500H |
1000 |
840 |
375 |
325 |
500 |
| DF-V600H |
1200 |
1010 |
450 |
390 |
600 |
| DF-V800H |
1600 |
1340 |
600 |
520 |
800 |
| DF-V1000H |
2000 |
1680 |
750 |
650 |
1000 |
Features
1. High energy absorption and low reaction force
2. Higher stress dispersion and long service life
3. It can be installed firmly and replaced easily
Applications
● Multi-Purpose-Terminals
● RoRo ramps
● Passenger Vessel Terminals
● Barge
Material of main accessories
1. Bolt: Q235 hot-dip galvanised /1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316
2. Washer: Q235 hot-dip galvanised.
3. Pre-built-in nut: 1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316
4. Foot rod and board: Q235
Inspection and certificate
We use modern technology to design and manufacture, and through rigorous field testing.
The following tests are to be conducted:
- Rubber performance test including tensile, ozone and abrasion test
- Energy absorption and reaction test
Our QC department will inspect each product and offer FACTORY INSPECTION REPORT before delivery. We can also invite the third party inspection agencies including CCS, ABS, BV, LR, DNV-GL to inspect and offer certificates according to customer requirements.
Inspect items as below:
1. Rubber tensile, ozone and abrasion test.
2. Rubber fender energy absorption and reaction test.
