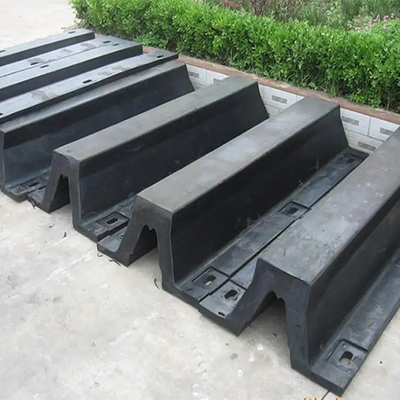

Waterproof Flexible Arch Rubber Fender DF-ARF600H V Type Marine Fixed Rubber
Description
Arch Fenders are a simple yet rugged designed fender providing reliable performance with minimum potential issues. It is a design utilised in a wide variety of ship berths that can be depended on even under severe environmental conditions.
Arch fenders have a better Energy / Reaction force ratio and are recommended for all types of applications. The shape of these fenders helps to dissipate the stresses evenly. These extruded fenders are very easy to install and are maintenance-free. They are generally preferred for small to medium range vessels.
Specifications
| Product Name |
Waterproof Flexible Arch Rubber Fender DF-ARF600H V Type Marine Fixed Rubber |
| Brand Name |
DockFender |
| Model Number |
DF-ARF600H |
| Material |
High Density NR |
| Standard |
HGT 2866-2016, PIANC2002 |
| Shape |
V Type |
| OEM / ODM |
Available |
| Size |
As per drawing dimensions |
| Tolerance Standard |
ISO2768-M or ISO3302-1:2014 CLASS M2 |
| Usage |
For ship docking or berthing |
| Certificate |
DNV BV CCS LR ABS |
| Color |
Customers' Requirements |
| Working Temperature |
-15 degreee to 200 degree |
| Model |
W |
B |
F |
C |
H |
| [mm] |
[mm] |
[mm] |
[mm] |
[mm] |
| DF-V200H |
400 |
320 |
145 |
128 |
200 |
| DF-V250H |
500 |
410 |
175 |
160 |
250 |
| DF-V300H |
600 |
490 |
225 |
196 |
300 |
| DF-V400H |
800 |
670 |
300 |
260 |
400 |
| DF-V500H |
1000 |
840 |
375 |
325 |
500 |
| DF-V600H |
1200 |
1010 |
450 |
390 |
600 |
| DF-V800H |
1600 |
1340 |
600 |
520 |
800 |
| DF-V1000H |
2000 |
1680 |
750 |
650 |
1000 |
Features
1. Compare super arch rubber fender with v type rubber fender, it has big rated compression, absorb high energy, low reaction force. It is substitute for v type rubber fender.
2. Its structure reasonable and utility long life.
3. Easily install and change. Compare super arch type rubber fender with v type rubber fender, they have the same bolt whole pitch.
4. Front panel or UHMW-PE face pad was set on the top to reduce surface pressure and vessel friction factor, and lower the shear strength while vessel berthing.

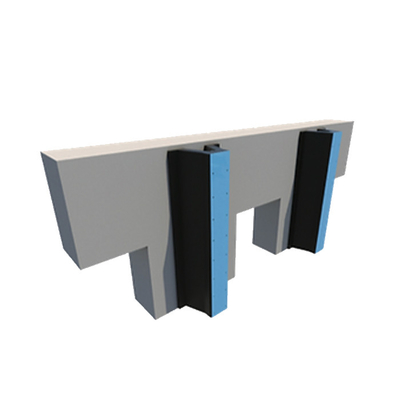

Applications
● General Cargo Berths
● Bulk Terminals
● Oil / LNG Facilities
● Container Terminal Berths
● RoRo and Cruise Terminals

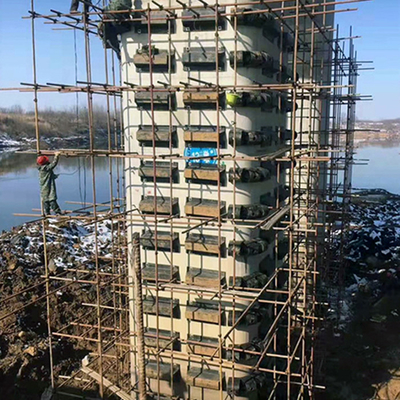

● Monopiles & Dolphins
Material of main accessories
1. Bolt: Q235 hot-dip galvanised /1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316
2. Washer: Q235 hot-dip galvanised.
3. Pre-built-in nut: 1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316
4. Foot rod and board: Q235
Inspection and certificate
We use modern technology to design and manufacture, and through rigorous field testing.
The following tests are to be conducted:
- Rubber performance test including tensile, ozone and abrasion test
- Energy absorption and reaction test
Our QC department will inspect each product and offer FACTORY INSPECTION REPORT before delivery. We can also invite the third party inspection agencies including CCS, ABS, BV, LR, DNV-GL to inspect and offer certificates according to customer requirements.
Inspect items as below:
1. Rubber tensile, ozone and abrasion test.
2. Rubber fender energy absorption and reaction test.
