NBR 70 Boat And Dock Fenders Arch Marine Dock Rubber Fenders

1 Piece
MOQ
USD150 to USD2500 Per Piece
Price
NBR 70 Boat And Dock Fenders Arch Marine Dock Rubber Fenders
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: NBR 70 V Type Arch Rubber Fender Wear Resistant Marine Safety Dock Fender
Material: High Performance Natural Rubber
Color: Black, Grey...etc
Hardness: 65 +/- 5 Shore A
Density: 2.3 ~3.9 G/cm3
Surface: Smooth Or Textured
Standard: PIANC 2002
Lifespan: 15-20 Years
Highlight:

NBR 70 Boat And Dock Fenders

,

NBR Marine Dock Rubber Fenders

,

Arch Marine Dock Rubber Fenders

Basic Infomation
Place of Origin: CHINA
Brand Name: DockFender
Certification: PIANC2002, ABS
Model Number: DF-ARF500
Payment & Shipping Terms
Packaging Details: Wooden pallet, Steel pallet, Wooden case
Delivery Time: 5-6 Work Days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 2280 Pieces Per Month
Product Description

NBR 70 V Type Arch Rubber Fender Wear Resistant Marine Safety Dock Fender



Description

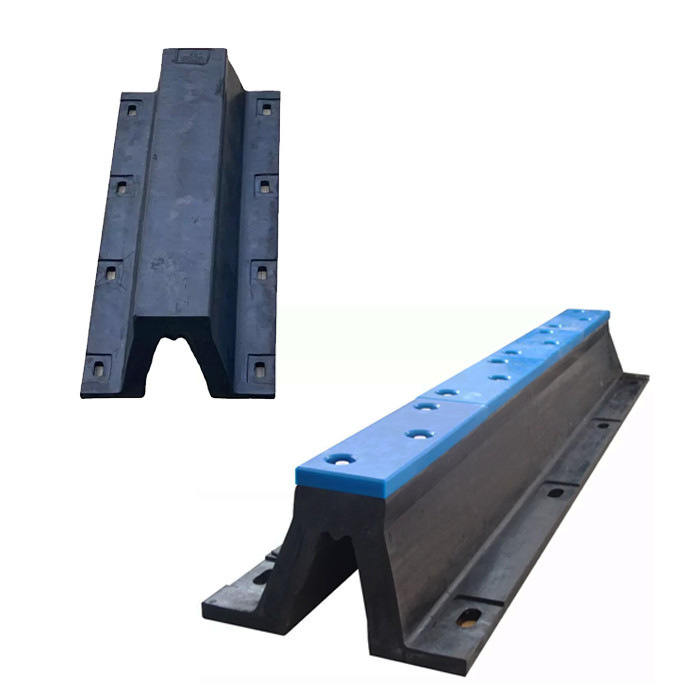

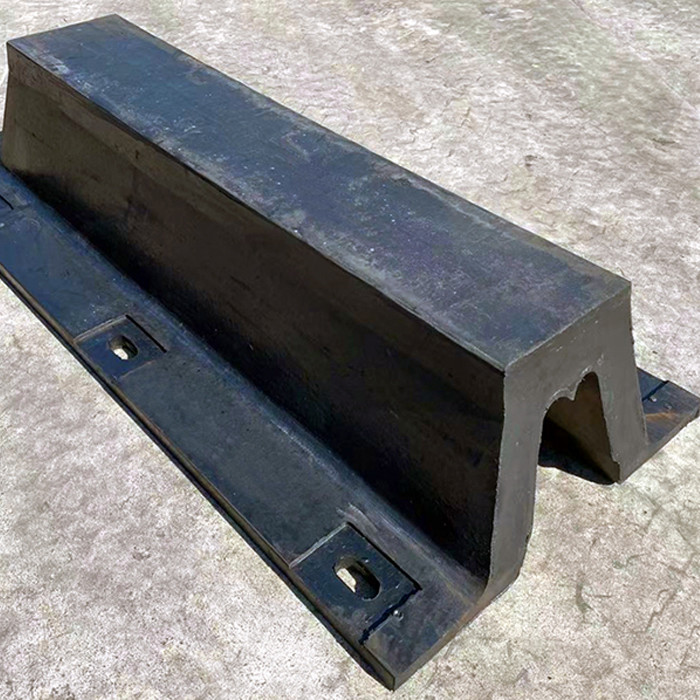

The arch rubber fender is also known as V-type rubber fender is a kind of marine rubber fender, which can also be embedded in the steel mount and nut on the top of the fender. It connects the front panel, UHMW-PE face pad installed outside of the front panel, which lowers the friction factor between vessel and fender to avoid the damage of vessel and raises the utility of fender life. The design of the arch fender is simple and durable, providing trouble-free service for a wide range of berths even under the toughest conditions. It has better stability and stronger attachment to the supporting structure than the traditional arch rubber fenders. It is made of quality natural rubber resistant to weather, seawater, cutting, abrasion, etc. The designs are simple and rugged, providing reliable and trouble-free service for a wide variety of ports. The rubber fenders are tough and reliable, simple and long-lasting, providing trouble-free service for a wide variety of berthing even under the most severe conditions.



Specifications



Product Name NBR 70 V Type Arch Rubber Fender Wear Resistant Marine Safety Dock Fender
Brand Name DockFender
Model Number DF-ARF500
Material High Performance Natural Rubber
Color Black and Customers' Requirements
Shape V Type
Standard HGT 2866-2016, PIANC2002
Energy Absorption 3KN-M to 417KN-M
Reaction Force 78kN to 1015kN
Application Port, Dock, Quay, etc



NBR 70 Boat And Dock Fenders Arch Marine Dock Rubber Fenders 0



Model Specifications (mm)
H L L1 C Q n B B1 B2 B3 h a b e f
DF-V150 x 1000L 150 1000 1075 110 855 2 98 240 300 96 25 50 95 25 55
DF-V150 x 2000L 150 2000 2075 107.5 620 4 98 240 300 96 25 50 95 25 55
DF-V150 x 3000L 150 3000 3075 107.5 715 5 98 240 300 96 25 50 95 25 55
DF-V200 x 1000L 200 1000 1100 120 860 1 135 320 400 128 30 58 105 29 75
DF-V200 x 2000L 200 2000 2100 120 620 3 135 320 400 128 30 58 105 29 75
DF-V200 x 3000L 200 3000 3100 120 715 4 135 320 400 128 30 58 105 29 75
DF-V250 x 1000L 250 1000 1125 130 865 1 164 410 500 160 33 64 125 32 90
DF-V250 x 2000L 250 2000 2125 132.5 620 3 164 410 500 160 33 64 125 32 90
DF-V250 x 3000L 250 3000 3125 132.5 715 4 164 410 500 160 33 64 125 32 90
DF-V300 x 1000L 300 1000 1150 140 870 1 225 490 600 195 33 70 140 35 105
DF-V300 x 2000L 300 2000 2150 137.5 625 3 225 490 600 195 33 70 140 35 105
DF-V300 x 3000L 300 3000 3150 145 715 4 225 490 600 195 33 70 140 35 105
DF-V400 x 1000L 400 1000 1200 150 900 1 300 670 800 260 40 82 165 41 120
DF-V400 x 2000L 400 2000 2200 147.5 635 3 300 670 800 260 40 82 165 41 120
DF-V400 x 3000L 400 3000 3200 150 725 4 300 670 800 260 40 82 165 41 120
DF-V500 x 1000L 500 1000 1250 160 930 1 375 840 1000 325 45 94 180 47 140
DF-V500 x 2000L 500 2000 2250 157.5 645 3 375 840 1000 325 45 94 180 47 140
DF-V500 x 3000L 500 3000 3250 156 730 4 375 840 1000 325 45 94 180 47 140
DF-V600 x 1000L 600 1000 1300 170 960 1 450 1010 1200 390 54 100 195 50 160
DF-V600 x 2000L 600 2000 2300 167.5 655 3 450 1010 1200 390 54 100 195 50 160
DF-V600 x 3000L 600 3000 3300 170 740 4 450 1010 1200 390 54 100 195 50 160
DF-V800 x 1000L 800 1000 1400 180 1040 1 600 1340 1600 520 72 136 270 68 260
DF-V800 x 2000L 800 2000 2400 180 680 3 600 1340 1600 520 72 136 270 68 260
DF-V800 x 3000L 800 3000 3400 180 760 4 600 1340 1600 520 72 136 270 68 260
DF-V1000 x 1500L 1000 1500 2000 200 800 2 750 1680 2000 650 90 136 290 68 300



Features



1. Suitable for various environments

2. Very robust, durable and requires low maintenance

3. High shear resistance in the longitudinal direction

4. Can be installed both vertically and horizontally

5. Suitable for turning dolphins & pivot points



Applications



● General cargo terminals

● Bulk terminals

● Berth for tug boats

● Multi-purpose terminals

● RoRo ramps

● Passenger vessel terminals

● Barge



Advantages



► Quality

DockFender arch fenders always maintain high quality. We insist on using 100% natural rubber, coupled with a special angle design, so that our arch rubber fenders can be more durable and perform better.



Service

DockFender adheres to the principle of customer first. Our professional customer service team can not only provide you with the most professional product recommendations, but also help you customize project solutions.



After-sales Service

DockFender 's solid arch fenders can be guaranteed for 24 months. As long as you use it normally, we can guarantee replacement for any product quality problems during the warranty period.



Customize

All products of DockFender can be specially customized according to customer requirements, let us know your needs!



NBR 70 Boat And Dock Fenders Arch Marine Dock Rubber Fenders 1



NBR 70 Boat And Dock Fenders Arch Marine Dock Rubber Fenders 2NBR 70 Boat And Dock Fenders Arch Marine Dock Rubber Fenders 3NBR 70 Boat And Dock Fenders Arch Marine Dock Rubber Fenders 4
