Robust Structure High Load Capacity Easy Installation Mooring Bollards and Dock Bollards for Marine Berths

Dock Bollards — Robust Structure, High Load Capacity, Easy Installation

Mooring Bollards are load-bearing marine fittings installed on quays, piers, wharves, docks, shipyards, and other waterfront structures to provide fixed points for securing vessels during berthing and port operations. They receive the forces transmitted through mooring ropes or wires and transfer those forces into the supporting structure through the bollard body, base, anchorage, and foundation. Their selection must account for the intended vessel range, berth configuration, environmental conditions, line arrangement, and structural design requirements. As part of a complete mooring system, bollards contribute to vessel position control and support routine activities such as cargo handling, maintenance, passenger transfer, and temporary vessel berthing.

The engineering requirements for a Mooring Bollard extend beyond its external shape and nominal load rating. The bollard must be compatible with the direction and magnitude of the forces expected at its installation position. Mooring-line tension can produce direct forces and bending moments, depending on the geometry of the line and the configuration of the bollard. These loads are transferred through the body and mounting interface into anchor bolts, base plates where applicable, and the supporting concrete or steel structure. The complete assembly must therefore be evaluated in accordance with the relevant design basis. A suitable bollard cannot compensate for an inadequately designed foundation, unsuitable anchorage, or an operating arrangement that exceeds the specified limits.

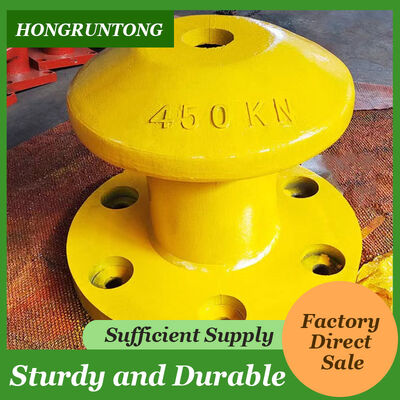

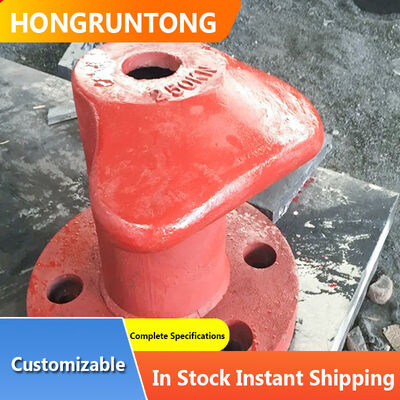

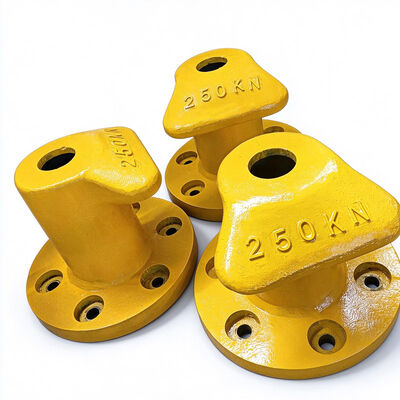

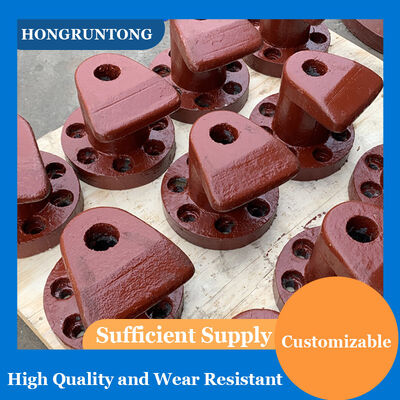

Different bollard configurations are used to accommodate different vessel operations and rope-handling requirements. Single-post types offer a relatively compact profile, while double-horn types provide alternative rope-contact geometry for specific mooring arrangements. Other configurations may be selected according to the required line positioning, available installation space, and operating procedures. The choice of configuration should consider the characteristics of the mooring ropes or wires, the expected loading directions, and the practical requirements of personnel handling the lines. Contact surfaces should be appropriately finished to reduce the risk of rope abrasion caused by sharp edges, rough areas, or manufacturing defects.

Material selection depends on the required structural properties, manufacturing process, service environment, and applicable project specifications. Cast steel, fabricated steel, ductile iron, and other suitable materials may be considered according to the design requirements. The specified material must provide the mechanical characteristics required for the intended loading conditions and manufacturing configuration. Material grade, production method, inspection requirements, and acceptance criteria should be established before manufacturing. For projects with defined documentation requirements, material traceability and inspection records should be coordinated as part of the procurement process.

Corrosion protection is particularly important for bollards installed in coastal and marine environments. Salt deposits, moisture, rainfall, ultraviolet exposure, and temperature variation can affect the condition of exposed surfaces over time. The protective system should be selected according to the substrate, exposure category, project requirements, and expected maintenance practices. Proper surface preparation and controlled coating application are necessary to achieve the specified protection. Areas subject to repeated rope contact or mechanical impact may require more frequent inspection because coating damage can expose the underlying material. Maintenance planning should therefore consider both environmental deterioration and operational wear.

The installation interface is another critical factor in bollard performance. Base dimensions, anchor spacing, mounting-hole positions, and available clearance must correspond to the approved installation drawings. For new construction, these details should be coordinated with the quay or deck design before the supporting structure is completed. For refurbishment projects, existing foundations should be assessed to determine whether their dimensions and structural condition are suitable for the replacement equipment. Modifications to anchor arrangements, foundation dimensions, or load-bearing geometry should be reviewed by the responsible engineering personnel rather than undertaken solely to simplify installation.

Bollards may be exposed to changing operational loads as vessel displacement, cargo condition, water level, weather, and line configuration vary. The design capacity and permitted loading conditions must be established through the project's engineering assessment. Rated capacity should not be inferred from appearance or selected solely on the basis of vessel tonnage. The complete mooring arrangement, including bollard spacing, line direction, foundation design, and operating procedures, should be reviewed to confirm compatibility with the intended use. Clear documentation helps the owner, contractor, and equipment supplier work from a consistent technical basis.

Hongruntong Marine supplies Mooring Bollards for port infrastructure, shipyards, docks, and other marine engineering applications. With more than 30 years of manufacturing experience, the company can coordinate product requirements involving configuration, dimensions, material, rated capacity, mounting interface, surface protection, and agreed inspection documentation. Product selection should be based on the approved project requirements and verified installation conditions. By defining the technical specification before manufacturing and coordinating it with the installation interface, project teams can improve procurement clarity and support the long-term serviceability of the complete mooring arrangement.

Container terminals require organized mooring arrangements to accommodate scheduled vessel arrivals, departures, cargo operations, and berth turnover. Bollard positions and capacities must correspond to the approved berth layout and the vessel types expected to use the facility. High activity levels make clear line-handling procedures and routine equipment inspection important. The bollard configuration should provide the required rope-contact geometry while remaining compatible with the structural design of the quay. Material and coating requirements should be selected for the site's environmental exposure, and mounting details should be confirmed before installation to avoid conflicts with existing terminal infrastructure.

Shipyards use Mooring Bollards to secure vessels during repair, inspection, outfitting, and other maintenance activities. The range of vessel types and the changing requirements of repair work may place different demands on the mooring arrangement. Bollard capacity should be based on the intended use and the approved engineering assessment, while installation positions should preserve access for personnel, lifting equipment, and service vehicles. Where existing bollards are replaced, the foundation condition and mounting interface should be checked before a new unit is specified. A structured maintenance program helps monitor corrosion, mechanical damage, and changes in the condition of the supporting structure.

Industrial docks and coastal logistics facilities may accommodate supply vessels, workboats, utility craft, and commercial ships involved in transporting materials or equipment. Their mooring requirements depend on vessel characteristics, operating frequency, berth dimensions, and environmental conditions. Bollard selection should consider the intended line arrangement and the available structural support, including the condition of any existing mounting points. Surface protection should match the site's exposure conditions, particularly where salt spray, rainfall, and repeated handling affect the equipment. Routine inspections of the bollard, anchorage, coating, and foundation can help identify maintenance needs and support continued use in accordance with the approved operating limits.

This case is an illustrative scenario rather than a verified project completed by Hongruntong Marine.

A container terminal in an East Asian coastal industrial region planned improvements to selected berth mooring points as part of a broader maintenance and infrastructure program. The berth handled regular container vessel calls and required fixed mooring equipment capable of supporting the terminal's approved operating arrangements. Continuous exposure to salt-laden air, rainfall, and frequent vessel activity made the condition of the existing bollards and their protective coatings important maintenance considerations. The terminal operator also needed to coordinate the proposed improvements with the berth's existing structure and avoid unnecessary interference with routine terminal operations.

The initial engineering challenge was to determine whether the existing mooring points remained suitable for their intended service and whether replacement equipment could be installed using the available mounting interfaces. The inspection process needed to distinguish between surface deterioration, mechanical damage, and potential structural concerns involving the bollard body, anchorage, or surrounding concrete. The team also needed to verify the required capacity and line arrangement for each installation position rather than selecting replacement units based solely on the dimensions of the existing equipment.

The proposed engineering process began with a review of berth drawings, available bollard specifications, installation dimensions, and the terminal's operating requirements. The design team would confirm the required bollard configuration and capacity using the approved mooring plan and relevant structural calculations. Existing anchor locations and the condition of the foundation would be checked to establish whether the proposed product could be installed without structural modification. Where the original information was incomplete, additional site measurements and engineering assessment would be required before the final specification could be approved.

Hongruntong Marine's supply scope in this illustrative scenario would focus on coordinating the bollard configuration with the confirmed technical requirements. Material selection and surface protection would be specified according to the terminal's environmental exposure and maintenance strategy. Product dimensions and mounting details would be checked against the approved drawings, while agreed inspection documentation would be prepared in accordance with the order requirements. If any difference between the proposed unit and the existing installation were identified, the issue would be referred for technical review before production or installation proceeded.

The installation contractor would schedule the work around the terminal's berth availability and approved operational controls. Before installing each bollard, the contractor would inspect the mounting area and verify the relevant dimensions and anchor arrangement. Installation would follow the approved drawings and specified procedures, with attention given to alignment, anchorage, and the condition of the surrounding structure. Following installation, the responsible personnel would complete the required inspections and acceptance checks. Any load testing would be conducted only where required by the project specification and under an approved procedure.

The intended result of this approach would be a more systematically specified mooring arrangement, with replacement equipment coordinated with the berth structure and operational requirements. Appropriate corrosion protection and planned inspection could help the terminal manage environmental deterioration, while verified mounting details could reduce the risk of installation incompatibility. The work would also provide an opportunity to establish clearer maintenance records for the upgraded mooring points. Actual performance improvements, maintenance savings, and service-life outcomes would depend on the final engineering design, installation quality, operating conditions, and ongoing maintenance.

Hongruntong Marine has more than 30 years of manufacturing experience in marine equipment. This experience provides a foundation for coordinating products used in ports, shipyards, docks, and other marine infrastructure projects. Mooring Bollards require careful attention to the structural configuration, material specification, dimensional requirements, corrosion protection, and installation interface. Their suitability depends on how these factors relate to the intended berth and the supporting structure, so the procurement process should begin with a clear understanding of the customer's engineering requirements.

For project buyers, manufacturing experience is valuable when it supports accurate specification review, clear documentation, and consistent communication. Different customers may require different bollard configurations, mounting dimensions, rated capacities, and surface treatments. These requirements should be confirmed before production to avoid assumptions that could affect compatibility or acceptance. Hongruntong Marine can coordinate product details with customer-provided drawings and specifications and clarify outstanding technical information as part of the order review.

Mooring Bollard selection should be based on the approved design and the operating requirements of the berth. A product that fits the available space may still be unsuitable if its rated capacity, mounting arrangement, or material specification does not meet the project requirements. Hongruntong Marine can coordinate the requested configuration, dimensions, material, surface protection, and installation interface with the available technical documentation. This helps establish a clearer product specification for quotation, manufacturing, and subsequent inspection.

For replacement work, relevant information includes existing mounting dimensions, anchor spacing, foundation condition, and the approved capacity requirement. For new construction, the berth layout and structural drawings help define the intended installation. Where the required information is incomplete, the outstanding items should be clarified before the configuration is finalized. Any change affecting structural capacity or load transfer should be evaluated by the responsible engineering personnel. This approach supports a more controlled procurement process and helps align the supplied equipment with the actual project conditions.

Quality assurance for Mooring Bollards should focus on the technical requirements that affect structural suitability, dimensional conformity, and environmental protection. Depending on the order specification, inspection may cover material documentation, critical dimensions, visible surface condition, coating requirements, and other agreed checks. The relevant criteria should be identified before production so that both the supplier and purchaser understand the acceptance requirements. Any testing or third-party inspection should be confirmed in the contract or technical specification.

Hongruntong Marine can coordinate the agreed quality documentation with the customer's procurement requirements. Depending on the project, the documentation scope may include product drawings, dimensional records, material information, inspection reports, and surface-treatment details. These records help the receiving team compare the delivered equipment with the approved order and support traceability during installation and maintenance. The specific documents available for a particular order should be confirmed in advance, and certification should not be assumed unless it is included in the agreed supply scope.

Marine infrastructure projects often involve several parties, including owners, consultants, contractors, equipment suppliers, and installation teams. Technical discrepancies can arise when different drawing revisions, measurement units, mounting details, or inspection requirements are used during procurement. Hongruntong Marine can coordinate the order information with customers to establish a consistent specification covering product type, quantity, dimensions, material, coating, packaging, delivery destination, and agreed documentation. Confirming these details before manufacturing helps reduce avoidable changes during production and shipment preparation.

Logistics planning should account for the physical dimensions and weight of the bollards, surface-protection requirements, handling arrangements, and delivery schedule. Suitable packaging can help protect the equipment during transportation, while clear product identification supports receiving inspection and allocation to the intended installation locations. Lead times depend on the confirmed configuration, order quantity, production requirements, and transportation arrangements. These details should be agreed upon for each order so that equipment delivery can be coordinated with construction, maintenance, or berth-upgrade activities.
