Mooring Bollards PIANC Standard Horn Staghorn Bollards Cast Iron Steel 150 Tons Marine Safety
Description
Mooring bollards are a simple and cost-effective way to achieve mooring requirements. It can be found in container and passenger terminals, general cargo and ro-ro terminals, and all other types of port facilities. It is mainly made of spheroidal graphite cast iron, cast steel and stainless steel, each of which has its own characteristics for mooring bollards.
DockFender is a designer and supplier of marine mooring bollards, which could provide bollards with different capacities, shapes, and materials applied to different berths, shipyards, jetties, wharves, and ports. The normally used material is cast steel, ductile cast iron, and stainless steel, but ductile cast iron is our first choice for its high corrosion resistance and high tensile strength which can save much time and cost in maintaining. In addition, we can provide customized mooring bollards according to customer requirements.
Specifications
The shape of DockFender bollards has been refined with finite element techniques to optimize the geometry and anchor layout. Even at full working load, Trelleborg bollards remain highly stable and provide a safe and secure mooring operation.

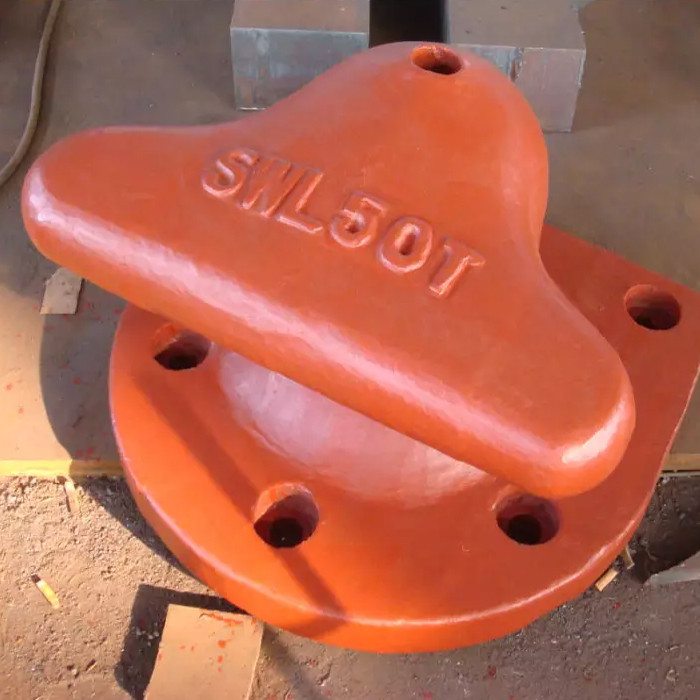

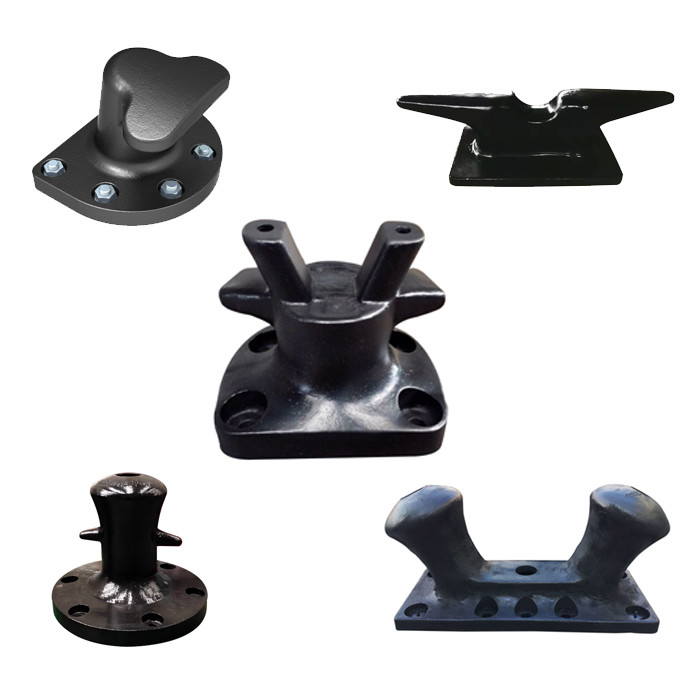

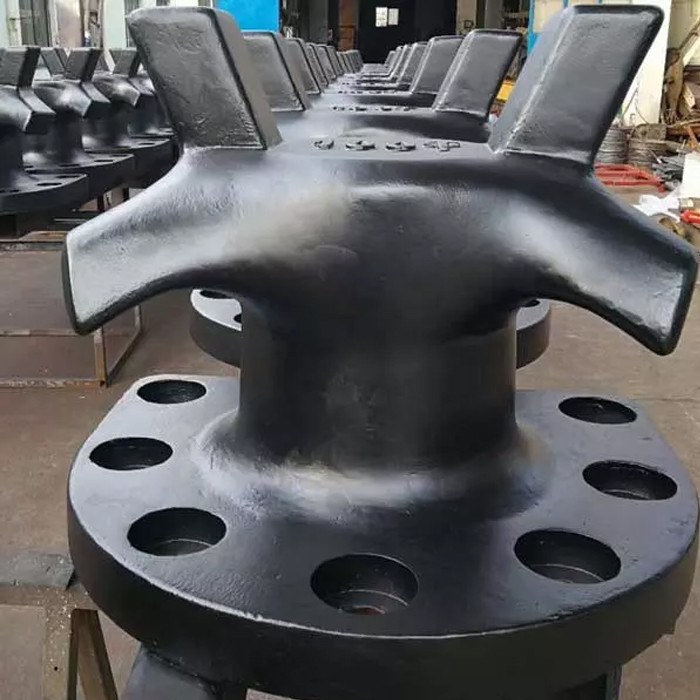

These are Tee Head, Horn Staghorn, Pillar, Kidney, Cleat, Single Bitt and Double Bitt.
| Item No. |
DF-MB150T |
| Product Name |
Mooring Bollards PIANC Standard Horn Staghorn Bollards Cast Iron Steel 150 Tons Marine Safety |
| Material |
Cast Steel Iron |
| Capacity |
10-300 Tons |
| Yield Strength |
≥310 MPA |
| Hardness |
23-34 |
| Elongation |
≥10 |
| Color |
Black, Yellow, or as required |
| Package |
By Pallets, By carton, By iron cage |
| Warranty |
36 Months |
| Certificate |
CE, ROHS, REACH, SGS, MSDS, ISO9001 |
| Experience |
32 years |
| Market |
North America, Asia, Europe, South America, Australia, Africa. |
| Payment |
BANK TRANSFER, 30% T/T, Balance Before Shipment, L/C. |
Features
1. High Quality Cast Steel or Spheroidal Graphite Cast Iron.
2. General Purpose Applications.
3. Large Range Safe Working Load from 10T to 200T.
4. Various of type and anchor as per demands.
5. Narrow footprint for limited space installations.
6. Multiple mooring line capability.
7. Steep line angle capability.
Applications
● Bulk mineral & liquid terminal berths
● Local authority, Recreational jetties & marinas
● Container Terminals
● Commercial Ro-Ro, ferry, fishing wharfs
● Industrial Oil & Gas Terminals
Coating System
Mooring Bollards are supplied as factory standard with a protective coating suitable for most projects. High performance epoxy or other specified paint system can be factory applied on request in a choice of colors and thicknesses. Standard available coatings include (uncoated, zinc oxide primer or high performance epoxy).
Mooring Bollards are also available and supplied with Hot Dip Galvanized (HDG) on special request basis. Wear and abrasion from ropes means paint coatings need regular maintenance. Ductile iron bollards are far less susceptible to corrosion than cast steel bollards, which can rust quickly and will need frequent painting to retain full strength.
Quality Assurance
Mooring Bollards are safety critical items and quality is paramount. Independent third party witnessing of test is available at additional cost on request. A typical quality documentation package will include:
- Dimensioned drawings of bollard and accessories
- Bollard and anchorage calculations (if required)
- Inspection and test plan
- Certificate of conformance
- Physical, chemical and material properties report for casting and anchorages
- Installation guidelines
