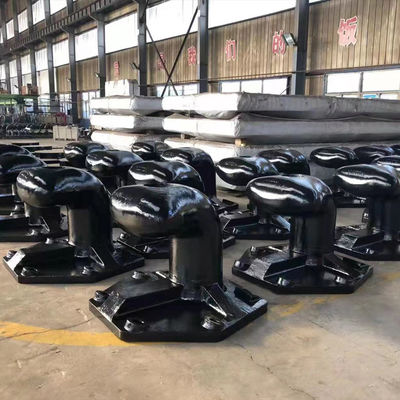

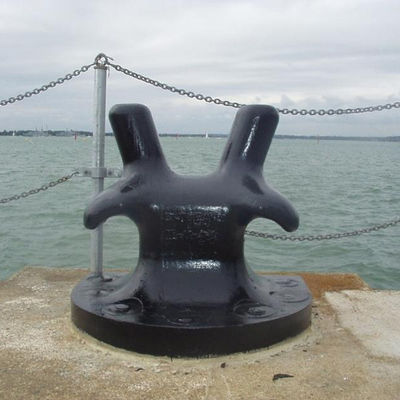

ISO 13797:2020 Mooring Bollards Horn Type Staghorn Bollard For Ship Docking

Mooring Bollards Cast Steel Excellent Horn Type Staghorn Bollards For Boat Marine Dock

Description

Marine Mooring Bollards provide a simple yet efficient method for fulfilling mooring requirements to allow safe securing of vessels next to jetties, wharves, berths and dolphins in ports and harbours. DockFender can offer a wide range of cast iron or steel bollards in various sizes, grades and capacities.

Mooring bollards are designed and manufactured in accordance to various international standards such as BS 6349 pt 4 and PIANC guidelines. Bollards are safety critical components and DockFender strives to provide bollards with superior service life and resistance to physical and corrosive environments.

Specifications

The shape of DockFender bollards has been refined with finite element techniques to optimize the geometry and anchor layout. Even at full working load, Trelleborg bollards remain highly stable and provide a safe and secure mooring operation.

These are Tee Head, Horn Staghorn, Pillar, Kidney, Cleat, Single Bitt and Double Bitt.

Features

1. Wide range of anchoring systems and bases for choice.

2. Strong & Long-lasting design.

3. Qualified epoxy coating with high corrosion resistance.

4. Horn head is designed to handle higher linear load angles.

5. Due to its complex shape, it can accept multiple mooring ropes without interfering with each other.

Applications

● Bulk minerals, industrial oil and gas and liquid pier.

● Local administration and leisure pier.

● Rolling ship, ferry, container and fishing pier.

● Berth materials unloading and heavy-duty lifting facilities.

Coating System

Mooring Bollards are supplied as factory standard with a protective coating suitable for most projects. High performance epoxy or other specified paint system can be factory applied on request in a choice of colors and thicknesses. Standard available coatings include (uncoated, zinc oxide primer or high performance epoxy).

Mooring Bollards are also available and supplied with Hot Dip Galvanized (HDG) on special request basis. Wear and abrasion from ropes means paint coatings need regular maintenance. Ductile iron bollards are far less susceptible to corrosion than cast steel bollards, which can rust quickly and will need frequent painting to retain full strength.

Quality Assurance

Mooring Bollards are safety critical items and quality is paramount. Independent third party witnessing of test is available at additional cost on request. A typical quality documentation package will include:

• Dimensioned drawings of bollard and accessories
• Bollard and anchorage calculations (if required)
• Inspection and test plan
• Certificate of conformance
• Physical, chemical and material properties report for casting and anchorages
• Installation guidelines
