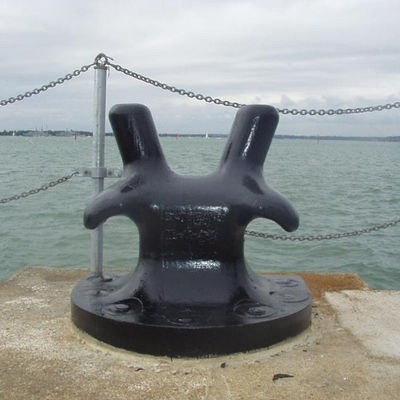

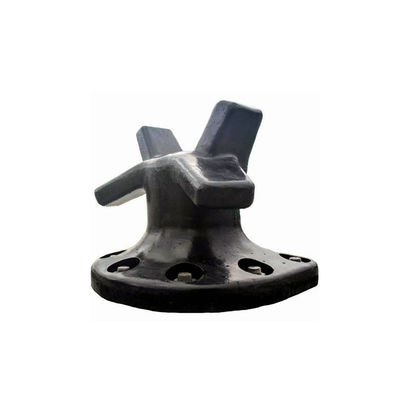

Mooring Bollards ISO13797:2020 Horn Staghorn Type Bollards 100 Tons Safety Marine Docking
Description
Marine bollards are a simple and cost-effective way to fulfill mooring requirements and safely secure vessels alongside jetties, berths, wharves, and dolphins in ports and harbors. DockFender provides bollards with a range of design profiles, sizes, and mooring line capacities to suit all mooring applications.
The shape of mooring bollards has been refined with finite element techniques to optimize the geometry and anchor layout. Even at full working load, Trelleborg bollards remain highly stable and provide a safe and secure mooring operation.
Specifications
The shape of DockFender bollards has been refined with finite element techniques to optimize the geometry and anchor layout. Even at full working load, Trelleborg bollards remain highly stable and provide a safe and secure mooring operation.

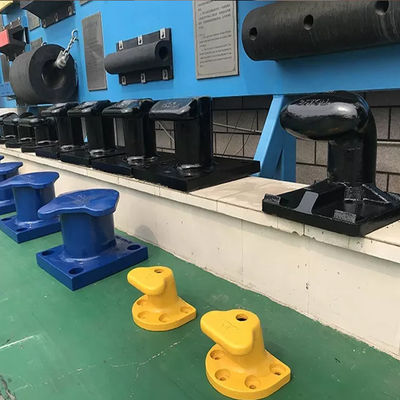

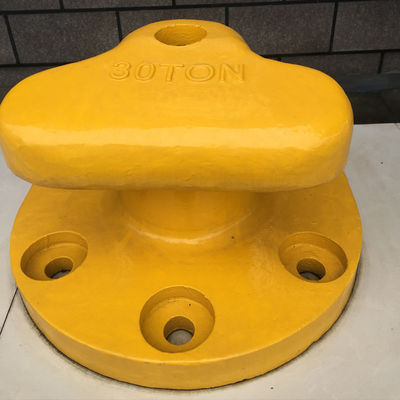

These are Tee Head, Horn Staghorn, Pillar, Kidney, Cleat, Single Bitt and Double Bitt.
| Product Name |
Mooring Bollards ISO13797:2020 Horn Staghorn Type Bollards 100 Tons Safety Marine Docking |
| Brand Name |
DockFender |
| Model Number |
DF-MB100H |
| Material |
High Quality Cast Iron Steel |
| Standard |
PIANC, ISO 13797:2020 |
| Tensile Strength |
≥450 MPA |
| Certificates |
BV, ABS, DNV, LR, SGS, RS, CCS |
| OEM / ODM |
Welcome |
| Packing Details |
PE plastic bags then to the pallet / as per your request |
| Production Capacity |
3000 pcs per month |
| Lead Time |
7 days for prototype tooling & samples, 14 days for production mold, 14-28 days for MOQ |
| Payment Terms |
T/T, L/C, Paypal, Western Union |
| Service |
Free spare parts |
Features
1. Long service life up to 20 years.
2. Durable design and good corrosion resistance.
3. Ductile cast iron and cast steel materials suitable for extreme weather.
4. Mooring purpose applications up to 200 tons.
5. Perfect for multi-use berths.
6. Special designs are available upon request.
7. The cost-effective, simple design and economical solutions.
Applications
● Small ship berth
● Large bulk cargo terminal
● Oil & Gas terminals
● Commercial jetty
● Container & Fishing wharfs
Coating System
Mooring Bollards are supplied as factory standard with a protective coating suitable for most projects. High performance epoxy or other specified paint system can be factory applied on request in a choice of colors and thicknesses. Standard available coatings include (uncoated, zinc oxide primer or high performance epoxy).
Mooring Bollards are also available and supplied with Hot Dip Galvanized (HDG) on special request basis. Wear and abrasion from ropes means paint coatings need regular maintenance. Ductile iron bollards are far less susceptible to corrosion than cast steel bollards, which can rust quickly and will need frequent painting to retain full strength.
Quality Assurance
Mooring Bollards are safety critical items and quality is paramount. Independent third party witnessing of test is available at additional cost on request. A typical quality documentation package will include:
- Dimensioned drawings of bollard and accessories
- Bollard and anchorage calculations (if required)
- Inspection and test plan
- Certificate of conformance
- Physical, chemical and material properties report for casting and anchorages
- Installation guidelines
