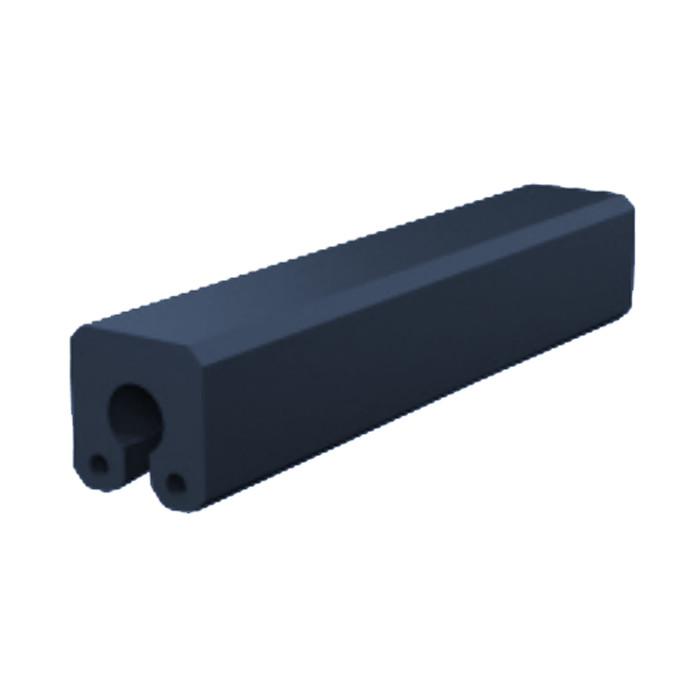

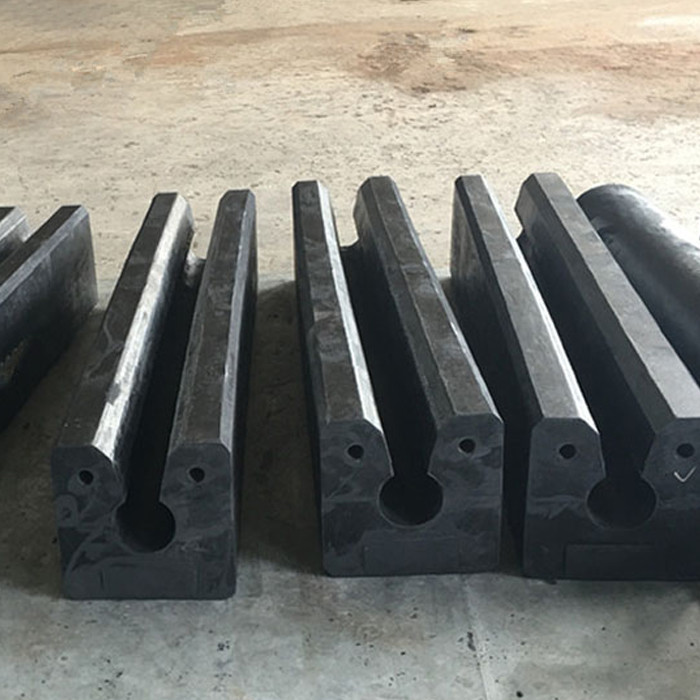

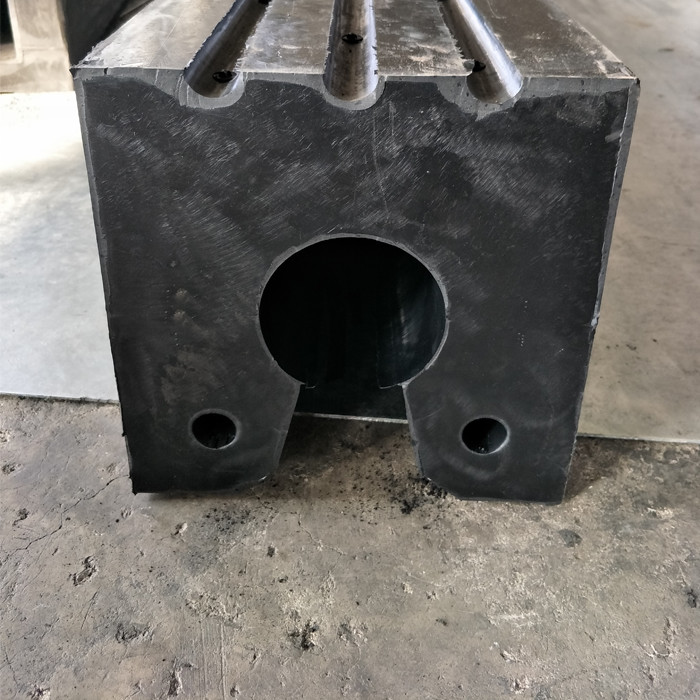

PIANC Specifications Keyhole Fenders Tug Boat Fenders K350 Type Bow & Stern Bumper Fender
Description
TTug Boat Fenders (Key Hole Fenders) are the most versatile bow & stern fender used on Tug Boats, small Port Craft, and Ferries. They offer maximum protection to the Tugs and Ferries with the typical profile and load absorbing capabilities. These are very easy to install and replace, thus making the maintenance hassle-free. Being made of high abrasion-resistant rubber these Fenders display good resilience properties.
Specifications
| Product Name |
PIANC Specifications Keyhole Fenders Tug Boat Fenders K350 Type Bow & Stern Bumper Fender |
| Construction Material |
High Level Rubber |
| Color |
Black, Green, Blue, Gray |
| Normal Size |
200mm, 250mm, 300mm, 350mm |
| Logo |
Customized Logo Availabled |
| Surface |
Shiny or dull |
| Provide Service |
Rubber compression molding, Rubber to metal molding, Rubber extrusion molding and Custom rubber molding |
| File Format |
Solid works, Pro/Engineer, Auto CAD, PDF, JPG |
| Remarks |
Above sizes are standard, customized size available. |
| Model |
H |
B |
C |
D |
F |
Lmax |
| Keyhole |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
| DF-K200 |
200 |
35 |
130 |
28 |
90 |
2000 |
| DF-K250 |
250 |
50 |
150 |
33 |
100 |
2000 |
| DF-K300 |
300 |
60 |
180 |
33 |
115 |
2000 |
| DF-K350 |
350 |
70 |
210 |
33 |
125 |
2000 |
| *Note: Other sizes can be customized according to the requirements. |
Features
1. Highly resistant to UV rays.
2. Straightforward and simple installation.
3. Highly durable and strong.
4. Available in basically all lengths.
Applications

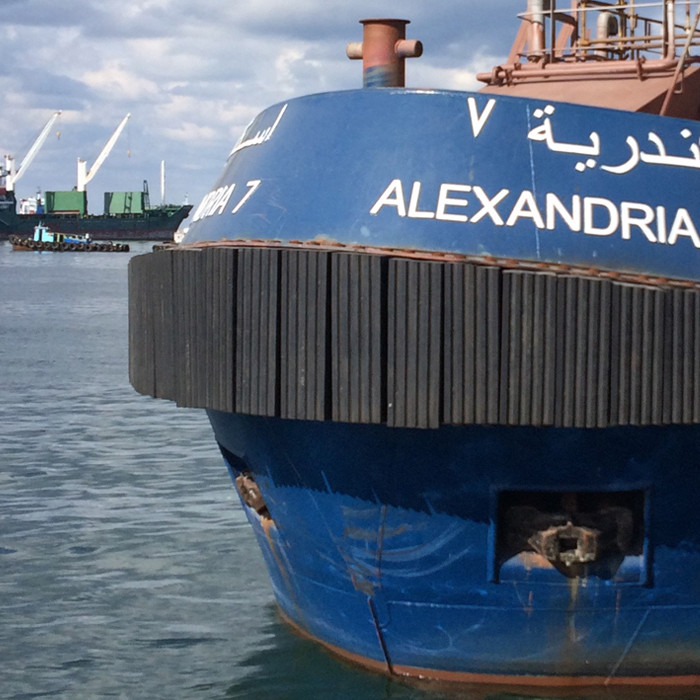

● Tugboats & work-boats
● Quay sides
● Barges
Advantages
1. Quality: DockFender tug boat fenders always maintain high quality. We insist on using 100% natural rubber, coupled with a special angle design, so that our tug boat rubber fenders can be more durable and perform better.
2. Service: DockFender adheres to the principle of customer first. Our professional customer service team can not only provide you with the most professional product recommendations, but also help you customize project solutions.
3. After-sales Service: DockFender 's tug boat fenders can be guaranteed for 24 months. As long as you use it normally, we can guarantee replacement for any product quality problems during the warranty period.
4. Customize: All products of DockFender can be specially customized according to customer requirements, let us know your needs!
Inspection & Certificates
We use modern technology to design and manufacture, and through rigorous field testing.
The following tests are to be conducted:
- Rubber performance test including tensile, ozone and abrasion test
- Energy absorption and reaction test
Our QC department will inspect each product and offer FACTORY INSPECTION REPORT before delivery. We can also invite the third party inspection agencies including CCS, ABS, BV, LR, DNV-GL to inspect and offer certificates according to customer requirements.
Inspect items as below:
1. Rubber tensile, ozone and abrasion test.
2. Rubber fender energy absorption and reaction test.
