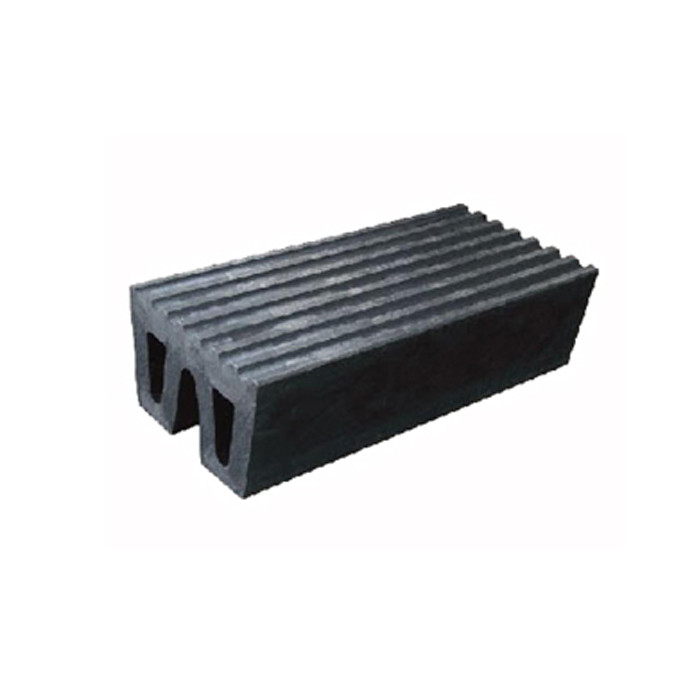

Customized W Type Tug Boat Fenders W Fender Bow and Stern Protection Natural Rubber
Description
Tug Boat Fenders W-shaped Fenders have an extreme-duty design that is for even the most extreme operating conditions. It is definitely one of the most commonly used boat bumpers for tugs today. Fenders can be installed around the curves of most hull shapes and effectively buffer the collision between docks and ships. Tensile strength is highly customized according to client’s requirements.
The tug boat fenders adopt completely vulcanization technology with good performance, long-life utility and easy installation. They can be disassembled by using user-friendly fixtures and tools and rigging, and are welcomed by small port owners and tugboat owners.
Specifications
| Product Name |
Customized W Type Tug Boat Fenders W Fender Bow and Stern Protection Natural Rubber |
| Brand Name |
DockFender |
| Model Number |
DF-W250 |
| Material |
High Density NR/SBR |
| Standard |
PIANC 2002, HGT 2866-2016 |
| Shape |
W Shape |
| OEM / ODM |
Available |
| Size |
As per drawing dimensions |
| Tolerance Standard |
ISO2768-M or ISO3302-1:2014 CLASS M2 |
| Usage |
For tugboat docking or berthing |
| Certificate |
DNV BV CCS LR ABS |
| Color |
Customers' Requirements |
| Working Temperature |
-15 degreee to 200 degree |
| Model |
A |
B |
C |
D |
E |
F |
G |
Lmax |
| W |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
| DF-W200 |
200 |
320 |
100 |
180 |
280 |
67 |
50 |
2900 |
| DF-W250 |
250 |
400 |
110 |
220 |
350 |
75 |
55 |
2000 |
| DF-W300 |
300 |
480 |
135 |
269 |
426 |
90 |
65 |
3000 |
| DF-W450 |
450 |
500 |
90 |
255 |
420 |
100 |
75 |
2000 |
| *Note: Other sizes can be customized according to the requirements. |
Features
1. Good performance.
2. High energy absorption and low force reaction.
3. Convenient to install and maintain.
4. Available in bow bottom and stem of the vessels.
Applications
● Jetties and wharves for small craft
● Tugs and workboats
● Pontoon protection
● Inland waterways
● General purpose fendering
Advantages
1. Quality: DockFender tug boat fenders always maintain high quality. We insist on using 100% natural rubber, coupled with a special angle design, so that our tug boat rubber fenders can be more durable and perform better.
2. Service: DockFender adheres to the principle of customer first. Our professional customer service team can not only provide you with the most professional product recommendations, but also help you customize project solutions.
3. After-sales Service: DockFender 's tug boat fenders can be guaranteed for 24 months. As long as you use it normally, we can guarantee replacement for any product quality problems during the warranty period.
4. Customize: All products of DockFender can be specially customized according to customer requirements, let us know your needs!
Inspection & Certificates
We use modern technology to design and manufacture, and through rigorous field testing.
The following tests are to be conducted:
- Rubber performance test including tensile, ozone and abrasion test
- Energy absorption and reaction test
Our QC department will inspect each product and offer FACTORY INSPECTION REPORT before delivery. We can also invite the third party inspection agencies including CCS, ABS, BV, LR, DNV-GL to inspect and offer certificates according to customer requirements.
Inspect items as below:
1. Rubber tensile, ozone and abrasion test.
2. Rubber fender energy absorption and reaction test.
