PIANC Standard W Type Fender Tug Boat Fenders Dock Berthing Boat Marine Wear Resistant
Description

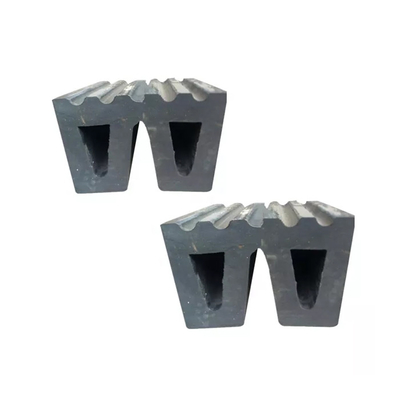

Tug Boat Fenders (W fenders) are designed for use in extreme conditions and to absorb excessive bumps and knocks. This type of fender is very suitable for application on the bow and stern of tugs, workboats and icebreakers. The grooves on the top of the fender provide extra grip and low pressure while pushing.
With two flexible legs also allow for easy installation of the W fender with a large or small radius by means of guide rods W fenders are made from extremely durable rubber. Lengths are often no longer than 2000 mm and they are produced by means of compression-moulding. The most common dimensions are kept in stock and can therefore be delivered at short notice. W fenders, M fenders and keyhole fenders are not interchangeable. W fenders are relatively easy to install.
Specifications
| Place of Origin |
China |
| Brand Name |
DockFender |
| Model Number |
DF-W450 |
| Product Name |
PIANC Standard W Type Fender Tug Boat Fenders Dock Berthing Boat Marine Wear Resistant |
| Material |
High Quality Natural Rubber |
| Standard |
HGT2866-2016, PIANC2002 |
| Density |
1.35~2.0 g/cm3 |
| Tensile Strength |
≥16 MPA |
| Elongation |
≥300% |
| Usage |
For tugboat protection |
| Certificate |
DNV BV CCS LR ABS |
| Color |
Customers' Requirements |
| Working Temperature |
-15 degreee to 200 degree |
| Model |
A |
B |
C |
D |
E |
F |
G |
Lmax |
| W |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
| DF-W200 |
200 |
320 |
100 |
180 |
280 |
67 |
50 |
2900 |
| DF-W250 |
250 |
400 |
110 |
220 |
350 |
75 |
55 |
2000 |
| DF-W300 |
300 |
480 |
135 |
269 |
426 |
90 |
65 |
3000 |
| DF-W450 |
450 |
500 |
90 |
255 |
420 |
100 |
75 |
2000 |
| *Note: Other sizes can be customized according to the requirements. |
Features
1. Low maintenance.
2. Cost effective and safe.
3. Tailored fenders.
4. High abrasion resistant.
5. Non-marking navy grey color optional.
6. Light weight.
7. Ideal for tight corners.
Applications
● All types of tugs
● Pontoon protection
● Special corner fenders
● Ocean-going tugs
● Bridge and pile protection
Advantages
1. Quality: DockFender tug boat fenders always maintain high quality. We insist on using 100% natural rubber, coupled with a special angle design, so that our tug boat rubber fenders can be more durable and perform better.
2. Service: DockFender adheres to the principle of customer first. Our professional customer service team can not only provide you with the most professional product recommendations, but also help you customize project solutions.
3. After-sales Service: DockFender 's tug boat fenders can be guaranteed for 24 months. As long as you use it normally, we can guarantee replacement for any product quality problems during the warranty period.
4. Customize: All products of DockFender can be specially customized according to customer requirements, let us know your needs!
Inspection & Certificates
We use modern technology to design and manufacture, and through rigorous field testing.
The following tests are to be conducted:
- Rubber performance test including tensile, ozone and abrasion test
- Energy absorption and reaction test
Our QC department will inspect each product and offer FACTORY INSPECTION REPORT before delivery. We can also invite the third party inspection agencies including CCS, ABS, BV, LR, DNV-GL to inspect and offer certificates according to customer requirements.
Inspect items as below:
1. Rubber tensile, ozone and abrasion test.
2. Rubber fender energy absorption and reaction test.
