Name: Cell Rubber Fender with Large Compression Capacity Stable Performance and Easy Installation for Marine Docks
Brand: Hongruntong Marine Co., Ltd.
SKU: HM-CRF25
Price: 1,292.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

OEM Permitted: Yes

Accessories: Front Panel, Face Pad, Chain..

Warranty: 24 Months

Material: Natural Rubber

Product Name: Cell Rubber Fender

Certification: ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS

Height: 400 To 3000 MM

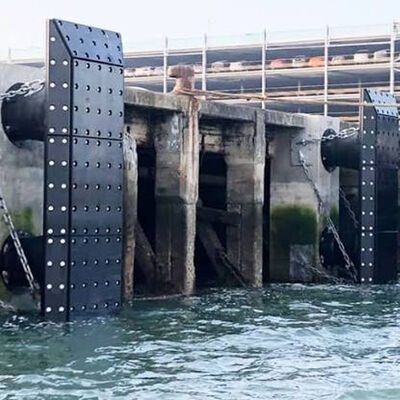

Usage: Ship, Dock, Jetty, Port, Wharf

Highlight:

Large Compression Capacity Cell Rubber Fender

Stable Performance Dock Fender

Easy Installation Marine Fender

Basic Infomation

Place of Origin: China

Brand Name: Hongruntong Marine

Certification: ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS

Model Number: HM-CRF25

Payment & Shipping Terms

Packaging Details: Wooden Pallet, Wooden Case

Delivery Time: 5-8 Work Days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,

Supply Ability: 1858 PCS Per Month

Gallery

Cell Rubber Fender with Large Compression Capacity Stable Performance and Easy Installation for Marine Docks

Product Description

Dock Fender Large Compression Capacity Stable Performance Easy Installation

Product Overview

Cell Rubber Fender is a compression-type marine fender engineered for high-frequency vessel berthing at container terminals, general cargo ports, ferry terminals, shipyards, industrial wharves, dolphins, and other marine structures. Its primary function is to absorb controlled berthing energy while limiting the reaction force transferred to the supporting structure and maintaining an appropriate contact condition between the vessel and berth.

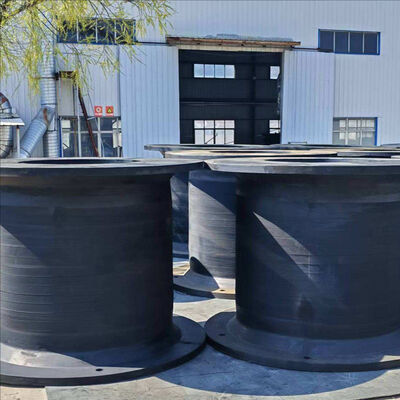

The main body consists of a molded cylindrical rubber cell manufactured from a high-strength elastomer compound. The rubber structure is designed to deform progressively when compressed by vessel contact. During this deformation, part of the vessel's kinetic energy is converted into elastic deformation of the rubber, reducing direct impact on the quay structure.

Technical Specifications

Product Name	Cell Rubber Fender
Brand Name	Hongruntong Marine
Material	High Quality Natural Rubber
Reaction Force	29-4626KN
Energy Absorption	4-6102KNM
Hardness	≤82 Shore A
Standard	PIANC2002, HGT2866-2016
Processing Service	Moulding, Cutting
Lifespan	15-20 Years
Service	OEM or ODM
Features	Strong, Robust, Well Proven Design
Application	Port, Dock, Quay, etc

Model Specifications

Model	H [mm]	h [mm]	D1 [mm]	D2 [mm]	n-t [mm]
CF-C400H	400	25	650	550	30
CF-C500H	500	25	650	550	32
CF-C630H	630	30	840	700	39
CF-C800H	800	30	1050	900	40
CF-C1000H	1000	35	1300	1100	47
CF-C1150H	1150	40	1500	1300	50
CF-C1250H	1250	45	1650	1450	53
CF-C1450H	1450	47	1850	1650	61
CF-C1600H	1600	50	2000	1800	61
CF-C1700H	1700	55	2100	1900	66
CF-C2000H	2000	55	2200	2000	74
CF-C2250H	2250	60	2550	2300	74
CF-C2500H	2500	70	2950	2700	90
CF-C3000H	3000	75	3350	3150	90

Key Features

Designed for High Cycle Berthing Operations: Engineered for repeated compression and recovery cycles with controlled elastic deformation and fatigue resistance
Precise Load Distribution and Hull Pressure Control: Combined with steel front panels for larger contact surface and reduced pressure concentration
Dimensional Compatibility for Berth Rehabilitation: Customizable dimensions for replacement projects without extensive structural modifications
Wear Resistant Sliding Interface: UHMW-PE facing surfaces reduce friction during vessel movement and support modular maintenance

Applications

High Traffic Container Terminals: Suitable for frequent vessel arrivals and departures with repeated compression cycles
General Cargo and Multipurpose Berths: Flexible protection across multiple vessel operating profiles and hull dimensions
Berth Rehabilitation and Fender Replacement Projects: Customized dimensions for existing mounting positions with limited structural modification

Why Choose Hongruntong Marine

30+ Years Manufacturing Experience: Extensive expertise in marine products and rubber-based equipment manufacturing
Engineering Customization: Tailored solutions for existing berths with dimensional compatibility
Quality Control: Controlled production processes including rubber preparation, molding, vulcanization, and inspection
Technical Support: Comprehensive project coordination from selection to installation for high-traffic port projects

Frequently Asked Questions

Why is Cell Rubber Fender suitable for high-traffic ports?

Its compression-type rubber structure is designed to absorb berthing energy through controlled deformation and recover after unloading. When correctly selected and operated within its specified compression range, it can accommodate repeated vessel contact and provide long-term berth protection.

Can Cell Rubber Fender replace an existing fender without rebuilding the quay?

In many replacement projects, yes. The fender can be customized according to existing dimensions, mounting positions, bolt-hole arrangements, projection, and other structural interfaces. The existing structure should be surveyed and confirmed before production.

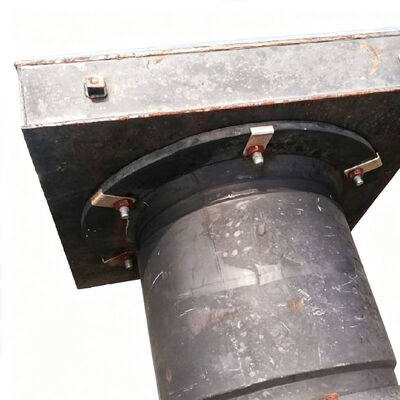

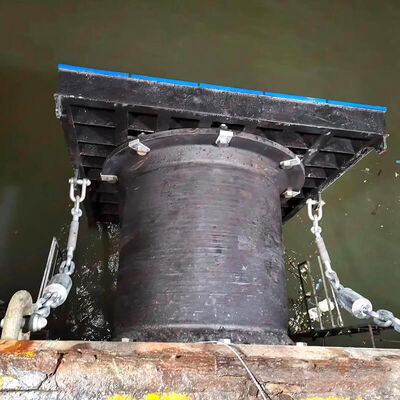

What is the function of the steel front panel?

The front panel provides a larger vessel contact surface and distributes reaction forces over a broader hull area. It can also support a UHMW-PE sliding face where longitudinal vessel movement occurs.

How can wear be reduced during repeated vessel movement?

A low-friction UHMW-PE facing surface can be used on the front panel to reduce sliding resistance. Correct fender alignment and appropriate vessel operating procedures are also important for controlling abnormal wear.

What information is required for customized Cell Rubber Fender production?

Typical information includes vessel size and operating range, berthing conditions, required energy absorption and reaction force, fender dimensions, installation drawings, existing anchor positions, mounting-hole dimensions, front-panel requirements, sliding material, and applicable project specifications.
