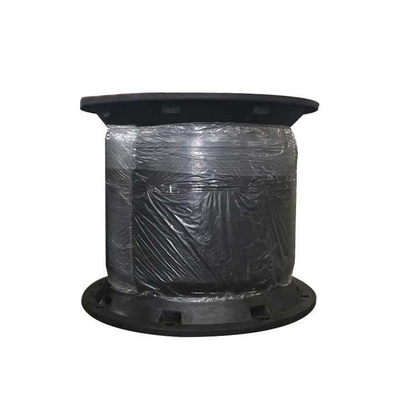

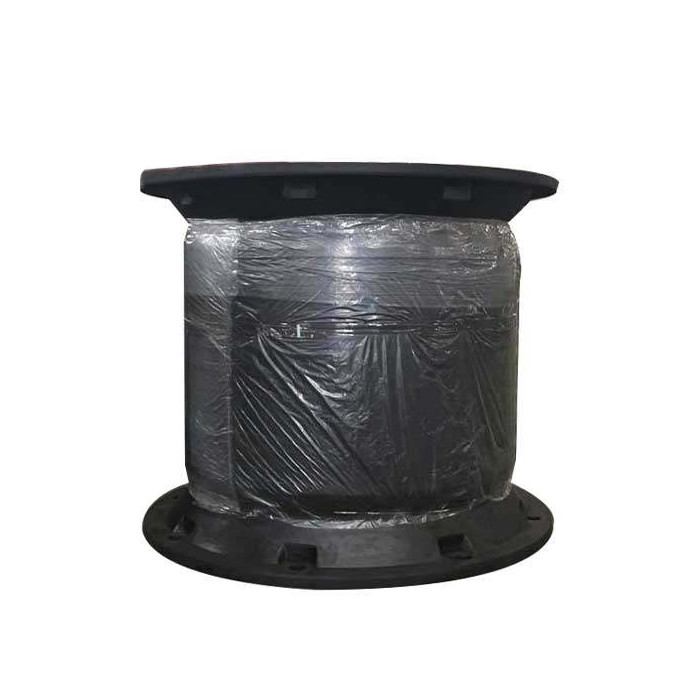

ABS Certificate Cell Rubber Fender 1600H Wear Resistant Vessels Jetty Dock Protection
Description

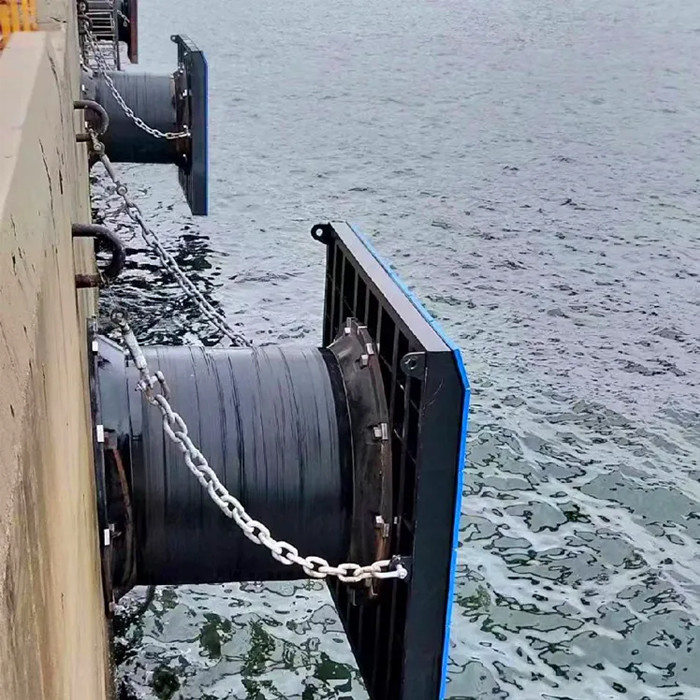

Cell rubber fenders raised design compression 5%, thus maintain the reaction force while increase energy absorption value by about 15%. The frontal panel can greatly reduce the hull pressure, which makes it especially proper for the berthing of a large ship. Frontal panel will be mounted to rubber fender to reduce the surface pressure to ship. And the UHMW-PE pad bolted on the frontal panel can lessen the friction factor between ship and fender and reduce the shear force greatly during ship berthing, therefore prolong the fender system service life.
Specifications
| Product Name |
ABS Certificate Cell Rubber Fender 1600H Wear Resistant Vessels Jetty Dock Protection |
| Construction Material |
High Level NR, NBR, FKM, SIL/VMQ, EPDM, HNBR, CR, FVMQ |
| Color |
Black, Green, Blue, Gray |
| Normal Size |
500-3000H |
| Processing Service |
Moulding, Cutting |
| Surface |
Shiny or dull |
| Feature |
Eco-friendly, Wear-resistant, Anti-aging |
| Advantage |
Anti-pressure, anti-slip, wear-resistant, energy-absorb and shock resistant, easy to install and maintain, environmental-friendly, recyclable.
|
| File Format |
Solid works, Pro/Engineer, Auto CAD, PDF, JPG |
| Remarks |
Customized size available. |
| Model |
H |
h |
D1 |
D2 |
n-t |
| Cell |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
| DF-C400H |
400 |
25 |
650 |
550 |
30 |
| DF-C500H |
500 |
25 |
650 |
550 |
32 |
| DF-C630H |
630 |
30 |
840 |
700 |
39 |
| DF-C800H |
800 |
30 |
1050 |
900 |
40 |
| DF-C1000H |
1000 |
35 |
1300 |
1100 |
47 |
| DF-C1150H |
1150 |
40 |
1500 |
1300 |
50 |
| DF-C1250H |
1250 |
45 |
1650 |
1450 |
53 |
| DF-C1450H |
1450 |
47 |
1850 |
1650 |
61 |
| DF-C1600H |
1600 |
50 |
2000 |
1800 |
61 |
| DF-C1700H |
1700 |
55 |
2100 |
1900 |
66 |
| DF-C2000H |
2000 |
55 |
2200 |
2000 |
74 |
| DF-C2250H |
2250 |
60 |
2550 |
2300 |
74 |
| DF-C2500H |
2500 |
70 |
2950 |
2700 |
90 |
| DF-C3000H |
3000 |
75 |
3350 |
3150 |
90 |
Features
1. Lower reaction per ton-meter energy absorbed.
2. Lower hull pressure.
3. Multi-directional dispersion of energy.
4. Can support large panels.
5. Excellent durability.
Applications
● Fast ferries and catamaran berths
● Conventional Rope berths
● Oil, liquid and bulk terminals
● Multi-user facilities
● Monopile and elastic dolphin structures
● Open pile jetties and wharves
● Locations with a very large tidal range
● Lead-in structures and turning
Advantages
1. Quality: DockFender cell rubber fender always maintain high quality. We insist on using 100% natural rubber, coupled with a special angle design, so that our cell rubber fender can be more durable and perform better.
2. Service: DockFender adheres to the principle of customer first. Our professional customer service team can not only provide you with the most professional product recommendations, but also help you customize project solutions.
3. After-sales Service: DockFender 's fixed cell rubber fender can be guaranteed for 24 months. As long as you use it normally, we can guarantee replacement for any product quality problems during the warranty period.
4. Customize: All products of DockFender can be specially customized according to customer requirements, let us know your needs!
Rubber Properties
| PROPERTIES |
TEST STANDARD |
VALUES |
| Compound |
- |
NR / SBR |
| Density (Specific Gravity) |
DIN 53505 |
1200 kg/m3 |
| Tensile Strength |
DIN 53504 |
≥16 MPa |
| Elongation at Break |
DIN 53504 |
≥350% |
| Tear Resistance (23°C) |
DIN 53507 |
≥80 N/cm |
| Abrasion Resistance |
DIN 53516 |
≤100mm3 |
| Compression Set (24hrs @ 70°C) |
DIN 53517 |
≤40% |
| Ozone Resistance (ppm 20% 72hrs @ 40°C) |
ISO 143/1 |
No cracking visible by eye |
| Change In Hardness |
DIN 53504 |
≤5° |
| Change In Tensile Strength |
DIN 53504 |
≥80% |
| Change In Elongation at Break |
DIN 53504 |
≥80% |
| Minimum Temperature |
- |
-30°C |
| Maximum Temperature |
- |
+70°C |
