V Type Fender Dock Fender Heavy Duty Protection Excellent Impact Absorption Reliable Performance

1
MOQ
USD36 to 199 Per Piece
Price
V Type Fender Dock Fender Heavy Duty Protection Excellent Impact Absorption Reliable Performance
Features Gallery Product Description Request A Quote
Features
Specifications
Hardness: ≤82 Shore A
Product Name: V Type Fender
Part: Dock Bumper
Feature: Easy Replacement Firm For Installation
Application: Boat Ship Dock Jetty Wharf Port
Material: High Quality NR
Certificate: ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
Color: Black Or Customized
Highlight:

Heavy Duty Protection V Type Fender

,

Excellent Impact Absorption Dock Fender

,

Reliable Performance Marine Fender
Basic Infomation
Place of Origin: China
Brand Name: Hongruntong Marine
Certification: ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
Model Number: HM-VTF7
Payment & Shipping Terms
Packaging Details: Pallet, Wooden Box
Delivery Time: 5-7 Work Days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 888 Pcs Per Month
Product Description
V Type Fender - Heavy Duty Marine Protection
V Type Fender is a heavy-duty compression fender developed for marine structures that require reliable energy absorption, controlled reaction force, and resistance to repeated vessel contact. The product uses a V-shaped rubber profile to create a progressive deformation mechanism that converts vessel kinetic energy into elastic deformation, reducing direct impact on supporting structures.
Product Overview
Manufactured from engineered rubber compounds with controlled mechanical properties, V Type Fender can be specified according to hardness, tensile strength, elongation, tear resistance, abrasion resistance, compression characteristics, and environmental durability. The combination of material formulation and geometric design determines the final load-deflection behavior.
Particularly suitable for facilities where vessels may approach at different angles or experience repeated contact caused by wind, current, tidal movement, or operational maneuvering. Its progressive compression behavior provides a compliant interface between vessel and berth.
Case Study: Offshore Supply Base Installation
An offshore supply base in the Middle East required a new berth protection system for service vessels supporting offshore oil and gas operations. The site presented engineering challenges including high solar radiation, elevated temperatures, salt-laden air, and frequent vessel movements with strong crosswinds.
V Type Fender was selected for primary contact zones with rubber formulation specified for local environmental conditions. Steel front panels were incorporated to distribute vessel loads and protect rubber surfaces from excessive localized abrasion. Low-friction facing materials were applied where sliding movement was expected.
The installation provided practical reference for marine facilities operating in hot, saline, and high-UV environments, demonstrating the importance of combining appropriate rubber material selection, structural configuration, and installation control.
V Type Fender installation at offshore supply base Close-up view of V Type Fender profile
Technical Specifications
Product Name V Type Fender
Material High Performance Natural Rubber
Standard HGT2866-2016, PIANC2002
Shape V Type
Feature Easy Replacement, Firm Installation
Part Dock Bumper
Usage Dock, Port, Wharf, Boat, Ship
Surface Matte/Smooth
Packing Pallet or Wooden Case
Keywords Arch Rubber Fender, V Rubber Fender
Dimensional Specifications
Model A [mm] D [mm] E [mm] F [mm] H [mm] K [mm] M [mm] R x Q [mm] Lmax [mm]
HM-VTF150 50 240 326 98 150 16 - 20 108 20 * 40 3000
HM-VTF200 50 320 422 130 200 18 - 25 142 25 * 50 3000
HM-VTF250 62.5 400 500 163 250 20 - 30 164 28 * 56 3500
HM-VTF300 75 480 595 195 300 25 - 32 194 28 * 56 3500
HM-VTF400 100 640 808 260 400 25 - 32 266 35 * 70 3500
HM-VTF500 125 800 981 325 500 25 - 32 318 42 * 84 3500
HM-VTF600 150 960 1160 390 600 28 - 40 373 48 * 96 3000
HM-VTF800 200 1300 1550 520 800 41 - 50 499 54 * 108 3000
HM-VTF1000 250 1550 1850 650 1000 50 - 62 580 54 * 108 3000
Note: Other sizes can be customized according to requirements.
Key Features
High Load Capacity and Stable Structural Response
Designed to manage substantial compressive loading through reinforced rubber structure and V-shaped geometry. The profile distributes deformation through the body rather than concentrating impact at a single rigid contact point. Supports repeated loading with rubber returning toward original shape after compression.
High Temperature and Environmental Resistance
Manufactured from rubber compounds selected for environmental durability with resistance to UV exposure, ozone, seawater, humidity, and temperature variation. Designed to resist mechanical abrasion generated by vessel contact, with optional low-friction contact surfaces for sliding applications.
Controlled Contact Pressure and Hull Protection

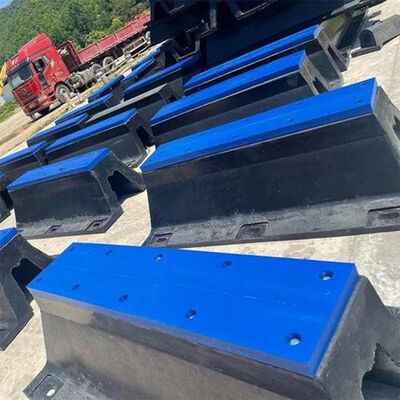

Can be equipped with steel frontal panels that distribute applied load across broader contact area. Provides stable interface between deformable rubber body and vessel hull. Front panels can be fitted with low-friction material to reduce sliding resistance and prevent unnecessary horizontal forces.
Modular Configuration for Maintenance and Replacement
Supplied as individual sections installed along berth according to required protection arrangement. Modular construction provides flexibility during installation and maintenance. Individual sections can be inspected and replaced independently, reducing maintenance scope and simplifying transportation.
Applications
Offshore Supply Bases
Suitable for supply berths, utility vessel stations, crew boat facilities, and offshore logistics terminals. Absorbs controlled impact while maintaining resilient separation between vessel and quay. Rubber compound can be specified for severe solar and marine exposure.
Heavy Industrial Wharves
Provides protection between vessel hulls and structural edge while preventing excessive impact transmission to adjacent industrial infrastructure. Configurable dimensions allow adaptation to different berth geometries including concrete quay walls, steel structures, and reinforced industrial platforms.
Marine Construction Platforms and Project Berths
Suitable for temporary and permanent project berths accommodating construction vessels, barges, crane vessels, and heavy workboats. Passive rubber construction ideal for facilities where simple maintenance and mechanical reliability are important. Customized lengths and mounting arrangements available.
Why Choose Hongruntong Marine
Long-Term Marine Product Manufacturing Experience
Over 30 years of experience in marine equipment and rubber product manufacturing. Established technical foundation for producing marine fenders that operate under repeated mechanical loading and prolonged environmental exposure.
Environmental Material Engineering
Considers operating environment when determining appropriate rubber specification. Parameters such as hardness, tensile properties, abrasion resistance, ozone resistance, and environmental durability incorporated into technical requirements.
Customized Fender and Accessory Solutions
Complete fender systems including rubber bodies, steel panels, mounting plates, brackets, chains, UHMW-PE facing materials, and fastening components. Customization available according to customer drawings, berth dimensions, and vessel operating conditions.
Quality Documentation and Project Coordination
Coordinates production specifications, drawings, inspection requirements, packing arrangements, and shipment documentation. Dimensional checks, rubber property testing, visual inspection, and component verification incorporated into quality-control process.
Frequently Asked Questions
Can V Type Fender operate in high-temperature marine environments?
Yes. The rubber compound can be selected according to expected ambient and surface temperatures as well as UV, ozone, seawater, and humidity exposure. Material specification should be confirmed according to actual environmental conditions of installation site.
What is the purpose of using a low-friction facing material?
A low-friction facing material reduces resistance when the vessel moves longitudinally against the fender. This reduces horizontal forces and minimizes wear on rubber and vessel contact surfaces during sliding operations.
Can V Type Fender be used on offshore structures?
Yes. It can be installed on offshore support bases, service platforms, dolphins, industrial jetties, and marine construction facilities. Fender dimensions, rubber formulation, and mounting system should be selected according to vessel loads and environmental exposure.
How should damaged fender sections be handled?
Affected sections should be inspected to determine whether damage is superficial or affects structural performance. Cuts, severe cracking, excessive permanent deformation, exposed reinforcement, or significant dimensional changes may require replacement. Supporting structure and fastening system should also be inspected.
Can the complete V Type Fender system be customized?
Yes. Customization can include rubber profile dimensions, length, hardness, mounting holes, steel backing plates, frontal panels, low-friction facing materials, brackets, chains, and fastening components. Project drawings and operating information should be reviewed before final configuration.
V Type Fender industrial application V Type Fender dimensional details V Type Fender installation example
