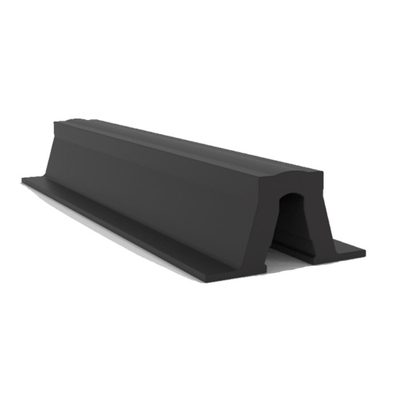

Customized V Type Fender NR 400H Natural Rubber Parts Moulding Anti Collision
Description
Marine V Type Fender, which is commonly used for the quay and dock for the protection of the boats and ships, is tough and reliable, simple and long lasting, providing trouble-free service for a wide variety of berthing even under the most severe conditions. Super V type rubber fender has the better stability and stronger attachment to the supporting structure than the traditional arch rubber fenders.
DockFender can offer v type rubber fenders as either a single element or as part of a complete fender system. They are particularly useful for vessels with high allowable hull pressures and where mounting space is limited.
Specifications
| Product Name | Customized V Type Fender NR 400H Natural Rubber Parts Moulding Anti Collision |
| Brand Name | DockFender |
| Model Number | DF-V400H |
| Material | High Performance Natural Rubber |
| Standard | HGT2866-2016, PIANC2002 |
| Shape | V Type |
| Package | Plastic Bag + Pallet |
| Feature | High E/R.H value, wear-resisting |
| Part | Dock Bumper |
| Usage | Dock Port Wharf Boat Ship |
| Surface | Matte/Smooth |
| Packing | Pallet or Wooden Case |
| Keywords | Arch Rubber Fender / V Rubber Fender |
| Model | A | D | E | F | H | K | M | R x Q | Lmax |
| V Type | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] |
| DF-V150 | 50 | 240 | 326 | 98 | 150 | 16 - 20 | 108 | 20 × 40 | 3000 |
| DF-V200 | 50 | 320 | 422 | 130 | 200 | 18 - 25 | 142 | 25 × 50 | 3000 |
| DF-V250 | 62.5 | 400 | 500 | 163 | 250 | 20 - 30 | 164 | 28 × 56 | 3500 |
| DF-V300 | 75 | 480 | 595 | 195 | 300 | 25 - 32 | 194 | 28 × 56 | 3500 |
| DF-V400 | 100 | 640 | 808 | 260 | 400 | 25 - 32 | 266 | 35 × 70 | 3500 |
| DF-V500 | 125 | 800 | 981 | 325 | 500 | 25 - 32 | 318 | 42 × 84 | 3500 |
| DF-V600 | 150 | 960 | 1160 | 390 | 600 | 28 - 40 | 373 | 48 × 96 | 3000 |
| DF-V800 | 200 | 1300 | 1550 | 520 | 800 | 41 - 50 | 499 | 54 × 108 | 3000 |
| DF-V1000 | 250 | 1550 | 1850 | 650 | 1000 | 50 - 62 | 580 | 54 × 108 | 3000 |
| *Note: Other sizes can be customized according to the requirements. | |||||||||
Features
1. High energy absorption and low reaction force.
2. High stress concentration.
3. Easy replacement firm for installation.
4. Easy to install and change.
5. Tough and reliable design.
6. Wide ranges of sizes and energy capacities.
7. Bolted-on UHMW PE reduce the friction factor and shear force.
Applications
● General cargo
● Container berths
● RoRo
● Cruise terminals
● Berth for barge and tugboat
● General cargo wharf
● Ferry terminal
Advantages
1. Quality: DockFender V type fenders always maintain high quality. We insist on using 100% natural rubber, coupled with a special angle design, so that our V type rubber fenders can be more durable and perform better.
2. Service: DockFender adheres to the principle of customer first. Our professional customer service team can not only provide you with the most professional product recommendations, but also help you customize project solutions.
3. After-sales Service: DockFender 's fixed V type fenders can be guaranteed for 24 months. As long as you use it normally, we can guarantee replacement for any product quality problems during the warranty period.
4. Customize: All products of DockFender can be specially customized according to customer requirements, let us know your needs!
Material of main accessories
1. Bolt: Q235 hot-dip galvanised /1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316
2. Washer: Q235 hot-dip galvanised.
3. Pre-built-in nut: 1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316
4. Foot rod and board: Q235
Inspection and certificate
We use modern technology to design and manufacture, and through rigorous field testing.
The following tests are to be conducted:
- Rubber performance test including tensile, ozone and abrasion test.
- Energy absorption and reaction test.
Our QC department will inspect each product and offer FACTORY INSPECTION REPORT before delivery. We can also invite the third party inspection agencies including CCS, ABS, BV, LR, DNV-GL to inspect and offer certificates according to customer requirements.
Inspect items as below:
1. Rubber tensile, ozone and abrasion test.
2. Rubber fender energy absorption and reaction test.
Packing and delivery
Advantage: professional, efficient, economical and environmental
Duo to our products are large size and heaviness, normal we do not use packaging during shipping in order to reduce costs. So the professional packing skills are crucial, not only it need to protect our products, but also need to protect the containers, vehicles and personnel. Our core strength comes from years of work experience and a responsible attitude.
