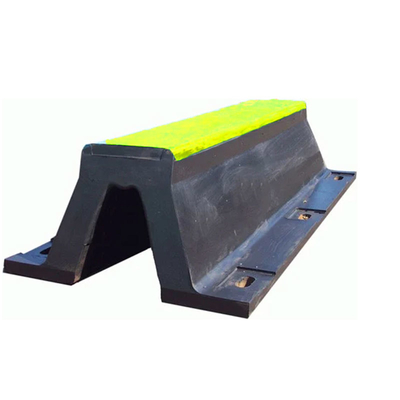

Arch Fender Multiple Size Options Customizable Colors High Elasticity Rubber
Description
Compared to D-type or cylindrical fenders, V-Type Fenders offer superior multi-directional impact resistance due to their geometric stability. Their lower reaction force (per kN absorbed energy) reduces structural load on docks, unlike pneumatic fenders, which require higher maintenance. For mega-vessels, hybrid designs with internal steel reinforcements are available. Unlike foam-filled fenders, V-types are field-repairable and recyclable, aligning with sustainability goals. Case studies in European container ports show 30% longer lifespan than traditional timber fenders.
Specifications
| Product Name |
V Type Fender |
| Material |
High Performance Natural Rubber |
| Standard |
HGT2866-2016, PIANC2002 |
| Shape |
V Type |
| Feature |
Easy Replacement Firm for Installation |
| Part |
Dock Bumper |
| Usage |
Dock Port Wharf Boat Ship |
| Surface |
Matte/Smooth |
| Packing |
Pallet or Wooden Case |
| Keywords |
Arch Rubber Fender/V Rubber Fender |
| Model |
A |
D |
E |
F |
H |
K |
M |
R x Q |
Lmax |
| V Type |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
| HM-VTF150 |
50 |
240 |
326 |
98 |
150 |
16 - 20 |
108 |
20 × 40 |
3000 |
| HM-VTF200 |
50 |
320 |
422 |
130 |
200 |
18 - 25 |
142 |
25 × 50 |
3000 |
| HM-VTF250 |
62.5 |
400 |
500 |
163 |
250 |
20 - 30 |
164 |
28 × 56 |
3500 |
| HM-VTF300 |
75 |
480 |
595 |
195 |
300 |
25 - 32 |
194 |
28 × 56 |
3500 |
| HM-VTF400 |
100 |
640 |
808 |
260 |
400 |
25 - 32 |
266 |
35 × 70 |
3500 |
| HM-VTF500 |
125 |
800 |
981 |
325 |
500 |
25 - 32 |
318 |
42 × 84 |
3500 |
| HM-VTF600 |
150 |
960 |
1160 |
390 |
600 |
28 - 40 |
373 |
48 × 96 |
3000 |
| HM-VTF800 |
200 |
1300 |
1550 |
520 |
800 |
41 - 50 |
499 |
54 × 108 |
3000 |
| HM-VTF1000 |
250 |
1550 |
1850 |
650 |
1000 |
50 - 62 |
580 |
54 × 108 |
3000 |
| *Note: Other sizes can be customized according to the requirements. |
Features
Cost Effective
25-30% lower total cost of ownership compared to pneumatic fender systems.
Vibration Damping
Excellent vibration absorption characteristics (up to 85% reduction in transmitted vibrations).
Custom Engineering
Available in custom durometers (50-75 Shore A), colors, and dimensions for specialized applications.
Smart Monitoring Ready
Prepared for integration with IoT sensors (strain gauges, temperature sensors) for condition monitoring.
Applications

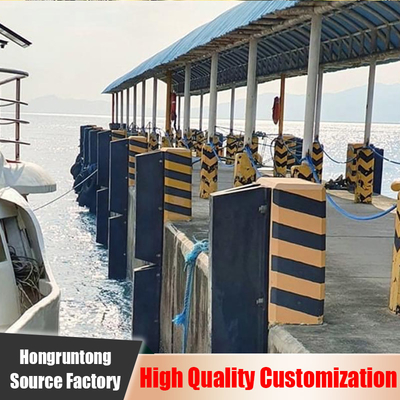

● Ferry Terminals
● Industrial Docks
● Military Marine Facilities
● Fishing Harbors
● Yacht Marinas
Advantages
Three Decades of Specialized Manufacturing Excellence
With over 30 years of focused production experience, we have perfected the engineering and manufacturing processes for premium-grade V-Type Fenders.
Proprietary Rubber Compound Formulations
Our advanced NR/SBR/EPDM blends incorporate specialized additives for optimal UV resistance, ozone protection, and seawater durability.
Precision Mold Manufacturing Capabilities
In-house mold design and fabrication ensure perfect dimensional accuracy and consistent product quality across all fender units.
High Capacity Production Facilities
State-of-the-art manufacturing plants with annual production capacity exceeding 50,000 linear meters of V-Type Fenders.
FAQ
1. Q: What mounting options are available for V-Type Fenders?
A: Options include through-bolt mounting, suspension chains, or welded brackets, depending on application requirements.
2. Q: Can V-Type Fenders be used in LNG terminals?
A: Yes, we offer IMO-certified fire-resistant versions specifically for LNG applications.
3. Q: How do you prevent marine growth on fender surfaces?
A: Special anti-fouling rubber compounds and surface treatments inhibit marine organism attachment.
4. Q: What quality control measures are implemented during manufacturing?
A: Our process includes raw material testing, in-process inspections, and final product certification testing.
