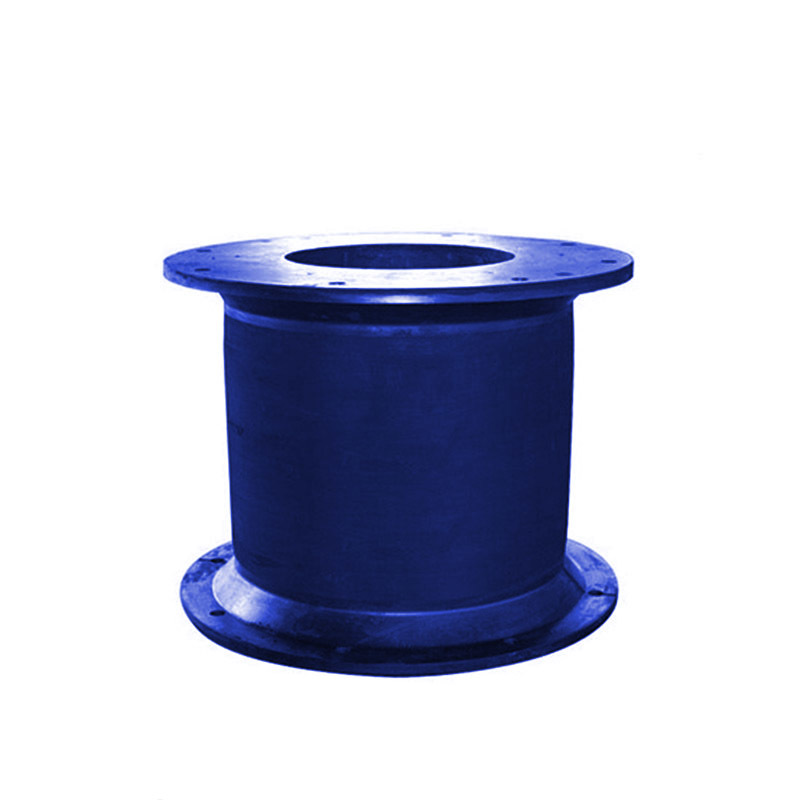

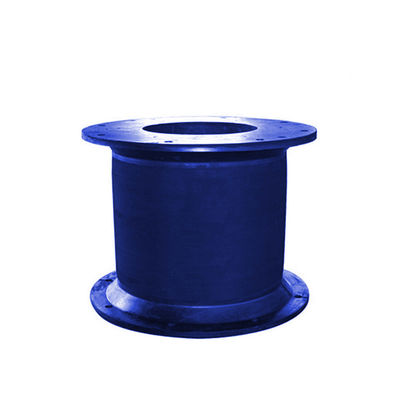

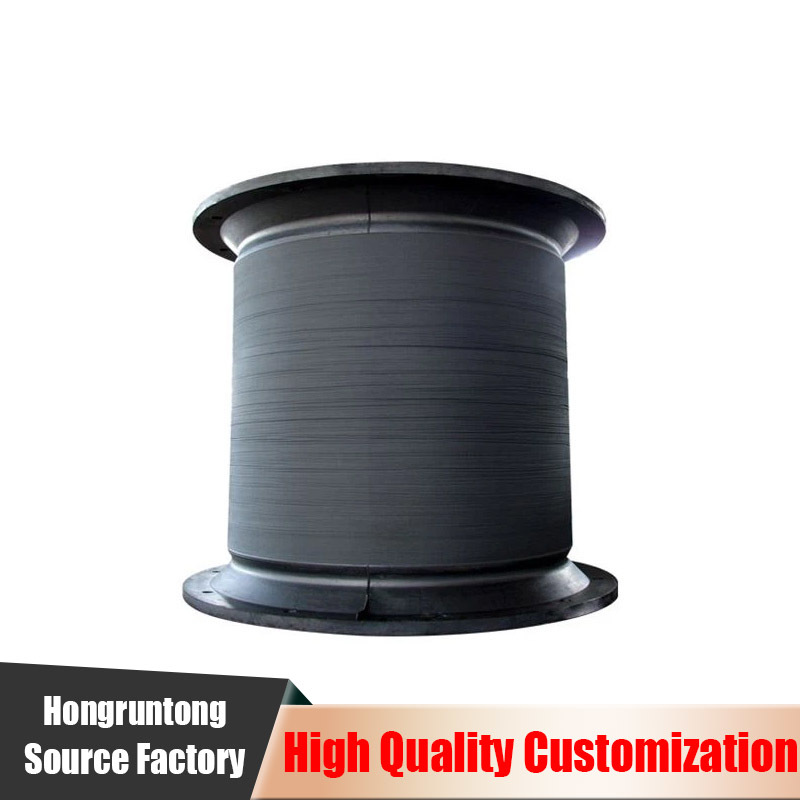

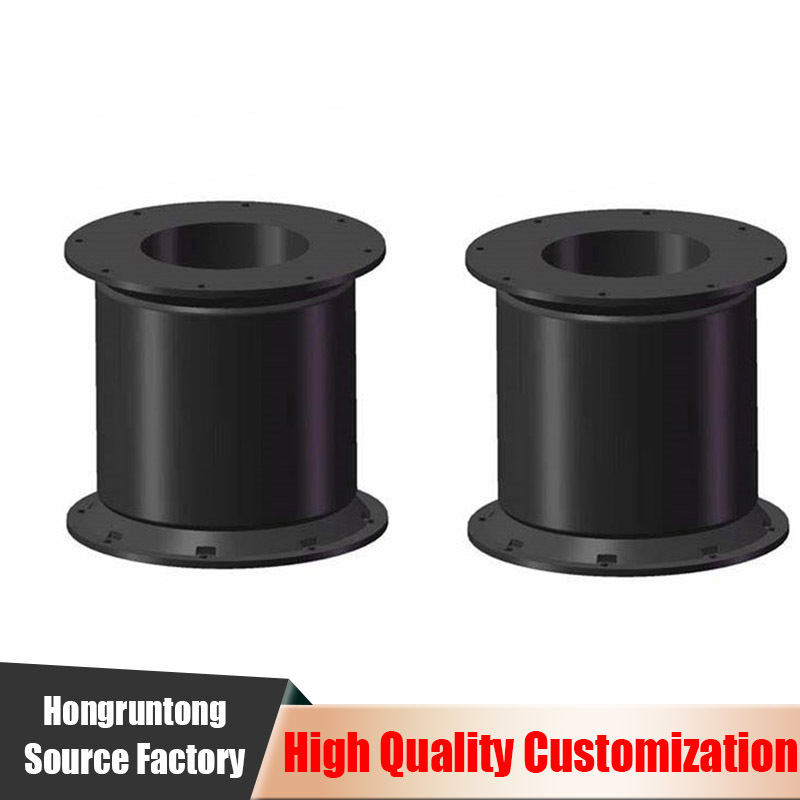

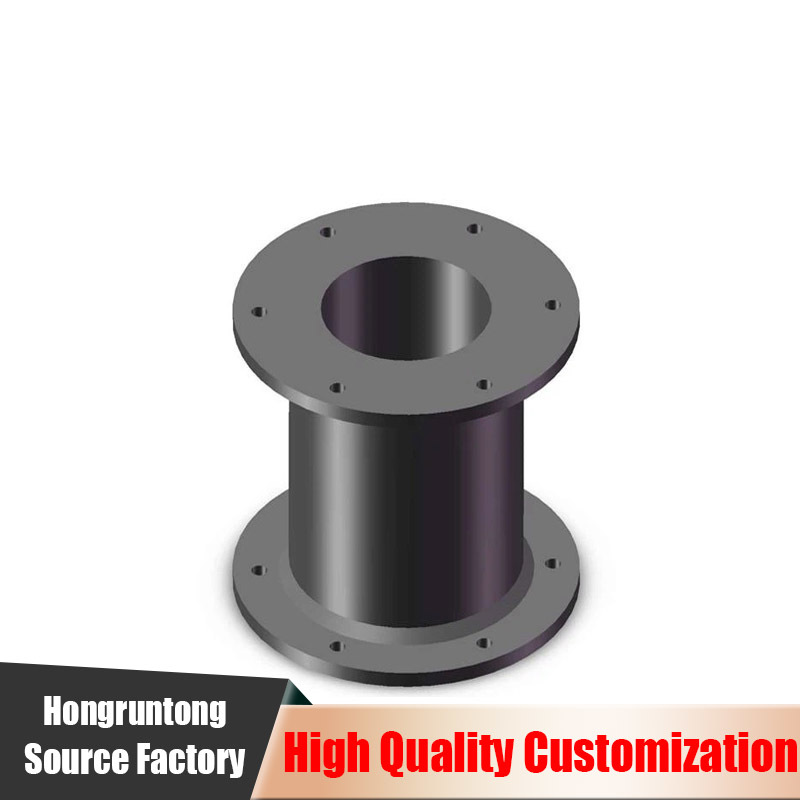

1200×1200×400mm Dock Fender Easy Installation Low Maintenance
Description
This sustainable Cell Rubber Fender combines performance with environmental responsibility. Manufactured from recycled rubber and non-toxic materials, it reduces marine pollution without compromising durability. Perfect for eco-sensitive zones like marinas and nature reserves, it delivers 50-55% compression and efficient energy dissipation (e.g., 1500×1500×500mm). UV-resistant and biodegradable additive-free, it aligns with green port initiatives while providing reliable vessel protection.
Specifications
Product Name | Cell Rubber Fender |
Brand Name | Hongruntong Marine |
Material | High Quality Natural Rubber |
Reaction Force | 29-4626KN |
Energy Absorption | 4-6102KNM |
Hardness | ≤82 Shore A |
Standard | PIANC2002, HGT2866-2016 |
Processing Service | Moulding, Cutting |
Lifespan | 15-20 Years |
Service | OEM or ODM |
Features | Strong, Robust, Well Proven Design |
Application | Port, Dock, Quay, etc |
Model | H | h | D1 | D2 | n-t |
Cell | [mm] | [mm] | [mm] | [mm] | [mm] |
CF-C400H | 400 | 25 | 650 | 550 | 30 |
CF-C500H | 500 | 25 | 650 | 550 | 32 |
CF-C630H | 630 | 30 | 840 | 700 | 39 |
CF-C800H | 800 | 30 | 1050 | 900 | 40 |
CF-C1000H | 1000 | 35 | 1300 | 1100 | 47 |
CF-C1150H | 1150 | 40 | 1500 | 1300 | 50 |
CF-C1250H | 1250 | 45 | 1650 | 1450 | 53 |
CF-C1450H | 1450 | 47 | 1850 | 1650 | 61 |
CF-C1600H | 1600 | 50 | 2000 | 1800 | 61 |
CF-C1700H | 1700 | 55 | 2100 | 1900 | 66 |
CF-C2000H | 2000 | 55 | 2200 | 2000 | 74 |
CF-C2250H | 2250 | 60 | 2550 | 2300 | 74 |
CF-C2500H | 2500 | 70 | 2950 | 2700 | 90 |
CF-C3000H | 3000 | 75 | 3350 | 3150 | 90 |
Features
Customizable Compression Rates
Available in standard compression variants (50%, 55%, 60%) with the ability to engineer specific compression profiles for unique applications.
Multiple Mounting Options
Compatible with all standard mounting systems including shear mount, panel mount, and suspended configurations with integrated lifting points.
Non Marring Surface
Special surface treatment prevents hull marking or paint transfer even during high-energy berthing operations.
Fire Retardant Options
Available with IMO-approved fire retardant compounds that meet SOLAS requirements for hazardous cargo terminals.
Applications
● Shipyards Dry Docks
Advantages
High Quality Coating and Corrosion Protection
All steel components are treated with hot-dip galvanizing, epoxy, or zinc-rich primers for marine-grade protection.
Strict Quality Control System (ISO 9001 Certified)
Every batch is traceable with full material records, and each product is inspected before shipment.
International Compliance and PIANC Recommendations
Fender performance meets or exceeds PIANC 2002 guidelines and other international standards.
Excellent Resistance to UV, Saltwater, and Ozone
Our rubber compounds are designed to resist marine aging factors for stable performance over years.
FAQ
1. Are steel frontal panels included?
Yes. Cell fenders are typically supplied with steel panels (frontal frames) and UHMW-PE facing pads to distribute pressure.
2. What surface treatment is used for steel components?
Steel parts are hot-dip galvanized or epoxy-coated to resist corrosion in harsh marine environments.
3. Do you provide anchor bolts and accessories?
Yes. Full accessory sets including bolts, anchor plates, and gaskets are available upon request.
4. How are Cell Fenders installed?
They are bolted to quay walls using anchor systems. Installation guides and supervision services are available.
