Name: High Elasticity Properties Baby Fenders Compatible With Different Vessel Types
Brand: Hongruntong Marine Co., Ltd.
SKU: HM-PRF12
Price: 202.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Pneumatic Rubber Fender

Material: NR

Accessories: Tyres, Steel Chain, Hang Ring

Feature: Environmentally Friendly Materials

Usage: Protect Boat

Color: Black Or Customized

Standard: ISO17357-1:2014, PIANC2002

Size: Customized

Highlight:

High Elasticity Properties Baby Fenders

Different Vessel Types Baby Fenders

Vessel pneumatic rubber fender

Basic Infomation

Place of Origin: China

Brand Name: Hongruntong Marine

Certification: ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS

Model Number: HM-PRF12

Payment & Shipping Terms

Packaging Details: Pallet, Wooden Box

Delivery Time: 10-20 Days

Payment Terms: T/T, L/C, D/A, , D/P, Western Union, MoneyGram

Supply Ability: 1040 Pcs/Month

Gallery

High Elasticity Properties Baby Fenders Compatible With Different Vessel Types

Product Description

High Elasticity Properties Baby Fenders Compatible With Different Vessel Types

Description

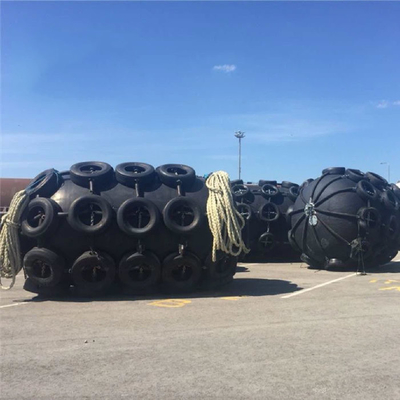

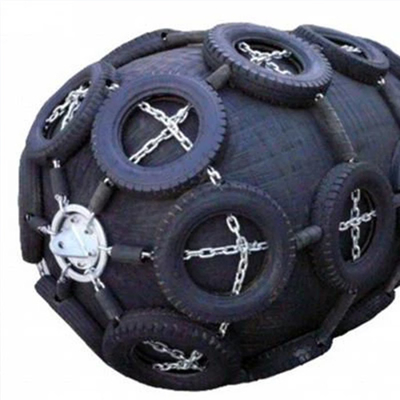

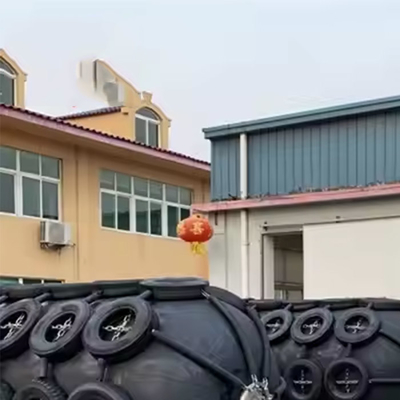

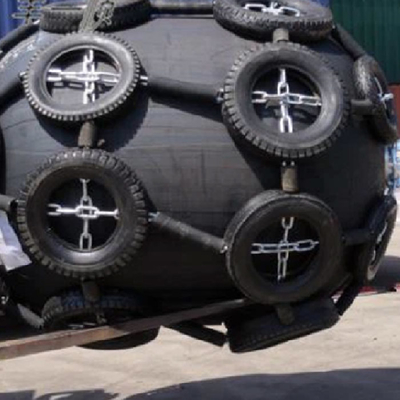

A pneumatic rubber fender is an inflatable, energy-absorbing marine device used to protect ships and port facilities during berthing operations. It is constructed with multiple layers of synthetic tire-cord rubber, ensuring high durability and impact resistance. The fender's air-filled body allows it to efficiently absorb collision energy while keeping reaction force to a minimum, reducing structural damage to vessels and docks. Widely used in ship-to-ship and ship-to-shore applications, these fenders provide excellent performance in extreme weather and sea conditions. Their lightweight, easy installation, and maintenance-free design make them a preferred choice for ports, harbors, and offshore terminals worldwide.

High Elasticity Properties Baby Fenders Compatible With Different Vessel Types 0

Specifications

Place of Origin	China
Brand Name	Pneumatic Rubber Fender
Material	Natural Rubber
Color	Black
Application	In ports with extreme tidal variations Ship-to-ship lightering operations Oil Gas (typically FSRU) Temporary berthing
Feature	Heat Resistance
Sample	Usually free
Production Method	Moulding
Temperature	-40℃~300℃
Packing	Pallets
Lead time	7-14 days

Diameter x Length [mm]	50kPa Performance Data			80kPa Performance Data
Diameter x Length [mm]	Hull Pressure at GEA / kN / m2	Reaction Force / kN	Energy Absorption / kNm	Hull Pressure at GEA / kN / m2	Reaction Force / kN	Energy Absorption / kNm
1000 x 1500	122	182	32	160	239	45
1000 x 2000	132	257	45	174	338	63
1200 x 2000	126	297	63	166	390	88
1350 x 2500	130	427	102	170	561	142
1500 x 3000	153	579	153	174	761	214
1700 x 3000	128	639	191	168	840	267
2000 x 3500	128	875	308	168	1150	430
2500 x 4000	137	1381	663	180	1815	925
2500 x 5500	148	2019	943	195	2653	1317
3300 x 4500	130	1884	1175	171	2476	1640
3300 x 6500	146	3015	1814	191	3961	2532
3300 x 10600	158	5257	3067	208	6907	4281
4500 x 9000	146	5747	4752	192	7551	6633
* Other size can be produced follow client's requirements.

Features

Available in Various Sizes
Pneumatic rubber fenders are manufactured in different sizes and pressure ratings to accommodate different vessel types and operational needs.

Even Load Distribution
The fender’s cylindrical shape distributes impact forces evenly, reducing stress concentration on any single point.

Environmentally Friendly
Made from non-toxic, recyclable materials, pneumatic rubber fenders have minimal environmental impact compared to traditional solid rubber fenders.

Suitable for Large Vessel Berthing
Designed for use with oil tankers, LNG carriers, bulk carriers, and cruise ships, providing reliable protection for heavy-duty applications.

Applications

● Emergency Response and Salvage Operations

● Marine Transportation and Logistics

● Rooftop and Floating Platform Applications

● Prevailing Winds and Tidal Estuaries

Advantages

Compliance with International Standards
Our fenders meet or exceed ISO 17357-1:2014 and other global marine safety standards, ensuring reliable performance.

Customizable Sizes and Specifications
We offer a wide range of sizes and pressure ratings, with customization options to meet specific operational requirements.

Proven Performance in Harsh Environments
Our fenders are tested and used in extreme marine conditions, ensuring they perform effectively even under high pressure and impact loads.

Environmentally Friendly Materials
Manufactured with eco-friendly materials and processes, our fenders have minimal environmental impact compared to traditional solid rubber fenders.

High Elasticity Properties Baby Fenders Compatible With Different Vessel Types 1

FAQ

1. What sizes of pneumatic rubber fenders are available?
Sizes range from small (diameter 500mm × length 1000mm) to large (diameter 4500mm × length 9000mm) and can be customized based on customer needs.

2. Are your pneumatic rubber fenders compliant with international standards?
Yes, our fenders meet ISO 17357-1:2014 standards and other global marine industry safety requirements.

3. What applications are pneumatic rubber fenders used for?
They are used in ports, harbors, naval bases, offshore platforms, ship-to-ship (STS) transfers, and ship-to-dock (STD) berthing operations.

4. What is the lifespan of a pneumatic rubber fender?
With proper maintenance, our fenders can last 10 years or more, depending on usage conditions.
