Good Suppliers V Specifications Dock/Port/Boat Rubber Fenders Manufacturers
Description

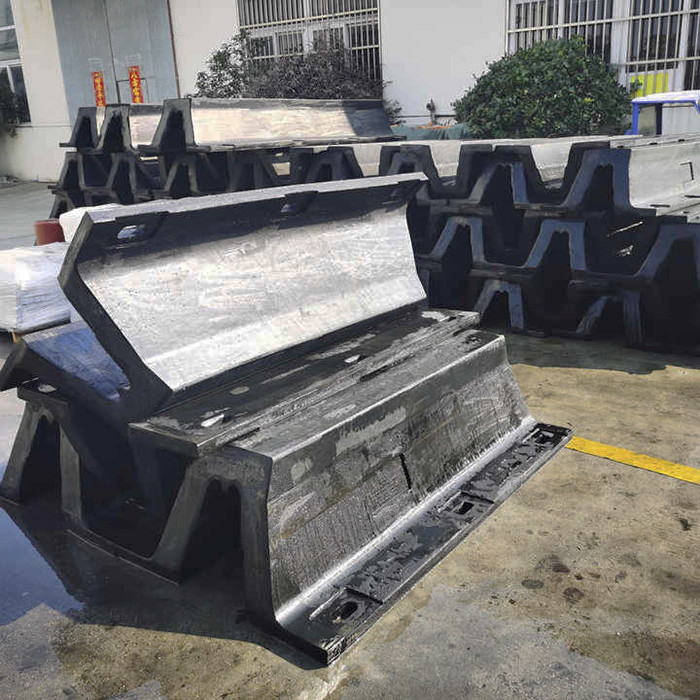

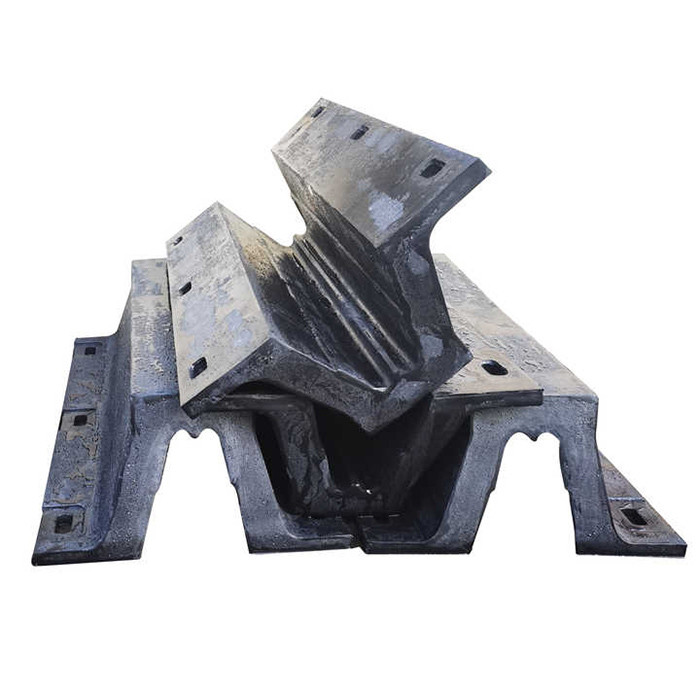

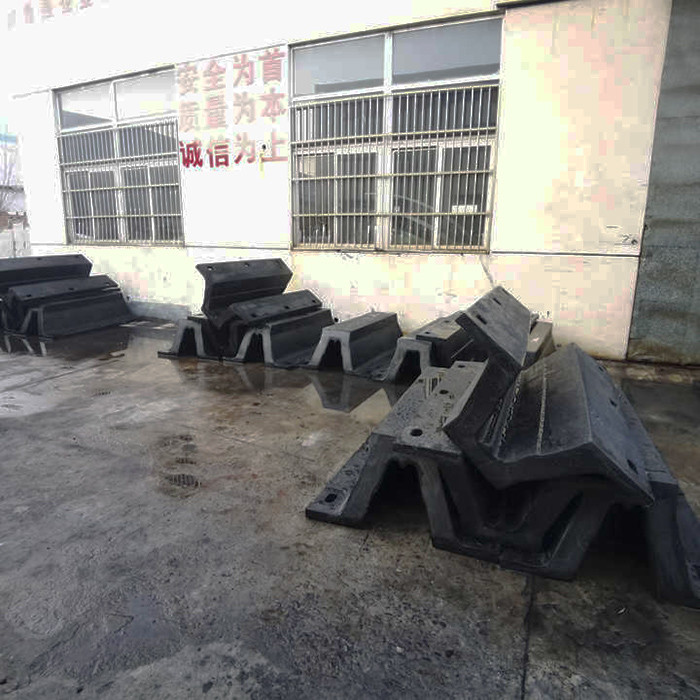

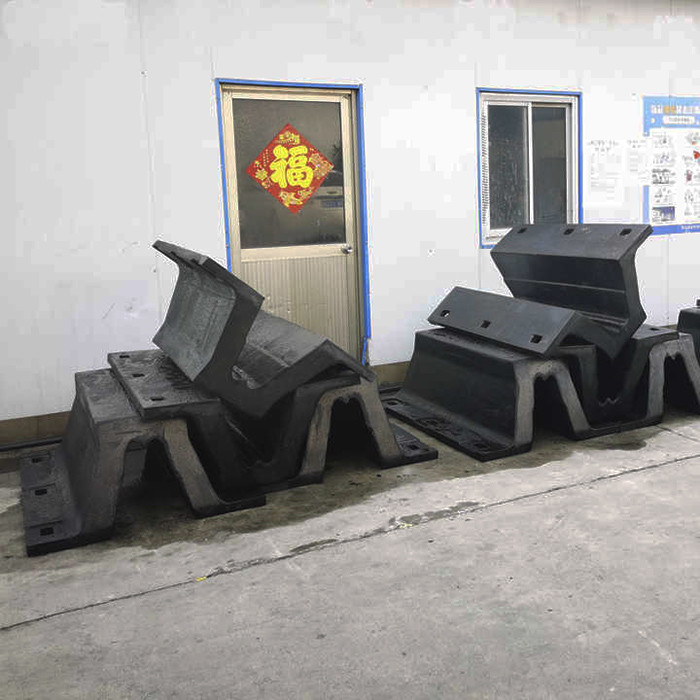

The V Type rubber fender is a highly reliable and efficient solution for vessel and dock protection. Designed with a unique V-shaped profile, it offers superior impact resistance and energy absorption capabilities. Our V Type rubber fenders are made from high-quality rubber materials, ensuring durability and long-lasting performance in harsh maritime environments.
These fenders are available in various sizes and can be customized to meet specific requirements. Their versatile design allows for easy installation and maintenance. The V Type rubber fender effectively absorbs and distributes impact forces, minimizing the risk of damage to vessels and structures.
With years of expertise in rubber fender production, we prioritize quality and customer satisfaction. Our V Type rubber fenders have been widely used in ports, harbors, and marine applications worldwide. Trust in our expertise and experience to provide you with reliable and cost-effective V Type rubber fenders that meet your specific needs.
Specifications
Brand Name | Hongruntong Marine |
Model Number | HM-V400H |
Processing Service | Moulding, Cutting |
Keywords | Arch Rubber Fender |
Color | Black, Grey, White, or as request |
Material | High-Grade Natural Rubber |
Tensile Strength | ≥8 Mpa |
Elongation | ≥300% |
Hardness | 70±5 Shore A |
Height | 200mm-1000mm |
Length | 1000mm-3500mm |
Accessory | Front Panel, Face Panel, Bolt, Nut, etc |
Package | Polybag, Pallet, Wooden Case |
Warranty | 3 Years |
Usage | Dock Boat Protection |
Model | Specifications (mm) | ||||||||||||||
H | L | L1 | C | Q | n | B | B1 | B2 | B3 | h | a | b | e | f | |
DF-V150 x 1000L | 150 | 1000 | 1075 | 110 | 855 | 2 | 98 | 240 | 300 | 96 | 25 | 50 | 95 | 25 | 55 |
DF-V150 x 2000L | 150 | 2000 | 2075 | 107.5 | 620 | 4 | 98 | 240 | 300 | 96 | 25 | 50 | 95 | 25 | 55 |
DF-V150 x 3000L | 150 | 3000 | 3075 | 107.5 | 715 | 5 | 98 | 240 | 300 | 96 | 25 | 50 | 95 | 25 | 55 |
DF-V200 x 1000L | 200 | 1000 | 1100 | 120 | 860 | 1 | 135 | 320 | 400 | 128 | 30 | 58 | 105 | 29 | 75 |
DF-V200 x 2000L | 200 | 2000 | 2100 | 120 | 620 | 3 | 135 | 320 | 400 | 128 | 30 | 58 | 105 | 29 | 75 |
DF-V200 x 3000L | 200 | 3000 | 3100 | 120 | 715 | 4 | 135 | 320 | 400 | 128 | 30 | 58 | 105 | 29 | 75 |
DF-V250 x 1000L | 250 | 1000 | 1125 | 130 | 865 | 1 | 164 | 410 | 500 | 160 | 33 | 64 | 125 | 32 | 90 |
DF-V250 x 2000L | 250 | 2000 | 2125 | 132.5 | 620 | 3 | 164 | 410 | 500 | 160 | 33 | 64 | 125 | 32 | 90 |
DF-V250 x 3000L | 250 | 3000 | 3125 | 132.5 | 715 | 4 | 164 | 410 | 500 | 160 | 33 | 64 | 125 | 32 | 90 |
DF-V300 x 1000L | 300 | 1000 | 1150 | 140 | 870 | 1 | 225 | 490 | 600 | 195 | 33 | 70 | 140 | 35 | 105 |
DF-V300 x 2000L | 300 | 2000 | 2150 | 137.5 | 625 | 3 | 225 | 490 | 600 | 195 | 33 | 70 | 140 | 35 | 105 |
DF-V300 x 3000L | 300 | 3000 | 3150 | 145 | 715 | 4 | 225 | 490 | 600 | 195 | 33 | 70 | 140 | 35 | 105 |
DF-V400 x 1000L | 400 | 1000 | 1200 | 150 | 900 | 1 | 300 | 670 | 800 | 260 | 40 | 82 | 165 | 41 | 120 |
DF-V400 x 2000L | 400 | 2000 | 2200 | 147.5 | 635 | 3 | 300 | 670 | 800 | 260 | 40 | 82 | 165 | 41 | 120 |
DF-V400 x 3000L | 400 | 3000 | 3200 | 150 | 725 | 4 | 300 | 670 | 800 | 260 | 40 | 82 | 165 | 41 | 120 |
DF-V500 x 1000L | 500 | 1000 | 1250 | 160 | 930 | 1 | 375 | 840 | 1000 | 325 | 45 | 94 | 180 | 47 | 140 |
DF-V500 x 2000L | 500 | 2000 | 2250 | 157.5 | 645 | 3 | 375 | 840 | 1000 | 325 | 45 | 94 | 180 | 47 | 140 |
DF-V500 x 3000L | 500 | 3000 | 3250 | 156 | 730 | 4 | 375 | 840 | 1000 | 325 | 45 | 94 | 180 | 47 | 140 |
DF-V600 x 1000L | 600 | 1000 | 1300 | 170 | 960 | 1 | 450 | 1010 | 1200 | 390 | 54 | 100 | 195 | 50 | 160 |
DF-V600 x 2000L | 600 | 2000 | 2300 | 167.5 | 655 | 3 | 450 | 1010 | 1200 | 390 | 54 | 100 | 195 | 50 | 160 |
DF-V600 x 3000L | 600 | 3000 | 3300 | 170 | 740 | 4 | 450 | 1010 | 1200 | 390 | 54 | 100 | 195 | 50 | 160 |
DF-V800 x 1000L | 800 | 1000 | 1400 | 180 | 1040 | 1 | 600 | 1340 | 1600 | 520 | 72 | 136 | 270 | 68 | 260 |
DF-V800 x 2000L | 800 | 2000 | 2400 | 180 | 680 | 3 | 600 | 1340 | 1600 | 520 | 72 | 136 | 270 | 68 | 260 |
DF-V800 x 3000L | 800 | 3000 | 3400 | 180 | 760 | 4 | 600 | 1340 | 1600 | 520 | 72 | 136 | 270 | 68 | 260 |
DF-V1000 x 1500L | 1000 | 1500 | 2000 | 200 | 800 | 2 | 750 | 1680 | 2000 | 650 | 90 | 136 | 290 | 68 | 300 |
Features
Superior Impact Resistance
The V Type rubber fender is designed with a V-shaped profile, which provides enhanced impact resistance. This unique shape helps to distribute the force of impacts more evenly, reducing the risk of damage to vessels and docks.
Energy Absorption Capabilities
The V Type rubber fender is made from high-quality rubber materials that offer excellent energy absorption properties. This allows it to effectively absorb and dissipate the energy generated during vessel berthing or mooring, protecting both the vessel and the dock.
Customizable and Versatile Design
V Type rubber fenders are available in various sizes and can be customized to meet specific requirements. This flexibility allows for easy installation and enables them to fit a wide range of vessel and dock sizes and configurations.
Durability and Low Maintenance
Made from high-quality rubber, the V Type rubber fender is built to withstand harsh marine environments and has a long service life. These fenders require minimal maintenance, reducing overall costs and ensuring reliable performance over time.
Applications
● Ports and harbors
● Shipbuilding and shipyards
● Vessel berthing and mooring
● Offshore platforms and terminals
● Quays and docks
● Breakwaters and seawalls
● Bridge protection systems
● Floating docks and pontoons
● Ferry terminals and jetties
● Marine construction projects
Advantages
High-quality materials
Our factory uses top-of-the-line materials for the production of V type rubber fenders, ensuring their durability and longevity.
Customization options
We offer a wide range of customization options for our V type rubber fenders, allowing our customers to choose the size, shape, and color that best suits their needs.
Professional expertise
With years of experience in the industry, our factory has developed a deep understanding of the design and manufacturing processes involved in producing V type rubber fenders. This expertise allows us to deliver products of the highest quality.
Competitive pricing
Despite our commitment to using high-quality materials and providing excellent customization options, we are able to offer competitive pricing for our V type rubber fenders, making them accessible to a wide range of customers.
