OCIMF2009 Certified STS Hose Customized NBR 10x15 Bar Industrial High Pressure

OCIMF2009 Certified STS Oil Hose Customized NBR 10" 15Bar Industrial High Pressure

Description

In 1990, a new type of STS hose was developed to meet the unique requirements of offshore STS transfers. It is important to note that rubber STS hoses do not conform to any internationally recognised standard such as the International Standards Organization (ISO), British Standards (BS) or European Standards (EN). Manufacturers generally align with OCIMF 2009 and BS EN 1765 Rubber Hose Assemblies for Oil Suction and Discharge Services for the assemblies.

Construction

Inner Tube: Oil-resistant NBR and synthetic rubber inner tube. Inner layer of rubber compound with chemical and physical properties to be long-term resistant to the fluid and working conditions.

Reinforcement: Braided or spiral reinforcement, made of high tensile textile with stainless steel helix. Spiral very highly tensile steel wire to bear high pressure but allow flexibility of the hose.

Outer Cover: Oil and weather-resistant synthetic rubber outer cover. outer layer of rubber compound with chemical and physical properties to protect the reinforcement against ambient conditions and mechanical damage.

Flange: The ANSI150 ZINC PLATED flange fitting is used worldwide for connecting high-pressure hoses typically to pumps, motors and cylinders, where the hose assemblies are subjected to large pressure loadings. ANSI B16.5 Class 150 Flange for safe fluid handling. Designed for safe and easy with minimum operator intervention.

Specifications

Features

1. High rebound-resilience.

2. Custom-built assemblies.

3. Built-in couplings.

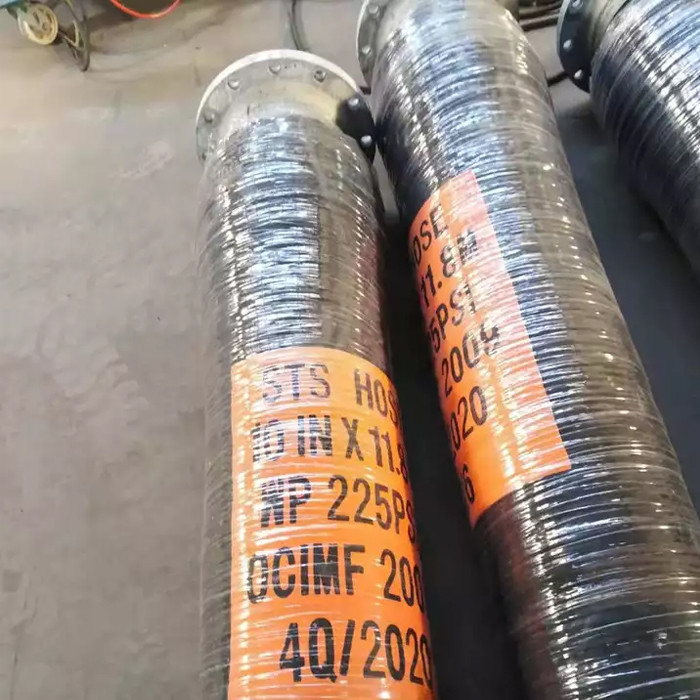

4. Permanent branding.

Applications

● Ship-to-ship and ship-to-shore
● LNG bulk transfer
● LNG bunkering
● Also suitable for Vapor return lines

Advantages

Lining

Black nitrile rubber to convey crude oil and other liquid petroleum based products with a maximum aromatic content of 50%. Temperature range –20°C to +80°C (-4°F to 176°F).

Coupling system

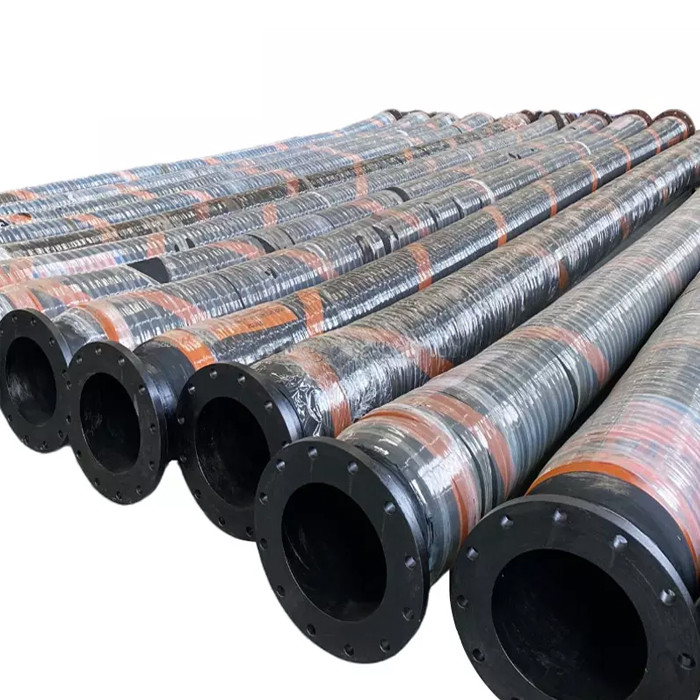

Built-in vulcanised carbon steel nipples with galvanised ASTM A105 ANSI B16.5 150lb raised face slip-on welded or weld neck flanges. Other drillings are available.

Reinforcement

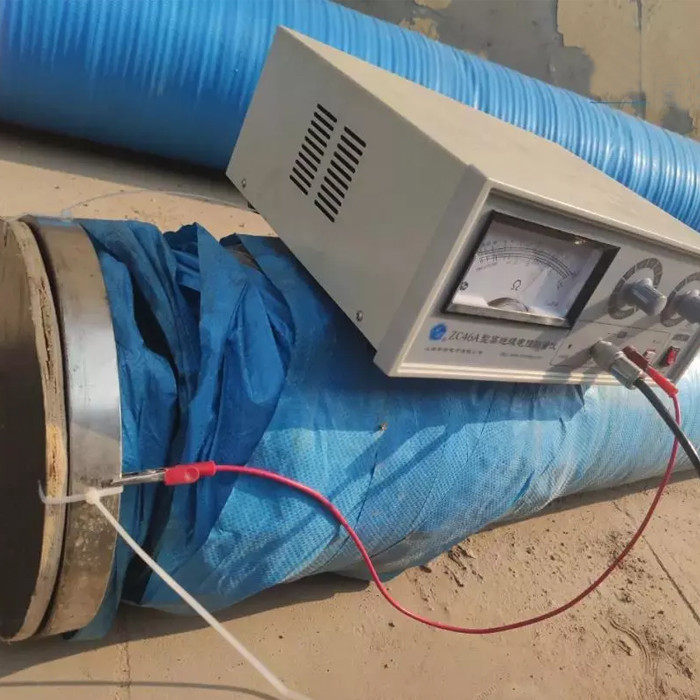

Multiple layers of high-strength synthetic tyre cord giving pressure and fatigue-resistance and rebound-resilience; ensuring that the hose resumes its circular cross-section and performance characteristics after temporary kinking which may occur during operation. Available electrically continuous or discontinuous.

Quality assurance

A486 oil hoses are designed in accordance to BSEN 1765:2004 type L15 and OCIMF STS Transfer Guide. Proof tested to 1.5 x working pressure with test and material certificates issued.
