EN13766 Specifications STS Hose Composite Hose For Ship-To-Ship Oil Transfer
Description
Specially designed to convey under suction or pressure for various type of chemical products. STS hose is good for solvents based chemical in non-corrosive environments. It is suitable for loading and unloading of tank truck, storage tank, in plants and marine application.
DockFender composite STS hoses apply a variety of fluid transportation in oil, chemical tank terminals, vapour recovery LPG, LNG carriers and so on. The strong, durable and light-weighted construction and flexibility make it easy to operate and handle in every aspect.
As we are one of the world leading companies in composite STS hose / quick coupling / hose reel / flexible and metal hose, we are confident that the level of products are second to none.
Specifications
| Place of Origin |
China |
| Brand Name |
DockFender |
| Model Number |
DF-CH150 |
| Product Name |
EN13766 Specifications STS Hose Composite Hose For Ship-To-Ship Oil Transfer |
| Color |
Black/grey/blue, etc |
| Material |
High Performance PTFE |
| Age Range |
15-20 Years |
| Size |
Customized |
| Usage |
STS Oil Transfer |
| Surface |
Matte/Smooth |

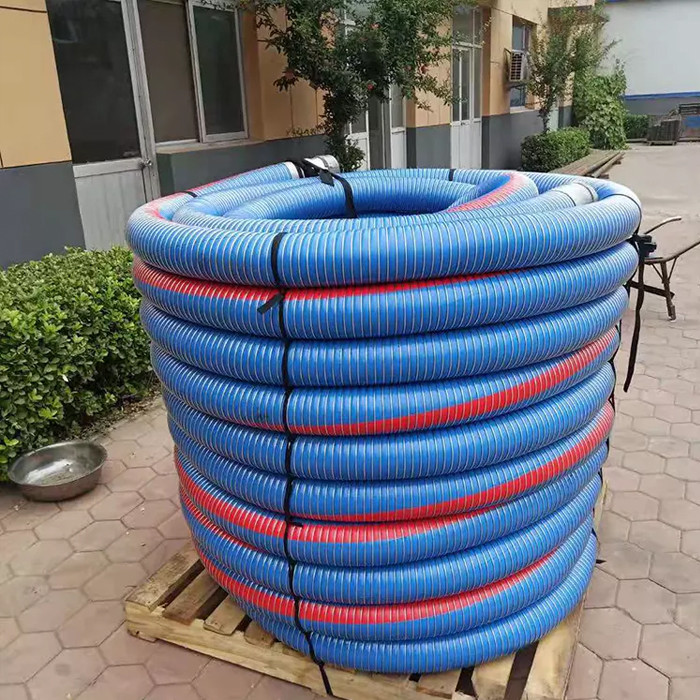

| Packing |
Pallet or Wooden Case |
| Keywords |
STS Hose / Composite STS Hose |
| Model |
Dimensions |
Working Pressure |
Safety Factor |
Bending Radius |
Weight |
Length |
| Composite |
[mm] |
[inch] |
[bar] |
[psi] |
[kg] |
[m] |
| DF-CH20 |
20 |
3/4" |
16 |
230 |
6:1 |
80 |
0.8 |
40 |
| DF-CH25 |
25 |
1" |
16 |
230 |
6:1 |
100 |
1 |
40 |
| DF-CH32 |
32 |
11/4" |
16 |
230 |
6:1 |
125 |
1.3 |
40 |
| DF-CH40 |
40 |
11/2" |
16 |
230 |
6:1 |
140 |
1.5 |
40 |
| DF-CH50 |
50 |
2" |
16 |
230 |
6:1 |
180 |
2.5 |
40 |
| DF-CH65 |
65 |
21/2" |
16 |
230 |
6:1 |
200 |
3.3 |
40 |
| DF-CH80 |
80 |
3" |
16 |
230 |
6:1 |
260 |
4 |
40 |
| DF-CH100 |
100 |
4" |
16 |
230 |
6:1 |
380 |
6.8 |
40 |
| DF-CH125 |
125 |
5" |
16 |
230 |
6:1 |
440 |
9.2 |
40 |
| DF-CH150 |
150 |
6" |
16 |
230 |
6:1 |
500 |
13.2 |
40 |
| DF-CH200 |
200 |
8" |
16 |
230 |
6:1 |
750 |
18 |
40 |
| DF-CH250 |
250 |
10" |
16 |
230 |
6:1 |
900 |
26 |
25 |
| *Note: Various sizes can be customized according to the requirements. |
Features
1. Good resistance to positive and negative pressure.
2. Electrostatic discharge function.
3. It can bear high pressure, wear-resist.
4. High temperature resistance.
5. It have good oil resistance and chemical corrosion resistance.
6. Use affinity is strong, feel good, do not stick, colorful.
Applications

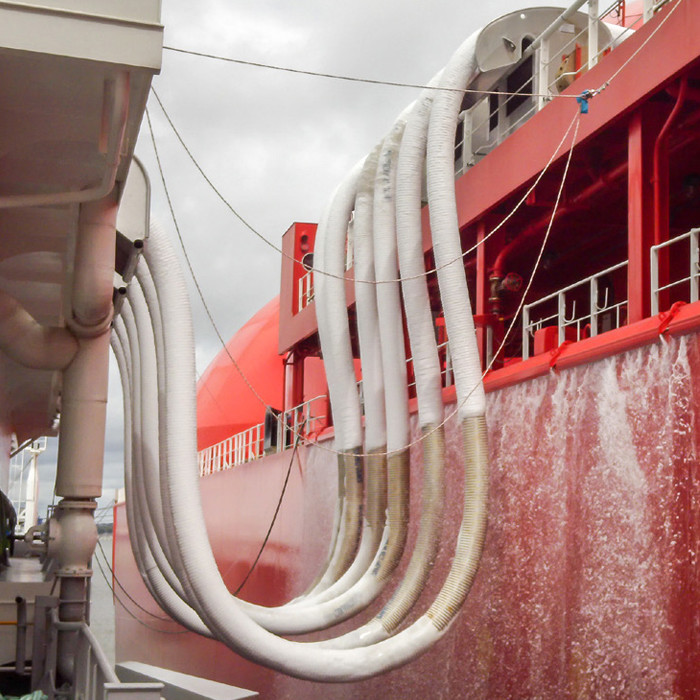

● Ship-to-ship and ship-to-shore
● LNG bulk transfer
● LNG bunkering
● Also suitable for Vapor return lines
● Oil tanker
Advantages

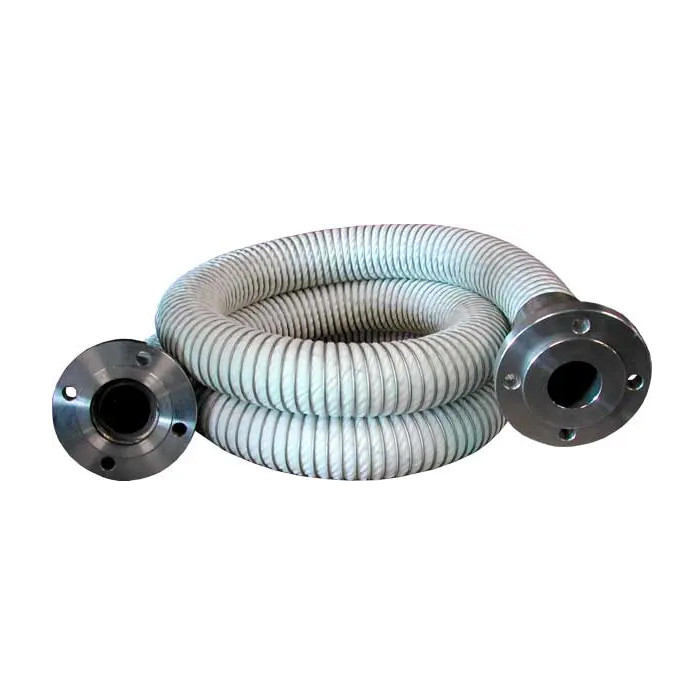

Hose Assemblies
Due to the often hazardous conveyance used it is recommended that composite hose should only be used with properly fixed fittings. Composite hoses are normally fitted by the wire whipped method or by external crimp. All hoses have a 6 to 1 safety factor.
Testing
All hose assemblies must be pressure tested hydrostatically to one and a half times the maximum recommended working pressure and electrically tested to confirm continuity per:
- AS2683, AS2594, AS1180, AS2117
- BSEN13765:2010, BS5842:1980
- EN13766:2010, EN ISO 8031:2009, EN ISO 1402
Fittings
A wide range of fittings can be supplied such as Camlocks, Screwed fittings, flanges etc.
Material fittings - Stainless Steel, Aluminum, Custom.
