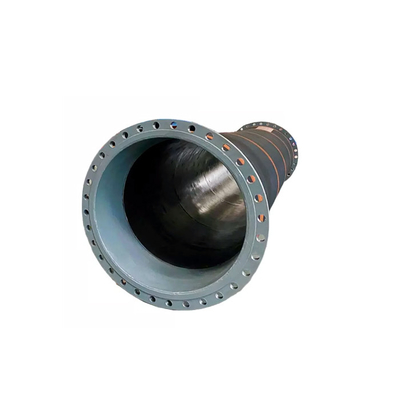

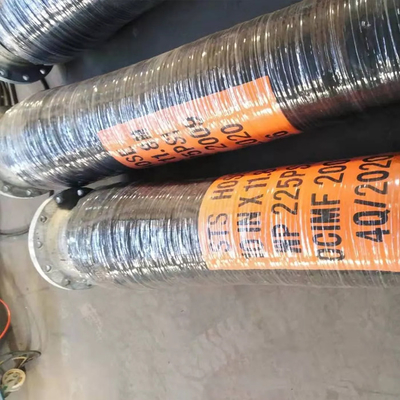

OCIMF Standard STS Oil Hose 15Bar Natural Rubber Oil Resistant Black Color ANSI150
Description
With this background, STS HOSE from DOCKFENDER has become popular as support product for the safety STS transfer operation. They are specially designed for the offshore use by DOCKFENDER getting advises from captains who know the operating condition and requirements to the products very well. Design concepts of STS hose, aiming to be suit for safety offshore operation, are as follows.
A. Heavy duty design – Safety factor of pressure strength to the operating pressure shall be more than five, i.e., their minimum burst pressure is 1250 psi (operating pressure 250 psi x 5).
B. No permanent deformation – Helix wire free construction– Deformation shall not remain permanently even though the hoses get kink by rough bending and deformation by slight vacuum during the operation.
C. Electrically semi-continuous.

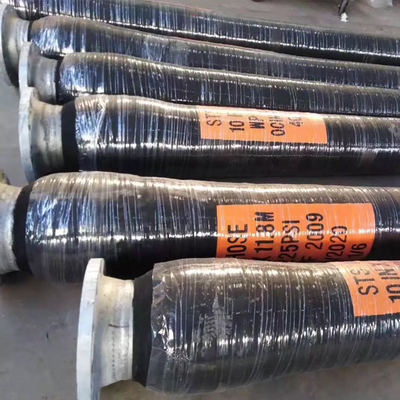

Construction
Inner Tube: Oil-resistant NBR and synthetic rubber inner tube. Inner layer of rubber compound with chemical and physical properties to be long-term resistant to the fluid and working conditions.
Reinforcement: Braided or spiral reinforcement, made of high tensile textile with stainless steel helix. Spiral very highly tensile steel wire to bear high pressure but allow flexibility of the hose.
Outer Cover: Oil and weather-resistant synthetic rubber outer cover. outer layer of rubber compound with chemical and physical properties to protect the reinforcement against ambient conditions and mechanical damage.
Flange: The ANSI150 ZINC PLATED flange fitting is used worldwide for connecting high-pressure hoses typically to pumps, motors and cylinders, where the hose assemblies are subjected to large pressure loadings. ANSI B16.5 Class 150 Flange for safe fluid handling. Designed for safe and easy with minimum operator intervention.
Specifications
| Product Name |
OCIMF Standard STS Oil Hose 15Bar Natural Rubber Oil Resistant Black Color ANSI150 |
| Brand Name |
DockFender |
| Model Number |
DF-STS8IN |
| Material |
High Performance Natural Rubber |
| Standard |
EN1765, OCIMF2009 |
| Size |
Diameter: 8"-12"
Length: ≤ 12.2m
|
| Working Pressure |
15bar-21bar |
| OEM / ODM |
Available |
| Tolerance Standard |
ISO2768-M or ISO3302-1:2014 CLASS M2 |
| Usage |
For ship to ship transfer, dock oil loading unloading |
| Certificate |
DNV BV CCS LR ABS |
| Color |
Customers' Requirements |
| Internal Diameter |
6” to 16” |
| Design Pressure |
15 to 21 bar |
| Max. Available Length |
Up to 12.2 m (40ft) |
| Designs |
Hardwall or reflex |
| Electrically |
Continuous / Discontinuous |
Features
1. High rebound-resilience.
2. Custom-built assemblies.
3. Built-in couplings.
4. Permanent branding.
Applications
● Ship-to-ship and ship-to-shore
● LNG bulk transfer
● LNG bunkering
● Also suitable for Vapor return lines
Advantages
Lining
Black nitrile rubber to convey crude oil and other liquid petroleum based products with a maximum aromatic content of 50%. Temperature range –20°C to +80°C (-4°F to 176°F).
Coupling system
Built-in vulcanised carbon steel nipples with galvanised ASTM A105 ANSI B16.5 150lb raised face slip-on welded or weld neck flanges. Other drillings are available.
Reinforcement
Multiple layers of high-strength synthetic tyre cord giving pressure and fatigue-resistance and rebound-resilience; ensuring that the hose resumes its circular cross-section and performance characteristics after temporary kinking which may occur during operation. Available electrically continuous or discontinuous.
Quality assurance
A486 oil hoses are designed in accordance to BSEN 1765:2004 type L15 and OCIMF STS Transfer Guide. Proof tested to 1.5 x working pressure with test and material certificates issued.
