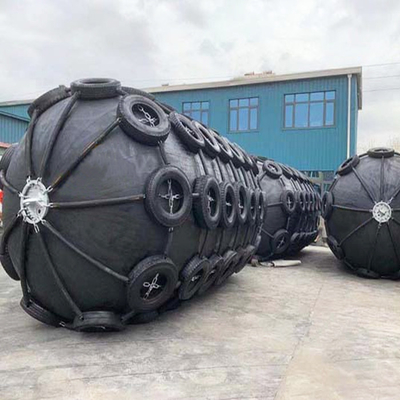

Pneumatic Fenders ISO17357-1:2014 Guide 3.3*6.5M CTN Type Air Block 50kPa
Description
Pneumatic fenders have been in use for around 60 years. It is the leading anti-collision device for marine application in the world. This compressed air filled rubber fender is used as a protective medium for ship to ship contact (STS), ship to quay (STQ) and ship-to-berthing (STB).
The Pneumatic Fender or Yokohama Rubber Fender or Pneumatic Fender, uses compressed air as a buffer medium to absorb the impact energy of the ship, so that the ship has more flexibility and softness when docked, so as to achieve the effect of preventing collision and collision.
Specifications
| Place of Origin | China |
| Brand Name | DockFender |
| Model Number | DF-YRF3300 |
| Product Name | Pneumatic Fenders ISO17357-1:2014 Guide 3.3*6.5M CTN Type Air Block 50kPa |
| Material | High Quality Natural Rubber |
| Standard | ISO17357-1:2014, PIANC2002 |
| Density | 1.35~2.0 g/cm3 |
| Tensile Strength | ≥18 |
| Testing Pressure | 250 kPa |
| Usage | For ship docking or berthing |
| Certificate | DNV BV CCS LR ABS |
| Color | Customers' Requirements |
| Working Temperature | -15 degreee to 200 degree |
| Normal Size |
Inner Pressure: 50Kpa 60% deflection |
Inner Pressure: 80Kpa 60% deflection |
|||||
| Diameter | Length | Reaction Force | Energy Absorption | Hull Absorption | Reaction Force | Energy Absorption | Hull Absorption |
| mm | mm | kN | kNm | kPa | kN | kNm | kPa |
| 500 | 1000 | 64 | 6 | 132 | 85 | 8 | 174 |
| 600 | 1000 | 74 | 8 | 126 | 98 | 11 | 166 |
| 700 | 1500 | 137 | 17 | 135 | 180 | 24 | 177 |
| 1000 | 1500 | 182 | 32 | 122 | 239 | 45 | 160 |
| 1000 | 2000 | 257 | 45 | 132 | 338 | 63 | 174 |
| 1200 | 2000 | 297 | 63 | 126 | 390 | 88 | 166 |
| 1350 | 2500 | 427 | 102 | 130 | 561 | 142 | 170 |
| 1500 | 3000 | 579 | 152 | 132 | 731 | 214 | 174 |
| 1700 | 3000 | 639 | 191 | 128 | 840 | 267 | 168 |
| 2000 | 3500 | 875 | 308 | 128 | 1150 | 430 | 168 |
| 2500 | 4000 | 1381 | 663 | 137 | 1815 | 925 | 180 |
| 2500 | 5500 | 2019 | 943 | 148 | 2653 | 1317 | 195 |
| 3300 | 4500 | 1884 | 1175 | 130 | 2476 | 1640 | 171 |
| 3300 | 6500 | 3015 | 1814 | 146 | 3961 | 2532 | 191 |
| 3300 | 10600 | 5121 | 3090 | 171 | 6612 | 4294 | 220 |
| 4500 | 7000 | 4660 | 3816 | 186 | 5866 | 4945 | 233 |
| 4500 | 9000 | 5747 | 4752 | 146 | 7551 | 6633 | 192 |
| 4500 | 12000 | 7984 | 6473 | 154 | 10490 | 9037 | 202 |
Features
1. Toughest Tire Net
Heavy-duty aircraft tire, this design is more tough than the general truck tire net.
2. Stronger Fender Wall
Manufactured comply with the material requirements of ISO 17357 completely. Just the conformation orally. And manufactured by model technology.
3. Easy to Transport and storage
Easy to storage, the big size pneumatic fenders over 2.5m diameters can be loaded into the normal container easily to save shipment.
Applications
● STS sea transport
● Double banking and ships berthing at docks /jetty
● Oil and gas carriers
● Temporary and permanent installation
● Quick response and emergency
● Liquid cargo and naval defense ships
Advantages
◆ Compliance with ISO17357-1:2014 standard
◆ Low reaction force and hull pressure
◆ More safety and reliability
◆ Most cost competitive system
◆ Lower mooring forces
◆ Advantage against shearing force
◆ Adaptable to the tide
◆ Simple and low-cost installation
◆ Low maintenance cost
◆ Various optional fitting
