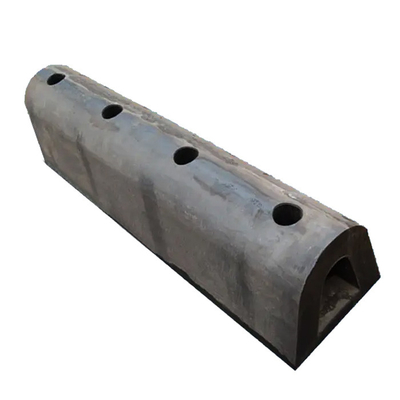

Natural Rubber D Type Fenders 300H Heavy Duty Marine Large Wharf Ships
Description

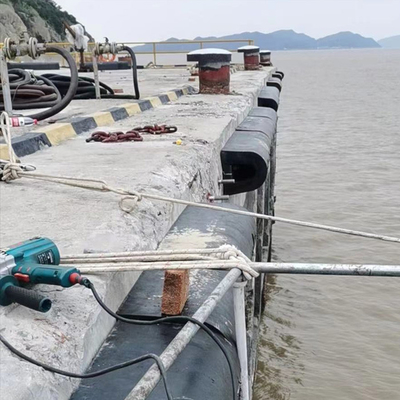

D type fender is a kind of particularly common protective rubber fender. It is often installed on the dock and both sides of the hull. Because of its excellent performance and high-cost performance, it is widely used in the field of mooring protection.
D type rubber fender has the advantages of large impact energy absorption, impact resistance, excellent performance, simple installation, good corrosion resistance, etc. D type rubber fender has good floating performance, small volume, light weight, good aging resistance, and convenient construction, installation and maintenance.
Specifications
| Place of Origin |
China |
| Brand Name |
DockFender |
| Model Number |
DF-DR300H |
| Product Name |
Natural Rubber D Type Fenders 300H Heavy Duty Marine Large Wharf Ships |
| Material |
High quality natural rubber |
| Warranty |
2 Years |
| After-sale Service |
Free spare parts |
| Quality Certification |
ISO9001, PIANC |
| Safety standard |
ABS, BV, SGS |
| Accessories |
Nut, bolt, washer, etc |
| Color |
Customers' Requirements |
| Application |
Port, Dock, Boat |
| A |
B |
C |
D |
E |
F |
H |
K |
| [mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
| 70 |
30 |
15 |
30 |
45 |
80 |
90 - 130 |
200 - 300 |
| 100 |
45 |
15 |
30 |
50 |
100 |
90 - 130 |
200 - 300 |
| 125 |
60 |
20 |
40 |
60 |
125 |
110 - 150 |
250 - 300 |
| 150 |
75 |
20 |
40 |
75 |
150 |
110 - 150 |
250 - 300 |
| 150 |
80 |
25 |
50 |
100 |
200 |
130 - 180 |
300 - 400 |
| 200 |
100 |
25 |
50 |
100 |
200 |
130 - 180 |
300 - 400 |
| 200 |
100 |
30 |
60 |
125 |
250 |
140 - 200 |
350 - 450 |
| 250 |
125 |
30 |
60 |
125 |
250 |
140 - 200 |
350 - 450 |
| 300 |
150 |
30 |
60 |
150 |
300 |
140 - 200 |
350 - 450 |
| 350 |
175 |
35 |
75 |
175 |
350 |
140 - 200 |
350 - 450 |
| 380 |
190 |
35 |
75 |
190 |
380 |
140 - 200 |
350 - 450 |
| 300 |
150 |
35 |
75 |
175 |
400 |
140 - 200 |
350 - 450 |
| 400 |
200 |
35 |
75 |
200 |
400 |
140 - 200 |
350 - 450 |
| 500 |
250 |
45 |
90 |
250 |
500 |
160 - 230 |
400 - 500 |
| *Note: Other sizes can be customized according to the requirements. |
Features
1. Easy to install and maintain.
2. Simple operation and time saving.
3. Economical solution.
4. Wide range of sizes can be customized.
5. Proportional reaction force, higher energy absorption.
Applications
● Jetties and wharves.
● Tugboat and workboat.
● Pontoon protection.
● Inland waterways.
Advantages
◆ Fully compliant with PIANC 2002.
◆ IACS can be provided for free.
◆ 100% imported raw materials, strict production process.
◆ The series of moulds can meet the requirements of various sizes.
◆ Third party quality inspection to ensure that each product is qualified for delivery.
FAQ
1. Can you make the rubber fender with our brand?
Yes, we accept OEM and ODM. You can provide your brand, we can design for you.
2. How do you control the quality of your fender?
Every fender is under a rigorous process and test for every step since the raw material until to the package.
3. Do you have any international certificates?
Yes. We have ABS, DNV, ISO, BV.
4. I am good at Portuguese and Spanish. Do you have salesmen who can speak both languages to help us?
Yes, we have sales agents in Brazil and Chile who can serve you close by. Please don't worry.
5. What's the lifespan of your fenders?
Lifespan: More than 20 years.
6. I only need one. Can you produce it?
First of all, if what you need is our standard size product, we can make it for you while producing other products of the same size. Secondly, if you need non-standard products, we can customize according to your requirements. But considering the cost of production and shipping, we recommend you to refer to our standard specifications.
7. What's your standard of the fenders?
To be satisfy with PIANC & IACS.
8. Can you provide samples for testing?
Yes, most of the samples can be provided free of charge.
