High Performance Cylindrical Marine Rubber Fender Marine Port Ship Boat
Description
Cylindrical fenders are most basic types of the rubber fenders used today for maritime activities, which offer great versatility to accommodate all sizes of ships They are simple in design, cost effective, versatile and quite easy to install.

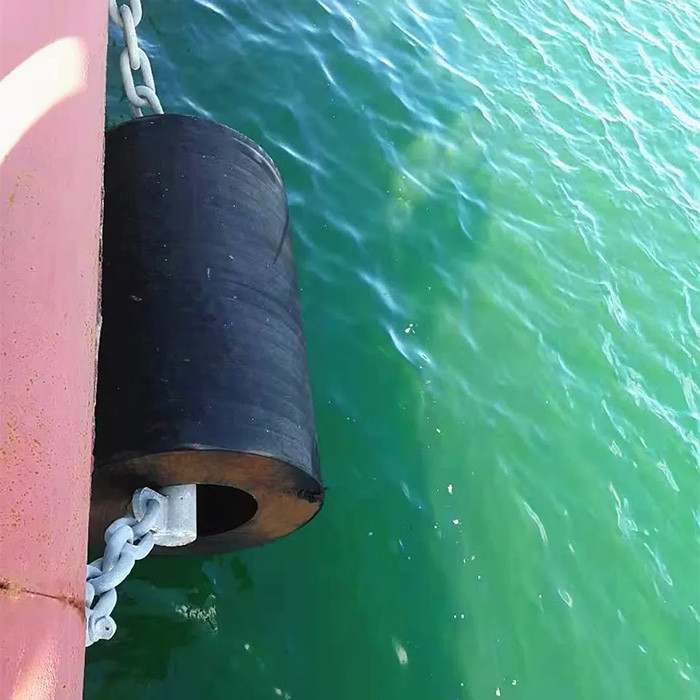

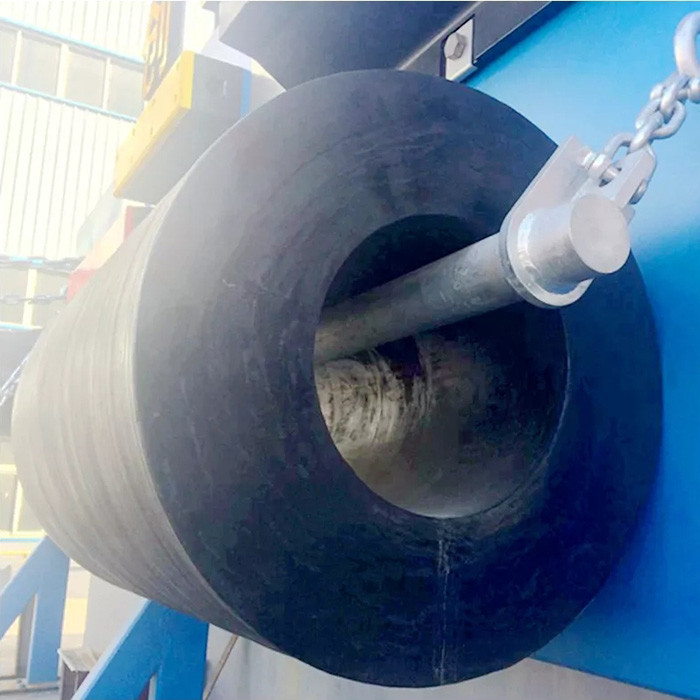

Cylindrical marine fenders can be installed with chains, supporting bars, brackets and ladders. Besides, One unique advantage over other types is its ability to be installed diagonally, in addition to vertical or horizontal fitting.
Cylindrical marine fender is simple to install and operate which makes these units an economical solution for remote locations and for multi user berths where vessel types cannot always be predicted.
Specifications
Place of Origin | China |
Brand Name | DockFender |
Model Number | DF-C600 |
Product Name | High Performance Cylindrical Marine Rubber Fender Marine Port Ship Boat |
Material | High Performance NR/NBR |
Standard | HGT2866-2016, PIANC2002 |
Density | 1.35~2.0 g/cm3 |
Tensile Strength | ≥16 MPA |
Inner Diameter | 75-1000 mm |
Outside Diameter | 150-2000 mm |
Shape | Hollow O Shape |
Service | OEM or ODM |
Application | Used for protect the ship and dock |
Model | Length | Inside Diameter | Outside Diameter |
Cylindrical | [mm] | [mm] | [mm] |
DF-C150 | Customized Length | 75 | 150 |
DF-C200 | 100 | 200 | |
DF-C250 | 125 | 250 | |
DF-C300 | 150 | 300 | |
DF-C400 | 200 | 400 | |
DF-C500 | 250 | 500 | |
DF-C600 | 300 | 600 | |
DF-C700 | 350 | 700 | |
DF-C800 | 400 | 800 | |
DF-C900 | 450 | 900 | |
DF-C1000 | 500 | 1000 | |
DF-C1100 | 550 | 1100 | |
DF-C1200 | 600 | 1200 | |
DF-C1400 | 700 | 1400 | |
DF-C1600 | 800 | 1600 | |
DF-C1700 | 850 | 1700 | |
DF-C1800 | 900 | 1800 | |
DF-C1900 | 950 | 1900 | |
DF-C2000 | 1000 | 2000 |
Features
1. Very robust and simple design.
2. Easy to install.
3. High abrasion resistance.
4. Proportional increase of energy and reaction.
Applications
● Multiple usages at different berths
● Bulk Terminals
● General Cargo Terminals
● RoRo Terminals
● Tug Boats
● Barge
Advantages
◆ All products comply with PIANC2002 standard.
◆ 32 years of experience, 100% good reputation of clients.
◆ Various sizes and types can meet the needs of different scenes.
◆ With complete qualifications and strong technical force, it is guaranteed after purchase.
◆ The cost performance of the product has obvious advantages in the industry.
