Cylindrical Marine Fenders PIANC2002 Standard Economical High Energy Absorption
Description

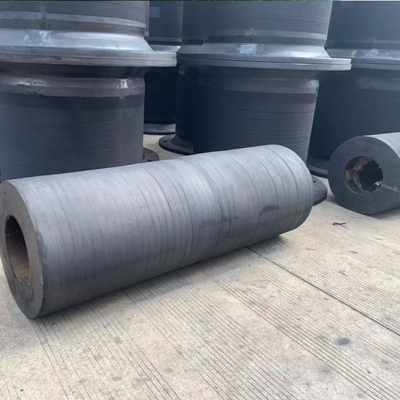

Cylindrical marine fenders can be used in a variety of applications to provide cost-effective solutions for berths for large and small vessels. The cylindrical marine fender is a simple and versatile marine fender system, and it is the first type of rubber fender with clear properties.
The progressive response of our cylindrical marine fenders are ideal for applications that require protection from large objects and impacts. We have specially designed these cylindrical marine fenders to provide the maximum possible compression rate without warping or deteriorating them. They have an outer diameter of up to 2,700 mm, an inner diameter range of 50 to 1,300 mm, and a variable length of up to 20 meters. Special dimensions and features, such as pre-bending or connections can be required. Length is mainly limited by handling and transport, and typically very long cylindrical moths are used for tugboat bows usually divided into three sections.
Specifications
| Item | Cylindrical Marine Fenders PIANC2002 Standard Economical High Energy Absorption |
| Material | High Performance Natural Rubber / NBR |
| Size | ID: 75-1000mm; OD: 150-2000mm or Customized |
| Thickness | Customized |
| Color | Black in common, others are also available |
| Structure | Hollow O Shape, Steel Bar/Shackle/Chains/U-Anchor Assembly |
| Feature | Eco-friendly, Wear-resistant, Anti-aging |
| Usage | Port, Dock, Boat |
| Logo Processing | Laser Engraving or Imprint |
| Packing | Each piece is rolled with OPP film |
| MOQ | 1 piece |
| Productivity | 50,000 piece per month |
| Trade Terms | FOB, CIF, DDP, DDU or customized |
| Sample Lead Time | 1-7 Days |
| Sample Policy | Free |
| Production Lead Time | 1-7 Days |
| Transportation | By sea, By air or Carrier Express |
| Port | Tianjin/Xingang/Qingdao/Weihai/Shanghai/Shenzhen/Ningbo/Dalian/Xiamen |
| Certificates | CCS, ABS, SGS, BV, ISO9001:2008 |
| Model | Length | Inside Diameter | Outside Diameter |
| Cylindrical | [mm] | [mm] | [mm] |
| DF-C150 | Customized Length | 75 | 150 |
| DF-C200 | 100 | 200 | |
| DF-C250 | 125 | 250 | |
| DF-C300 | 150 | 300 | |
| DF-C400 | 200 | 400 | |
| DF-C500 | 250 | 500 | |
| DF-C600 | 300 | 600 | |
| DF-C700 | 350 | 700 | |
| DF-C800 | 400 | 800 | |
| DF-C900 | 450 | 900 | |
| DF-C1000 | 500 | 1000 | |
| DF-C1100 | 550 | 1100 | |
| DF-C1200 | 600 | 1200 | |
| DF-C1400 | 700 | 1400 | |
| DF-C1600 | 800 | 1600 | |
| DF-C1700 | 850 | 1700 | |
| DF-C1800 | 900 | 1800 | |
| DF-C1900 | 950 | 1900 | |
| DF-C2000 | 1000 | 2000 |
Features
1. Low reaction, reasonable energy absorption, low hull pressure.
2. Easy to install and maintain.
3. Suit to roll and pitch of berthing vessels.
4. Various installation, vertical, horizontal, diagonal.
Applications
● Bulk cargo berths
● General cargo quays
● Fishing and workboat berths
● Pontoons and floating structures
● Tug havens
Advantages
1. Quality: DockFender cylindrical marine fenders always maintain high quality. We insist on using 100% natural rubber, coupled with a special angle design, so that our cylindrical marine fenders can be more durable and perform better.
2. Service: DockFender adheres to the principle of customer first. Our professional customer service team can not only provide you with the most professional product recommendations, but also help you customize project solutions.
3. After-sales Service: DockFender 's fixed cylindrical fenders can be guaranteed for 36 months. As long as you use it normally, we can guarantee replacement for any product quality problems during the warranty period.
4. Customize: All products of DockFender can be specially customized according to customer requirements, let us know your needs!
