Name: Black Rubber Fixed Fender 175kN - 1000kN For Dock Boat Protection
Brand: Hongruntong Marine Co., Ltd.
SKU: DF-D1750
Price: 3,050.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Fixed Type Fender Roller Fenders D1750 M36 Anchor Black Rubber For Dock Boat Protection

Material: Anti Aging NR

Model Number: DF-D1750

Type: Roller Fenders

OEM: Welcomed

Hardness: ≤82 Shore A

Tensile Strength: ≥16 MPA

Application: Corners And Lock Entrances

Highlight:

Fixed Fender 175kN

Fixed Fender 1000kN

Basic Infomation

Place of Origin: CHINA

Brand Name: DockFender

Certification: ABS, DNV, CCS, PIANC

Model Number: DF-D1750

Payment & Shipping Terms

Packaging Details: Wooden pallet or as required

Delivery Time: 7-9 Work Days

Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability: 2250 Pcs Per Month

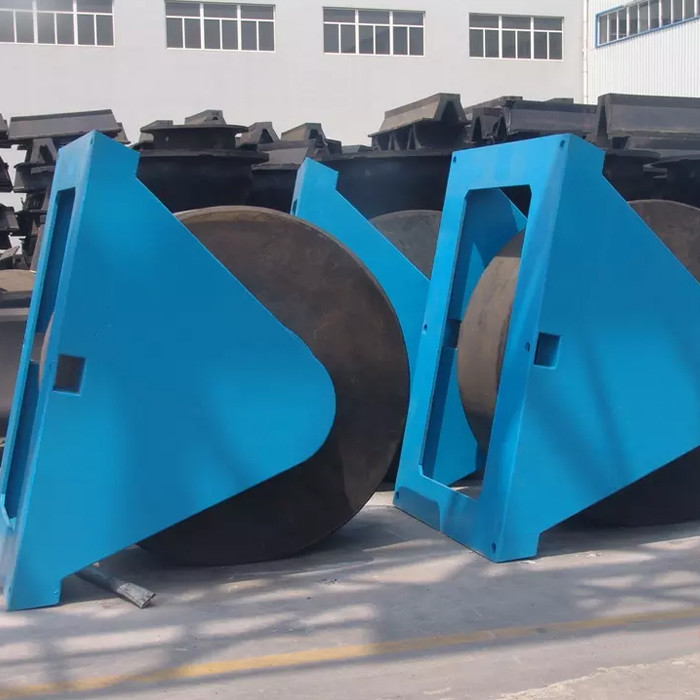

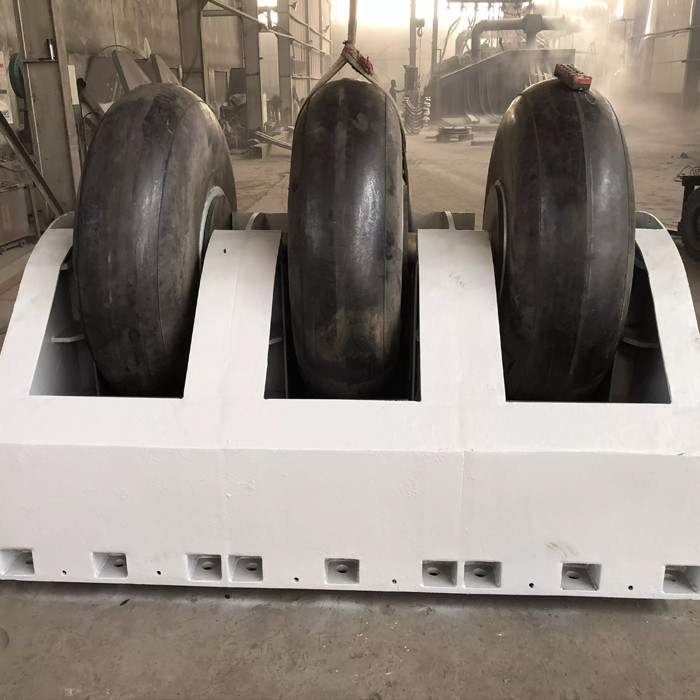

Gallery

Black Rubber Fixed Fender 175kN - 1000kN For Dock Boat Protection

Product Description

Fixed Type Fender Roller Fenders D1750 M36 Anchor Black Rubber For Dock Boat Protection

Description

Roller Fenders are manufactured and assembled using a special technology for a uniform deflection of the rollers and a smooth rotational movement in the direction of the force – thus ensuring a safe passage of the vessels without damaging the structure. The superior moulding technology employed in the high-pressure thermic fluid heated hydraulic presses ensure long life and trouble-free performance.

Roller Fenders are perfectly engineered and assembled in high tensile steel fabricated housing, coated with high build epoxy paint to ensure trouble-free operations. If required, services can be provided for supervising the installation of the roller fenders.

Specifications

Product Name	Fixed Type Fender Roller Fenders D1750 M36 Anchor Black Rubber For Dock Boat Protection
Brand Name	DockFender
Model Number	DF-D1750
Material	Natural Rubber
Reaction Force	175kN to 1000kN
Energy Absorption	13KN-M to 170KN-M
Standard	PIANC2002, HGT 2866-2016
Processing Service	Moulding, Cutting
Lifespan	15-20 Years
Service	OEM or ODM
Color	Customers' Requirements
Application	Port, Dock, Quay, etc

1. Wheel Type

Black Rubber Fixed Fender 175kN - 1000kN For Dock Boat Protection 0

Model No.	A	B	C	D	E	F	H
Wheel	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
DF-D1080	1700	1000	1450	1080	900	350	460
DF-D1300	2000	1200	1750	1300	1000	350	510
DF-D1750	2650	1500	2200	1750	1150	550	690
DF-D1980	2750	1750	2550	1980	1250	500	760
DF-D2550	3350	2200	3200	2550	1600	850	970
DF-D2900	4200	2500	3750	2900	1700	1000	900

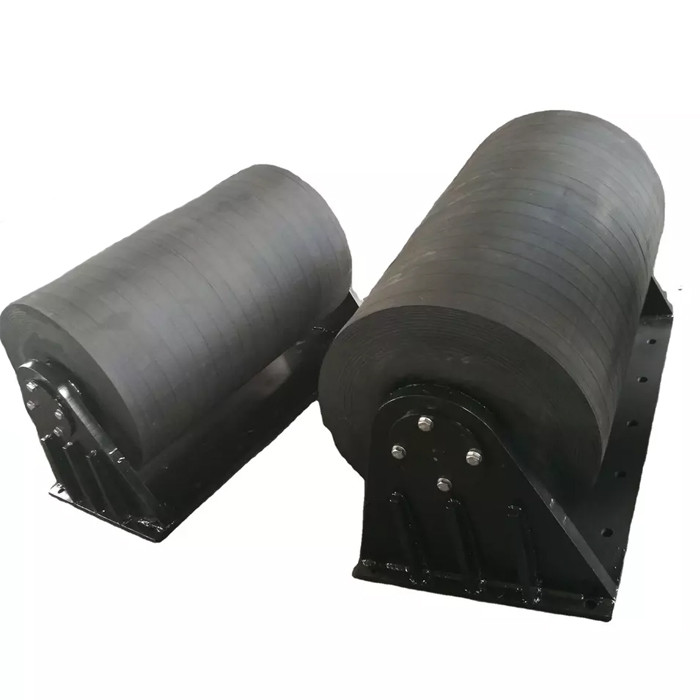

2. Roller Type

Black Rubber Fixed Fender 175kN - 1000kN For Dock Boat Protection 1

Model No.	A	B	C	D	E	G	H	J	K	L
Roller	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
DF-D1080	1250	1150	610	1080	1150	220	460	800	340	60
DF-D1450	1530	1400	740	1320	1450	260	510	950	400	75
DF-D1500	1600	1450	765	1370	1500	270	610	1000	425	75
DF-D1900	2050	1850	975	1750	1900	350	690	1250	500	125
DF-D2100	2300	2100	1110	1980	2100	400	765	1400	550	150
DF-D2700	3000	2700	1425	2550	2700	500	895	1800	700	200

3. Cushion Type

Black Rubber Fixed Fender 175kN - 1000kN For Dock Boat Protection 2

Model No.	Capacity	A	B	C	D	T	W	a1	a2	a3	b1	b2
Cushion	Tons	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
DF-CR10	10T	450	450	542	370	130	125	90	310	–	35	380
DF-CR15	15T	450	450	542	370	130	190	90	175	135	35	380
DF-CR20	20T	450	520	546	370	130	250	80	160	120	50	420
DF-CR25	25T	450	550	546	370	130	315	90	175	135	35	480
DF-CR30	30T	480	630	570	380	130	315	90	180	120	55	520
DF-CR40	40T	770	725	690	450	200	350	120	300	300	70	585

Features

1. Low reaction force and high energy absorption.
2. Low scrolling resistance.
3. Low maintenance frame design.
4. High bearing capacity.
5. Generally no maintenance is required.
6. Composite bearing removes contact with metals and metals.

Applications

● Water gates
● Entrance to ship locks
● Dry-dock entrances and walls
● Some exposed corners and entrances
● Other narrow or exposed areas

Advantages

1. Quality: DockFender roller fenders always maintain high quality. We insist on using 100% natural rubber, coupled with a special angle design, so that our roller rubber fenders can be more durable and perform better.

2. Service: DockFender adheres to the principle of customer first. Our professional customer service team can not only provide you with the most professional product recommendations, but also help you customize project solutions.

3. After-sales Service: DockFender 's solid arch fenders can be guaranteed for 24 months. As long as you use it normally, we can guarantee replacement for any product quality problems during the warranty period.

4. Customize: All products of DockFender can be specially customized according to customer requirements, let us know your needs!

Black Rubber Fixed Fender 175kN - 1000kN For Dock Boat Protection 3

Black Rubber Fixed Fender 175kN - 1000kN For Dock Boat Protection 4
