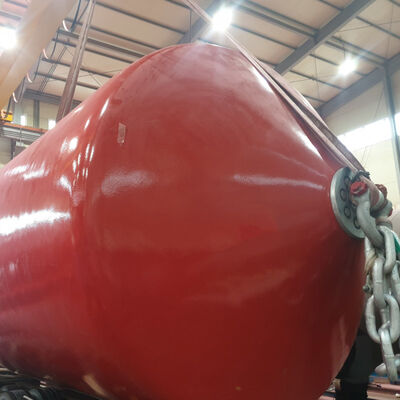

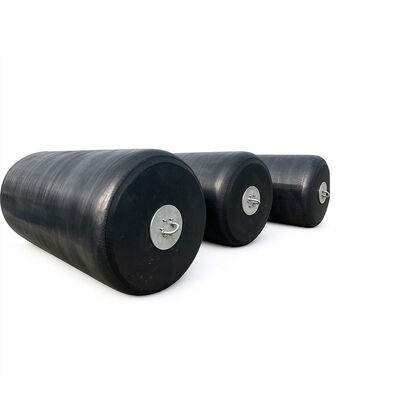

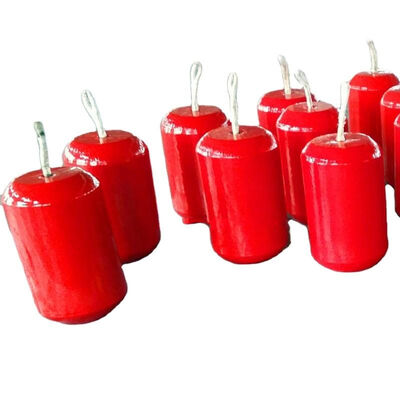

The Floating Foam Fender is an engineered marine protection product designed to manage impact energy and provide a compliant contact interface between vessels and marine structures. It is applied in commercial harbors, offshore service facilities, shipyards, floating docks, marine construction projects, and other installations where vessel contact must be controlled under changing operational and environmental conditions.
The typical assembly consists of a closed-cell foam core, a protective outer covering, and connection components designed for the intended installation. The foam core provides buoyancy and compression-based energy absorption, while the outer covering protects the internal structure against abrasion, mechanical damage, and environmental exposure. The configuration of the complete assembly determines its suitability for a particular application, making material selection, dimensional control, structural design, and attachment compatibility essential considerations during procurement.
The fender absorbs impact energy through the deformation of its internal foam structure. When a vessel approaches a berth or makes contact with another vessel, the applied force compresses the foam core, allowing part of the kinetic energy to be absorbed over the available deformation range. This process reduces the severity of direct contact and distributes forces through the contact interface.
The resulting performance depends on the core material, density, geometry, fender dimensions, loading rate, and degree of compression. Energy absorption must be evaluated together with reaction force because the load transferred to the supporting structure cannot exceed the limits established by the installation design. The selected fender must also retain adequate clearance after deformation to prevent unwanted contact between the vessel and the protected structure.
The closed-cell foam construction provides buoyancy and limits water absorption within the core. This characteristic allows the fender to remain afloat without relying on an inflatable chamber, making it suitable for marine environments where routine inflation and pressure monitoring would complicate equipment management. In tidal ports, floating terminals, and offshore service locations, buoyancy enables the fender to accommodate changes in water level when the connection arrangement permits the required movement.
The protective outer covering is designed to resist the mechanical and environmental stresses encountered during marine service. Depending on the specification, the covering may use polyurethane elastomer or another suitable protective material. Reinforcement can be incorporated to improve resistance to tearing and localized stress, particularly where the fender is exposed to repeated contact or frequent handling. The covering must accommodate compression of the core without premature cracking, separation, or loss of protective integrity.
Floating Foam Fenders can be manufactured in different dimensions and connection configurations to match vessel geometry, installation clearance, contact height, and required protection performance. The selection process should consider vessel displacement, approach velocity, berthing angle, contact location, environmental conditions, and the allowable loads on the supporting structure.
Where several vessel types use the same berth, the design should address the range of expected operating conditions rather than relying on a single nominal vessel profile. Ship-to-ship applications require additional attention to relative vessel movement, uneven hull geometry, and changing contact pressure. The fender arrangement must maintain the intended contact interface without interfering with mooring lines, transfer equipment, access routes, or other operational systems.
The principal engineering advantage of a Floating Foam Fender is its combination of flotation, compression-based energy absorption, and pressure-independent construction. It can support impact protection in facilities where water-level changes and repeated vessel movements influence the required contact arrangement. Depending on the project design, it may be used as the primary fendering component or as part of a supplementary protection system. Its effectiveness depends on correct sizing, suitable materials, appropriate attachment design, and operation within the established performance limits.
Inspection should cover the outer skin, end sections, attachment components, and supporting structure, with additional checks following severe impact or unusual operating conditions. When selected through an engineering assessment and maintained according to the manufacturer's recommendations, the Floating Foam Fender can provide a practical solution for marine contact protection across a wide range of applications.
A representative marine service project involved a remote coastal base supporting maintenance vessels, utility boats, and offshore supply craft. The facility operated throughout changing weather conditions and experienced variations in water level, vessel draft, and contact position during routine berthing. Access to specialized maintenance equipment was limited, and the operator wanted a protection arrangement that would not depend on frequent inflation checks. The existing fendering system also required a review because repeated contact and repositioning had created maintenance concerns around the contact surfaces and attachment points.
The engineering team evaluated the service base layout, vessel operating profile, expected berthing conditions, and available installation space. The assessment considered the dimensions and displacement of the vessels using the facility, the expected approach velocity, the contact angle, and the loads that could be transferred to the supporting structure. Water-level variation and wave-induced movement were also considered because the protection equipment needed to remain positioned correctly under changing environmental conditions. The team reviewed maintenance access and handling requirements to ensure that the selected fender could be inspected and repositioned without creating unnecessary operational disruption.
A Floating Foam Fender configuration was proposed for the principal vessel-contact areas. The closed-cell foam core provided buoyancy and compression-based energy absorption, while the protective outer covering was intended to withstand routine surface contact and environmental exposure. The dimensions were to be determined from the required impact performance, allowable deformation, and available clearance. The connection arrangement was developed around the supporting structure and the expected movement of the fender during changes in water level. Before the equipment was approved for production, the project specification required confirmation of material construction, fender dimensions, connection details, and the applicable performance criteria.
The installation plan included checking the supporting attachment points, verifying the fender's position relative to the vessel-contact area, and confirming that the equipment would not interfere with access routes or mooring operations. Because the service base handled several vessel types, the arrangement needed to provide appropriate contact coverage without obstructing normal vessel movements. Operating procedures were also reviewed to define inspection responsibilities, acceptable approach conditions, and the actions required after an unusual impact. These controls were important because fender performance depends on both the equipment design and the conditions under which it is used.
In this illustrative scenario, the intended benefit was a protection system with reduced dependence on inflation-related maintenance and improved adaptability to changing water levels. The foam-filled structure provided a floating contact interface, while the outer covering protected the core against routine abrasion and handling damage. Actual performance would need to be evaluated through operating records, inspection results, and maintenance observations. Relevant indicators would include the condition of the protective skin, deformation patterns, attachment integrity, flotation behavior, and any documented changes in maintenance requirements. The case demonstrates how Floating Foam Fenders can be considered for remote marine facilities when operational reliability, maintenance access, environmental exposure, and vessel-contact conditions are evaluated together.
| Product Name | Floating Foam Fender |
|---|---|
| Product Type | Closed-Cell Foam Filled Floating Fender |
| Core Material | High-Density Closed-Cell Polyethylene Foam |
| Outer Skin | Reinforced Polyurethane or Elastomeric Rubber |
| Buoyancy | Unsinkable, Positive Buoyancy |
| Energy Absorption | High Energy Absorption With Low Reaction Force |
| Weather Resistance | UV, Seawater, And Aging Resistant |
| Installation | Chain or Bracket Mounting, Customizable |
| Service Life | 15–20 Years Under Normal Operating Conditions |
| Diameter * Length (mm) | Energy Absorption at 60% Comp. (kNm) | Reaction Force at 60% Comp. (kN) | Approx. Weight (kg) |
|---|---|---|---|
| 300 * 1000 | 3.8 | 54 | 11 |
| 500 * 1000 | 10.6 | 91 | 41 |
| 600 * 1000 | 15.3 | 109 | 49 |
| 600 * 1000 | 18.3 | 131 | 55 |
| 700 * 1500 | 31 | 191 | 85 |
| 750 * 1500 | 36 | 204 | 89 |
| 900 * 1800 | 62 | 294 | 140 |
| 1000 * 1500 | 64 | 272 | 125 |
| 1000 * 2000 | 85 | 363 | 170 |
| 1200 * 2000 | 122 | 436 | 275 |
| 1200 * 2400 | 146 | 523 | 365 |
| 1250 * 2000 | 132 | 454 | 353 |
| 1250 * 2500 | 165 | 567 | 410 |
| 1500 * 3000 | 286 | 817 | 570 |
| 1500 * 4000 | 381 | 1089 | 720 |
| 1700 * 3000 | 367 | 926 | 700 |
| 1700 * 3500 | 428 | 1080 | 780 |
| 1800 * 3000 | 412 | 980 | 850 |
| 1800 * 3600 | 494 | 1176 | 965 |
| 2000 * 3000 | 508 | 1089 | 965 |
| 2000 * 3500 | 593 | 1271 | 1100 |
| 2000 * 4000 | 678 | 1452 | 1220 |
| 2400 * 4000 | 976 | 1743 | 1720 |
| 2400 * 4800 | 1171 | 2091 | 2140 |
| 2500 * 4000 | 1059 | 1815 | 1865 |
| 2500 * 5000 | 1324 | 2269 | 2500 |
| 2500 * 5500 | 1456 | 2496 | 2675 |
| 2700 * 5400 | 1668 | 2647 | 2865 |
| 3000 * 5000 | 1925 | 2750 | 3200 |
| 3000 * 6000 | 2287 | 3268 | 3740 |
| 3300 * 6500 | 2998 | 3894 | 4735 |
| 3600 * 7200 | 3953 | 4706 | 5800 |
| 4000 * 8000 | 4522 | 5809 | 8700 |
| 4200 * 8400 | 6277 | 6405 | 10000 |
| 4500 * 9000 | 7720 | 7353 | 10700 |
The foam core is the primary energy-absorbing component of the Floating Foam Fender. Under an applied contact load, the core compresses and deforms, providing a compliant interface between the vessel and the protected structure. The foam's mechanical response depends on material composition, density, cell structure, geometry, and loading rate. These characteristics determine the relationship between compression, absorbed energy, and reaction force. A suitable product specification must establish the required operating range so that the fender can absorb the anticipated impact energy without exceeding the permitted deformation or the load capacity of the supporting structure.
For marine installations, the design inputs should include vessel displacement, approach velocity, berthing angle, contact geometry, and available clearance. Where the fender is used by vessels of different sizes, the governing operating condition should be identified through engineering assessment. The design should also account for the possibility of uneven contact, which can produce localized loading and uneven deformation. Product performance data should be reviewed to confirm that the selected fender meets the required energy-absorption and reaction-force criteria. This approach helps align the foam-core characteristics with the actual operating demands of the installation.
The foam-filled structure does not rely on an internal pressurized chamber to maintain its basic form. This removes the routine requirement for inflation and pressure adjustment associated with pneumatic fenders. It can be advantageous at remote marine bases, temporary facilities, and operating locations where access to maintenance equipment or specialized personnel is limited. The absence of an inflatable chamber also eliminates the need to manage pressure loss as a normal maintenance concern.
Pressure-independent construction should not be interpreted as maintenance-free operation. The outer covering, connections, and supporting hardware remain exposed to mechanical loading, environmental deterioration, and handling damage. The fender should be inspected for cuts, cracking, delamination, exposed foam, abnormal deformation, and changes in flotation. Where the unit has experienced a severe impact, it should be assessed against the manufacturer's acceptance criteria before returning to normal service. Routine inspection and suitable operating procedures remain necessary to maintain reliable protection.
The outer covering protects the foam core from direct contact, abrasion, and damage caused by routine marine handling. Depending on the confirmed specification, the covering may consist of polyurethane elastomer or another suitable protective material. Reinforcement may be included to improve resistance to tearing and localized stress. The complete covering system must remain compatible with the compression behavior of the core, particularly when the fender is exposed to repeated loading or contact with irregular surfaces.
Material selection should reflect the actual environmental conditions. Seawater, ultraviolet radiation, temperature changes, and contact with rough or coated surfaces may influence the covering's long-term condition. The bonding interface between the skin and core should also be considered because separation can reduce the protective effectiveness of the assembly. Inspection should focus on highly stressed areas, including end sections, attachment points, and repeatedly contacted surfaces. A suitable covering specification combined with proper handling and maintenance helps manage deterioration during service.
Floating Foam Fenders can be specified in different diameters, lengths, and attachment configurations to suit different marine installations. Dimensional selection affects contact area, flotation, compression allowance, and potential energy-absorption capacity. The connection arrangement influences fender positioning, restraint, load transfer, and movement under changing water levels. Lifting points and end fittings must be coordinated with the product structure to avoid unnecessary stress concentrations and to support safe handling.
Customization should be based on the operating requirements of the installation rather than dimensions alone. The assessment should include vessel geometry, expected impact conditions, contact height, water-level variation, available clearance, supporting-structure strength, and maintenance access. For remote facilities, handling and replacement procedures may also affect the most suitable configuration. The final design should be documented and checked against the applicable performance criteria before manufacture, ensuring that the fender dimensions and connection details are compatible with the installation.
Floating Foam Fenders can be used at remote marine bases where service vessels, utility boats, and support craft require contact protection during berthing. Their foam-filled construction removes the routine need for inflation and can simplify equipment management where maintenance resources are limited. Buoyancy allows the fender to accommodate changing water levels when the restraint arrangement is designed for the expected movement.
The selection process should consider vessel dimensions, operating frequency, approach conditions, environmental exposure, and the strength of the attachment points. The fender must remain positioned within the required contact zone without interfering with mooring operations or access routes. Inspection should be included in the facility's maintenance plan, with particular attention to the outer covering, connections, and changes in flotation. The design should also provide a practical method for handling and replacing the fender when necessary.
Coastal harbors often accommodate fishing vessels, workboats, utility craft, and other vessels with different hull profiles and contact heights. Floating Foam Fenders can provide a buoyant contact interface at suitable berths, helping absorb impact energy during controlled vessel approach. Their ability to move with water-level changes can be useful in locations where tidal variation affects the position of the hull relative to the berth.
Fender dimensions and spacing should be established according to the expected vessel range and the geometry of the supporting structure. The installation should provide adequate clearance during compression and should not create interference with mooring lines, ladders, walkways, or vessel access. The outer covering should be selected for the expected contact frequency and environmental exposure. Regular inspection supports early identification of surface damage and connection wear.
Floating Foam Fenders may be installed on suitable temporary platforms, floating docks, and marine work structures where equipment or vessels may come into contact with the platform. Construction and maintenance activities can involve changing equipment layouts, frequent repositioning, and exposure to irregular contact surfaces. A foam-filled fender provides a compliant contact interface and can accommodate water-level variation when the installation is properly designed.
Before deployment, the project team should review platform stability, attachment capacity, impact conditions, and available operating clearance. The fender should be positioned so that it does not obstruct lifting equipment, construction materials, or access routes. Since temporary works may expose the outer covering to sharp objects and repeated handling, inspection should be conducted after relocation and demanding operations. The fender should be removed from service if damage compromises its protective function.
Hongruntong Marine has more than 30 years of manufacturing experience, providing an established background for marine equipment production and technical coordination. Floating Foam Fender manufacturing involves several interdependent factors, including foam properties, outer-covering materials, reinforcement, bonding quality, dimensional control, and connection design. The interaction of these components affects the product's flotation, deformation behavior, resistance to surface damage, and suitability for the intended service environment.
For industrial procurement, manufacturing experience should be supported by clear technical communication and defined acceptance requirements. Hongruntong Marine can coordinate product discussions around the application, dimensions, material construction, installation conditions, and documentation required for the order. This helps procurement and engineering teams identify important requirements before production. The delivered product should be evaluated against the confirmed specification and agreed inspection criteria, ensuring that acceptance is based on verifiable information.
A Floating Foam Fender must be selected according to the loads and movements expected at the installation. Vessel displacement, approach speed, contact angle, fender geometry, water-level variation, and supporting-structure capacity all influence the required configuration. Remote facilities may place additional emphasis on maintenance access and equipment handling, while port and shipyard applications may require flexibility for different vessel profiles. These differences should be reflected in the product specification.
Hongruntong Marine can review the available project information to help establish the parameters required for product selection. Where the application requires a specified energy-absorption capacity, reaction-force limit, or deformation range, these requirements should be identified before the configuration is finalized. The design review should also consider attachment strength, available clearance, and potential interference with adjacent equipment. Clarifying these factors early helps reduce the risk of selecting a product that fits the installation space but does not satisfy the required operating conditions.
Floating Foam Fender projects may require customized dimensions, covering materials, end fittings, or attachment arrangements. Such requirements can arise from unusual berth geometry, limited installation clearance, vessel-specific contact positions, or maintenance constraints. Hongruntong Marine can assess customization requests within the confirmed manufacturing scope and technical feasibility of the proposed design.
To maintain specification clarity, the purchaser should provide the intended application, required dimensions, material preferences, performance targets, connection details, and any relevant drawings. The agreed specification should identify which parameters are mandatory and which may be adjusted during technical review. Customized components must remain compatible with the foam core and the overall load path. Documented confirmation before manufacture supports coordination among the purchaser, engineering team, and production personnel and reduces ambiguity during inspection and installation.
The performance of a Floating Foam Fender depends on the quality of its materials and the integrity of the assembled product. Quality verification may include dimensional checks, visual inspection of the outer covering, confirmation of connection components, and review of material specifications. Where project requirements call for performance tests, third-party inspection, or specific certification, these must be defined and agreed in advance. Inspection methods and acceptance criteria should correspond to the product specification and applicable project requirements.
Hongruntong Marine can coordinate the technical documents and product support included in the confirmed scope of supply. Depending on the project, these may include drawings, material information, inspection records, packing details, and maintenance recommendations. Any certification or performance report should be confirmed for the specific product supplied. After delivery, the purchaser should retain the technical documentation for receiving inspection, installation planning, maintenance records, and future replacement decisions. Clear documentation and defined inspection requirements contribute to consistent equipment management throughout the service period.
The request should include the required dimensions, intended application, vessel type and dimensions, expected contact conditions, installation location, connection requirements, and any specified energy-absorption or reaction-force criteria. Drawings or photographs of the installation can help clarify the contact geometry and available clearance. Environmental conditions and inspection requirements should also be identified where relevant.
It may be suitable because its foam-filled construction does not require routine inflation or internal pressure adjustment. However, the outer covering, connections, and supporting structure still require inspection. The maintenance plan should reflect the operating environment, contact frequency, and consequences of equipment failure.
Yes, where the fender configuration has been assessed for the range of vessel sizes, contact geometries, and operating conditions involved. If vessels vary substantially in displacement or hull shape, the design should consider the governing impact condition and confirm adequate contact coverage, deformation allowance, and reaction-force limits.
The operator should confirm the product dimensions, material condition, connection compatibility, attachment strength, installation position, and available clearance. The fender should also be checked for visible damage and correct flotation. Commissioning should follow the manufacturer's installation guidance and the project's operating procedures.
Service life depends on material selection, impact frequency, environmental exposure, installation quality, and maintenance practices. Regular inspections should identify damage to the outer skin, abnormal deformation, connection wear, and changes in flotation. The fender should be assessed after severe impacts or unusual operating events, and replacement should be considered when its condition or verified performance no longer meets the required operating criteria.
