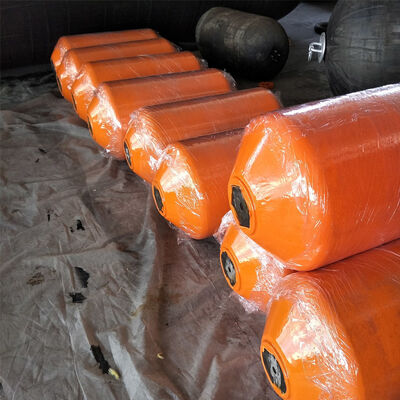

Puncture Resistant Wear Resistant Floating Foam Fender for Reliable Marine Protection and Foam Filled Marine Fender Applications

1
MOQ
$96-$999
Price
Puncture Resistant Wear Resistant Floating Foam Fender for Reliable Marine Protection and Foam Filled Marine Fender Applications
Features Gallery Product Description Request A Quote
Features
Specifications
Effective Length: 1~6.5m
Layers: 5~10 Layers
Product Name: Floating Foam Fender
Service Life: 10~15 Years
Feature: Easy To Install And Handle Lightweight
Usage: Collision Avoidance
Material: EVA And Polyurethane
Size: Customized
Color: Red, Black, Yellow
Highlight:

Puncture Resistant Floating Foam Fender

,

Wear Resistant Foam Filled Marine Fender

,

Reliable Marine Protection Floating Foam Fender

Basic Infomation
Place of Origin: China
Brand Name: Hongruntong Marine
Certification: ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
Model Number: HM-F125
Payment & Shipping Terms
Packaging Details: Wooden Pallet, Wooden Case
Delivery Time: 5-6 Work Days
Payment Terms: T/T,L/C,D/A,D/P,Western Union,
Supply Ability: 1404 Pcs/Month
Product Description

The Floating Foam Fender is a marine impact-protection product engineered to reduce contact forces between vessels and marine structures through controlled deformation, energy absorption, and buoyant support. It is used in commercial ports, offshore terminals, shipyards, floating docks, and marine construction facilities where vessel movement, tidal variation, and repeated contact require a durable and adaptable protection system.

The typical construction incorporates a closed-cell foam core, a protective outer elastomeric covering, and a connection arrangement designed for the intended operating conditions. The foam core provides flotation and compression-based energy absorption, while the external covering protects the internal structure from abrasion, impact damage, and environmental exposure. The finished assembly must be evaluated as an integrated system because the core characteristics, skin construction, dimensions, and attachment components collectively determine its performance.

During vessel contact, the foam core compresses under the applied load and absorbs a portion of the kinetic energy generated by relative movement. The deformation of the core helps distribute contact forces over the fender surface and reduces the likelihood of direct contact between the protected structures. The relationship between energy absorption, reaction force, and compression depends on the material properties, fender geometry, loading rate, and permitted deformation. For this reason, selecting a fender requires more than comparing external dimensions. Vessel displacement, approach velocity, berthing angle, contact position, and supporting-structure capacity must be assessed to determine the required performance. The selected unit should absorb the specified impact energy while keeping reaction forces within acceptable limits and maintaining sufficient clearance throughout the operating range.

The buoyant foam construction is suitable for locations where water levels and contact elevations change during operation. In tidal ports, floating terminals, and offshore service areas, a correctly designed fender can move with changing water levels while remaining positioned within the intended contact zone. The use of closed-cell foam limits water absorption and provides flotation without relying on an inflatable chamber. This distinguishes foam-filled fenders from pneumatic systems, which depend on internal air pressure for their operating characteristics. Although the foam-filled construction reduces the need for inflation and routine pressure adjustment, it does not eliminate the need for condition monitoring. Buoyancy and energy-absorption performance still depend on the core material, assembly weight, outer-skin integrity, and overall product configuration.

The external covering provides mechanical protection for the foam core and influences the fender's resistance to service-related deterioration. Depending on the product specification, the covering may use polyurethane elastomer or another suitable marine protective material. Reinforcement may be incorporated to improve resistance to tearing and localized stress caused by repeated contact or handling. The covering must remain compatible with the compression behavior of the core, particularly in areas that experience frequent or concentrated loading. Material selection should account for seawater exposure, ultraviolet radiation, temperature variation, abrasion, and the surface characteristics of the contacting structures. Bonding quality, covering thickness, end construction, and reinforcement arrangement should be reviewed as part of the complete product specification.

Floating Foam Fenders can be configured for different installation environments through variations in diameter, length, surface protection, and connection design. These parameters influence flotation, contact area, available compression, and the distribution of forces through the assembly. The installation layout must also consider supporting-structure geometry, attachment strength, maintenance access, and the movement expected during operation. In ship-to-ship applications, relative vessel movement and differences in hull geometry may result in uneven contact, requiring careful consideration of fender positioning and restraint. In port applications, the fender must remain compatible with mooring arrangements, access routes, and the expected tidal range. Where special performance criteria apply, the design should be verified using documented product data and project-specific engineering calculations.

The principal value of a Floating Foam Fender is its ability to combine buoyancy, impact-energy absorption, and a pressure-independent structure in one marine protection assembly. It can be used as a primary or supplementary protection component according to the risk assessment and the design of the wider fendering system. Its suitability depends on the anticipated impact conditions, environmental exposure, installation geometry, and maintenance strategy. Before deployment, the product should be checked for dimensional compliance, material condition, connection compatibility, and conformity with the approved specification. During service, inspections should cover the outer skin, end sections, attachment points, and supporting structure. Properly specified and maintained, the Floating Foam Fender provides a practical protection option for marine operations that require controlled contact management and adaptable flotation.


Case Study: Floating Fender Installation for a Floating Cargo Transfer Facility

A representative marine infrastructure project involved a floating cargo transfer facility serving coastal vessels and workboats. The facility operated under changing water levels and experienced frequent vessel arrivals, departures, and repositioning during cargo-handling activities. The existing contact-protection arrangement required improvement because vessel contact positions varied with draft, tide, and loading condition. Repeated contact also increased concern about abrasion at the vessel interface and localized loading on the floating structure. The project required a protection system that could accommodate these variations without creating unnecessary interference with cargo operations or vessel access.

The initial engineering review examined the facility's structural layout, the dimensions and operating characteristics of the vessels using the transfer area, and the expected contact locations. The team considered vessel approach speed, berthing angle, water-level variation, wave-induced movement, and the clearance available between the vessel and the facility. The supporting structure's attachment capacity was also reviewed because the fendering arrangement needed to transfer contact loads without exceeding the allowable loads of the installation. In addition, the design had to preserve access to mooring points, transfer equipment, walkways, and emergency routes.

A Floating Foam Fender arrangement was proposed for the designated contact areas. The foam-filled structure provided flotation and compression-based energy absorption, while the protective outer covering was selected to withstand the anticipated surface contact and environmental exposure. Fender dimensions and spacing were to be determined according to the required energy-absorption performance, allowable deformation, and the geometry of the facility. The connection arrangement was designed to keep the fenders in the intended positions while permitting suitable movement as water levels and vessel positions changed. Before manufacture and installation, the technical specification required confirmation of the product dimensions, material construction, attachment loads, and performance criteria.

During installation, the fenders were positioned to protect the principal vessel-contact areas. The installation team checked that the connections were compatible with the supporting structure and that the fenders could move without becoming trapped against structural projections. The team also reviewed the relationship between fender positioning and cargo-handling equipment to ensure that the protection system would not obstruct normal operations. Operating procedures were considered alongside the physical installation, including controlled vessel approach, communication between vessel and shore personnel, and inspection before demanding transfer activities.

In this illustrative scenario, the intended benefit was improved contact protection across changing water levels and vessel operating conditions. The foam core provided buoyancy without requiring routine inflation, while the outer covering helped protect the internal structure from repeated contact. The effectiveness of the arrangement would need to be established through operating observations and maintenance records rather than assumed from the equipment selection alone. Relevant indicators would include the condition of the vessel-contact surfaces, fender deformation, attachment integrity, and any changes in maintenance requirements. The case demonstrates how Floating Foam Fenders can be incorporated into floating cargo facilities when impact performance, attachment strength, operational clearance, and vessel movement are evaluated as part of one engineering system.

Floating foam fender installed at a floating cargo transfer facility, showing the fender positioned against the structure
Close-up view of a floating foam fender's reinforced outer skin and connection arrangement at a marine facility

Specifications
Product Name Floating Foam Fender
Product Type Closed-Cell Foam Filled Floating Fender
Core Material High-Density Closed-Cell Polyethylene Foam
Outer Skin Reinforced Polyurethane or Elastomeric Rubber
Buoyancy Unsinkable, Positive Buoyancy
Energy Absorption High Energy Absorption With Low Reaction Force
Weather Resistance UV, Seawater, And Aging Resistant
Installation Chain or Bracket Mounting, Customizable
Service Life 15–20 Years Under Normal Operating Conditions
Performance Data (at 60% Compression)
Diameter × Length (mm) Energy Absorption (kNm) Reaction Force (kN) Approx. Weight (kg)
300 × 1000 3.8 54 11
500 × 1000 10.6 91 41
600 × 1000 15.3 109 49
600 × 1000 18.3 131 55
700 × 1500 31 191 85
750 × 1500 36 204 89
900 × 1800 62 294 140
1000 × 1500 64 272 125
1000 × 2000 85 363 170
1200 × 2000 122 436 275
1200 × 2400 146 523 365
1250 × 2000 132 454 353
1250 × 2500 165 567 410
1500 × 3000 286 817 570
1500 × 4000 381 1089 720
1700 × 3000 367 926 700
1700 × 3500 428 1080 780
1800 × 3000 412 980 850
1800 × 3600 494 1176 965
2000 × 3000 508 1089 965
2000 × 3500 593 1271 1100
2000 × 4000 678 1452 1220
2400 × 4000 976 1743 1720
2400 × 4800 1171 2091 2140
2500 × 4000 1059 1815 1865
2500 × 5000 1324 2269 2500
2500 × 5500 1456 2496 2675
2700 × 5400 1668 2647 2865
3000 × 5000 1925 2750 3200
3000 × 6000 2287 3268 3740
3300 × 6500 2998 3894 4735
3600 × 7200 3953 4706 5800
4000 × 8000 4522 5809 8700
4200 × 8400 6277 6405 10000
4500 × 9000 7720 7353 10700

Features
Integrated Energy Absorption and Reaction-Force Management

The Floating Foam Fender uses the compressive characteristics of its internal foam core to absorb impact energy during vessel contact. When an external force is applied, the core deforms and provides a compliant contact interface between the vessel and the protected structure. The amount of energy absorbed depends on the core material, density, fender geometry, compression range, and loading conditions. At the same time, the deformation produces a reaction force that is transferred through the fender and its attachment system. Both parameters must be considered when determining whether a particular configuration is suitable for an installation.

The engineering objective is to achieve the required energy absorption without exceeding the allowable reaction force or deformation. Vessel displacement and approach velocity influence the impact energy, while berthing angle and contact geometry affect how the load is applied. The strength and stiffness of the supporting structure also influence the acceptable operating range. For facilities serving different vessel classes, the design should identify the governing operating conditions and confirm that the selected fender can accommodate them. Product force-deformation data and project-specific calculations provide the basis for evaluating performance and establishing appropriate installation clearances.

Buoyancy and Operational Adaptability

The closed-cell foam core provides flotation while limiting water absorption into the internal structure. This construction allows the fender to operate in locations where water levels vary because of tides, draft changes, or movement of floating facilities. Unlike a pneumatic fender, a foam-filled unit does not depend on an inflatable chamber to maintain its basic operating form. This characteristic can reduce routine maintenance associated with inflation equipment and pressure monitoring, particularly in remote or frequently used marine installations.

Buoyancy must nevertheless be assessed for the complete assembly, including the foam core, outer covering, connection hardware, and any additional components. The restraint system must maintain the fender in the required contact zone while allowing the movement necessary for the installation. Poorly configured restraints may cause excessive loads on the connection points or prevent the fender from following water-level changes. Correct positioning, suitable attachment design, and regular condition checks are therefore important to maintaining operational adaptability throughout the service period.

Marine-Grade Outer Protection and Reinforcement

The outer covering protects the foam core from direct mechanical contact and contributes to the durability of the complete fender. Polyurethane elastomer or another specified protective material may be used according to the product design. Reinforcement can improve resistance to tearing and localized mechanical stress, especially in areas exposed to repeated contact, lifting, or handling. The covering must tolerate the deformation of the core while maintaining its protective function, making material compatibility and bonding quality important manufacturing considerations.

The expected service environment should guide the selection of the outer material. Relevant factors include seawater exposure, ultraviolet radiation, temperature variation, surface roughness, and the frequency of contact. Inspection should concentrate on locations where damage is most likely to develop, including end sections, attachment areas, and repeatedly loaded surfaces. Cuts, cracks, exposed foam, or separation between the skin and core should be assessed promptly. An appropriate protective specification and defined inspection procedures help manage surface deterioration and maintain the integrity of the fender assembly.

Application-Specific Dimensions and Connection Design

Floating Foam Fenders can be configured in different dimensions and connection arrangements to accommodate the geometry and operating requirements of individual marine facilities. Diameter and length affect the contact area, buoyancy, compression allowance, and potential energy-absorption capacity. Connection components determine how the fender is restrained and how loads are transferred to the supporting structure. Lifting points and end fittings should be incorporated into the overall design so that handling and operating forces are distributed appropriately.

For floating cargo facilities, the design must account for water-level variation, cargo-handling equipment, mooring points, and the movement of vessels alongside the structure. For ship-to-ship operations, the relative motion and hull geometry of both vessels must be considered. For fixed berths, the available clearance and structural capacity are key factors. A project-specific configuration should therefore be established using confirmed technical inputs and verified against the required performance criteria before manufacture.


Applications
Floating Cargo Terminals and Transfer Platforms

Floating Foam Fenders can provide contact protection at floating cargo terminals and transfer platforms where vessels approach, remain alongside, and depart under changing water-level conditions. Their buoyant structure helps maintain the fender at the required contact elevation, while the foam core absorbs energy through compression. These characteristics may be useful at coastal transfer facilities, floating loading platforms, and other installations where the vessel-contact arrangement changes with draft and tidal conditions.

The installation layout should be coordinated with mooring points, cargo-transfer equipment, walkways, and emergency access. Fender spacing and dimensions must reflect the expected vessel geometry, contact loads, and allowable deformation. The connection arrangement should restrain the fender while permitting appropriate movement. Inspection should include the outer covering, connection components, and supporting structure, particularly after severe contact or unusual environmental conditions.

Ship-to-Ship Operations and Marine Logistics

Ship-to-ship operations require a contact-protection arrangement that can accommodate movement between two vessels. Floating Foam Fenders can be used in suitable applications involving supply transfer, marine logistics, and controlled alongside operations. Their foam cores provide impact absorption, while the buoyant structure supports positioning at the vessel-contact interface. The external covering protects the core from abrasion caused by repeated contact with the hull surfaces.

The fender configuration should be selected according to vessel displacement, relative approach speed, hull shape, wave conditions, and expected contact pressure. Because the two vessels may move independently, the design must account for changes in load direction and uneven contact. Operational procedures should establish suitable approach limits, communication arrangements, and inspection requirements. The fender must be used within the limits of the approved operating plan and should not replace appropriate vessel-control measures.

Port Infrastructure and Floating Service Berths

Floating Foam Fenders can be installed at selected port berths, service docks, and floating maintenance facilities to reduce the risk of impact damage during vessel approach and alongside operations. The buoyant construction can accommodate water-level changes, while the foam core provides a deformable contact surface. The pressure-independent design may also simplify routine equipment management compared with systems that require regular inflation checks.

The application should be assessed for compatibility with the berth structure, vessel profile, expected contact loads, and available installation space. Fender positioning must avoid interference with mooring lines, access equipment, and routine port activities. The supporting structure and attachment hardware should be checked for the anticipated reaction forces. Maintenance procedures should include visual inspection, confirmation of connection integrity, and assessment of the outer covering for abrasion or impact-related damage.


Why Choose Hongruntong Marine
Manufacturing Experience and Process Coordination

Hongruntong Marine has more than 30 years of manufacturing experience, providing a foundation for marine equipment production and coordination. Floating Foam Fender manufacturing requires the controlled integration of foam materials, protective coverings, reinforcement, bonding processes, dimensional requirements, and connection components. Each element affects the performance of the finished assembly, so manufacturing consistency and clear product specifications are important to achieving the intended service characteristics.

For industrial buyers, a reliable procurement process begins with a clear understanding of the product's construction and operating requirements. Hongruntong Marine can coordinate technical discussions around dimensions, materials, installation conditions, and required documentation within the confirmed product scope. Manufacturing experience supports communication between procurement teams, engineers, and production personnel, helping identify information that should be resolved before manufacture. Final product acceptance should remain based on the agreed specification, inspection criteria, and verifiable documentation.

Engineering-Based Configuration Assessment

Floating Foam Fender selection involves a relationship between energy absorption, reaction force, allowable deformation, buoyancy, and attachment strength. These factors vary according to vessel characteristics and installation geometry. A floating cargo platform, for example, may require specific attention to changing water levels and operational clearance, while a ship-to-ship application may be governed by relative vessel motion and contact pressure. A suitable configuration must account for these differences rather than relying on a general-purpose size selection.

Hongruntong Marine can review project inputs to clarify the technical parameters needed for product selection and customization. Relevant information may include vessel displacement, approach velocity, contact geometry, tidal range, available clearance, supporting-structure capacity, and the required connection arrangement. Where the project specifies performance targets, these should be reviewed against the available product data and applicable design criteria. Identifying missing inputs before the specification is finalized helps reduce uncertainty during installation and commissioning.

Customization and Installation Compatibility

Marine fendering requirements vary between fixed berths, floating platforms, shipyards, and offshore facilities. Differences in contact height, structural layout, vessel geometry, and maintenance access may require customized dimensions or connection arrangements. Hongruntong Marine can assess such requirements within its confirmed manufacturing capabilities and the technical limits of the proposed design.

Customization should be documented in a product specification that clearly defines dimensions, material construction, protective covering, connection details, and any project-specific performance requirements. The proposed configuration should be checked for compatibility with the supporting structure and the expected load path. Installation and handling constraints should also be identified before manufacture, especially where lifting equipment, access routes, or mooring systems occupy the same area. Clear specification control supports coordination among the purchaser, manufacturer, and installation team.

Quality Control, Inspection, and Documentation

The quality of a Floating Foam Fender depends on the condition and compatibility of its constituent materials and assembled components. Relevant quality-control activities may include dimensional checks, visual inspection of the outer covering, verification of connection hardware, and review of material specifications. Where the project requires performance testing, third-party inspection, or specific certificates, these requirements should be defined in the contract and agreed before production.

Hongruntong Marine can coordinate the documentation specified for the confirmed order. Depending on the project, this may include product drawings, material information, inspection records, packing details, and maintenance guidance. Any certificate or test report should be verified for the specific product and scope of supply. A defined inspection plan and complete technical documentation support incoming inspection, installation preparation, asset records, and maintenance management after delivery.


Frequently Asked Questions
1. Can Floating Foam Fenders be used on floating cargo platforms?

Yes. They can be used where a buoyant contact-protection system is suitable for the platform layout and vessel operating conditions. The design should account for water-level variation, vessel geometry, expected impact loads, connection strength, and the clearance required during compression.

2. How does a foam-filled fender differ from a pneumatic fender?

A foam-filled fender uses an internal foam core for buoyancy and compression-based energy absorption. A pneumatic fender relies on an air-filled chamber and specified internal pressure for its operating characteristics. Foam-filled construction removes the routine need for inflation, although inspection of the covering, connections, and overall condition remains necessary.

3. What determines the correct fender dimensions?

The main factors include vessel displacement, approach velocity, berthing angle, contact geometry, required energy absorption, allowable reaction force, and available clearance. Water-level variation and supporting-structure strength must also be considered. Selection should be verified against the project requirements and documented performance data.

4. Can the connection system be designed for a specific installation?

Connection arrangements can be assessed according to the supporting structure, anticipated load direction, required restraint, and movement allowance. The design should account for attachment strength, handling requirements, and maintenance access. Final details should be confirmed through technical review before manufacture.

5. What should be included in the maintenance plan?

The maintenance plan should cover inspection of the outer skin, end sections, attachment points, lifting components, and supporting structure. Operators should monitor for cuts, cracks, exposed foam, delamination, abnormal deformation, and changes in flotation. Inspection frequency should reflect service conditions and contact frequency, with additional checks after severe impact or unusual operating events.

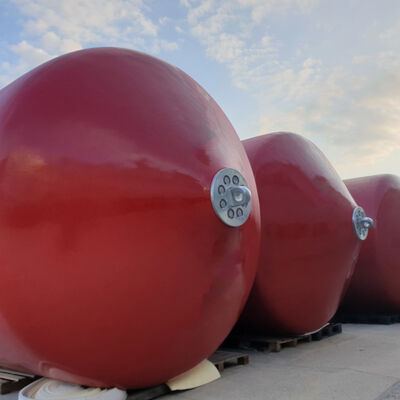

Floating foam fender with reinforced polyurethane outer skin and chain connection system

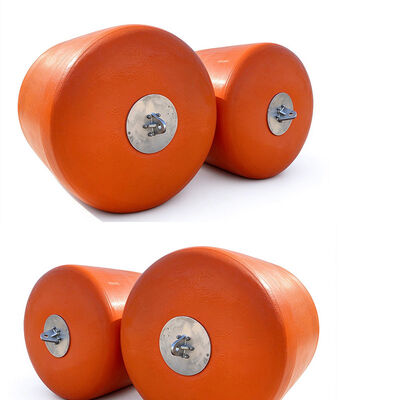

Foam-filled marine fender positioned at a floating dock, showing buoyant operation at the waterline Hongruntong Marine floating foam fender product display showing closed-cell foam core construction
