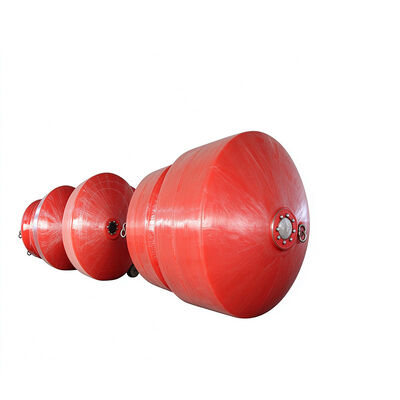

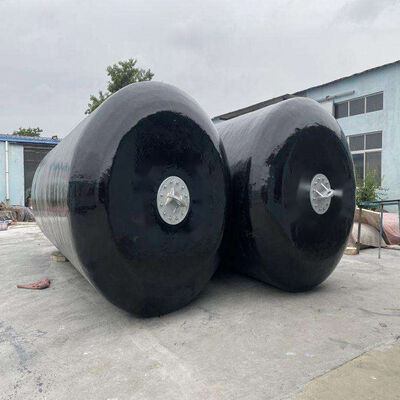

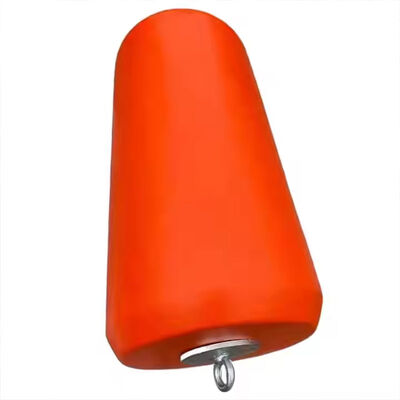

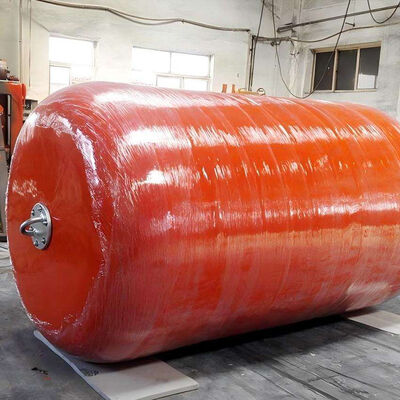

The Floating Foam Fender is an engineered marine protection device designed to absorb impact energy and reduce contact forces between vessels, floating structures, and marine infrastructure. It is used in commercial ports, shipyards, offshore support facilities, floating terminals, and marine construction projects where vessel movement and changing water levels require a flexible contact-protection arrangement.
The typical construction consists of a closed-cell foam core, a reinforced protective outer covering, and end fittings or connection components selected according to the intended installation. The foam core provides buoyancy and compression-based energy absorption, while the outer covering protects the internal structure from mechanical abrasion, repeated surface contact, and environmental exposure. The complete assembly must be designed to meet the dimensional, mechanical, and operational requirements of the installation rather than relying solely on nominal product size.
The primary operating principle is controlled deformation of the foam core under an external load. When a vessel approaches a berth or comes alongside another vessel, the fender compresses as contact force develops. This deformation absorbs part of the impact energy and distributes the load over the contact interface, helping reduce localized loading on the vessel hull and supporting structure.
The amount of energy absorbed depends on foam density, core geometry, fender dimensions, compression range, and loading conditions. Reaction force and deformation must be considered together because a fender that absorbs energy but generates excessive reaction force may impose unacceptable loads on the protected structure. Conversely, insufficient energy-absorption capacity may result in excessive compression and inadequate clearance. Engineering selection should therefore be based on the expected vessel displacement, approach velocity, berthing angle, contact geometry, and permissible structural loads.
The buoyant structure enables the fender to remain afloat and accommodate changes in water level when installed with an appropriate restraint arrangement. This feature is relevant to tidal berths, floating docks, offshore platforms, and ship-to-ship operations in which the relative elevation of the contact surfaces changes during use.
A closed-cell foam core limits internal water absorption and provides flotation without requiring a pressurized air chamber. Compared with pneumatic fenders, a foam-filled design does not require routine inflation or internal pressure adjustment to maintain its basic structure. However, the actual flotation performance depends on the foam properties, assembly weight, dimensions, and any additional hardware installed on the fender. These parameters should be verified against the intended operating conditions.
The outer covering forms the first line of protection against external damage. Depending on the product specification, it may be manufactured from polyurethane elastomer or another suitable marine protective material. Reinforcement can be incorporated to improve resistance to tearing and localized stress caused by repeated contact, lifting, or handling.
The interface between the covering and the foam core is particularly important because the outer layer must accommodate deformation without premature cracking or separation. Material compatibility, bonding quality, covering thickness, and reinforcement arrangement all contribute to the structural integrity of the finished fender. In environments with substantial ultraviolet exposure, temperature variation, or frequent contact with rough surfaces, the selected covering should be evaluated against the relevant environmental and mechanical requirements.
Floating Foam Fenders can be manufactured in different diameters, lengths, and connection configurations to accommodate varying vessel sizes and installation geometries. The required configuration depends on the contact area, expected energy absorption, allowable compression, available clearance, and the strength of the supporting structure.
For offshore service and ship-to-ship applications, the design must also consider relative vessel motion, wave-induced movement, and possible changes in contact pressure as the vessels move alongside one another. The connection arrangement should restrain the fender adequately without preventing the movement required by the installation. Lifting points, end fittings, and attachment hardware must be compatible with the anticipated loads and should be positioned to avoid unnecessary stress concentrations.
The engineering value of a Floating Foam Fender lies in its combined flotation, energy-absorption capability, and pressure-independent construction. It can provide a protective contact interface in locations where repeated vessel movement, changing water levels, and limited access to inflation equipment influence equipment selection. Depending on the project design, the fender may serve as a primary protection component or as part of a wider marine fendering arrangement.
Long-term performance depends on appropriate product selection, installation quality, operational control, and routine inspection. Maintenance should include checks of the outer covering, exposed foam, end fittings, connection hardware, and supporting structure. When the fender is specified using verified performance data and installed according to the manufacturer's requirements, it can support reliable vessel-contact protection across a range of marine operating conditions.
A representative coastal shipyard project required an improved fendering arrangement for a repair berth used by small cargo vessels, offshore service boats, and coastal workboats. Vessels remained alongside the berth for different periods depending on inspection, maintenance, and repair schedules. During these operations, water-level variation and vessel movement created changing contact positions along the hull. The existing protection arrangement did not provide consistent coverage for every vessel configuration, and repeated contact raised concerns about surface wear, localized hull loading, and damage to the berth's contact structures.
The project team began by reviewing the berth layout, the dimensions of vessels using the facility, and the locations where contact was most likely to occur. The assessment included water-level variation, available clearance, hull geometry, expected approach conditions, and the structural capacity of the attachment points. Because the berth accommodated vessels with different freeboards and hull profiles, the fendering arrangement needed to provide suitable contact coverage across the operating range without interfering with access equipment or repair activities. The team also considered the frequency with which vessels entered and left the berth, since repeated contact and repositioning could affect the service condition of the protective equipment.
A Floating Foam Fender configuration was proposed for the designated contact areas. The foam core provided buoyancy and compression-based energy absorption, while the outer covering was selected to resist routine abrasion and handling damage. The dimensions were to be established using the expected contact conditions and the available clearance between the vessel and the berth. The connection arrangement was planned to keep the fenders in the intended operating zones while allowing appropriate movement as the water level changed. Before deployment, the design required confirmation of the energy-absorption capacity, allowable deformation, reaction-force limits, attachment loads, and compatibility with the berth structure.
During installation, the team positioned the fenders according to the berth layout and verified that the connection hardware could withstand the anticipated operating loads. The installation was reviewed to ensure that the fenders did not obstruct repair access, lifting operations, mooring lines, or emergency routes. The shipyard's operating procedures were also considered, including controlled vessel approach, communication between vessel crews and shore personnel, and inspection before and after demanding operations. These measures were necessary because a fendering system can reduce contact forces only when it is correctly positioned and used within its design limits.
In this illustrative scenario, the intended outcome was improved adaptability across different vessel profiles and water levels, together with reduced reliance on inflation-related maintenance. The foam-filled construction provided a floating contact surface, while the protective outer covering was intended to withstand routine contact during shipyard operations. The effectiveness of the installation would need to be assessed through actual service observations, inspection records, and any documented changes in damage frequency or maintenance requirements. Regular monitoring would focus on skin integrity, attachment wear, deformation, and flotation. The project illustrates how a Floating Foam Fender arrangement can be adapted to a repair berth when vessel diversity, access requirements, and changing contact conditions are addressed during the design stage.
| Product Name | Floating Foam Fender |
|---|---|
| Product Type | Closed-Cell Foam Filled Floating Fender |
| Core Material | High-Density Closed-Cell Polyethylene Foam |
| Outer Skin | Reinforced Polyurethane or Elastomeric Rubber |
| Buoyancy | Unsinkable, Positive Buoyancy |
| Energy Absorption | High Energy Absorption With Low Reaction Force |
| Weather Resistance | UV, Seawater, And Aging Resistant |
| Installation | Chain or Bracket Mounting, Customizable |
| Service Life | 15–20 Years Under Normal Operating Conditions |
| Diameter × Length (mm) | Energy Absorption at 60% Comp. (kNm) | Reaction Force at 60% Comp. (kN) | Approx. Weight (kg) |
|---|---|---|---|
| 300 × 1000 | 3.8 | 54 | 11 |
| 500 × 1000 | 10.6 | 91 | 41 |
| 600 × 1000 | 15.3 | 109 | 49 |
| 600 × 1000 | 18.3 | 131 | 55 |
| 700 × 1500 | 31 | 191 | 85 |
| 750 × 1500 | 36 | 204 | 89 |
| 900 × 1800 | 62 | 294 | 140 |
| 1000 × 1500 | 64 | 272 | 125 |
| 1000 × 2000 | 85 | 363 | 170 |
| 1200 × 2000 | 122 | 436 | 275 |
| 1200 × 2400 | 146 | 523 | 365 |
| 1250 × 2000 | 132 | 454 | 353 |
| 1250 × 2500 | 165 | 567 | 410 |
| 1500 × 3000 | 286 | 817 | 570 |
| 1500 × 4000 | 381 | 1089 | 720 |
| 1700 × 3000 | 367 | 926 | 700 |
| 1700 × 3500 | 428 | 1080 | 780 |
| 1800 × 3000 | 412 | 980 | 850 |
| 1800 × 3600 | 494 | 1176 | 965 |
| 2000 × 3000 | 508 | 1089 | 965 |
| 2000 × 3500 | 593 | 1271 | 1100 |
| 2000 × 4000 | 678 | 1452 | 1220 |
| 2400 × 4000 | 976 | 1743 | 1720 |
| 2400 × 4800 | 1171 | 2091 | 2140 |
| 2500 × 4000 | 1059 | 1815 | 1865 |
| 2500 × 5000 | 1324 | 2269 | 2500 |
| 2500 × 5500 | 1456 | 2496 | 2675 |
| 2700 × 5400 | 1668 | 2647 | 2865 |
| 3000 × 5000 | 1925 | 2750 | 3200 |
| 3000 × 6000 | 2287 | 3268 | 3740 |
| 3300 × 6500 | 2998 | 3894 | 4735 |
| 3600 × 7200 | 3953 | 4706 | 5800 |
| 4000 × 8000 | 4522 | 5809 | 8700 |
| 4200 × 8400 | 6277 | 6405 | 10000 |
| 4500 × 9000 | 7720 | 7353 | 10700 |
The internal foam core provides the main energy-absorption function of a Floating Foam Fender. When the fender is compressed by vessel contact, the foam deforms and distributes the applied load through the internal structure. This deformation helps create a compliant interface between the vessel and the protected installation. The actual response depends on the core material, density, geometry, loading rate, and permitted compression range. These variables determine how the fender absorbs impact energy and how much reaction force is transmitted to the supporting structure.
Engineering evaluation should consider both the energy that must be absorbed and the maximum reaction force that the installation can safely accommodate. Vessel displacement, approach speed, berthing angle, and contact location are important inputs. For applications involving several vessel types, the design should account for the governing operating condition rather than relying on an average vessel profile. Adequate deformation allowance must also be provided to prevent the vessel from making direct contact with the berth after the fender has compressed. Where required, performance should be verified through documented force-deformation data and project-specific calculations.
The closed-cell foam structure provides buoyancy while limiting water absorption within the core. This construction is useful for marine equipment that remains exposed to seawater, changing water levels, and prolonged outdoor operation. Since the foam core is not an inflatable chamber, the fender does not rely on maintaining a specified internal air pressure to preserve its basic shape. This reduces the need for routine inflation and pressure monitoring and can simplify maintenance planning in remote or operationally demanding locations.
Buoyancy performance is determined by the foam's density and properties, the overall fender volume, assembly weight, and the weight of attached components. The installation must therefore be designed to account for the complete unit rather than the core material alone. Restraint hardware should prevent uncontrolled drift while allowing the fender to respond appropriately to changes in water level and vessel position. Inspection should identify abnormal immersion, changes in flotation, or other conditions that may indicate damage to the core, outer covering, or connections.
The protective covering shields the foam core from abrasion, surface impact, and handling-related damage. Depending on the specified construction, polyurethane elastomer or another suitable marine material may be used. Reinforcement can be incorporated where additional resistance to tearing or localized stress is required. The covering must accommodate the intended deformation of the core while maintaining structural integrity under repeated loading. Material selection should consider contact frequency, surface roughness, environmental exposure, and compatibility with the fender's internal structure.
Areas around the ends, attachment points, and frequently contacted surfaces may experience more concentrated mechanical stress than the rest of the unit. These locations should receive particular attention during inspection. Cuts, cracks, exposed foam, or separation between the outer layer and core should be evaluated before continued operation. A suitable covering specification, combined with proper installation and handling procedures, helps reduce avoidable surface damage and supports predictable maintenance planning over the service period.
Floating Foam Fenders can be configured in different dimensions and connection arrangements to suit specific marine installations. Diameter and length influence the contact area, flotation, deformation allowance, and potential energy-absorption capacity. The connection system determines how the fender is restrained, how loads are transferred, and whether the unit can move appropriately during tidal changes or vessel motion. End fittings, lifting points, and attachment components should therefore be integrated into the overall design rather than selected independently.
Customization should be guided by the installation's engineering requirements. Relevant information includes vessel dimensions, hull shape, expected approach conditions, water-level variation, contact locations, available clearance, supporting-structure capacity, and access for inspection. For shipyard and offshore applications, the layout should also account for equipment movement and the need to keep access routes clear. A project-specific configuration can improve compatibility between the fender, vessel, and supporting structure, provided the final design is confirmed against the required performance criteria.
Floating Foam Fenders are suitable for selected shipyard berths where vessels of different dimensions remain alongside during inspection, repair, or servicing. Their buoyant construction helps accommodate changing water levels, while the foam core provides a compliant contact surface. The absence of an inflatable chamber can be useful in facilities where equipment is repositioned frequently and routine pressure management would add to maintenance workload.
The installation should account for hull geometry, repair equipment, lifting operations, and access requirements. Fender positioning must avoid interference with scaffolding, temporary work platforms, mooring lines, and vessel-service activities. The covering should be selected for the expected contact frequency and surface conditions, while the attachment system must support the anticipated loads. Inspection is particularly important after fenders have been moved, handled, or exposed to contact with tools and sharp-edged equipment.
Offshore supply vessels and service craft may operate alongside platforms, floating facilities, or other vessels during replenishment and maintenance activities. Floating Foam Fenders can provide a protective contact interface in suitable operating arrangements. Their buoyancy allows them to respond to water-level changes, while their foam cores absorb energy through compression. These characteristics can support controlled vessel contact when the fender system is properly selected and integrated into the operating procedure.
The design should consider relative vessel motion, wave conditions, approach speed, contact pressure, and the strength of the supporting structure. Attachment arrangements must keep the fender in the intended position without restricting necessary movement. Before each operation, personnel should check the fender's condition and positioning. Offshore deployment should remain within the operating limits established by the project risk assessment and vessel procedures.
Floating Foam Fenders can be installed on suitable floating docks, work pontoons, and marine construction platforms to reduce damage caused by vessel or equipment contact. The buoyant structure can accommodate changes in water level, while the foam core provides impact absorption during routine operations. This makes the fender relevant to temporary construction facilities where equipment configuration and contact locations may change throughout a project.
Selection should consider the platform's buoyancy and structural capacity, the expected impact loads, the contact surfaces, and the required attachment method. The fender should not interfere with temporary lifting arrangements, construction materials, access routes, or operational equipment. Since construction sites can expose the outer covering to irregular surfaces and debris, inspection should focus on cuts, abrasion, attachment wear, and other damage that could affect the fender's protective function.
Hongruntong Marine has more than 30 years of manufacturing experience, providing a foundation for the production and coordination of marine equipment. Floating Foam Fenders require attention to material compatibility, foam characteristics, external protection, reinforcement, bonding, dimensional consistency, and connection design. The quality of the finished product depends on how these components work together under the intended loading and environmental conditions. Manufacturing experience is therefore relevant not only to production but also to understanding the technical details that must be defined before a product enters service.
For procurement teams, product suitability should be supported by clear specifications and verifiable technical information. This includes dimensions, construction details, applicable performance data, connection arrangements, and inspection requirements. Hongruntong Marine can coordinate technical discussions around these requirements so that the proposed configuration can be evaluated against the project specification. Product acceptance should be based on confirmed documentation and agreed inspection criteria rather than general claims about manufacturing capability.
Different marine installations impose different demands on fender performance. A shipyard berth may require adaptability for several hull profiles, while an offshore installation may place greater emphasis on relative vessel motion and environmental loading. Floating terminals may require a specific balance between buoyancy, contact coverage, attachment strength, and maintenance access. These differences affect the required dimensions, foam properties, outer covering, and connection configuration.
Hongruntong Marine can review the available project information to help clarify the parameters required for product selection. These may include vessel displacement, approach speed, berth geometry, tidal range, available clearance, supporting-structure capacity, and the required energy-absorption performance. Where important data are unavailable, the design assumptions should be identified and confirmed before the product is finalized. This process helps reduce the risk of dimensional or structural mismatches and supports more reliable installation planning.
A standard configuration may not suit every marine installation. Differences in contact elevation, hull geometry, attachment location, and available space can require changes to the fender's dimensions or connection arrangement. Hongruntong Marine can assess customization requests within its confirmed manufacturing capabilities, including dimensional requirements, outer-covering options, and attachment details where technically feasible.
Effective customization requires a clearly documented specification. The specification should identify the intended application, product dimensions, construction materials, performance requirements, connection configuration, and any special handling or installation constraints. Customized components must remain compatible with the overall fender structure and the supporting installation. By clarifying these requirements before production, the purchaser and manufacturer can reduce ambiguity during manufacturing, inspection, delivery, and installation.
A Floating Foam Fender should be inspected as a complete engineered assembly. Relevant checks may include dimensional verification, visual inspection of the outer covering, examination of connection components, and confirmation of the specified materials. Additional performance testing, inspection records, or third-party verification should be defined according to the project contract and applicable standards. Acceptance criteria should be agreed before manufacturing begins so that the delivered product can be evaluated consistently.
Hongruntong Marine can coordinate technical documentation and product-related support according to the confirmed scope of supply. Depending on the project requirements, documentation may include product drawings, material specifications, inspection records, packing information, and maintenance recommendations. Certification and test reports should be requested explicitly and confirmed for the actual product supplied. Clear technical communication supports procurement review, installation preparation, and maintenance planning throughout the equipment's service life.
Energy absorption depends on the foam material and density, fender dimensions, compression characteristics, loading rate, and permitted deformation. The selection process should also account for vessel displacement, approach velocity, berthing angle, and the loads that the supporting structure can safely accommodate. Product performance data should be reviewed against the project design requirements.
It can be suitable for repeated contact when the fender is designed for the expected loads and operating frequency. The outer covering, foam core, and connection components must be appropriate for the intended application. Routine inspection is required to identify wear, cuts, deformation, or connection damage before these conditions compromise the protection system.
The foam core provides buoyancy, allowing the fender to follow water-level changes when used with a compatible attachment arrangement. The restraint system must maintain the fender near the intended contact zone while allowing sufficient movement. The installation should be checked across the expected tidal range to prevent interference with adjacent structures or equipment.
Useful information includes the intended application, vessel dimensions, contact geometry, required fender dimensions, expected impact conditions, water-level variation, available clearance, supporting-structure details, and connection requirements. Where a specified energy-absorption capacity or reaction-force limit is required, the relevant engineering criteria should also be provided.
Inspection should cover the outer skin, end sections, attachment points, lifting components, and restraint hardware. Operators should check for cuts, cracks, exposed foam, delamination, abnormal deformation, and changes in flotation. The inspection schedule should reflect the environment and frequency of use, with additional assessment after severe impact or unusual operating conditions.
![]()
![]()
![]()
