Pneumatic Rubber Fender with Long Service Life Anti Collision and Easy Installation for Marine Protection

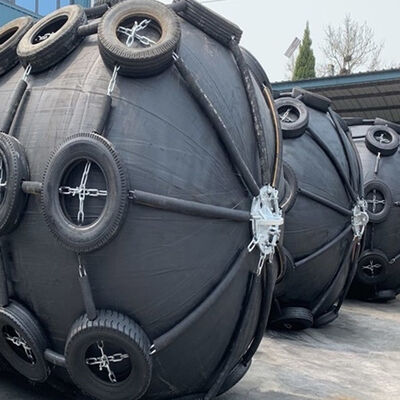

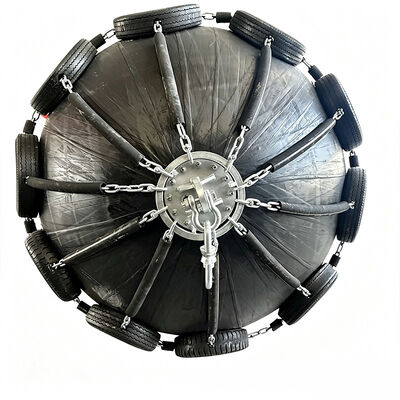

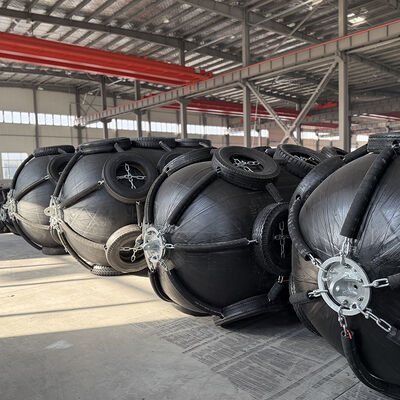

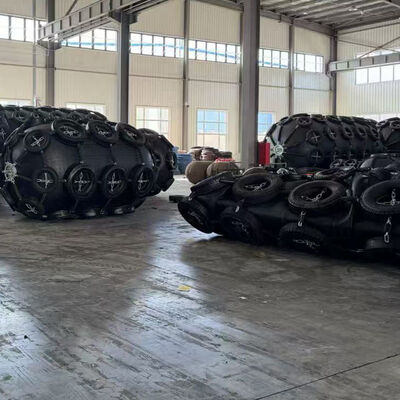

Yokohama Rubber Fender is a pneumatic marine energy absorption system engineered for offshore and port berthing operations where controlled impact mitigation, structural protection, and operational stability are required. The system is constructed from an airtight rubber membrane reinforced with multiple layers of high-tensile synthetic tire cord, forming a pressure-resistant cylindrical body capable of converting vessel kinetic energy into internal air compression energy.

The operating principle is based on progressive air compression under external load. When a vessel makes contact, the internal air volume is compressed in a controlled manner, generating a reaction force that increases gradually rather than abruptly. This nonlinear load response reduces peak impact stress and distributes contact pressure across a wider deformation area, resulting in reduced localized loading conditions for both vessel hull structures and quay infrastructure.

The reinforcement structure plays a critical role in maintaining operational stability. Multiple layers of tire cord fabric are embedded in optimized angular orientations, enabling multidirectional stress distribution during repeated compression cycles. This structural configuration enhances fatigue resistance and prevents deformation instability under long-term cyclic loading conditions commonly observed in LNG and offshore terminal operations.

The outer rubber layer is formulated using marine-grade elastomer compounds designed for resistance against seawater corrosion, ultraviolet exposure, ozone aging, and mechanical abrasion. This ensures long-term material stability in offshore environments where continuous environmental exposure and frequent vessel contact occur.

Yokohama Rubber Fender systems are designed for variable energy absorption requirements, particularly in offshore LNG transfer systems, floating terminals, and deep-water berthing structures where vessel motion is influenced by wave action, wind load, and draft variation. The floating operational behavior enables automatic adjustment to water level changes, maintaining stable contact geometry without mechanical intervention.

An offshore LNG transfer facility located in Southeast Asia required a high-reliability berthing protection system for LNG carrier operations conducted between a floating storage unit and incoming gas carriers. The operational environment was characterized by moderate wave activity, strong monsoon seasonal wind variation, and continuous ship-to-ship transfer cycles.

The primary engineering challenge was to maintain stable vessel separation and controlled energy absorption during dynamic offshore conditions, where vessel movement was influenced by both environmental forces and cargo transfer operations. The existing fender configuration exhibited inconsistent performance under wave-induced motion, resulting in elevated hull contact stress during certain transfer phases.

A set of Yokohama Rubber Fenders configured with reinforced chain-tire-net protection systems was deployed between the LNG carrier and floating storage unit. The pneumatic structure provided controlled compression behavior during vessel approach and maintained stable reaction force characteristics during relative motion between floating bodies.

After implementation, operational monitoring indicated improved vessel positioning stability during cargo transfer cycles and reduced peak contact loading during wave-induced oscillation events. The system demonstrated consistent performance across repeated transfer operations, with inspection records confirming stable pressure retention and minimal structural degradation under offshore environmental exposure.

The installation has since been integrated into the terminal's standard offshore transfer configuration and is used as a reference system for similar floating LNG infrastructure developments in the region.

• Nonlinear Energy Absorption Compression Behavior: The pneumatic system exhibits nonlinear force-displacement characteristics under vessel loading conditions, allowing energy absorption to increase progressively without generating sudden force spikes. This behavior reduces structural shock transmission and stabilizes vessel interaction during contact events.
• High-Strength Multi-Layer Reinforced Structural System: The internal body structure incorporates multiple reinforcement layers composed of synthetic tire cord materials with high tensile strength, arranged in cross-laminated configuration to distribute internal pressure uniformly across the fender body.
• Offshore Environmental Durability Engineering: The outer rubber compound is engineered for offshore exposure conditions involving salt spray, UV radiation, humidity variation, and mechanical abrasion from repeated vessel contact, maintaining elasticity under temperature variation.
• Floating Dynamic Adaptation Capability: The pneumatic fender operates as a floating structural component capable of adjusting automatically to vessel movement, wave-induced displacement, and tidal variation, ensuring consistent contact positioning during ship-to-ship transfer operations.

• Offshore LNG Transfer Systems: Used in ship-to-ship LNG transfer operations involving floating storage units and gas carriers, where controlled energy absorption and vessel stability are required under dynamic marine conditions.
• Floating Storage and Regasification Units (FSRU): Applied in floating LNG infrastructure where vessel movement and environmental forces require adaptive berthing protection systems.
• Deep-Water Offshore Mooring Facilities: Used in offshore mooring systems where vessels operate under wave-influenced motion and require flexible energy absorption interfaces.

• Offshore Engineering Manufacturing Capability: Develops marine fender systems designed specifically for offshore operational environments, with manufacturing processes focused on reinforcement accuracy, material consistency, and pressure stability performance.
• Application-Specific Engineering Configuration: Each offshore project is evaluated based on vessel motion characteristics, environmental wave conditions, and operational energy requirements to determine appropriate fender configuration.
• Controlled Quality Verification System: Products undergo multi-stage inspection including reinforcement validation, pressure retention testing, and structural integrity assessment to ensure reliability under offshore service conditions.
• International Offshore Project Support: Provides technical documentation, installation guidance, and operational support for offshore LNG and marine infrastructure projects across global regions.

• Can Yokohama Rubber Fenders operate in offshore wave conditions?
  Yes, the floating pneumatic structure is designed to accommodate wave-induced vessel motion while maintaining controlled energy absorption performance.
• What type of reinforcement is used inside the fender?
  The structure uses multiple layers of high-tensile synthetic tire cord arranged in cross-laminated orientations for stress distribution and fatigue resistance.
• Are these fenders suitable for ship-to-ship LNG transfer?
  Yes, they are widely used in offshore LNG transfer systems due to their controlled reaction force and adaptive floating behavior.
• How does the fender respond to vessel movement?
  The pneumatic structure compresses progressively under load while floating adjustment maintains continuous contact alignment.
• What maintenance is required in offshore environments?
  Regular inspection of pressure levels, surface condition, and connection hardware is required to ensure long-term operational stability.
