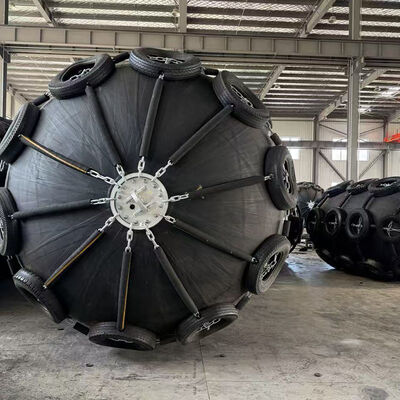

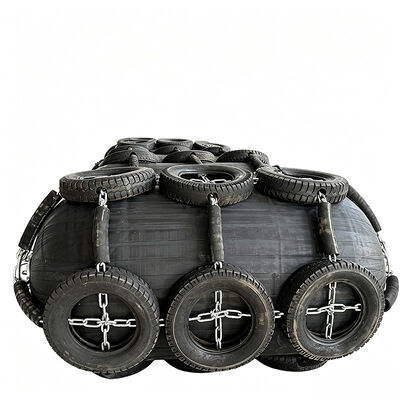

Yokohama Rubber Fender with High Energy Absorption Durable Wear Resistant for Marine Protection ISO17357-1:2014 Standard

1
MOQ
US$65-US$997
Price
Yokohama Rubber Fender with High Energy Absorption Durable Wear Resistant for Marine Protection ISO17357-1:2014 Standard
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Yokohama Rubber Fender
Accessories: Tyres, Steel Chain, Hang Ring
Standard: ISO17357-1:2014, PIANC2002
Warranty: 24 Months
Diameter: 500mm-4500mm
Feature: Excellent Horizontal Stability
Material: NR
Usage: Protect Boat
Length: 1000mm-12000mm
Color: Black Or Customized
Highlight:

Yokohama Rubber Fender marine protection

,

High energy absorption rubber fender

,

Durable wear resistant marine fender
Basic Infomation
Place of Origin: China
Brand Name: Hongruntong Marine
Certification: ISO, BV, ABS, DNV, LR, SGS, CCS, RMRS
Model Number: HM-YRF15
Payment & Shipping Terms
Packaging Details: Wooden Pallet, Wooden Case
Delivery Time: 5-6 Days
Payment Terms: T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability: 1026 Pcs Per Month
Product Description
Inflatable Rubber Fender High Energy Absorption Durable Wear Resistant
Yokohama Rubber Fender is a pneumatic marine fender system designed for controlled energy absorption during vessel berthing, mooring, and offshore transfer operations. The structure is based on a pressurized air chamber reinforced with multiple layers of synthetic tire cord fabric and an outer marine-grade rubber shell. This composite structure enables the fender to convert vessel kinetic energy into compressed air energy, thereby reducing impact transmission to both hull structure and quay infrastructure.
Case Study - LNG Terminal Berthing System Upgrade, Northern Europe
A coastal LNG terminal in Northern Europe operating under low-temperature marine conditions required an upgrade of its existing berthing protection system due to increased LNG carrier traffic and higher displacement vessels entering the terminal. The original fixed rubber fender arrangement showed elevated reaction force levels during berthing events, leading to concerns regarding quay wall load distribution and long-term structural fatigue.
Following commissioning, measured berthing data indicated a reduction in peak reaction force levels and improved vessel alignment during approach phases. Operational reports confirmed more stable docking behavior under crosswind conditions and reduced corrective maneuvering by tug operations.

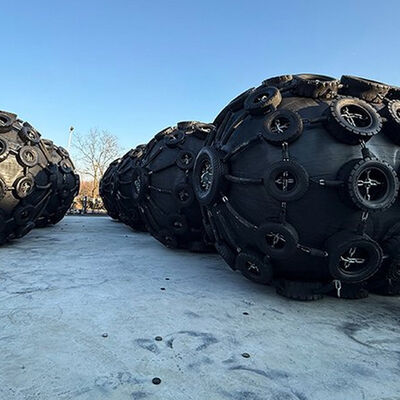

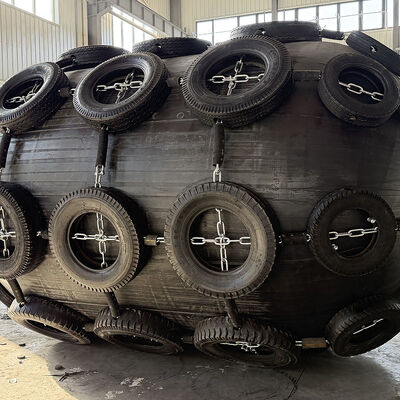

Yokohama Rubber Fender installation at marine terminal Close-up view of rubber fender structure
Specifications
Place of Origin China
Brand Name Yokohama Rubber Fender
Material Natural Rubber
Color Black
Application In ports with extreme tidal variations, Ship-to-ship lightering operations, Oil & Gas (typically FSRU), Temporary berthing
Feature Heat Resistance
Sample Usually free
Production Method Moulding
Temperature -40℃~300℃
Packing Pallets
Lead time 7-14 days
Performance Data
Diameter x Length [mm] 50kPa Performance Data 80kPa Performance Data
Hull Pressure at GEA / kN/m² Reaction Force / kN Energy Absorption / kNm Hull Pressure at GEA / kN/m² Reaction Force / kN Energy Absorption / kNm
1000 x 1500 122 182 32 160 239 45
1000 x 2000 132 257 45 174 338 63
1200 x 2000 126 297 63 166 390 88
1350 x 2500 130 427 102 170 561 142
1500 x 3000 153 579 153 174 761 214
1700 x 3000 128 639 191 168 840 267
2000 x 3500 128 875 308 168 1150 430
2500 x 4000 137 1381 663 180 1815 925
2500 x 5500 148 2019 943 195 2653 1317
3300 x 4500 130 1884 1175 171 2476 1640
3300 x 6500 146 3015 1814 191 3961 2532
3300 x 10600 158 5257 3067 208 6907 4281
4500 x 9000 146 5747 4752 192 7551 6633
* Other sizes can be produced following client's requirements.
Features
  • Controlled Air Compression Energy Absorption Mechanism: Converts vessel kinetic energy into pneumatic pressure energy with non-linear load response for reduced impact transmission peaks.
  • Reinforced Tire Cord Structural Architecture: Multiple layers of high-tensile synthetic tire cord provide balanced stress distribution and enhanced fatigue resistance.
  • Marine Environmental Resistance System: Outer elastomer layer maintains elasticity while resisting saltwater, UV radiation, ozone, and abrasion.
  • Floating Adaptive Load Positioning Behavior: Dynamic response to water level changes ensures consistent contact alignment across varying operational conditions.
Applications
  • Container Terminal Berthing Systems: High-frequency container handling terminals with varying vessel tonnage.
  • LNG and Gas Carrier Terminals: Cryogenic energy transport terminals requiring controlled reaction force.
  • Offshore Transfer Operations: Ship-to-ship transfer environments under dynamic marine conditions.
Why Choose Hongruntong Marine
  • Engineering-Oriented Manufacturing Capability: Controlled processes ensure structural consistency and operational repeatability.
  • Application-Based Technical Design Support: Engineering teams evaluate vessel parameters and environmental factors.
  • Multi-Stage Quality Control System: Comprehensive inspection from raw materials to final pressure and sealing tests.
  • Global Supply and Technical Support Network: Coordinated logistics and lifecycle support for international projects.
FAQ
  • What is the standard operating pressure of Yokohama Rubber Fender systems?
    Typical operating pressures are generally 50 kPa or 80 kPa depending on vessel class and energy absorption requirements.
  • Can the fender operate under low-temperature marine conditions?
    Yes, the material system and structural design maintain elasticity and pressure stability under low-temperature operational environments.
  • How is energy absorption performance determined?
    Energy absorption is defined by internal pressure, compression ratio, and structural deformation behavior based on vessel displacement and berthing velocity.
  • Is the system suitable for large LNG carriers?
    Yes, pneumatic fender systems are widely applied in LNG terminals due to controlled reaction force and high energy absorption capacity.
  • What maintenance procedures are required?
    Routine inspection includes pressure monitoring, surface condition evaluation, and valve system checks for operational integrity.
Yokohama Rubber Fender in marine application Rubber fender structural details
Marine fender installation and performance
