1500mm Marine Tug Fenders Custom Sizes Easy To Install And Replace
Description

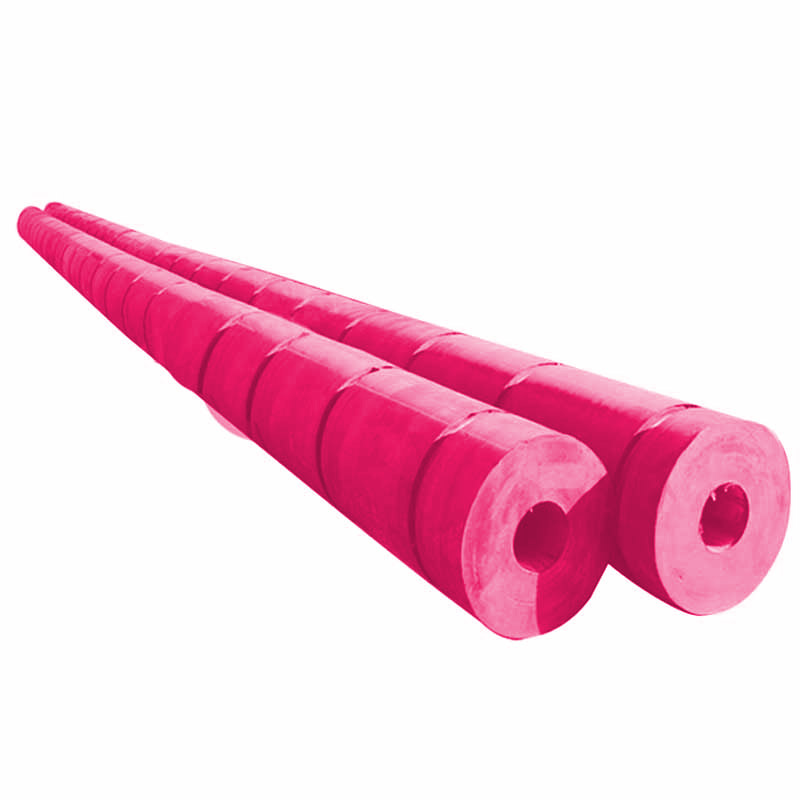

This type of Cylindrical Tug Fender is designed specifically for bow mounting, where tugboats engage in head-on push operations. The fender’s rounded profile helps maintain constant surface contact with the assisted vessel, minimizing localized pressure points. Reinforced end flanges and internal rope holes ensure secure installation, while the tough rubber compound offers excellent performance in both tropical and arctic waters. The design ensures both high shock absorption and long service life under repetitive impacts.
Specifications
| Place of Origin |
China |
| Brand Name |
Hongruntong Marine |
| Product Name |
Tug Boat Fenders |
| Material |
High Quality Natural Rubber |
| Warranty |
3 Years |
| Standard |
PIANC2002, HGT2866-2016 |
| Tensile Strength |
≥16 MPA |
| Hardness |
≤82 Shore A |
| Lifespan |
15-20 Years |
| Service |
OEM or ODM |
| Color |
Customers' Requirements |
| Application |
Tugboat, Workboat etc |
| D*d |
E |
Amax |
Bmax |
C |
M |
F |
L |
| 250*125 |
190 |
200 |
570 |
500 |
75 |
300 |
2-13 metres in one section or joined for longer length |
| 300*150 |
225 |
225 |
600 |
700 |
75 |
350 |
| 380*190 |
280 |
225 |
650 |
800 |
100 |
400 |
| 400*200 |
300 |
250 |
670 |
800 |
100 |
400 |
| 450*225 |
350 |
250 |
700 |
850 |
100 |
400 |
| 480*240 |
350 |
250 |
700 |
850 |
100 |
400 |
| 500*250 |
375 |
280 |
730 |
900 |
100 |
400 |
| 540*270 |
375 |
280 |
730 |
900 |
100 |
400 |
| 600*300 |
450 |
300 |
800 |
900 |
125 |
500 |
| 700*350 |
500 |
350 |
870 |
950 |
125 |
500 |
| 800*400 |
600 |
350 |
930 |
1000 |
125 |
500 |
| 900*450 |
675 |
350 |
1000 |
1100 |
150 |
500 |
Features
Corrosion Free Performance
Non-metallic rubber construction ensures resistance to rust and corrosion in marine environments.
Strong Bonding Between Layers
Advanced vulcanization ensures that internal layers and reinforcements remain intact under stress.
Stable Under Repetitive Compression
Designed for repeated high-load cycles without permanent deformation or loss of performance.
Uniform Contact Surface
Cylindrical shape allows for consistent and even pressure distribution during contact.
Applications
● Port docking operations
● Barge towing
● Ship berthing
● Offshore oil rigs
Advantages
Excellent Impact Absorption
Our fenders provide superior energy absorption, effectively protecting vessels and docks from collision damage.
Corrosion and Weather Resistance
Designed to withstand extreme weather conditions, UV exposure, and saltwater corrosion for extended service life.
Compliance with International Certifications
Our products comply with ISO, BV, ABS, CCS, and other relevant maritime certifications.
Strong After-Sales Support
We provide comprehensive after-sales services, including installation guidance and maintenance support.
FAQ
1. How do I install tug boat fenders?
Installation methods vary by fender type; we provide detailed instructions and technical support for proper fitting.
2. Do you provide maintenance services for fenders?
Yes, we offer maintenance advice and can supply replacement parts to ensure long-term performance.
3. Are your tug boat fenders certified?
Our fenders comply with international certifications such as ISO, BV, ABS, and CCS.
4. Can your fenders be used in all weather conditions?
Yes, they are designed to perform reliably in a wide range of marine environments and weather conditions.
