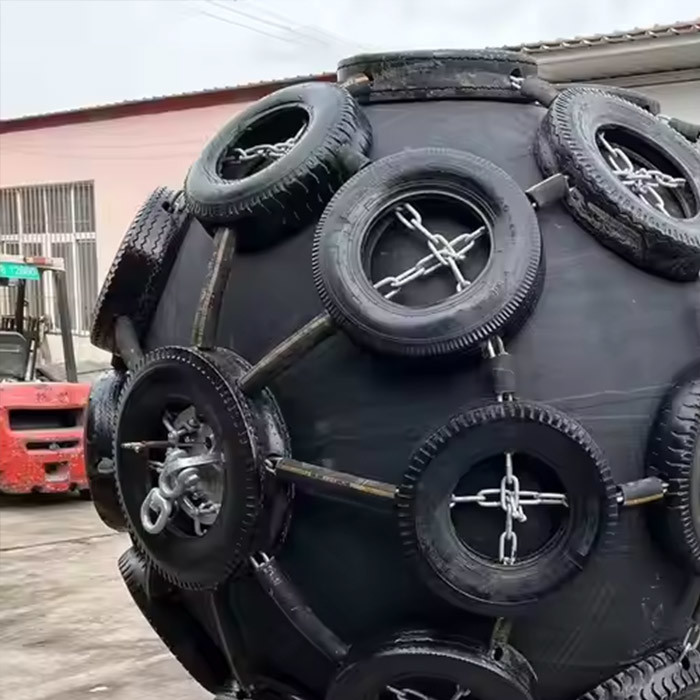

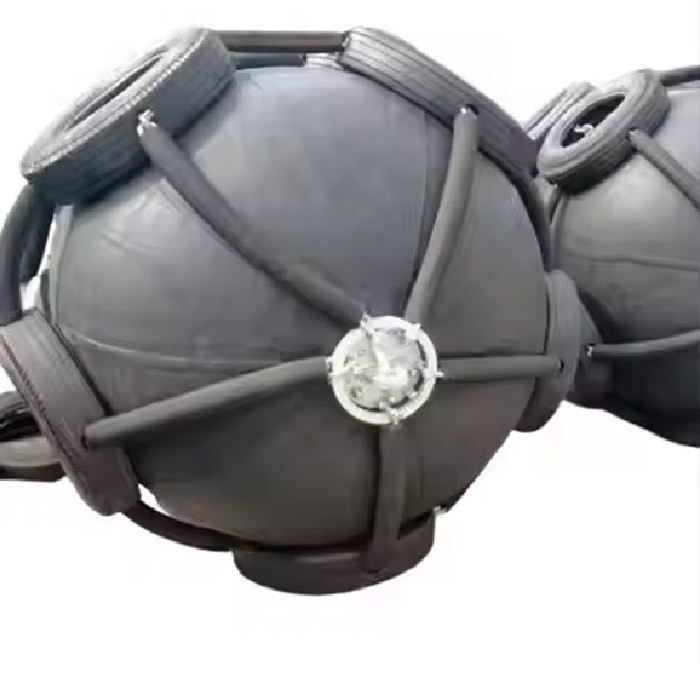

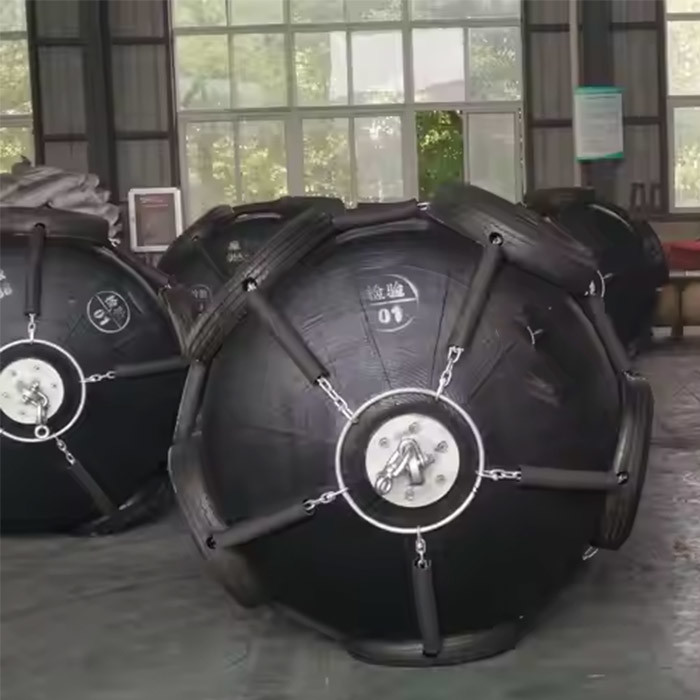

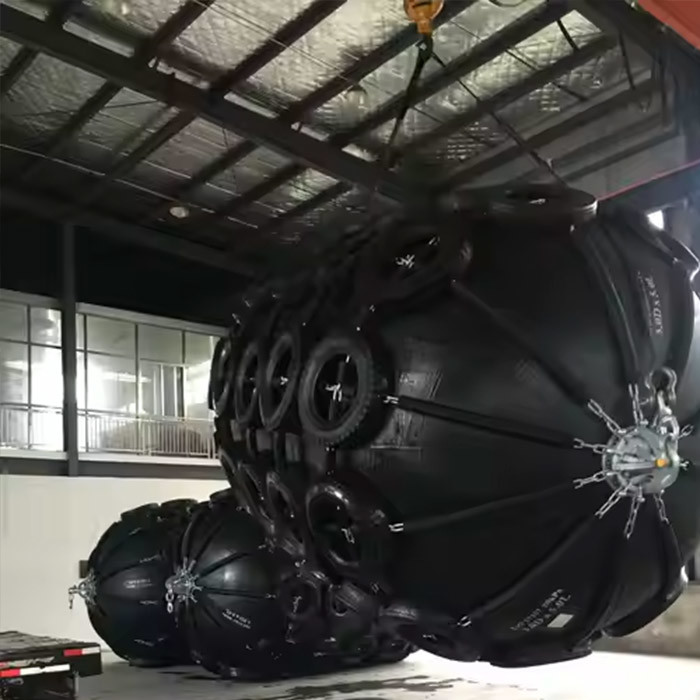

4500mm X 9000mm Jumbo Fender With High Quality Material Superior Energy Absorption
Description
The Yokohama Rubber Fender is a high-performance marine fender designed to provide superior impact absorption and protection for ships and docks. Developed using durable rubber and reinforced with synthetic fabric, it ensures longevity and resistance to harsh marine environments. Widely used in ports, ship-to-ship (STS) transfers, and offshore applications, this fender offers excellent energy absorption with minimal reaction force. Its pneumatic structure allows flexibility and adaptability to different tidal conditions, making it a reliable choice for various marine operations. Easy to install and maintain, the Yokohama Rubber Fender enhances safety and efficiency in maritime docking and berthing activities.
Specifications
Place of Origin | China |
Brand Name | Yokohama Rubber Fender |
Material | Natural Rubber |
Color | Black |
Application |
In ports with extreme tidal variations Ship-to-ship lightering operations Oil Gas (typically FSRU) Temporary berthing |
Feature | Heat Resistance |
Sample | Usually free |
Production Method | Moulding |
Temperature | -40℃~300℃ |
Packing | Pallets |
Lead time | 7-14 days |
Diameter x Length [mm] |
50kPa Performance Data |
80kPa Performance Data |
||||
Hull Pressure at GEA / kN / m2 |
Reaction Force / kN |
Energy Absorption / kNm |
Hull Pressure at GEA / kN / m2 |
Reaction Force / kN |
Energy Absorption / kNm |
|
1000 x 1500 | 122 | 182 | 32 | 160 | 239 | 45 |
1000 x 2000 | 132 | 257 | 45 | 174 | 338 | 63 |
1200 x 2000 | 126 | 297 | 63 | 166 | 390 | 88 |
1350 x 2500 | 130 | 427 | 102 | 170 | 561 | 142 |
1500 x 3000 | 153 | 579 | 153 | 174 | 761 | 214 |
1700 x 3000 | 128 | 639 | 191 | 168 | 840 | 267 |
2000 x 3500 | 128 | 875 | 308 | 168 | 1150 | 430 |
2500 x 4000 | 137 | 1381 | 663 | 180 | 1815 | 925 |
2500 x 5500 | 148 | 2019 | 943 | 195 | 2653 | 1317 |
3300 x 4500 | 130 | 1884 | 1175 | 171 | 2476 | 1640 |
3300 x 6500 | 146 | 3015 | 1814 | 191 | 3961 | 2532 |
3300 x 10600 | 158 | 5257 | 3067 | 208 | 6907 | 4281 |
4500 x 9000 | 146 | 5747 | 4752 | 192 | 7551 | 6633 |
* Other size can be produced follow client's requirements. |
Features
High Quality Material
Yokohama fenders are made from high-grade rubber, ensuring durability and resistance to wear and tear, even in harsh environments.
Innovative Design
The fenders feature a unique design that provides better energy absorption and distribution, reducing the risk of damage to vessels during berthing.
Extensive Range
Yokohama offers a wide variety of fenders, including cylindrical, corner, and specialized designs, catering to different marine applications and vessel sizes.
Superior Energy Absorption
Equipped with advanced energy absorption capabilities, these fenders minimize shock loads on vessels and berthing structures, enhancing safety.
Applications
Advantages
FAQ
1. What are Yokohama Rubber Fenders used for?
Yokohama Rubber Fenders are primarily used in marine applications for protecting vessels and berthing structures during the mooring process. They absorb shock and reduce impact forces.
2. What materials are Yokohama Fenders made from?
They are made from high-quality, durable rubber materials designed to withstand harsh marine environments, including exposure to UV rays and extreme weather conditions.
3. What types of fenders does Yokohama offer?
Yokohama offers a wide range of fenders, including cylindrical fenders, D-shaped fenders, corner fenders, and specialized fenders for specific applications.
4. How do I determine the right size of fender for my vessel?
The appropriate size of fender depends on various factors, including the size and weight of the vessel, the berthing conditions, and the specific application. Consulting with Yokohama representatives can help in making the right choice.
