Collision Avoidance Yokohama Jumbo Fender Durable Long Lasting Marine Solution
Description

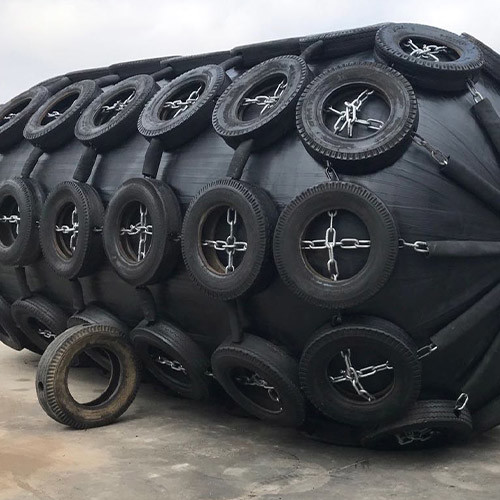

with a reputation for quality, Yokohama Fenders are widely used and trusted by industry professionals. The Yokohama Pneumatic Fender is made from high-quality rubber material that is designed to withstand extreme pressure and harsh environments. This makes it perfect for use in ports, harbors, and other marine settings.
Its certification from ISO, BV, ABS, DNV, LR, SGS, CCS, and RMRS is a testament to its quality and its ability to provide reliable protection against ship-to-ship and ship-to-dock collisions that can cause significant damage to vessels and infrastructure.
The Yokohama Rubber Fender is able to withstand pressure up to 50kPa and 80kPa, making it a versatile and reliable option for a wide range of applications. Its construction ensures that it is able to absorb impact and reduce the risk of damage to vessels and infrastructure, providing a safe and efficient solution for marine operations.
Specifications
| Place of Origin |
China |
| Brand Name |
Yokohama Rubber Fender |
| Model Number |
HM-YRF72 |
| Material |
Natural Rubber |
| Color |
Black |
| Application |
In ports with extreme tidal variations
Ship-to-ship lightering operations
Oil Gas (typically FSRU)
Temporary berthing
|
| Feature |
Heat Resistance |
| Sample |
Usually free |
| Production Method |
Moulding |
| Temperature |
-40℃~300℃ |
| Packing |
Pallets |
| Lead time |
7-14 days |
Diameter x Length
[mm] |
50kPa
Performance Data |
80kPa
Performance Data |
Hull Pressure
at GEA
/ kN / m2 |
Reaction Force
/ kN |
Energy Absorption
/ kNm |
Hull Pressure
at GEA
/ kN / m2 |
Reaction Force
/ kN |
Energy Absorption
/ kNm |
| 1000 x 1500 |
122 |
182 |
32 |
160 |
239 |
45 |
| 1000 x 2000 |
132 |
257 |
45 |
174 |
338 |
63 |
| 1200 x 2000 |
126 |
297 |
63 |
166 |
390 |
88 |
| 1350 x 2500 |
130 |
427 |
102 |
170 |
561 |
142 |
| 1500 x 3000 |
153 |
579 |
153 |
174 |
761 |
214 |
| 1700 x 3000 |
128 |
639 |
191 |
168 |
840 |
267 |
| 2000 x 3500 |
128 |
875 |
308 |
168 |
1150 |
430 |
| 2500 x 4000 |
137 |
1381 |
663 |
180 |
1815 |
925 |
| 2500 x 5500 |
148 |
2019 |
943 |
195 |
2653 |
1317 |
| 3300 x 4500 |
130 |
1884 |
1175 |
171 |
2476 |
1640 |
| 3300 x 6500 |
146 |
3015 |
1814 |
191 |
3961 |
2532 |
| 3300 x 10600 |
158 |
5257 |
3067 |
208 |
6907 |
4281 |
| 4500 x 9000 |
146 |
5747 |
4752 |
192 |
7551 |
6633 |
| * Other size can be produced follow client's requirements. |
Features
Corrosion Resistance
Superior resistance to corrosion and degradation from marine chemicals and pollutants.
Optimized Energy Absorption
Designed to provide optimal energy absorption characteristics tailored to vessel sizes.
Extensive Testing
Each fender undergoes rigorous testing to guarantee performance under various conditions.
User Friendly Design
Intuitive design makes it easy for operators to install and adjust fenders as needed.
Applications
● Salvage operations
● Marine research vessels
● Marine logistics hubs
● Ro-Ro ferry operations
Advantages
Long Term Warranty
Assurance of product reliability with extended warranty provisions.
Responsive Customer Service
Quick and effective communication to address inquiries and issues.
Robust Testing Procedures
Every product undergoes stringent testing to ensure reliability under operating conditions.
Proven Performance Track Record
Our fenders are widely used and recognized in various marine applications.
FAQ
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
30 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What's the MOQ?
MOQ is 1 set.
