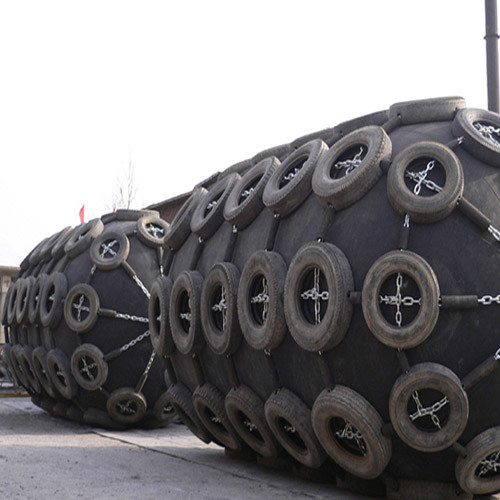

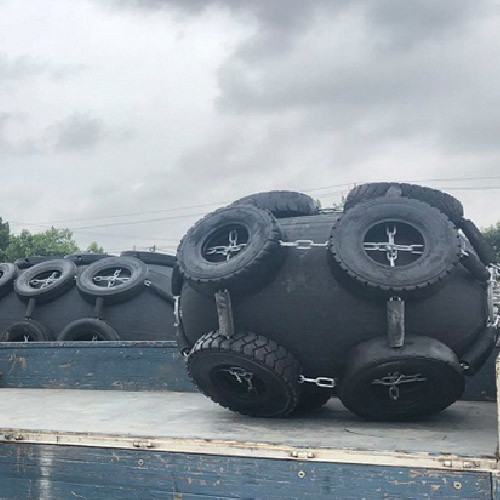

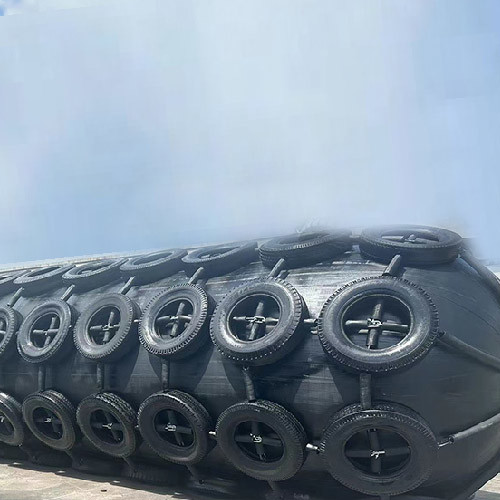

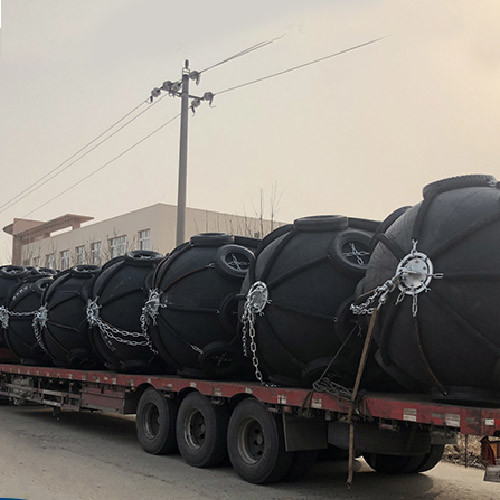

High Pressure Yokohama Jumbo Fender with Multi Layer Protection for Ship Protection
Description
The Yokohama Fender is also known as the Yokohama Rubber Fender or the Yokohama Floating Fender. It is suitable for a wide range of applications, including ship to ship transfers, ship-to-dock transfers, and more. This fender is available in a variety of sizes, with diameters ranging from 500mm to 4500mm, making it suitable for a wide range of vessels.
This fender is certified by ISO, BV, ABS, DNV, LR, SGS, CCS, and RMRS, ensuring that it meets the highest standards of quality and safety. It is designed to withstand harsh marine environments and provide reliable protection for ships of all types and sizes.
Specifications
| Place of Origin |
China |
| Brand Name |
Yokohama Rubber Fender |
| Model Number |
HM-YRF7 |
| Material |
Natural Rubber |
| Color |
Black |
| Application |
In ports with extreme tidal variations
Ship-to-ship lightering operations
Oil Gas (typically FSRU)
Temporary berthing
|
| Feature |
Heat Resistance |
| Sample |
Usually free |
| Production Method |
Moulding |
| Temperature |
-40℃~300℃ |
| Packing |
Pallets |
| Lead time |
7-14 days |
Diameter x Length
[mm] |
50kPa
Performance Data |
80kPa
Performance Data |
Hull Pressure
at GEA
/ kN / m2 |
Reaction Force
/ kN |
Energy Absorption
/ kNm |
Hull Pressure
at GEA
/ kN / m2 |
Reaction Force
/ kN |
Energy Absorption
/ kNm |
| 1000 x 1500 |
122 |
182 |
32 |
160 |
239 |
45 |
| 1000 x 2000 |
132 |
257 |
45 |
174 |
338 |
63 |
| 1200 x 2000 |
126 |
297 |
63 |
166 |
390 |
88 |
| 1350 x 2500 |
130 |
427 |
102 |
170 |
561 |
142 |
| 1500 x 3000 |
153 |
579 |
153 |
174 |
761 |
214 |
| 1700 x 3000 |
128 |
639 |
191 |
168 |
840 |
267 |
| 2000 x 3500 |
128 |
875 |
308 |
168 |
1150 |
430 |
| 2500 x 4000 |
137 |
1381 |
663 |
180 |
1815 |
925 |
| 2500 x 5500 |
148 |
2019 |
943 |
195 |
2653 |
1317 |
| 3300 x 4500 |
130 |
1884 |
1175 |
171 |
2476 |
1640 |
| 3300 x 6500 |
146 |
3015 |
1814 |
191 |
3961 |
2532 |
| 3300 x 10600 |
158 |
5257 |
3067 |
208 |
6907 |
4281 |
| 4500 x 9000 |
146 |
5747 |
4752 |
192 |
7551 |
6633 |
| * Other size can be produced follow client's requirements. |
Features
Multiple Installation Options
Can be mounted horizontally or vertically, providing flexibility based on docking needs.
Reduced Hull Damage
Exceptional design minimizes the risk of hull damage compared to standard fenders.
Quality Assurance Standards
Manufactured under strict quality control protocols to ensure compliance with international regulations.
Eco Friendly Materials
Some products utilize environmentally safe materials, supporting sustainability initiatives.
Applications
● Offshore platforms
● Barge mooring
● Yacht marinas
Advantages
Comprehensive Product Range
Extensive selection of fenders, catering to various marine applications.
Sustainability Practices
Implementation of environmentally friendly manufacturing processes and materials.
Technical Support
Offering expert advice and assistance for product selection and installation.
Proactive Maintenance Services
Providing maintenance recommendations to extend the lifespan of fenders.
FAQ
A) How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
B) Sample time?
Existing items: within 7 days.
C) Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages.
D) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.
E) How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
F) How to keep pneumatic rubber fenders?
1) Keep the fender away from sharp objects, in case damage the fender body.
2) Fender cannot touch with acid, oil and other organic solvent.
3) When fender not use for a long time, they should be washed to clean, dried and proper compressed air inflated. Put them in a dry , cool and ventilated area.
4) The storage area should be far away from heat source.
5) Don't put heavy objects on the fender when fender not in use.
6) Fender in normal usages should be checked the inner pressure every 3 months. Meanwhile, Air valve core should be replaced every 6 months.
