Name: Dock Jetty Pneumatic Rubber Fender Yokohama Inflatable Anti Collision
Brand: Hongruntong Marine Co., Ltd.
SKU: DF-YRF3.5M
Price: 138.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Dock Pneumatic Jetty Yokohama Rubber Fender Inflatable Anti-collision With Best Quality

Material: High Density Natural Rubber

Standard: ISO17357-1:2014, PIANC2014

Part: Yokohama Floating Fender

Type: Pneumatic Marine Rubber Fenders

Certificate: CCS.ABS.LRS.BV.GL.DNV.NK

Lifespan: 6-10 Years

Delivery: 7-10 Days

Initial Internal Pressure: 0.05MPa/0.08MPa

Highlight:

dock pneumatic rubber fender yokohama

anti collision pneumatic rubber fender yokohama

anti collision yokohama marine fenders

Basic Infomation

Place of Origin: CHINA

Brand Name: DockFender

Certification: PIANC2014,ISO17357

Model Number: DF-YRF3.5M

Payment & Shipping Terms

Packaging Details: Pallet, Wooden Case

Delivery Time: 8 Work Days

Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability: 1650 PCS Per Month

Gallery

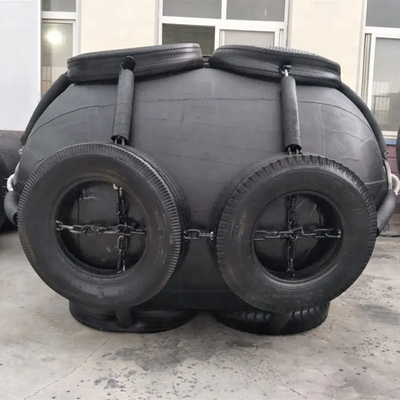

Dock Jetty Pneumatic Rubber Fender Yokohama Inflatable Anti Collision

Product Description

Dock pneumatic jetty yokohama rubber fender inflatable anti-collision with best quality

Description

Yokohama fenders are a type of marine fender that are used to protect vessels and docks from collisions. They are made from high-quality rubber and have a unique design that allows them to absorb impacts and distribute the force evenly. Yokohama fenders are commonly used in ports, harbors, and offshore facilities. They come in various sizes and shapes to suit different types of vessels and docking requirements.

Yokohama fenders are a type of marine fender used to protect ships and docks from impact damage. They are made of high-quality rubber and have a cylindrical shape that allows them to absorb and distribute the energy of collisions. Yokohama fenders are known for their durability, reliability, and ease of installation, and they are commonly used in ports, harbors, and offshore facilities around the world.

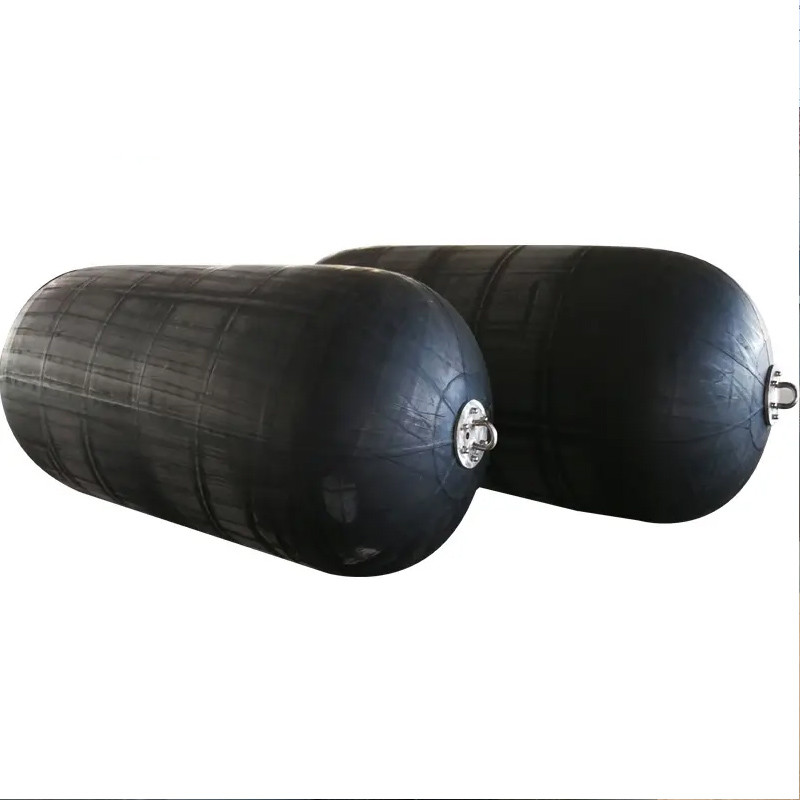

Dock Jetty Pneumatic Rubber Fender Yokohama Inflatable Anti Collision 0

Specifications

Product Name	Dock pneumatic jetty yokohama rubber fender inflatable anti-collision with best quality
Brand Name	DockFender
Model Number	DF-3.3*6.5M
Material	High Density Natural Rubber
Standard	ISO17357-1:2014, PIANC2014
Shape	Cylindrical
OEM / ODM	Welcome
Size	As per drawing dimensions
Tolerance Standard	ISO2768-M or ISO3302-1:2014 CLASS M2
Usage	For ship docking or berthing
Certificate	DNV BV CCS LR ABS
Color	Customers' Requirements
Working Temperature	-15 degreee to 200 degree

Fender Size	Initial Pressure 50kPa Performance Data			Initial Pressure 80kPa Performance Data
Diameter x Length [mm]	Reaction Force / kN	Energy Absorption / kNm	Hull Pressure at GEA / kN / m2	Reaction Force / kN	Energy Absorption / kNm	Hull Pressure at GEA / kN / m2
500 x 1,000	6	64	132	8	85	174
600 x 1,000	8	74	126	11	98	166
700 x 1,500	17	137	135	24	180	177
1,000 x 1,500	182	32	122	239	45	160
1,000 x 2,000	257	45	132	338	63	174
1,200 x 2,000	297	63	126	390	88	166
1,350 x 2,500	427	102	130	561	142	170
1,500 x 3,000	579	153	153	761	214	174
1,700 x 3,000	639	191	128	840	267	168
2,000 x 3,500	875	308	128	1,150	430	168
2,500 x 4,000	1,381	663	137	1,815	925	180
2,500 x 5,500	2,019	943	148	2,653	1,317	195
3,300 x 4,500	1,884	1,175	130	2,476	1,640	171
3,300 x 6,500	3,015	1,814	146	3,961	2,532	191
3,300 x 10,600	5,257	3,067	158	6,907	4,281	208
4,500 x 9,000	5,747	4,752	146	7,551	6,633	192
* Other size can be produced follow client's requirements.

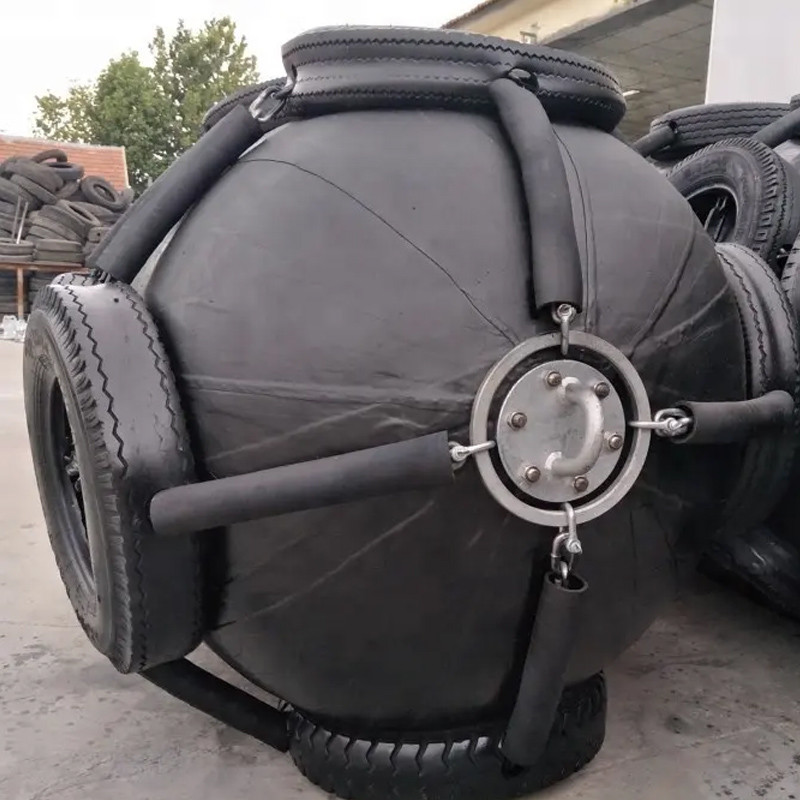

Dock Jetty Pneumatic Rubber Fender Yokohama Inflatable Anti Collision 1

Fender Selection

Model Selection of Pneumatic Fender for Small & Middle Size Ship

Ship Tonnage(T)	Recommendation Size D x L ( m)	Ship Type
50	0.5 x1.0	Fishing ship
100	0.7 x 1.5~1.0 x 1.5	Fishing ship
200	1.0 x 1.5~1.2 x 2.0	Fishing ship, towing ship
300-500	1.2 x 2.0~1.5 x 2.5	Fishing ship, towing ship
1000	1.5 x 2.5~1.5 x 3.0	Towing ship, cargo ship
3000	2.0 x 3.0~2.0 x 3.5	cargo ship, ocean trawler
10000	2.0 x 3.5~2.5 x 4.0	cargo ship

Model Selection of Pneumatic Fender for Large-tonnage Ship

Ship Tonnage	Assumed Boarding Speed	Effective Kinetic Energy	Fender Size *DL**
(DWT)	(M/S)	(KN.M)	(m)
200000	0.15	1890	3.3 x 6.5
150000	0.15	1417	3.3 x 6.5
100000	0.15	945	3.0 x 5.0
85000	0.17	1031	3.0 x 6.0
50000	0.18	680	2.5 x 5.5
40000	0.2	672	2.5 x 5.5
30000	0.22	609	2.5 x 4.0
20000	0.25	525	2.5 x 4.0
15000	0.26	425	2.5 x 4.0
10000	0.28	329	2.0 x 4.0
5000	0.33	228	2.0 x 3.5

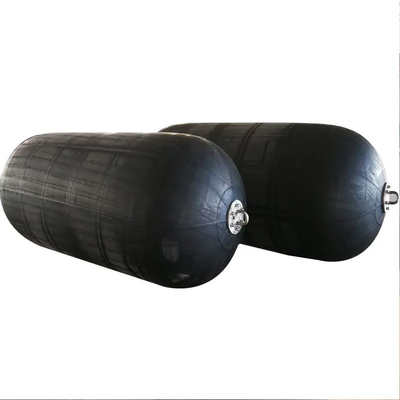

Dock Jetty Pneumatic Rubber Fender Yokohama Inflatable Anti Collision 2

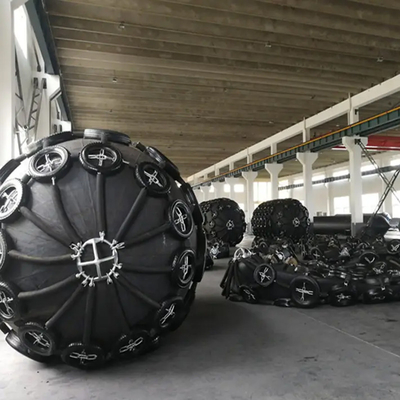

Dock Jetty Pneumatic Rubber Fender Yokohama Inflatable Anti Collision 3
