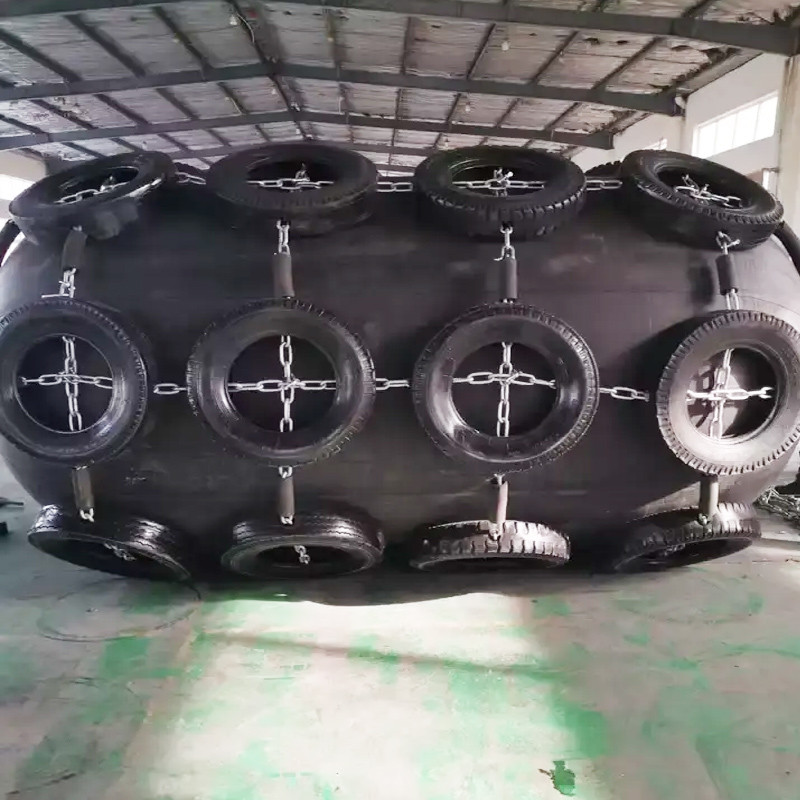

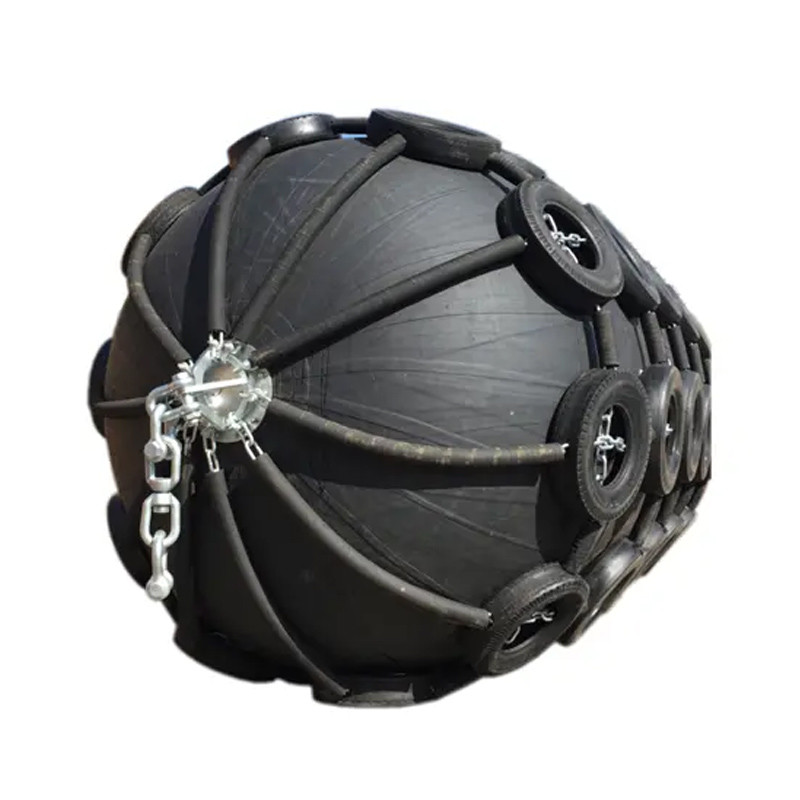

50kPa Yokohama Rubber Fender boat side rubber fender for ship and dock
Description
Yokohama rubber fenders are a popular type of marine fender used to protect ships and docks from damage caused by collisions. They are made from high-quality natural rubber, which allows them to absorb large amounts of energy during an impact. This helps to protect both the ship and the dock from damage.
Yokohama rubber fenders come in many different sizes and shapes to suit different types of vessels, docks, and applications. Some of the most common types of Yokohama rubber fenders include:
1. Chain Tyre Net Fenders: These are ctn type fenders that offer a large surface area for absorbing impacts. They are usually installed with a chain and tire net system for added protection.
2. Sling Type Fenders: These fenders are made up of multiple air-filled cells that allow them to absorb impacts from different angles. They are commonly used for larger vessels and in areas with high tidal variation.
3. Nylon Rope Fenders: These fenders are a simple, cost-effective option for protecting docks and smaller vessels from impact damage. They can be installed vertically or horizontally depending on the application.
Yokohama rubber fenders are also known for their easy installation and long lifespan. They are resistant to weathering, aging, and wear and tear, making them a durable and cost-effective choice for port operators and ship owners alike.
Specifications
| Product Name |
50kPa Yokohama Rubber Fender boat side rubber fender for ship and dock |
| Material |
High Level Natural Rubber |
| Color |
Black, Gray |
| Structure |
Inner Rubber + Tire Cord Fabric Layer + Outer Rubber |
| Assembly |
Tyre Chain Net |
| Working Pressure |
50kPa, 80kPa |
| Diameter |
0.3m to 4.5m |
| Length |
0.5m to 12.0m |
| Standard |
ISO 17357 and PIANC2014 |
| Certificate |
BV, ABS, SGS, DNV, LR |
Diameter x Length
[mm] |
50kPa
Performance Data |
80kPa
Performance Data |
Hull Pressure
at GEA
/ kN / m2 |
Reaction Force
/ kN |
Energy Absorption
/ kNm |
Hull Pressure
at GEA
/ kN / m2 |
Reaction Force
/ kN |
Energy Absorption
/ kNm |
| 1000 x 1500 |
122 |
182 |
32 |
160 |
239 |
45 |
| 1000 x 2000 |
132 |
257 |
45 |
174 |
338 |
63 |
| 1200 x 2000 |
126 |
297 |
63 |
166 |
390 |
88 |
| 1350 x 2500 |
130 |
427 |
102 |
170 |
561 |
142 |
| 1500 x 3000 |
153 |
579 |
153 |
174 |
761 |
214 |
| 1700 x 3000 |
128 |
639 |
191 |
168 |
840 |
267 |
| 2000 x 3500 |
128 |
875 |
308 |
168 |
1150 |
430 |
| 2500 x 4000 |
137 |
1381 |
663 |
180 |
1815 |
925 |
| 2500 x 5500 |
148 |
2019 |
943 |
195 |
2653 |
1317 |
| 3300 x 4500 |
130 |
1884 |
1175 |
171 |
2476 |
1640 |
| 3300 x 6500 |
146 |
3015 |
1814 |
191 |
3961 |
2532 |
| 3300 x 10600 |
158 |
5257 |
3067 |
208 |
6907 |
4281 |
| 4500 x 9000 |
146 |
5747 |
4752 |
192 |
7551 |
6633 |
| * Other size can be produced follow client's requirements. |
Features
1. High safety level: can stand maximum pressure up to 4 times that of the operating pressure.
2. Easy maintenance: just need inflation once every six months.
3. Low transportation cost: can be deflated and folded for transportation, thus saving about two thirds of the transportation cost.
4. Long lifespan: it is guaranteed that our fenders can be used for over 10 years under normal conditions.
5. Size can be customized: Special Sizes of others dimension are available upon request.
Applications
● Oil and gas tankers
● Fast ferries and aluminum vessels
● Temporary and permanent installations
● Rapid response and emergencies
Advantages
◆ Fully compliant with ISO 17357-1:2014
◆ Original factory, competitive price
◆ Best discount to save project budget
◆ Third party strict inspection + In-house performance test
◆ With excellent oil resistance, heat resistance, anti-aging properties
