Submarine Pneumatic Yokohama Type Fender Anti Collision Customized
Description
High pressure floating pneumatic rubber fender is a leading anti-collision device for marine application in the world today. It is made of synthetic cord reinforced rubber sheet with compressed air inside to enable it to flaot on the water and work as a shock absorber when ship to ship transfer operations and ship to quay berthing and mooring operations. The first pneuamtic rubber fender was developed in 1985 based on the technology for auto mobile tires and rubber aircraft fuel tanks by YOKOHAMA RUBBER COMPANY.
Pneumatic fenders have the advantages of massive energy absorption with low unit surface pressure acted upon the ship. So pneumatic fender has become an ideal ship protection medium used extensively by large tankers, LPG vessels,ocean platforms, bulk carriers and floating structures, large docks, harbor and wharfs.
COMPLY WITH ISO17357:2014
Dock Fender ensures that all its pneumatic rubber fenders fully company with all requirements of ISO17357:2014.
Specifications
| Place of Origin |
China |
| Brand Name |
DockFender |
| Model Number |
DF-YRF4.5*12M |
| Processing Service |
Moulding |
| Material |
Natural Rubber |
| Product Name |
Submarine Pneumatic Yokohama Type Fender Anti Collision Customized |
| Application |
Industrial, Marine, Dock, STS |
| Color |
Black or as required |
| Size |
Customer's Requirements |
| MOQ |
1 Piece |
| Advantage |
Long Working Life |
| Package |
Plastic Bag Packing + Pallet |
| Payment Term |
T/T, L/C |
Diameter x Length
[mm] |
50kPa
Performance Data |
80kPa
Performance Data |
Hull Pressure
at GEA
/ kN / m2 |
Reaction Force
/ kN |
Energy Absorption
/ kNm |
Hull Pressure
at GEA
/ kN / m2 |
Reaction Force
/ kN |
Energy Absorption
/ kNm |
| 1000 x 1500 |
122 |
182 |
32 |
160 |
239 |
45 |
| 1000 x 2000 |
132 |
257 |
45 |
174 |
338 |
63 |
| 1200 x 2000 |
126 |
297 |
63 |
166 |
390 |
88 |
| 1350 x 2500 |
130 |
427 |
102 |
170 |
561 |
142 |
| 1500 x 3000 |
153 |
579 |
153 |
174 |
761 |
214 |
| 1700 x 3000 |
128 |
639 |
191 |
168 |
840 |
267 |
| 2000 x 3500 |
128 |
875 |
308 |
168 |
1150 |
430 |
| 2500 x 4000 |
137 |
1381 |
663 |
180 |
1815 |
925 |
| 2500 x 5500 |
148 |
2019 |
943 |
195 |
2653 |
1317 |
| 3300 x 4500 |
130 |
1884 |
1175 |
171 |
2476 |
1640 |
| 3300 x 6500 |
146 |
3015 |
1814 |
191 |
3961 |
2532 |
| 3300 x 10600 |
158 |
5257 |
3067 |
208 |
6907 |
4281 |
| 4500 x 9000 |
146 |
5747 |
4752 |
192 |
7551 |
6633 |
| * Other size can be produced follow client's requirements. |
Features
1. High energy absorption with a low reaction force.
2. Light weight, portable and floatable, can be installed and replaced easily.
3. Heavy duty and long service life-over 30 years.

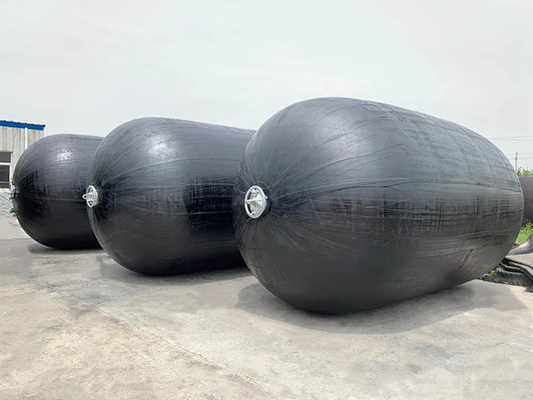

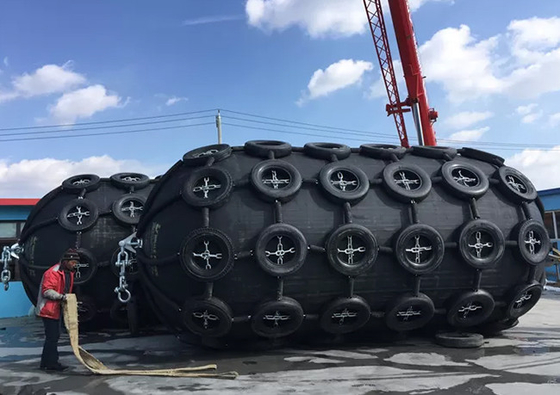

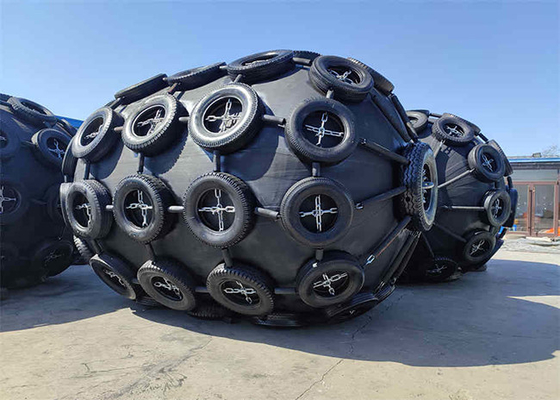

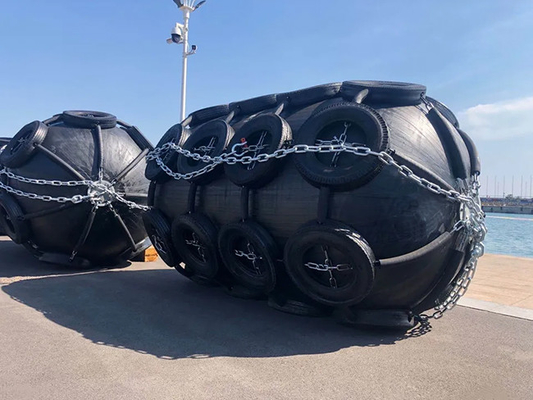

4. Supplied as sling type (body only) or with chain and tire net for protection of the fender body.
5. Suitable for locations with large and small tidal differences.
Applications
● High-protection netting with aircraft tires.
● Complete STS mooring package - ropes, wires and hardware.
● Two-year operational spare part package.
● Class certification (ABS).
● Service agreement including safety valve testing and re-certification.
Advantages
◆ Fully compliant with ISO 17357-1:2014.
◆ Original factory, competitive price.
◆ Best discount to save project budget.
◆ Third party strict inspection + In-house performance test.
◆ With excellent oil resistance, heat resistance, anti-aging properties.
