4.5*9m Inflatable Yokohama Pneumatic Rubber Fenders Jumbo Extra Large Fender
Description
Fully compliant with ISO 17357 standard, manufacture with mold, difference with traditional hand-make product.
Diameters ranging from 300 mm to 4500 mm and length ranging from 500 mm to 1200 mm
Standard colors gray and black

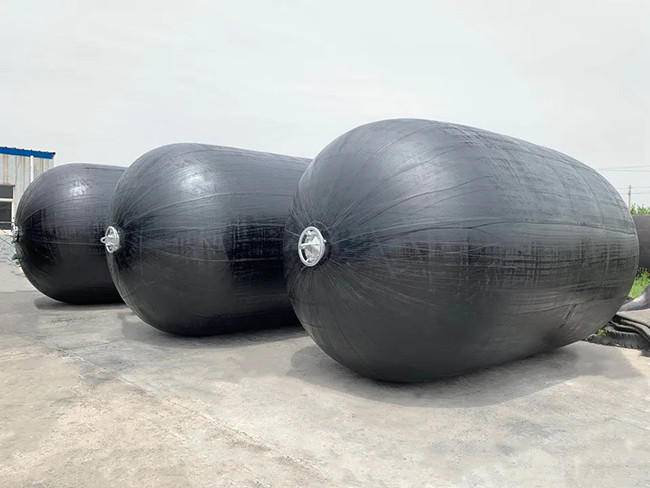

Constructed with an inner rubber layer, reinforcing cord layers and outer rubber layer
Comprehensively tested for material and hydrostatic pressure irregularities
Correctly evaluated for angular and durability performance
Clearly marked with all relevant identification
Complete with up-to-date certification
Available in a variety of sizes
Thick outer skin supercedes that of a normal surface fender
Fitted safety valve for fenders of 2.5 m diameter upwards

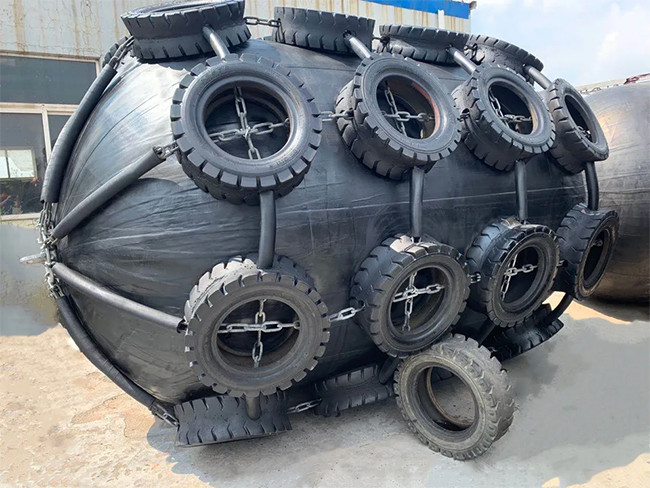

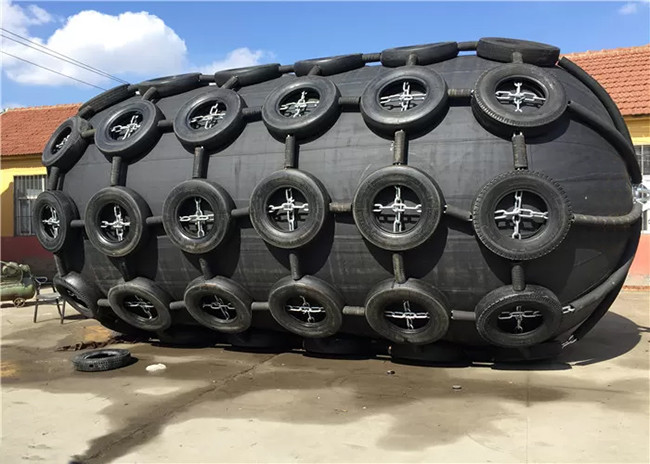

Yokohama Rubber Fender
1. Material: Natural rubber
2. We use reinforced polymide fiber line.

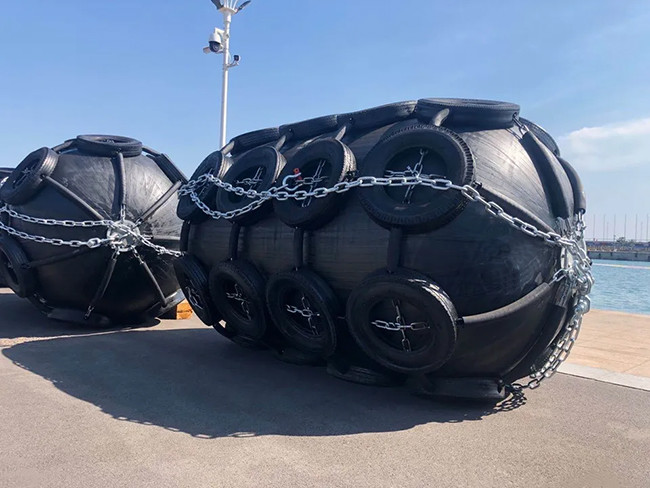

3. Anchor chain: High quality hot dip galvanizing,more resistant to seawater corrosion, extrusion resistance.
4. Customized tyre intensive inflatable rubber fender,the lifespan will be longer.
5. Guaranteed energy and reaction force is superior.
6. All products comply with ISO standards.
Specifications
| Place of Origin |
China |
| Brand Name |
DockFender |
| Model Number |
DF-YRF4.5*9.0M |
| Product Name |
4.5*9m Inflatable Yokohama Pneumatic Rubber Fenders Jumbo Extra Large Fender |
| Color |
Black/grey/blue, etc |
| Material |
Natural Rubber |
| Thickness |
37 Layers |
| Size |
2.5*4.0M, or as required |
| Usage |
STS, Dock, Quay, Port, LNG, Oil Tanker |
| Surface |
Matte/Smooth |
| Packing |
Pallet or Wooden Case |
| Keywords |
Yokohama Fender / Yokohama Rubber Fender |
Diameter x Length
[mm] |
50kPa
Performance Data |
80kPa
Performance Data |
Hull Pressure
at GEA
/ kN / m2 |
Reaction Force
/ kN |
Energy Absorption
/ kNm |
Hull Pressure
at GEA
/ kN / m2 |
Reaction Force
/ kN |
Energy Absorption
/ kNm |
| 1000 x 1500 |
122 |
182 |
32 |
160 |
239 |
45 |
| 1000 x 2000 |
132 |
257 |
45 |
174 |
338 |
63 |
| 1200 x 2000 |
126 |
297 |
63 |
166 |
390 |
88 |
| 1350 x 2500 |
130 |
427 |
102 |
170 |
561 |
142 |
| 1500 x 3000 |
153 |
579 |
153 |
174 |
761 |
214 |
| 1700 x 3000 |
128 |
639 |
191 |
168 |
840 |
267 |
| 2000 x 3500 |
128 |
875 |
308 |
168 |
1150 |
430 |
| 2500 x 4000 |
137 |
1381 |
663 |
180 |
1815 |
925 |
| 2500 x 5500 |
148 |
2019 |
943 |
195 |
2653 |
1317 |
| 3300 x 4500 |
130 |
1884 |
1175 |
171 |
2476 |
1640 |
| 3300 x 6500 |
146 |
3015 |
1814 |
191 |
3961 |
2532 |
| 3300 x 10600 |
158 |
5257 |
3067 |
208 |
6907 |
4281 |
| 4500 x 9000 |
146 |
5747 |
4752 |
192 |
7551 |
6633 |
| * Other size can be produced follow client's requirements. |
Features
1. The energy absorption does not decrease at inclined compression up to 15 degrees.
2. The reaction force increases slowly and does not increase sharply even under excess load conditions.
3. Adequately reinforced using strong tire cord against the combined force during ship berthing and mooring operations. Supported by water on which it floats, making simple installation possible on the wharf and anchor mast.
Available in a variety of sizes.
4. IACS Approvals: CCS, ABS, BV, LR, KR, DNV-GL, NK, RMRS and RINA.
Applications
● Ship-to-ship transfer operations
● Ship-to-ship services
● Offshore platform defense
● Ship berthing at the dock
● Hang on the ship hull
Advantages
◆ Fully compliant with ISO 17357-1:2014.
◆ Original factory, competitive price.
◆ Best discount to save project budget.
◆ Third party strict inspection + In-house performance test.
◆ With excellent oil resistance, heat resistance, anti-aging properties.
