Dock Floating Yokohama Pneumatic Rubber Fender Iso17357 Standard

1 Piece
MOQ
$50-$660
Price
Dock Floating Yokohama Pneumatic Rubber Fender Iso17357 Standard
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Dock Floating Fender Yokohama Pneumatic Rubber Fender ISO17357 Standard
Material: Natural Rubber
Color: Black Or Customized
Diameter: 500mm - 4500mm
Length: 1000mm - 12000mm
Certificate: SGS, DNV, ABS, LR
Safety Standard: ISO17357-1:2014, PIANC2002
Packing: Standard Packing
Highlight:

dock floating yokohama pneumatic rubber fender

,

iso17357 standard yokohama pneumatic rubber fender

,

natural rubber yokohama marine fenders

Basic Infomation
Place of Origin: CHINA
Brand Name: DockFender
Certification: ABS, SGS, DNV, LR
Model Number: DF-4500mm*9000mm
Payment & Shipping Terms
Packaging Details: Pallet, Wooden Case
Delivery Time: 6 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2300 PCS Per Month
Product Description

Dock Floating Fender Yokohama Pneumatic Rubber Fender ISO17357 Standard



Description

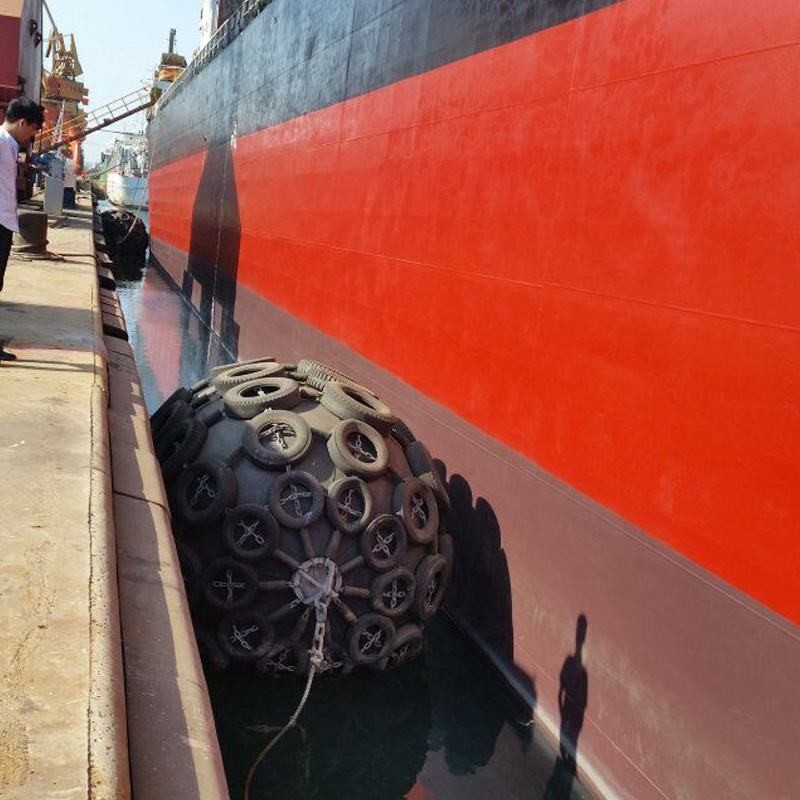

Floating Yokohama Pneumatic Rubber Fenders which is made of synthetic-cord-reinforced rubber sheet with compressed air inside to enable it to float on the water and work as a shock absorber between two ships (ship-to-ship), or between ships and berthing structures when they come alongside each other on the water.

Suited for ship-to-ship operations as well as ship-to-dock, pneumatic fenders are filled with air. With their outer structure being made of rubber, they are ideal for intercepting any movement between your vessel and its dock, thus keeping your ship and cargo undamaged and your team members safe. With over 20 different sizes, our foam and pneumatic fenders are able to keep your vessel safe in every situation. Our Yokohama fenders always meet the quality requirements and are manufactured by our reliable partner, whom we’ve worked with for years. If you have any questions about our fenders, don’t hesitate to contact us.



Specifications



Place of Origin China
Brand Name DockFender
Model Number DF-4500mm*9000mm
Product Name Dock Floating Fender Yokohama Pneumatic Rubber Fender ISO17357 Standard
Material Natural Rubber
Warranty 3 Years
Capacity 2500 Pieces Per Month
Quality Certification ISO17357-1:2014, PIANC2002
Safety Standard DNV, ABS, BV, SGS
Accessories Valve, Pressure Gauge, Inflation Rod, Wrench
Color Black or Customers' Requirements
Diameter 500-4500 mm
Length 1000-12000 mm
Application Port, Dock, Boat, Ship, Wharf



Dock Floating Yokohama Pneumatic Rubber Fender Iso17357 Standard 0



Specification

Initial Pressure

50KPa

Initial Pressure

80KPa

D*L(mm) R(KN) GEA (KJ) R(KN) GEA (KJ)
500*1000 64 6 85 8
600*1000 74 8 98 11
700*1500 137 17 180 24
1000*1500 182 32 239 45
1000*2000 257 45 338 63
1200*2000 297 63 390 88
1350*2500 427 102 561 142
1500*3000 579 153 761 214
1700*3000 639 191 840 267
2000*3000 750 265 985 368
2000*3500 875 308 1150 430
2500*4000 1381 663 1815 925
2500*5500 2019 943 2653 1317
3000*5000 2104 1210 2709 1571
3000*6000 2583 1485 3292 1888
3300*4500 1884 1175 2476 1640
3300*6500 3015 1814 3961 2532
3300*10600 5257 3067 6907 4281
4500*6500 4150 3432 5453 4790
4500*9000 5747 4752 7551 6633
4500*12000 7984 6473 10490 9037



Features



1. All fenders are supplied with SGS or ABS certificate proving the fenders are manufactured according to ISO 17357.
2. All safety valves (if applicable) are certified.
3. All components are certified and/or tested on break load.

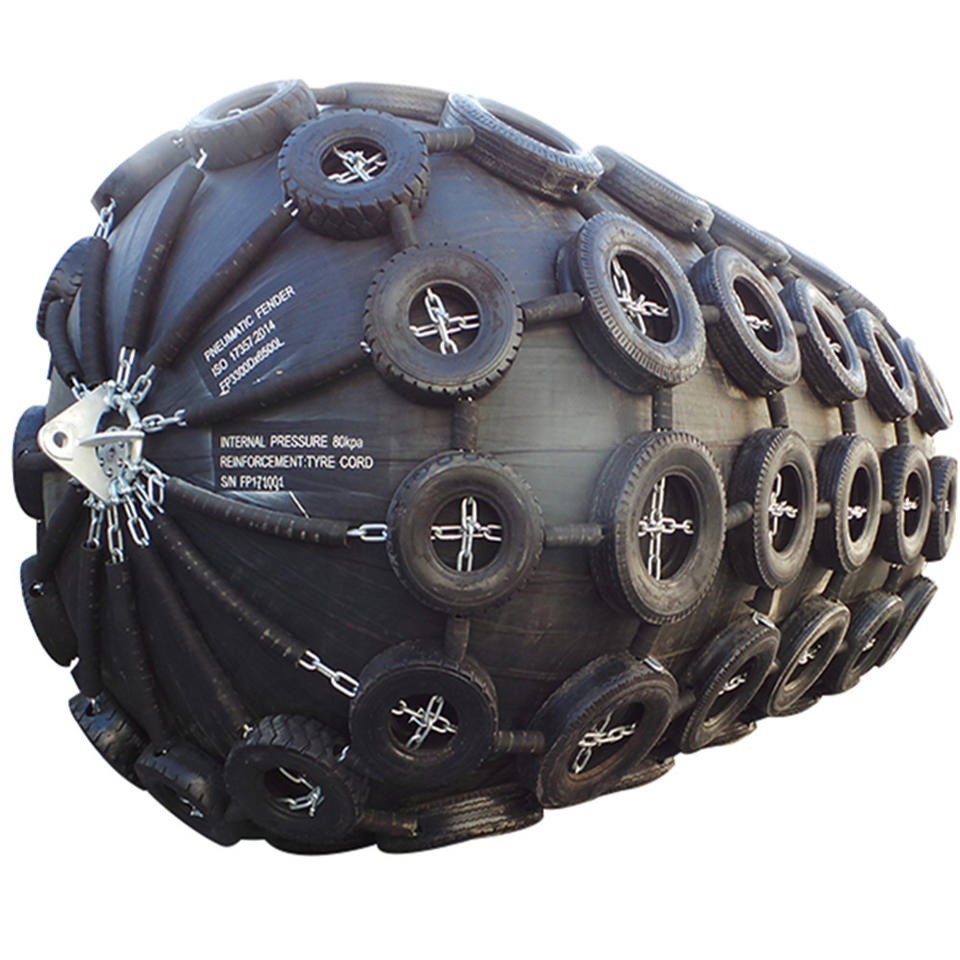

4. All fenders are standard equipped with airplane tires. They are very rigid and contain no steel, so they will not rust in (sea-)water.
5. All chains are protected with rubber sleeves, even through the airplane tires. This will prevent the chain cutting the tires



Applications



● Offshore platforms

● Oil and gas tankers

● Fast ferries and aluminum vessels

● In ports with extreme tidal variations

● Fishing vessel transport ships and ocean trawlers



Dock Floating Yokohama Pneumatic Rubber Fender Iso17357 Standard 1



Dock Floating Yokohama Pneumatic Rubber Fender Iso17357 Standard 2Dock Floating Yokohama Pneumatic Rubber Fender Iso17357 Standard 3Dock Floating Yokohama Pneumatic Rubber Fender Iso17357 Standard 4
