ISO17357 1:2014 Marine Yokohama Pneumatic Rubber Fender High Quality Boats Ships
Description

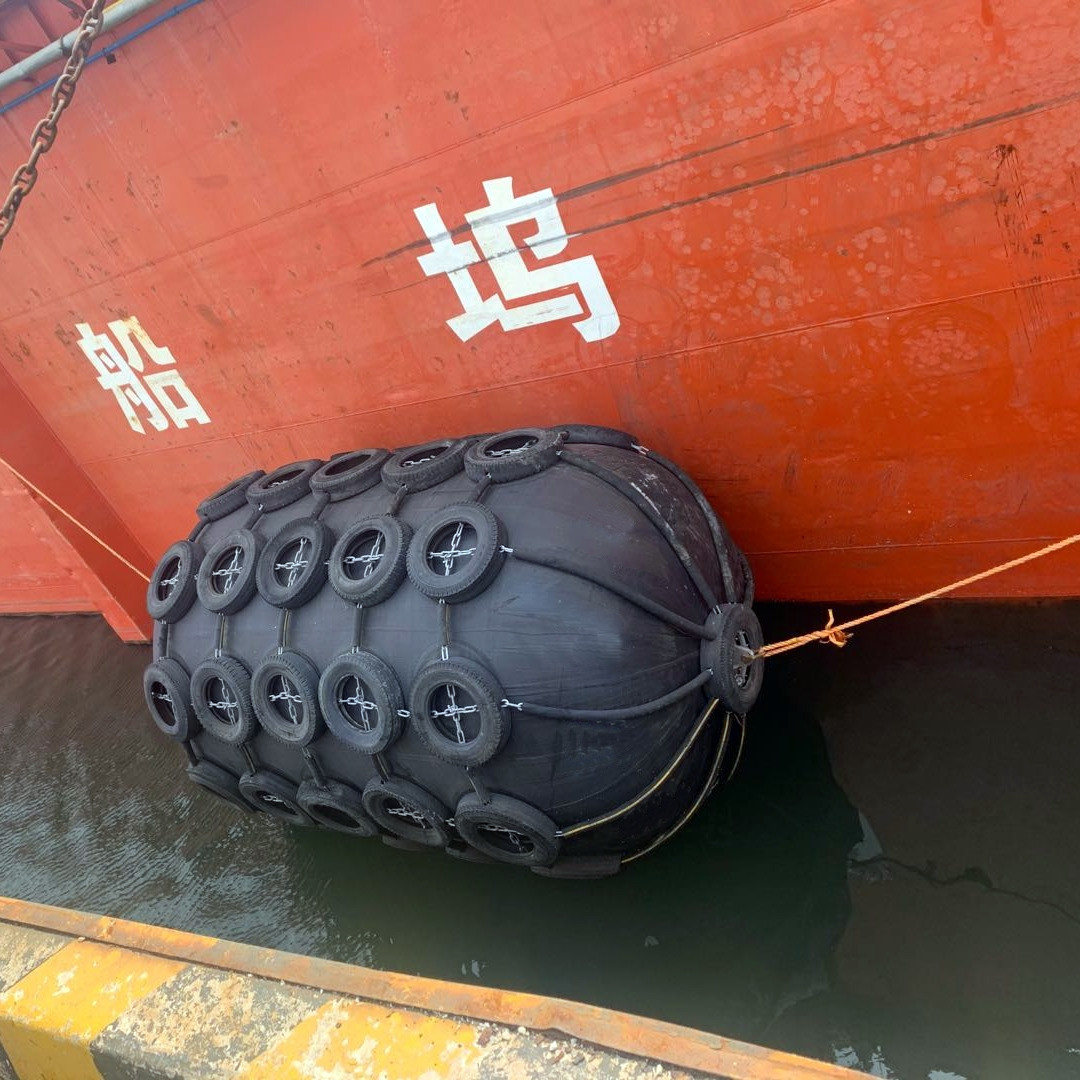

Yokohama pneumatic fenders are a leading anti-collision device for marine applications in the world today. Pneumatic rubber fenders serve as a critical protective medium against collision when ship-to-ship (STS) transfer operations and ship-to-dock (STD) berthing and mooring operations. Pneumatic fenders have the advantage of massive energy absorption with low unit surface pressure act upon the ship. These Yokohama buoys are specifically made for protection in maneuvering ships without collision.
Yokohama pneumatic fenders, also known as floating fenders, are used as a bumper to absorb the impact of a large ship, tanker or vessel berthing a dock, or during a ship-to-ship transfer operation. All Yokohama pneumatic fenders comply ISO 17357 standards and have excellent energy absorption characteristics.
Specifications
| Place of Origin |
China |
| Brand Name |
DockFender |
| Item Code |
DF-2000x3500mm |
| Product Name |
ISO17357 1:2014 Marine Yokohama Pneumatic Rubber Fender High Quality Boats Ships |
| Material |
High Density Natural Rubber |
| Certifications |
PIANC2002, ISO17357-1:2014 |
| Initial Pressure |
50kPa & 80kPa |
| Diameter |
500mm-4500mm |
| Length |
1000mm-12000mm |
| Service life |
Semi-permanent |
| Packaging |
Opp bag or Customized packaging |
| Colors |
Black, Navy Grey, or Customized |
| Logo |
Custom logo |
| Delivery time |
3-15 workdays |
| Payment |
Paypal, TT |
| Fender Size |
Initial Pressure 50kPa
Performance Data |
Initial Pressure 80kPa
Performance Data |
|
Diameter x
Length
[mm]
|
Reaction Force
/ kN |
Energy Absorption
/ kNm |
Hull Pressure
at GEA
/ kN / m2 |
Reaction Force
/ kN |
Energy Absorption
/ kNm |
Hull Pressure
at GEA
/ kN / m2 |
| 500 x 1,000 |
6 |
64 |
132 |
8 |
85 |
174 |
| 600 x 1,000 |
8 |
74 |
126 |
11 |
98 |
166 |
| 700 x 1,500 |
17 |
137 |
135 |
24 |
180 |
177 |
| 1,000 x 1,500 |
182 |
32 |
122 |
239 |
45 |
160 |
| 1,000 x 2,000 |
257 |
45 |
132 |
338 |
63 |
174 |
| 1,200 x 2,000 |
297 |
63 |
126 |
390 |
88 |
166 |
| 1,350 x 2,500 |
427 |
102 |
130 |
561 |
142 |
170 |
| 1,500 x 3,000 |
579 |
153 |
153 |
761 |
214 |
174 |
| 1,700 x 3,000 |
639 |
191 |
128 |
840 |
267 |
168 |
| 2,000 x 3,500 |
875 |
308 |
128 |
1,150 |
430 |
168 |
| 2,500 x 4,000 |
1,381 |
663 |
137 |
1,815 |
925 |
180 |
| 2,500 x 5,500 |
2,019 |
943 |
148 |
2,653 |
1,317 |
195 |
| 3,300 x 4,500 |
1,884 |
1,175 |
130 |
2,476 |
1,640 |
171 |
| 3,300 x 6,500 |
3,015 |
1,814 |
146 |
3,961 |
2,532 |
191 |
| 3,300 x 10,600 |
5,257 |
3,067 |
158 |
6,907 |
4,281 |
208 |
| 4,500 x 9,000 |
5,747 |
4,752 |
146 |
7,551 |
6,633 |
192 |
| * Other size can be produced follow client's requirements. |
Features
1. High energy absorption with a low reaction force.
2. Adjust performance by varying internal pressure.

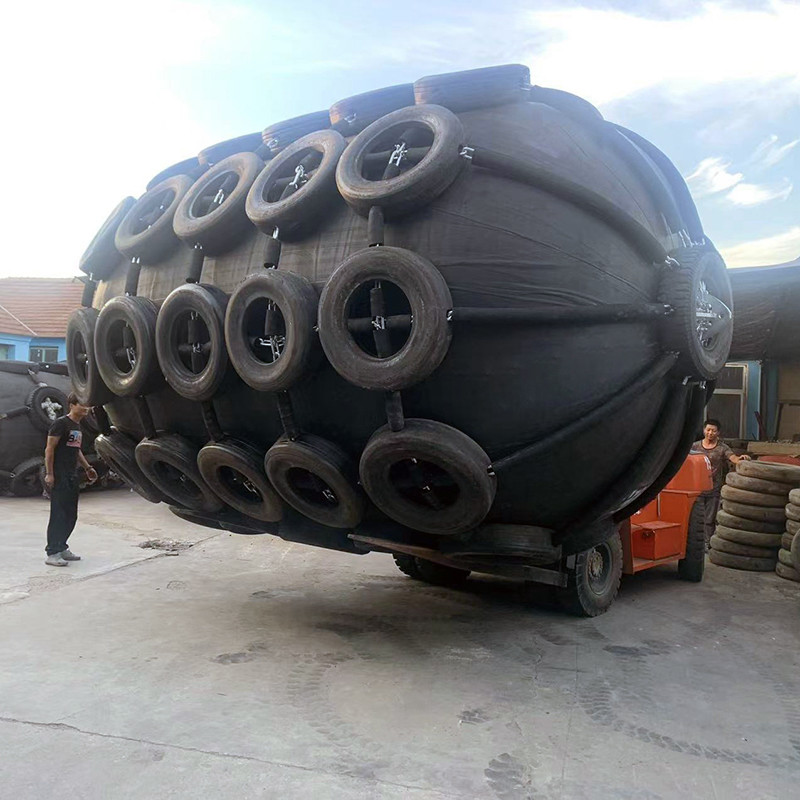

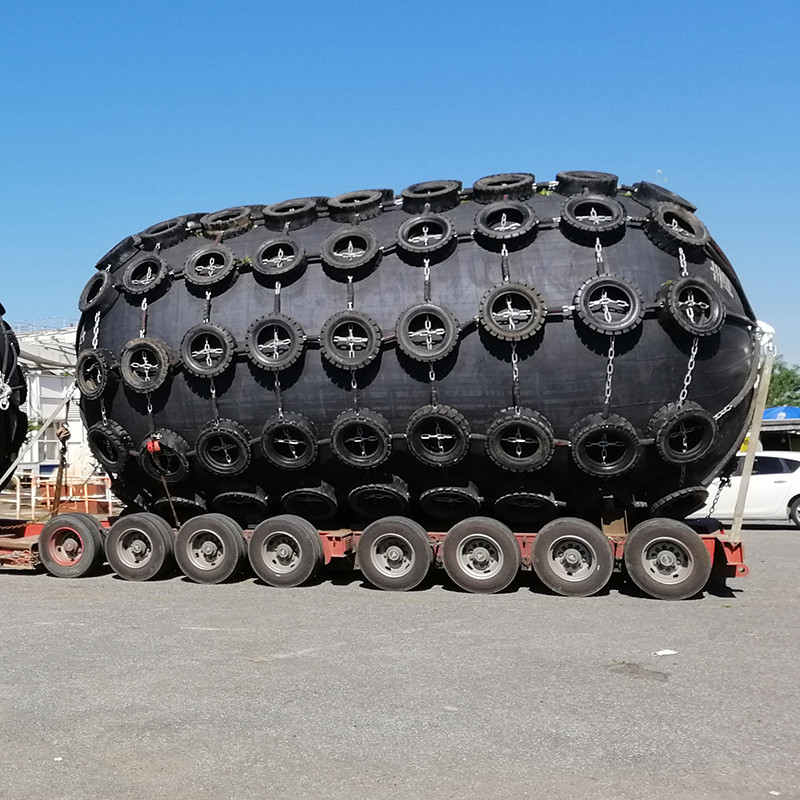

3. Chains and tire net protection for heavy duty use.

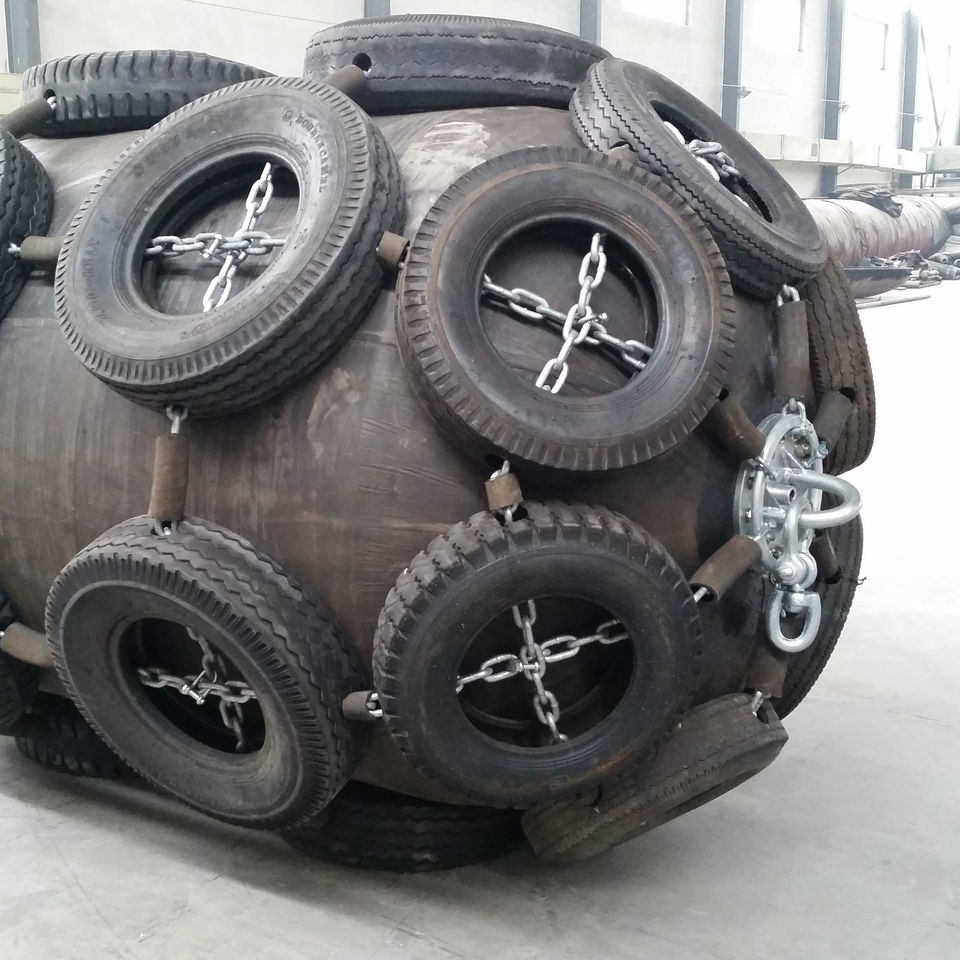

4. Standard galvanized chains, shackles and swivel joints.
5. Suitable for areas with tidal difference.
6. Manufactured in accordance with the ISO17357:2014.
Applications
● In ports with extreme tidal variations.
● Ship-to-ship lightering operations.
● Oil & Gas (typically FSRU).
● Temporary berthing.
Advantages
◆ Fully compliant with ISO 17357-1:2014.
◆ Economical, low maintenance.
◆ Proportional increase of energy and reaction.
◆ Original factory, best price.
◆ With excellent oil resistance, heat resistance, anti-aging properties.
