PIANC 2002 Cone Fenders Natural Rubber 1000H For Dock Marine

PIANC2002 Specifications Cone Fenders Natural Rubber 1000H for Dock Marine

Description

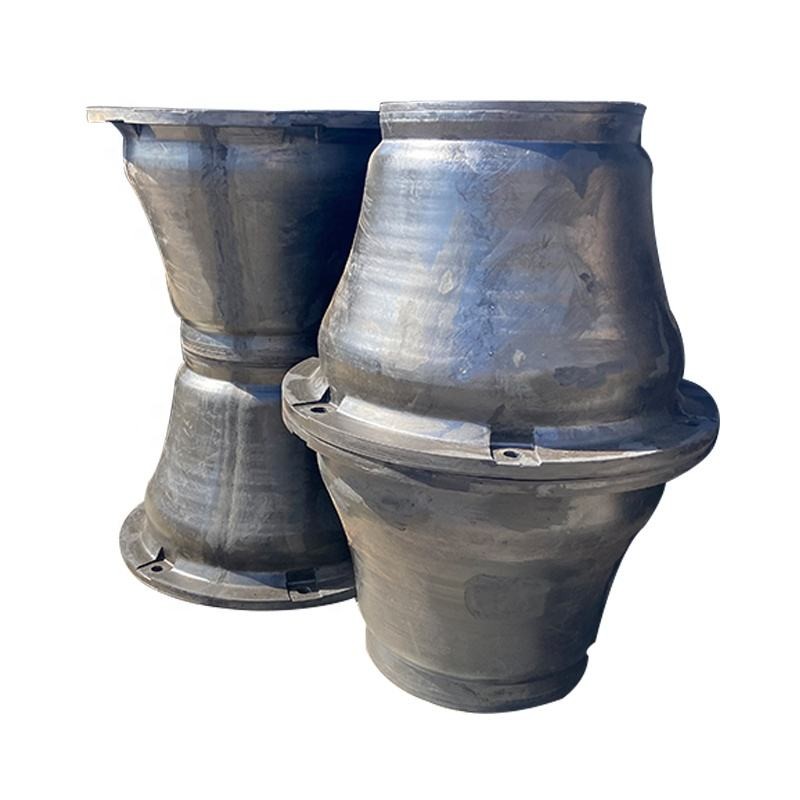

Cone fenders are an improved version of cell type fender recently introduced and recommended for all type of applications including high tidal variation sites. This advanced feature of lesser heights of fenders improves material handling capabilities of vessel cranes which reduces overall cost of the project. Due to the geometry of the fender, it can deflect more and absorb more energy, can be achieved by using two identical cone fenders in a back to back arrangement. In order to distribute the reaction force, cone fenders are typically supplied with large fender panels, which keep the hull pressure low. Cone fenders have good energy absorption to reaction force ratio; Integrated and fully-embedded fender flanges make assembly & installation simple; Good shear force resistance due to the large diameter of the fender flanges; Large fender footprint with good force distribution could lead to relative light panel construction, cone rubber fender adopts tapered rubber with a steel frame at the head.

Cone rubber fender is suitable for the docks that require low surface pressure of the ship’s panel, off-shore open berths and large docks like oil wharf and container terminal, as well as all places that are suitable for super cell marine fender.

Specifications

Features

1. Exceptionally good energy absorption to reaction force ratio (E/R)
2. Outstanding energy absorption per fender weight
3. High shear stability
4. No loss of performance up to 10° contact angle
5. Sophisticated and optimized fender geometry
6. Optional overload stopper

Applications

• Container Terminals
• Bulk Terminals
• Cargo Terminals
• Oil & Gas Terminals
• Cruise Terminals
• Navy Ship Terminals
• Coal and Mining Terminals

Advantages

◆ Deflection up to 72.5%

◆ High Energy Absorption

◆ Highly Durable

◆ Range of Energy Absorption and Reaction Forces
