Hydropneumatic Submarine Fenders ISO17357 & PIANC2002 Berth Dock 50kPa Floating
Description

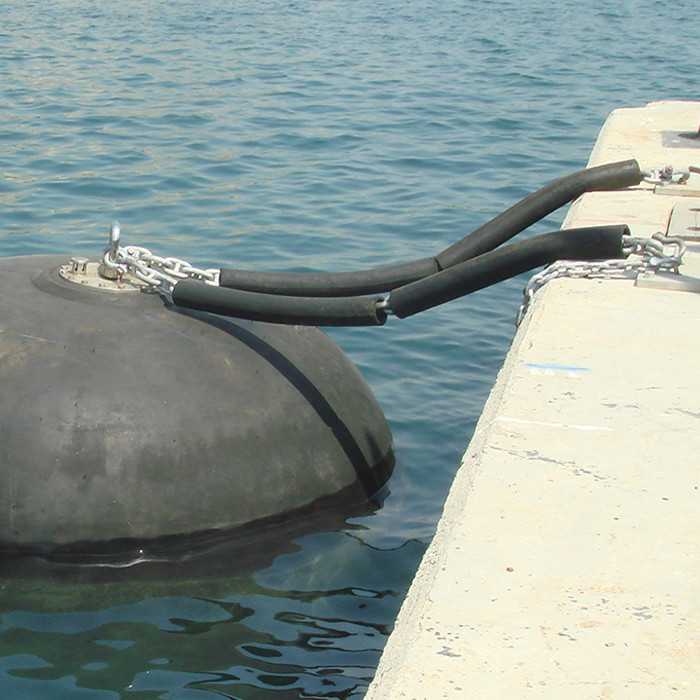

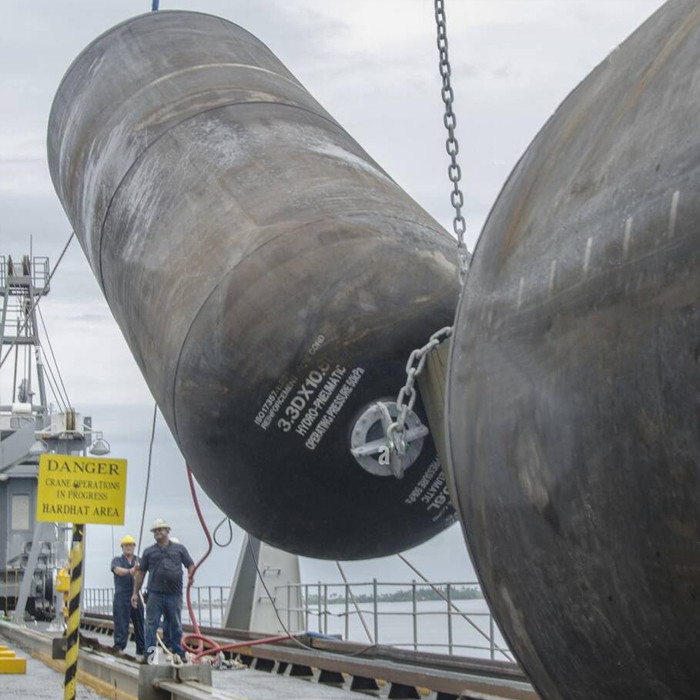

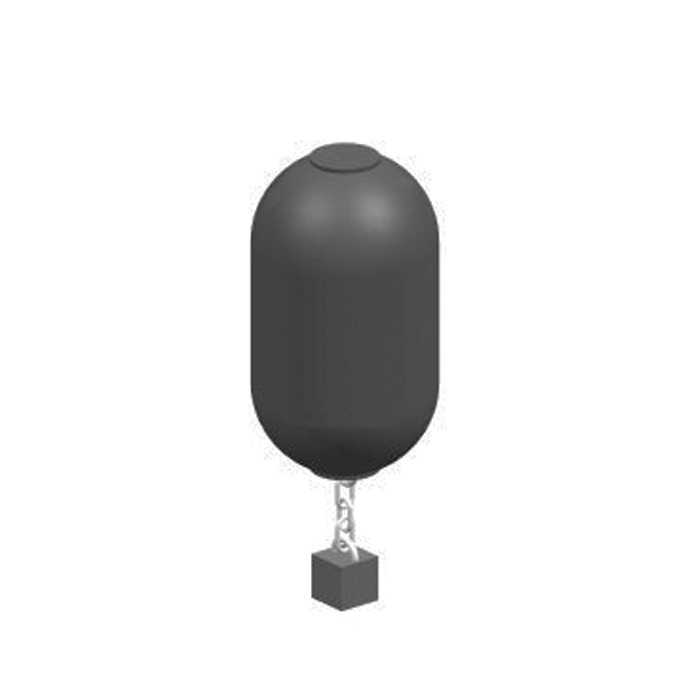

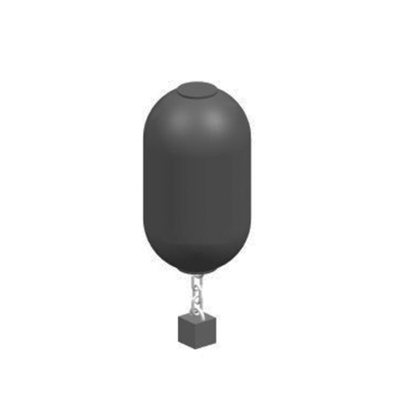

Hydropneumatic submarine fender is perfect for berthing submarine due to its high energy absorption and low reaction force. Submarine fender is usually installed vertically equipped with a counterweight, which provides a better contact area than other pneumatic fenders. Submarine fender is customized upon its water-air ratio, shape of the hull, berthing-type, energy absorption and jetty design.
Specifications
| Product Name |
Hydropneumatic Submarine Fenders ISO17357 & PIANC2002 Berth Dock 50kPa Floating |
| Brand Name |
DockFender |
| Model Number |
DF-3300*10600 |
| Material |
Import Certified Natural Rubber |
| Standard |
ISO17357, ISO9001 |
| Hardness |
50±10 Shore A |
| Processing Service |
Moulding |
| Performance |
Ageing resistance, ozone resistance, oil resistance |
| Color |
Any color is OK |
| Drawing Format |
Available according to design in production |
| Package |
Inner-Plastic Bag; Outer -Standard Pallets, wooden case or as your demand |
| Usage |
Fenders can be applied in all kinds of Submarine Jetties, Certain Ferry Types, Oil Rigs |
| Service |
Warm and quick response service provided by the professional Export Sales Team with many years' experience in handling exports to the US, Europe, Australia and other countries. |
Diameter x
Length |
Initial
Internal
Pressure |
Ship
Radius |
Water
Ratio |
Guaranteed
Energy
Absorption |
Reaction
Force
at GEA |
Hull
Pressure
at GEA |
Deflection
at GEA |
| (mm x mm) |
(kPa) |
(mm) |
(%) |
(kJ) |
(kN) |
(kPa) |
(%) |
| 1500 x 6100 |
50 |
3000 |
60% |
131 |
562 |
140 |
51% |
| 80 |
186 |
754 |
188 |
| 1700 x 7200 |
50 |
4000 |
65% |
167 |
682 |
137 |
47% |
| 80 |
239 |
918 |
184 |
| 2000 x 6000 |
50 |
4000 |
70% |
135 |
544 |
131 |
41% |
| 80 |
194 |
736 |
177 |
| 2500 x 5500 |
50 |
4500 |
65% |
225 |
769 |
135 |
41% |
| 80 |
322 |
1035 |
182 |
| 2500 x 7700 |
50 |
4500 |
70% |
326 |
1016 |
136 |
41% |
| 80 |
470 |
1368 |
183 |
| 3300 x 6500 |
50 |
4500 |
75% |
307 |
887 |
127 |
35% |
| 80 |
442 |
1203 |
173 |
| 3300 x 10600 |
50 |
5000 |
65% |
1003 |
2137 |
142 |
47% |
| 80 |
1429 |
2863 |
190 |
| 4500 x 9000 |
50 |
5000 |
60% |
1439 |
2401 |
138 |
46% |
| 80 |
2059 |
3228 |
185 |
| 4500 x 12000 |
50 |
6000 |
65% |
1977 |
3198 |
141 |
46% |
| 80 |
2819 |
4277 |
189 |
Characteristics
1. Performance can be adjusted by altering the air-water ratio.
2. Required draft can be adjusted.
3. Low hull pressures.
4. Self-adjustment during tidal variation.
5. Low installation and maintenance cost.
Applications
● Submarines
● Catamaran
● Fast ferry
● Semi-submersible drilling platform
Advantages
◆ US navy, ISO17357 and PIANC standard.
◆ High-quality rubber and H.D.G. accessories.
◆ Easy to move, providing berthing flexibility.
◆ Almost no maintenance requirements.
◆ Not affected by extreme climatic conditions.
◆ Facilitate transportation and provide emergency berthing facilities.
Inspection & Certificate
We use modern technology to design and manufacture, and through rigorous field testing. The following tests are to be conducted:
- Rubber performance test including tensile, ozone and abrasion test.
- Energy absorption and reaction test.
Our QC department will inspect each product and offer FACTORY INSPECTION REPORT before delivery. We can also invite the third party inspection agencies including CCS, ABS, BV, LR, DNV-GL to inspect and offer certificates according to customer requirements.
Inspect items as below:
1. Rubber tensile, ozone and abrasion test.
2. Rubber fender energy absorption and reaction test.
Packing & Delivery
Main Points--"PEEE", Professional, Efficient, Economical and Environmental.
Duo to our products are large size and heaviness, normal we do not use packaging during shipping in order to reduce costs. So the professional packing skills are crucial, not only it need to protect our products, but also need to protect the containers, vehicles and personnel. Our core strength comes from years of work experience and a responsible attitude.
